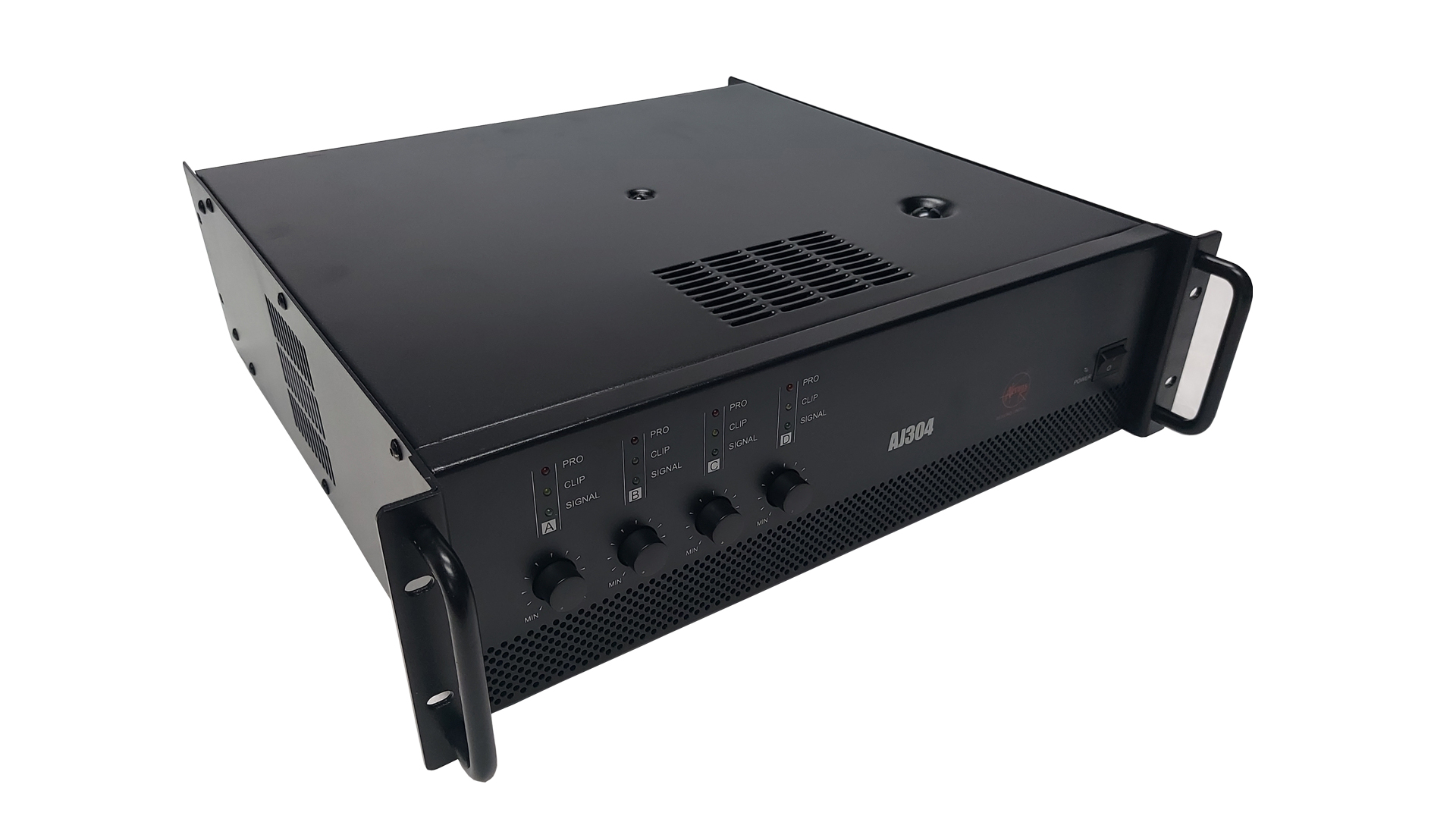

AJ304

  • RMS Output Power(Per Channel,8Ω): 4X140W
  • RMS Output Power(Per Channel,4Ω): 4X240W
  • Rated Power(Bridge 8Ω): 480W



     WHATSAPP CATALOG AND PRICE



AJ304

  • - Precise Power, Signal, Clip LEDs to monitor performance
  • - Neutrik XLR  for compatibility with any source.
  • - “touch-proof” binding posts support most speaker wiring systems.
  • - High-current toroidal transformer for ultra-high transient response and absolute reliability.
  • - Ultra-reliable Onsemi power transistors.
  • - “Built like a tank” impact-resistant, high strength rear ear with aluminum front panel.
  • - “Back to front” ventilation system including air filters for reliable operation.
  • - Independent DC and thermal protection on each channel automatically protects the amplifier and oped without shutting down the show.
  • - High-quality components and exceptionally rugged construction ensure long life.
  • - Works perfect even at low voltage “Make for India”
  • - Conceived and Designed by AERONS INDIA, India.

AJ304

Rated Power (1 KHz, THD+N=0.1%)

8Ω stereo   4x160W



4Ω stereo   4x240W





8Ω bridge   480W



Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz(±1dB)

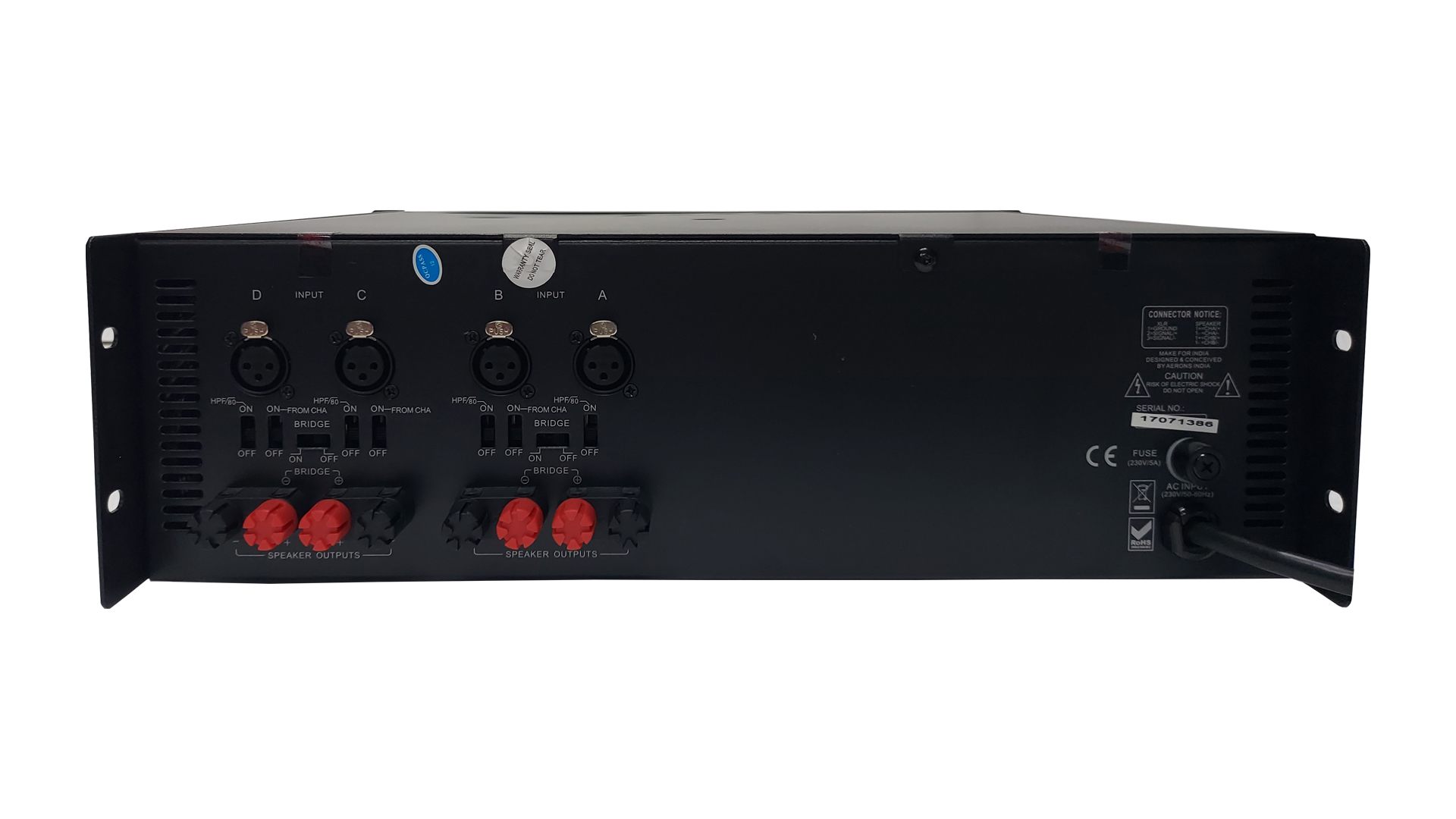

Input connectors

female XLR (Neutrik®)

Output connectors

Binding post

Input Impedance

Balanced            20K

Unbalanced       10K

Crosstalk (20Hz~20KHz Rated Power 8Ω)

≥50dB



Intermodulation Distortion

≤0.5%



Total Harmonic Distortion        (20Hz~20KHz Rated Power, 80)

≤0.3%



Phase Response (1W, 80 20Hz~20KHz)

±30°



S/N ratio (8Ω, Rated Power 8Ω)

≥95dB



Damping Factor (1KHz, 89)

≥300

Dimension (W x H x D)

482x132x448.5 mm



Gross Weight

21.5kg
