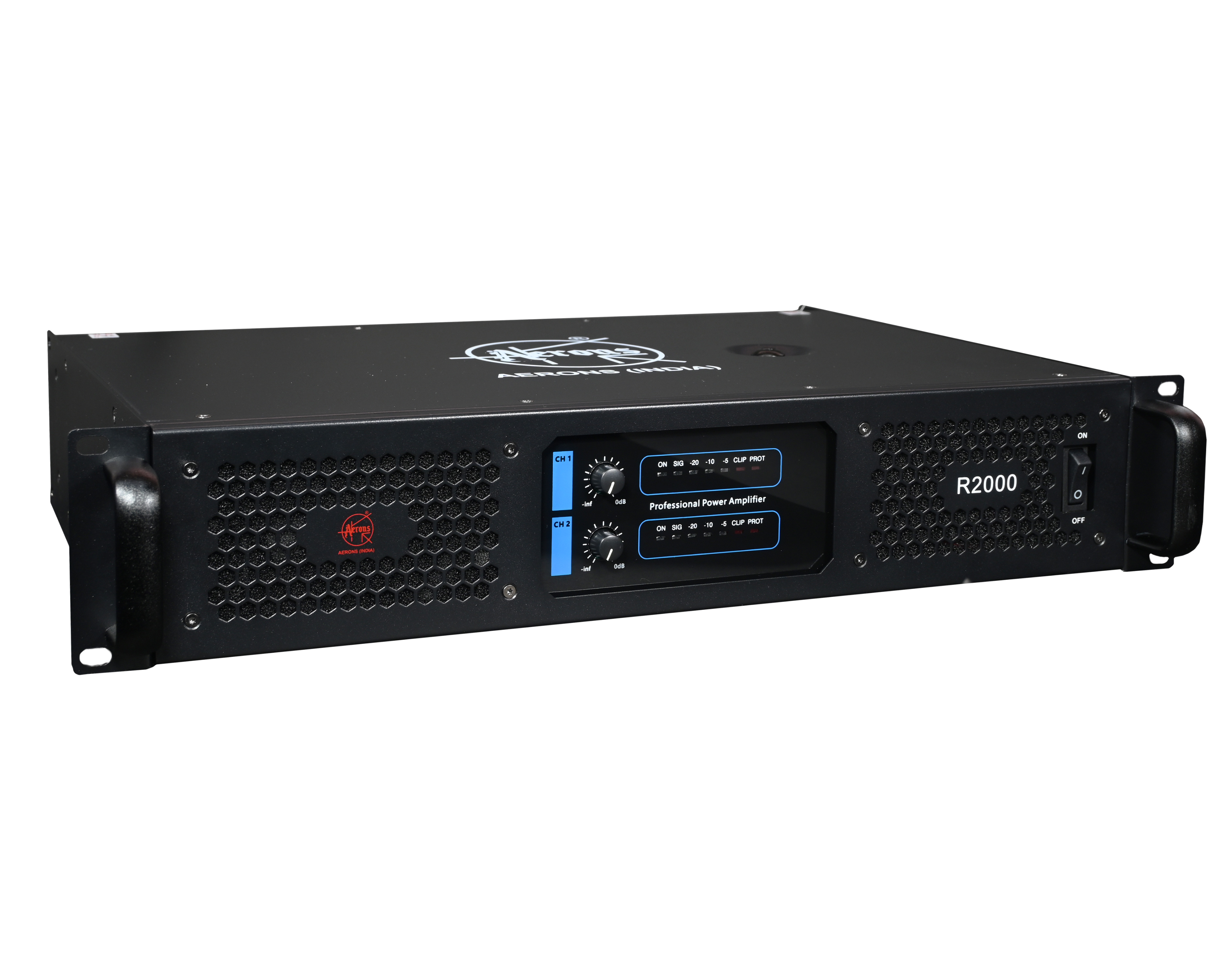

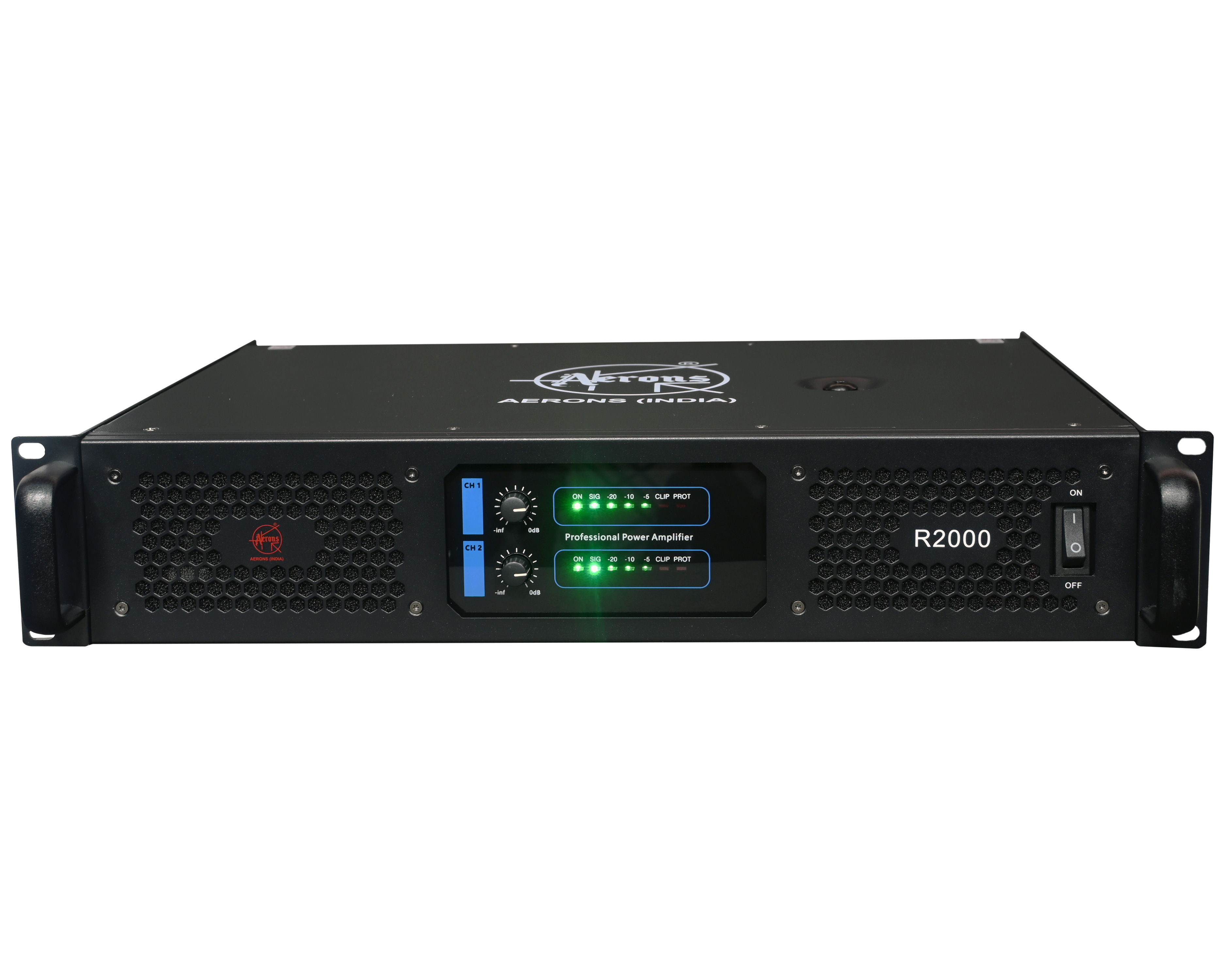

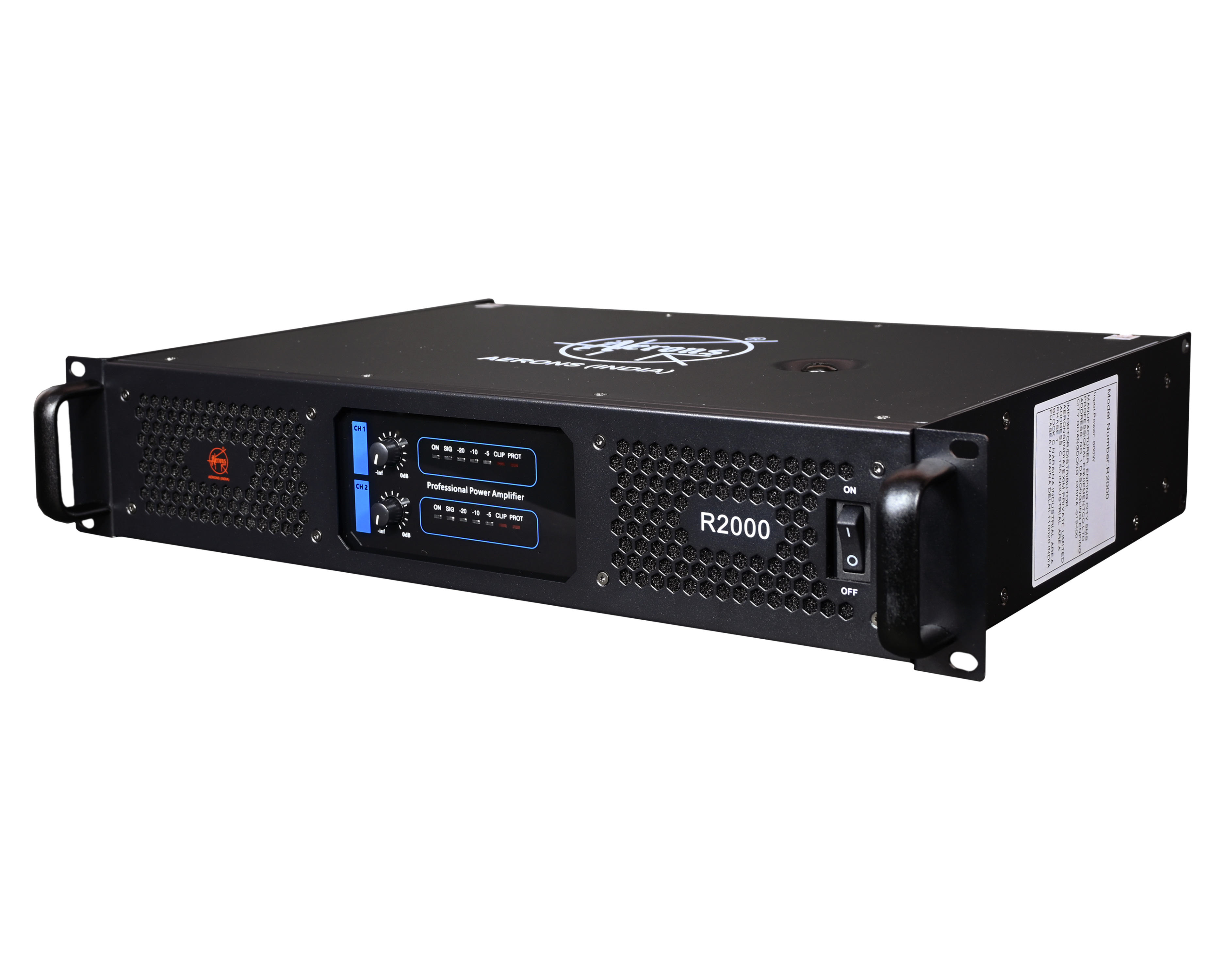

R2000 is the most cost-effective transformer power amplifier which is suitable for small to middle-sized performances. Adopts mature Class AB circuit layout, R2000 is of high stability and reliability. The clean and clear sound performance makes R2000 can perform various functional requests for most applications without distortion. Multiple protections and innovative heat radiation ensure R2000 amplifier can work for the long term but with low failure.
♦ Full range power models available, which is convenient for you to build up a sound system.
♦ Good quality toroidal transformer, for further reliability even at high and low voltage.
♦ Excellent heat radiation creates high efficiency.
♦ Multiple protection features: DC/Short Circuit/High Temp/Overload/Soft start-up/CLIP/VHF
♦ The slew rate is more than lSV/µs. Again, this ensures a very nice sound. Even for the fastest and strongest music signal. It can deliver well without losing any signal.

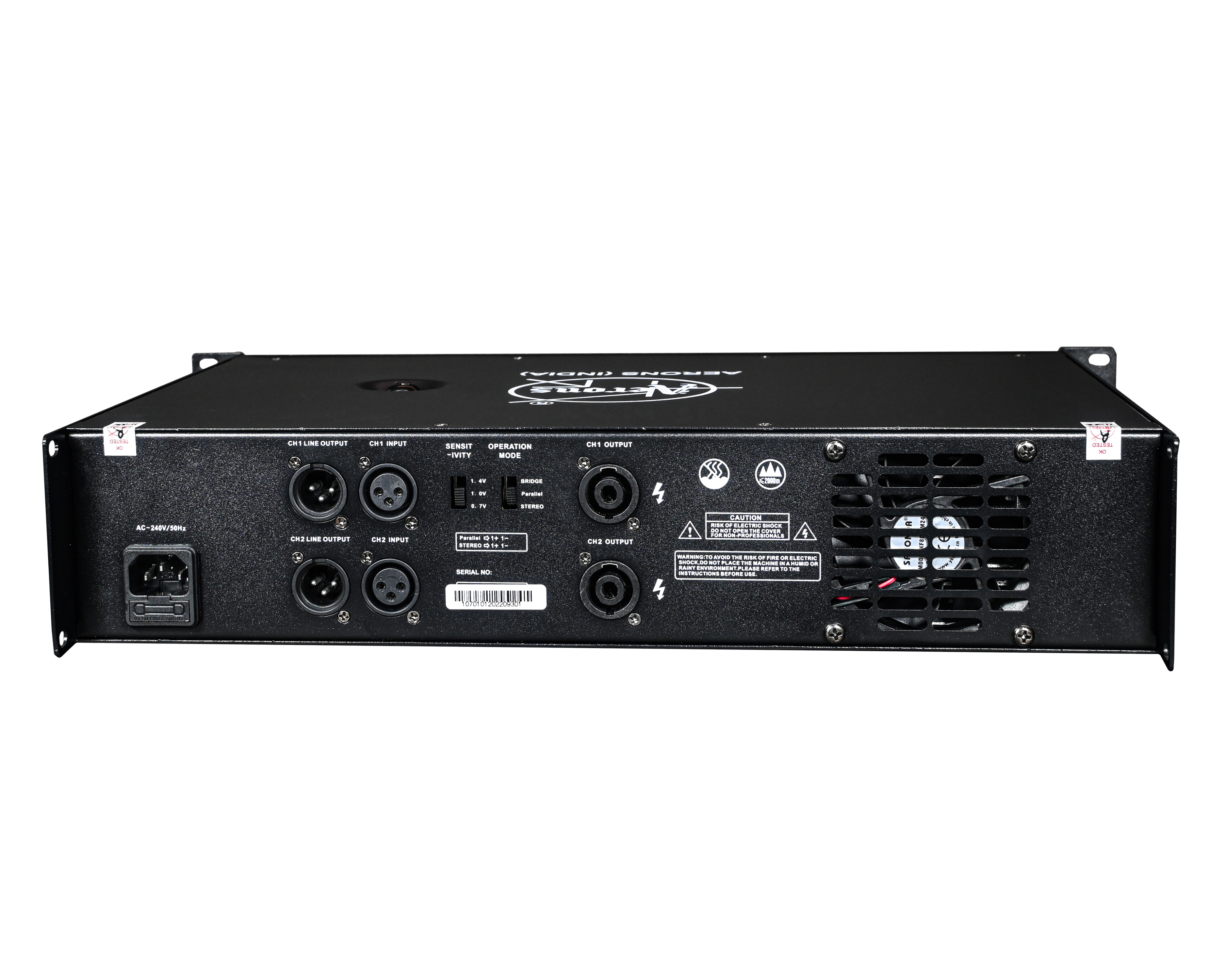

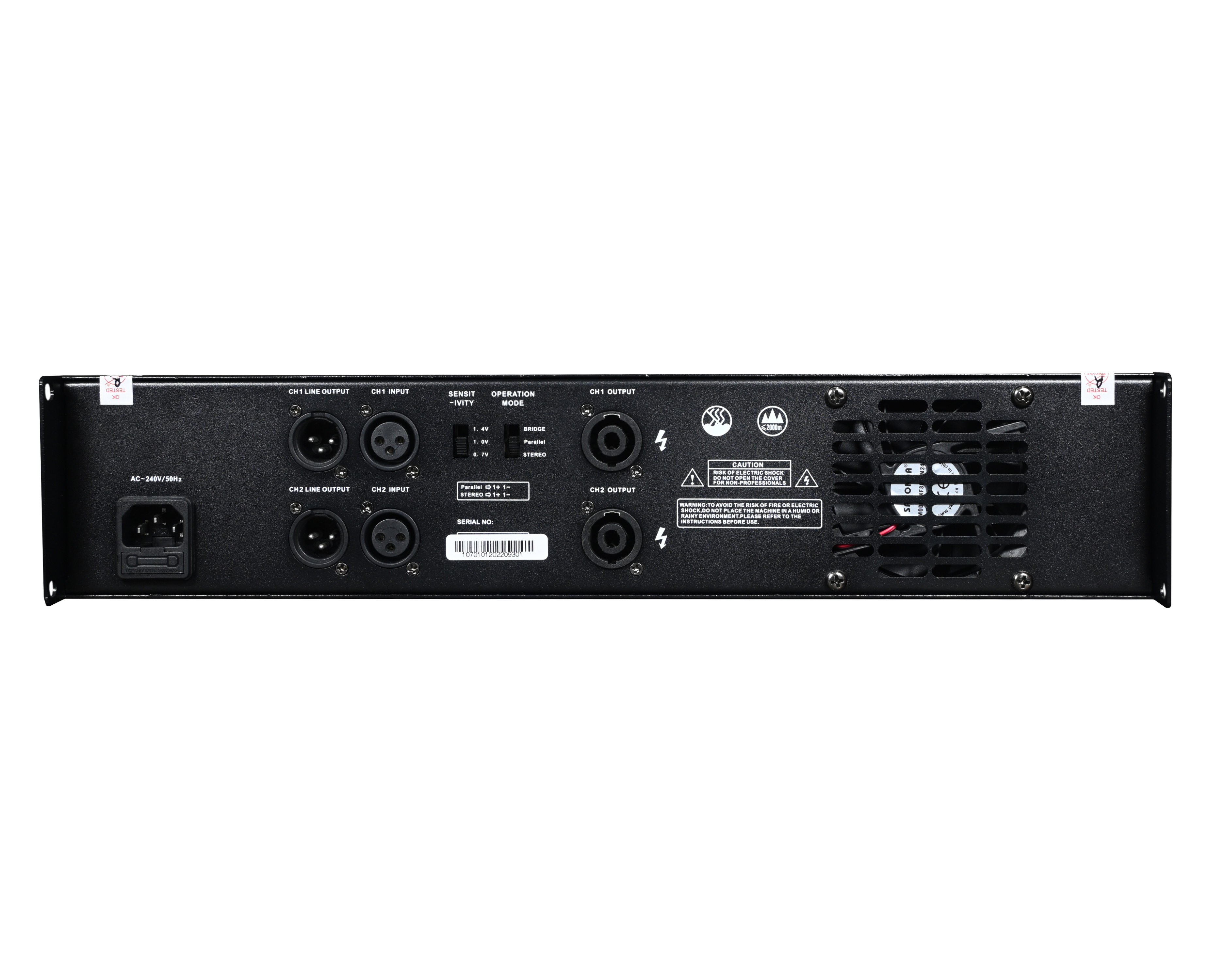

♦ Routing mode selector (stereo/bridge/parallel) on the rear panel.
♦ High dynamic range and low distortion, sound clean and clear.
Rated Power (1 KHz, THD+N=0.1%)
|
8Ω stereo |
2x600W |
4Ω stereo |
2x850W |
|
8Ω bridge |
1560W |
|
Frequency Response (1W 8Ω stereo) |
20Hz ̴ 20KHz(±2dB) |
|
Sensitivity (8Ω stereo @1Khz) |
0.775V/1V/1.4V |
|
Mode |
Stereo/Parallel/Bridge |
|
Fan Speed Regulation |
Auto-speed |
|
Connectors (Each channel) |
Input connectors |
XLR (Neutrik®) |
Output connectors |
Speakon (Neutrik®) |
|
Filter Capability |
120V 10000uFx4 |
|
Input Impedance |
Balanced |
20K |
Unbalanced |
10K |
|
Channel separation (8Ω load, 1KHz and below) |
≥65dB |
|
Slew Rate |
≥15V/µs |
|
S/N ratio (8Ω, Rated Power 8Ω) |
≥97dB |
|
Damping Factor (1KHz, 8Ω) |
≥160 |
|
Power consumption |
1600W |
|
Output Circuitry |
Class AB |
|
Dimension (W x H x D) |
482x335x89 mm |
|
Nets Weight |
15.04Kg |
