• RMS Output Power(Per Channel,8Ω): 2X800W
  • RMS Output Power(Per Channel,4Ω): 2X1200W
  • RMS Power(Bridge 8Ω): 1X 2400W
  • Output Circuity: CLASS H

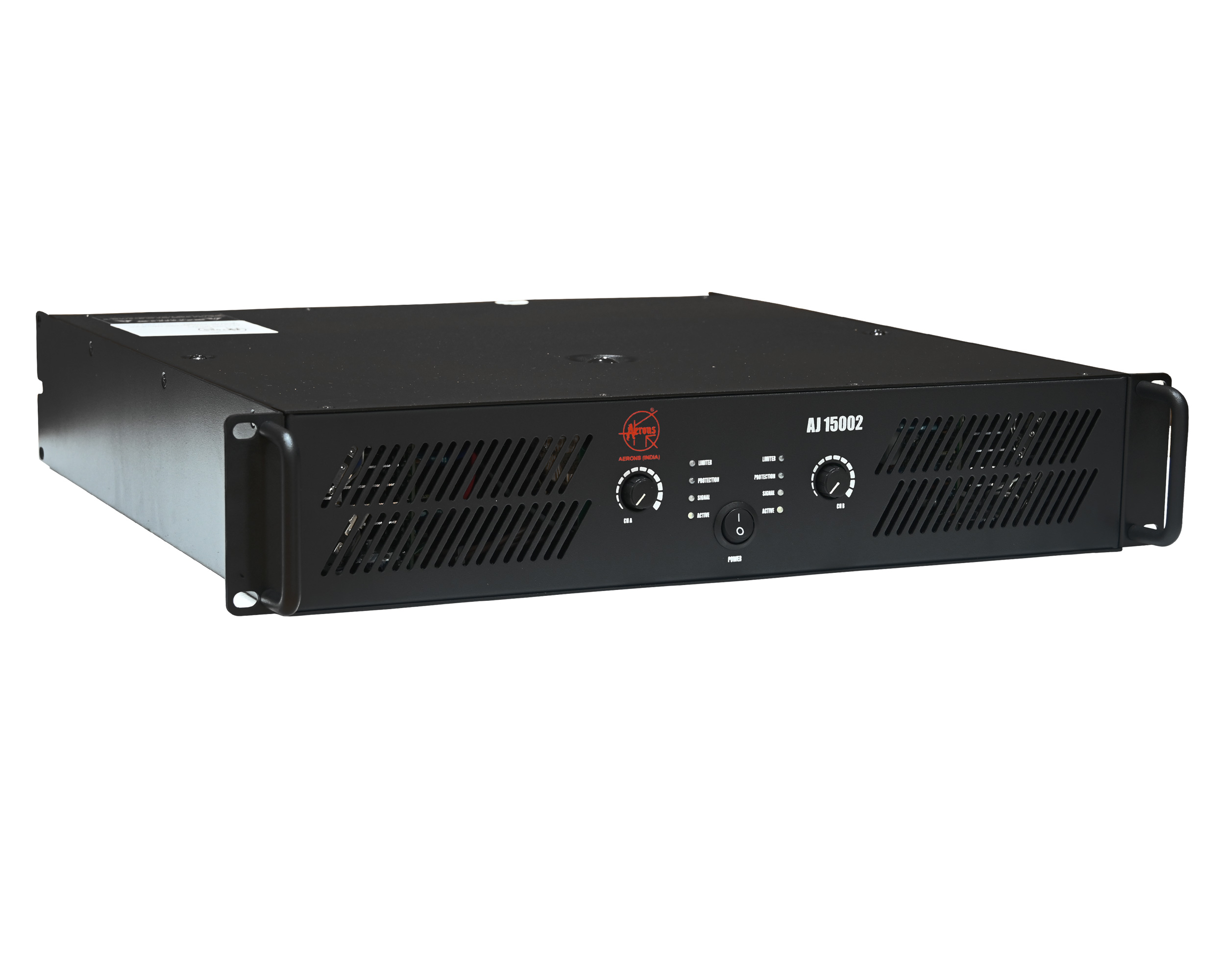

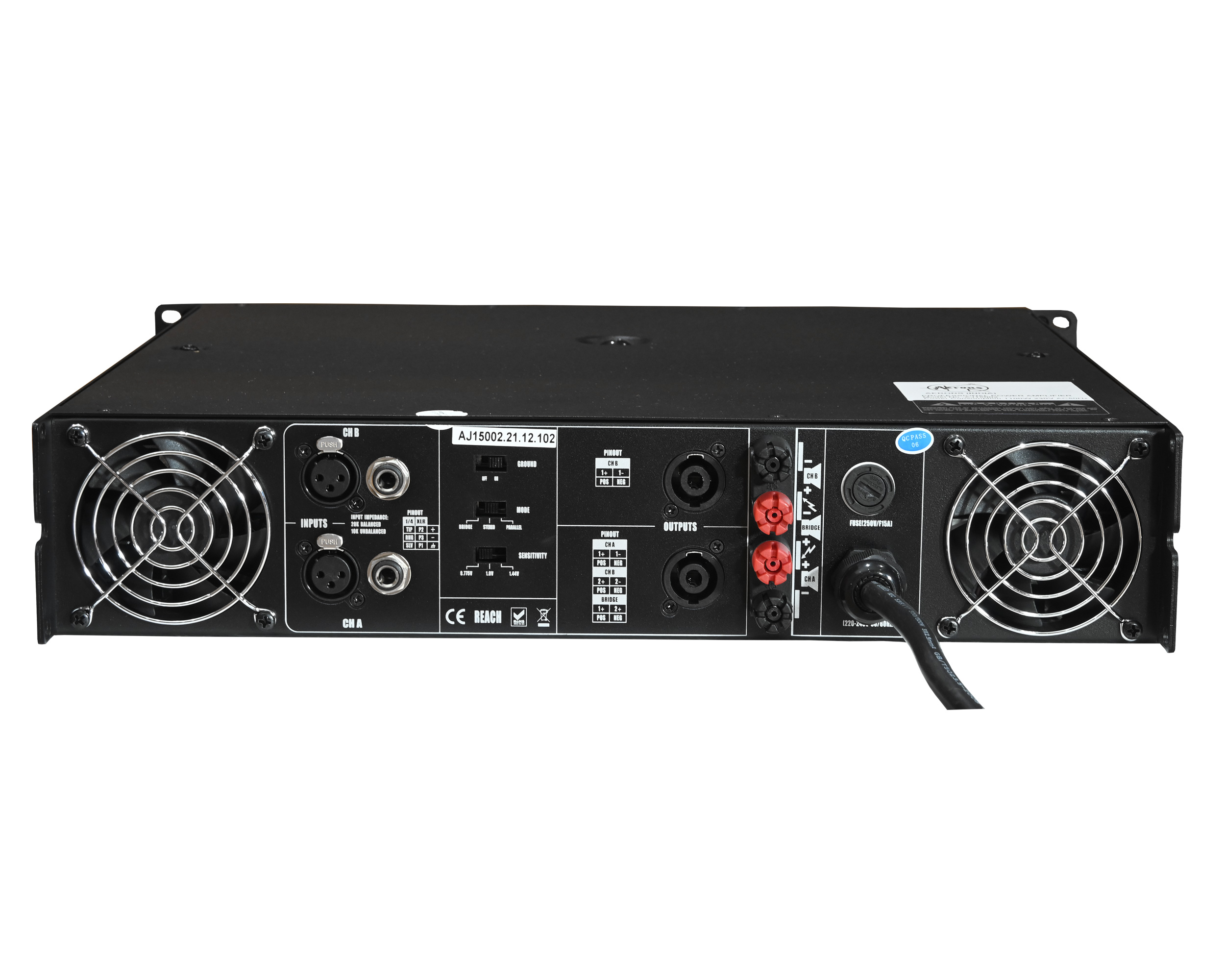

AJ15002 is a two-channel power amplifier meticulously designed for the professional market. It adopts a class H+ circuit design to eliminate the common Class H cross-switching distortion.
High-quality and sophisticated materials and craftsmanship ensure the high fidelity and high damping factor of Aj15002. It can be used to drive various high-power speakers and monitor
speakers that have critical requirements for high-frequency performance. It is widely used in fixed installations such as KTV, bars, nightclubs, multi-function halls, and DJs.

Unique Linear Limiter Protection Circuit (LXTM circuit)
The protection value of the LXTM linear limiter protection circuit can reach 8V. It can track the dynamics of
temperature, power, and frequency in time and adjust the limiter strength automatically to ensure that the
the system always runs in a safe environment and ensures the dynamic effect of the entire audio system.

Unique and Efficient Crosstalk Shielding Design
When designing and selecting components in R & D stage, the anti-interference ability of the circuit was
fully considered. Aj15002 will not be interfered with by peripheral electronic equipment, which effectively solves
the headache of crosstalk.

Perfect Protection System
Limiter protection/ Soft-start protection/DC protection/Short-circuit protection/Overheat protection/Output
overload protection

Class H+ Circuit Design Eliminates Cross-Switching Distortion AJ15002
Adopts the latest Class H+ circuit to eliminate the Class H cross-switching distortion. The result is the same
low distortion as the Class AB circuit design. AJ15002 has less than 0.1% THD at 16KHz and the sound is
so clean and natural.


Dynamic Power (1 KHz, THD+N=1%)


2x 1000W (8Ω stereo)

2 x1500W (4Ω stereo)

1x 3000W (8Ω bridge)

Rated Power (1 KHz, THD+N=0.1%)


2x 800W (8Ω stereo)

2 x1200 W (4Ω stereo)

1x 2400W (8Ω bridge)

Total harmonic distortion 8Ω & 20Hz-20kHzhalf power

≤ 0.1%

Slew rate

≥ 25 V/uS

Frequency response1W 8Ω stereo

20 Hz-20kHz ± 0.5dB



Damping1kHz &8Ω

≥ 300

Signal-to-noise ratio (A-weighted, rated power 8Ω)

≥ 100dB

Crosstalk (1kHz, rated power 8Ω)

≥ 60 dB

Input impedance

Unbalanced 10kΩ , balanced 20kΩ

Output circuitry

Class H+


DC protection/short circuit protection/overheat protection/
output overload protection/soft start protection

Dimension (WxHxD)

483 x88x445mm

Net weight
