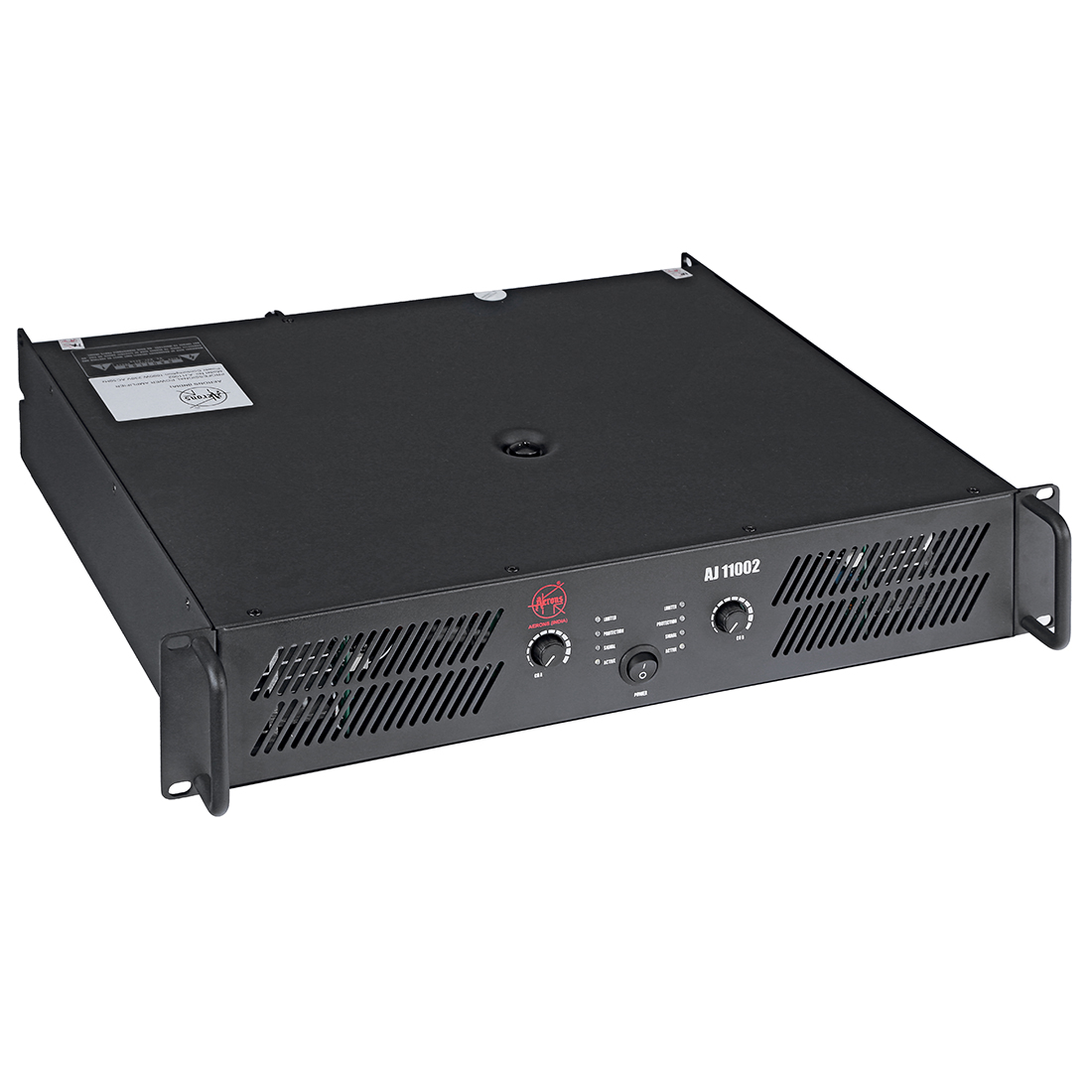

AJ11002 is a class AB two-channel power amplifier elaborately designed for the professional market. With a modular and compact design, elegant outlook, precise and comprehensive protection system, excellent sound performance, and high performance-price ratio, it ensures very good profit margins for our business partners.
Features
Unique Linear Limiter Protection Circuit (LXTM circuit)
The protection value of the LXTM linear limiter protection circuit can reach 8V. It can track the dynamics of temperature, power, and frequency in time and adjust the limiter strength automatically to ensure that the system always runs in a safe environment and ensures the dynamic effect of the entire audio system.
Unique and Efficient Crosstalk Shielding Design
When designing and selecting components in the R & D stage, the anti-interference ability of the circuit was fully considered. AJ11002 will not be interfered with by peripheral electronic equipment, which effectively solves the headache of crosstalk.
Perfect Protection System
Limiter protection/ Soft-start protection/DC protection/Short-circuit protection/Overheat protection/Output overload protection
Dynamic Power (1 kHz, THD+N=1%)
8Ω stereo 2x700W
4Ω stereo 2x1100W
8Ω bridge 1x2200w
Rated Power (1 kHz, THD+N=0.1%)
8Ω stereo 2x600W
4Ω stereo 2x900W
Protection
DC protection √
Short Circuit Protection √
High-temperature protection √
Output overload protection √
Soft start-up protection √
Frequency Response (1W 8Ω stereo)
20Hz ̴ 20KHz(±0.5dB)
Mode
Stereo/Parallel/Bridge

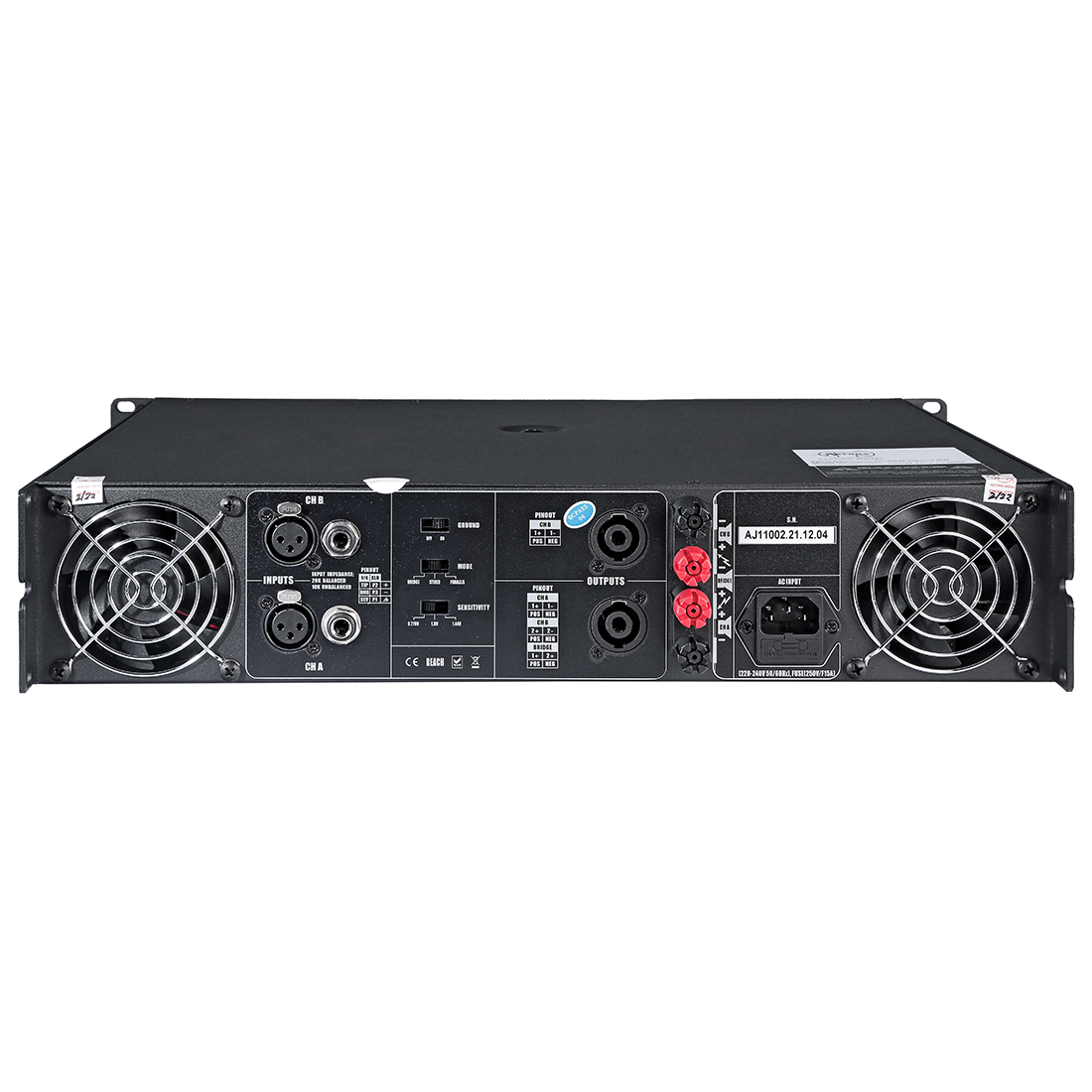

Connectors (Each channel)
Input connectors
Female XLR (Neutrik®) + Jack
Output connectors
Binding post + Speakon
Input Impedance
Balanced 20K
Unbalanced 10K
Crosstalk (1 kHz, Rated Power 8Ω)
≥60dB
Intermodulation Distortion
≤0.1%
Total Harmonic Distortion (20Hz~20KHz Rated Power, 8Ω)
≤0.1%
Slew Rate
≥ 25V/µs
S/N ratio (8Ω, Rated Power 8Ω)
≥100dB
Damping Factor (1KHz, 8Ω)
≥200
Output Circuitry
Class AB
Dimension (W x H x D)
483x88x375 mm
Net Weight
16kg
