R5200

  • RMS  Power (Per Channel,8Ω): 1200W
  • RMS  Power (Per Channel,4Ω): 2000W
  • Rated Power (Bridge 8Ω): 4000W
  • Output Circuity: CLASS TD
  •  WHATSAPP CATALOG AND PRICE

R5200

R5200 is the most cost-effective transformer power amplifier which is suitable for small to middle-sized performances. Adopts mature Class TD circuit layout, R5200 is of high stability and reliability. The clean and clear sound performance makes R5200 can perform various functional requests for most applications without distortion. Multiple protections and innovative heat radiation ensure R5200 amplifier can work for the long term but with low failure.

FEATURES

♦    Full range power models available, which is convenient for you to build up a sound system.
♦    Good quality toroidal transformer, for further reliability even at high and low voltage.
♦    Excellent heat radiation creates high efficiency.
♦    Multiple protection features: DC/Short Circuit/High Temp/Overload/Soft start-up/CLIP/VHF
♦    The slew rate is more than lSV/µs. Again, this ensures a very nice sound. Even for the fastest and strongest music signal. It can deliver well without losing any signal.

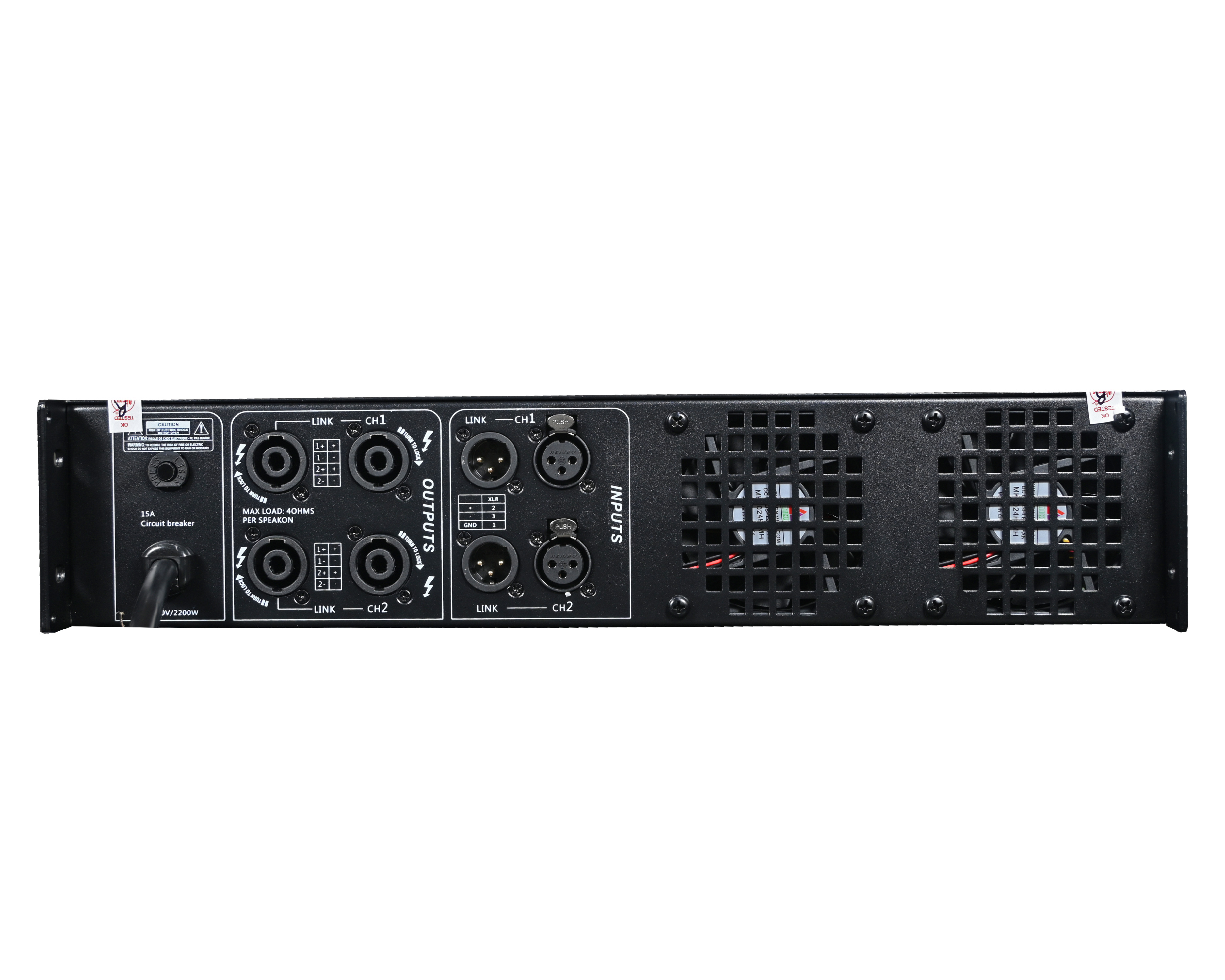

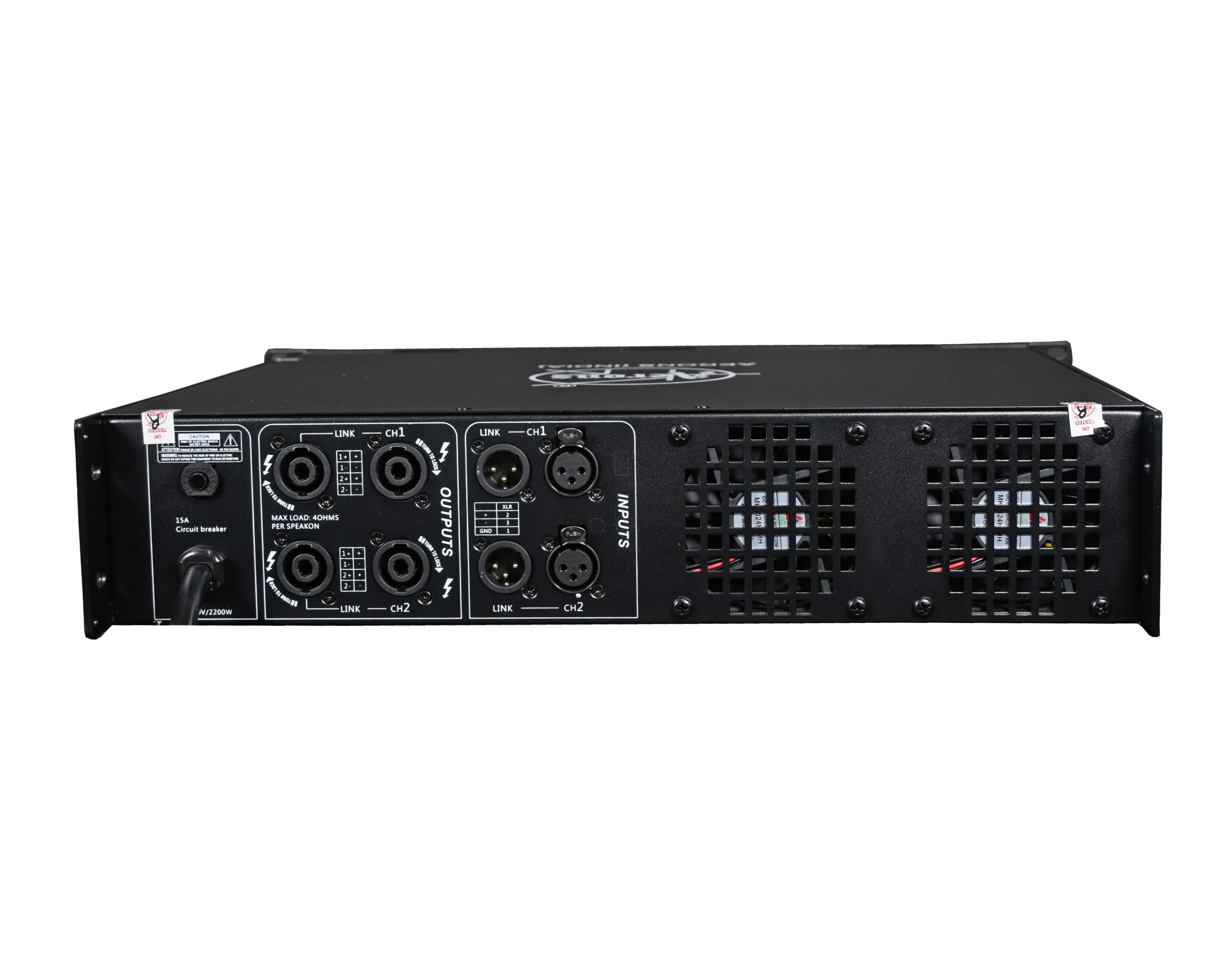

♦    Routing mode selector (stereo/bridge/parallel) on the rear panel.
♦    High dynamic range and low distortion, sound clean and clear.

♦    R5200 supports direct Speakon Parallel output on rear panel.



R5200

Rated Power (1 KHz, THD+N=0.1%)



8Ω stereo

2x1200W

4Ω stereo

2x2000W

8Ω bridge

4000W

Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz(±2dB)

Sensitivity (8Ω stereo @1Khz)

1.4V

Mode

Parallel

Fan Speed Regulation

Auto-speed

Connectors (Each channel)

Input connectors

XLR (Neutrik®)

Output connectors

Speakon (Neutrik®)

Filter Capability

120V 15000uFx4

Input Impedance

Balanced

20K

Unbalanced

10K

Channel separation (8Ω load, 1KHz and below)

≥70dB

Slew Rate

≥15V/µs

S/N ratio (8Ω, Rated Power 8Ω)

≥95dB

Damping Factor (1KHz, 8Ω)

≥250

Power consumption

2200W

Output Circuitry

Class TD

Dimension (W x H x D)

482x450x89 mm

Nets Weight

20.6Kg
