Rated power (1KHz, 1%THD+N)

2x1000W @ 8Ω Stereo

2x1600W @ 4Ω Stereo

2x2000W @ 2Ω Stereo

3200W @ 8Ω Bridged Mono

4000W @ 4Ω Bridged Mono

DSP

24bit, 48KHz sampling rate

DSP Function

Recall Pre-set, Work Mode (Stereo,

Parallel Bridge Mono), X-Over (HPF,

LPF), EQ (PEQ, LSLV, HSLV), Delay

(0~16.5mS), Phase (0°, 180°), Limiter

(Compressor, Limiter), Store Pre-set

Frequency Response

(1W 8Ω stereo)

20Hz-20KHz(±1.5dB)

Tour Class Protection

DC protect, short circuit protect, High temperature protect, Current inrush

protect, Input overload protect, Soft

start-ups protect

THD+N (rated power,8Ω, 1kHz)

≤0.5%

SMPTE IMD

(Rated power, 8Ω,50Hz&7kHz)

≤0.5%

Damping Factor (1kHz, 8Ω)

400-800

Standard Input Sensitivity

(Rated power at 8Ω)

1V

Input impedance(balanced)

20KΩ

Input Impedance(unbalanced)

10KΩ

Hum and Noise

(A weighted -80dBW)

≥90dB

Crosstalk

(1kHz, rated power -3dB at 8Ω)

>60dB

Output Circuitry

Class H

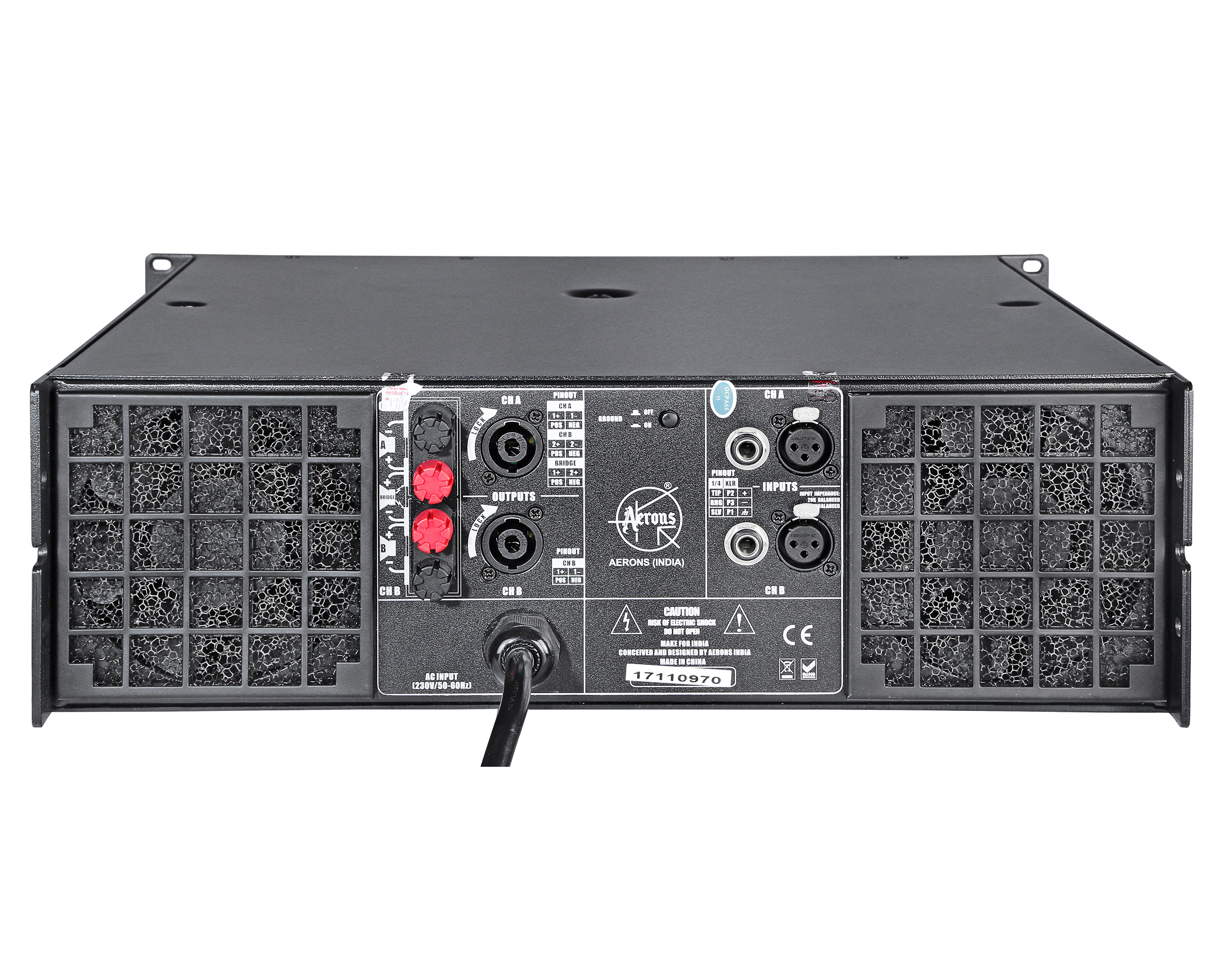

Input Connectors

NEUTRIK® Female XLR TRS

Output Connectors

2-way binding posts and NEUTRIK®

Speakon connectors

Idle Current Draw(230V)

230V/50-60Hz

Cooling

Two speed DC fan, air flow from rear to

front

LED Indicators

Power, Signal, Limiter, Protect

Dimension (WxHxD)

483x132x490mm

Gross Weight

37kg

Net Weight

33Kg
