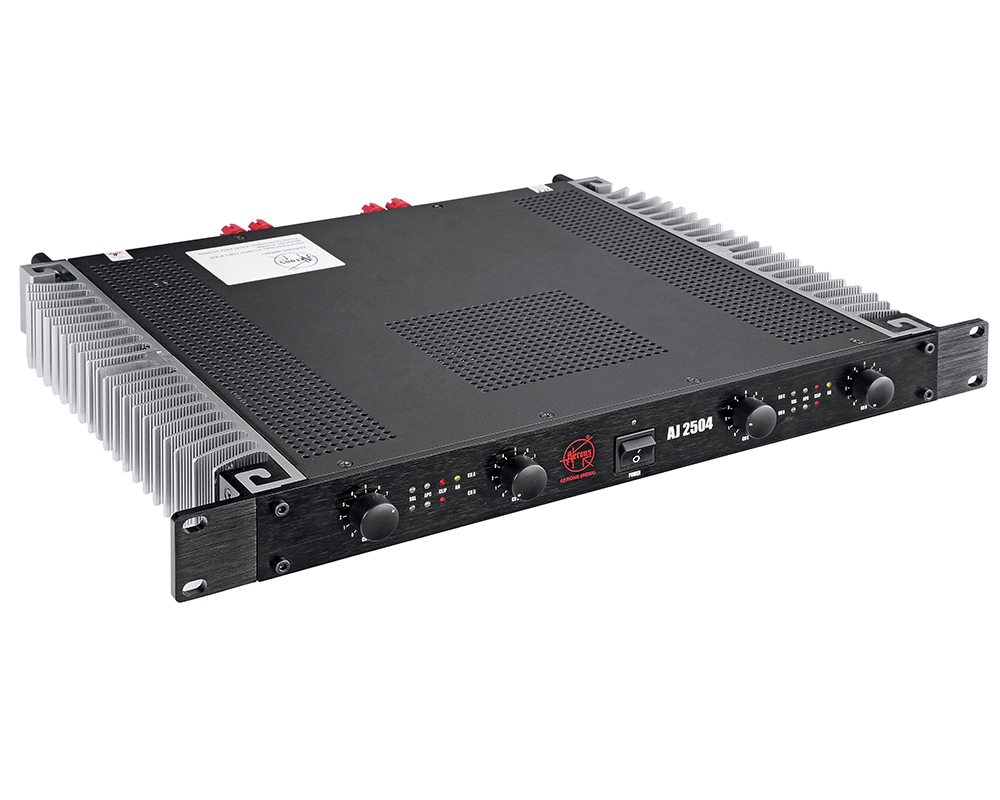

The AJ2504 versatile power amplifier is a convection-cooled power amplifier which makes this unit maintenance-free. The AJ2504 has no fan inside which ensures the amplifier works very silent and it stays dust-free.
The AJ2504 amplifier has 4 individual amplifier channels but can be bridged into 2 stereo channels or even a 2.1 sound system. Use two channels as subwoofer channels and drive your top loudspeakers with the two remaining channels and experience the purely musical power of AJ2504. It is just one of the ways in which you can use this quad amplifier.
The built-in APC Protection Technology allows you to preset the power potential of the amplifier. It constantly analyses incoming music signals and keeps the dynamics alive. An additional ultra-fast peak limiter avoids that the amplifier starts to clip or get distorted.
Dynamic Power (1 KHz, THD+N=1%)
8Ω stereo 4x150W
4Ω stereo 4x250W
8Ω bridge 2x500w
Rated Power (1 KHz, THD+N=0.1%)
8Ω stereo 4x100W
4Ω stereo 4x125W
Protection
DC protection √
Short Circuit Protection √
High temperature protection √
Output overload protection √
Soft start-up protection √
Frequency Response (1W 8Ω stereo)
20Hz ̴ 20KHz(±0.5dB)
Mode
Stereo/Mixed to Mono/Bridge

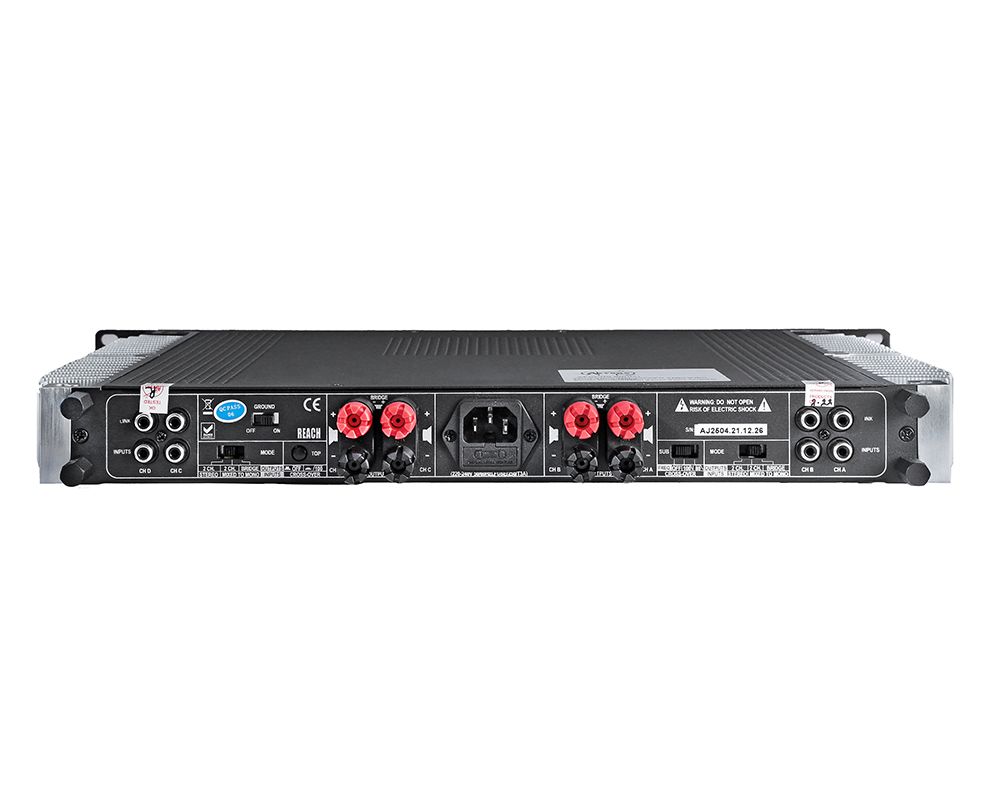

Connectors (Each channel)
Input connectors
RCA
Output connectors
Binding post
Input Impedance
Balanced 20K
Unbalanced 10K
Crosstalk (1 kHz, Rated Power 8Ω)
≥60dB
Intermodulation Distortion
≤0.1%
Total Harmonic Distortion (20Hz~20KHz Rated Power, 8Ω)
≤0.1%
Slew Rate
≥ 25V/µs
S/N ratio (8Ω, Rated Power 8Ω)
≥100dB
Damping Factor (1KHz, 8Ω)
≥200
Output Circuitry
Class AB
Dimension (W x H x D)
483x44x320 mm
Net Weight
7kg
