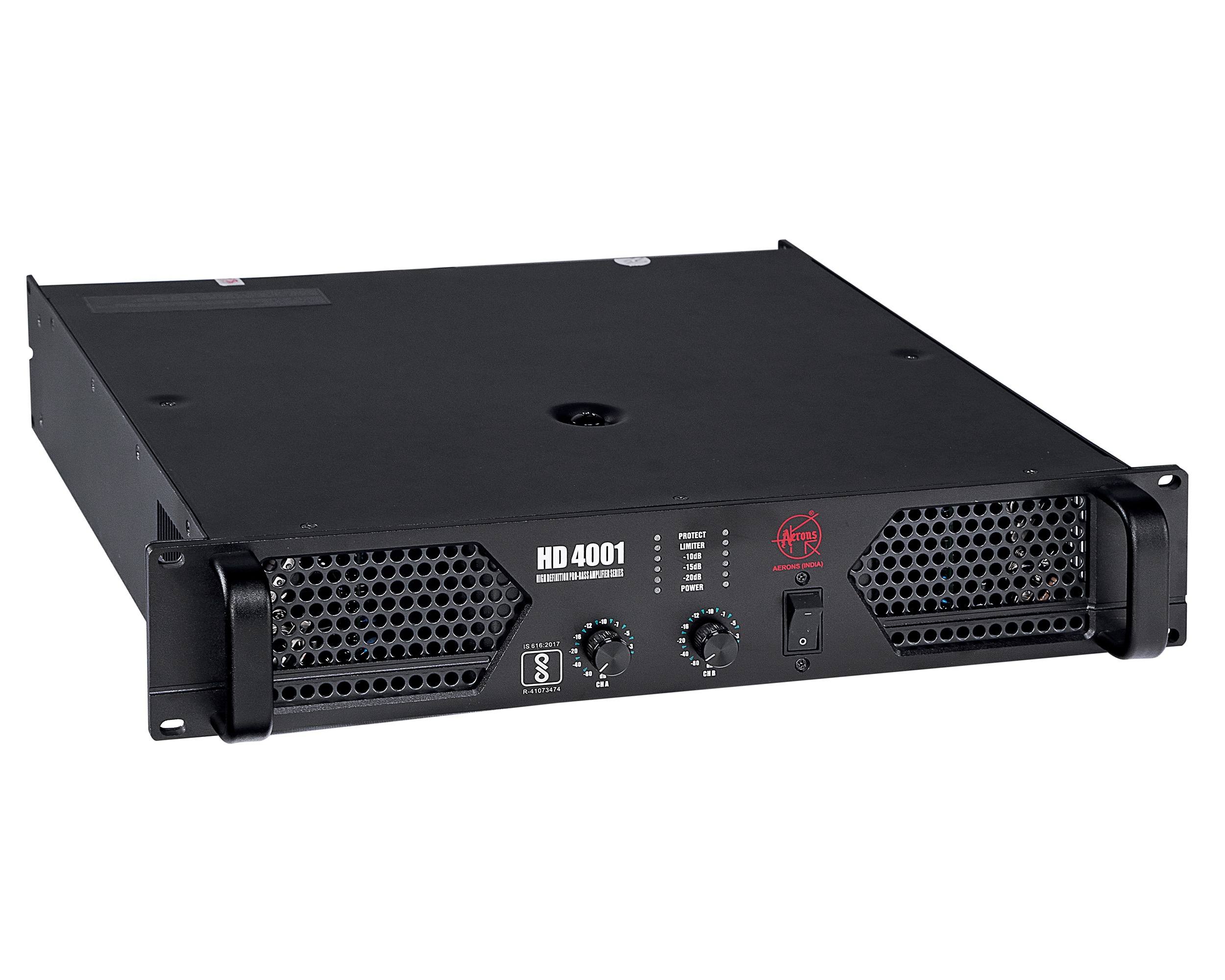

HD 4001

  • RMS  Power(Per Channel,8Ω): 2X600W
  • RMS  Power(Per Channel,4Ω): 2X1000W
  • RMS  Power(Per Channel,2Ω): 2X1300W
  • Rated Power(Bridge 8Ω): 2000W
  • Rated Power(Bridge 4Ω): 2600W
  • WHATSAPP CATALOG AND PRICE

HD 4001

  • - Precise Power, Signal, Clip LEDs to monitor performance
  • - Neutrik XLR and 1/4” TRS input connectors for compatibility with any source.
  • - Neutrik Speakon and “touch-proof” binding posts support most speaker wiring systems.
  • - Selectable Low-frequency filters (30Hz) remove distracting infra-sound frequencies.
  • - Independent limiters per channel offer reliable protection against overload and distortion.
  • - High-current toroidal transformer for ultra-high transient response and absolute reliability.
  • - Ultra-reliable Onsemi power transistors.
  • - “Built like a tank” impact-resistant, high strength rear ear with aluminum front panel.
  • - “Back to front” ventilation system including air filters for reliable operation.
  • - Independent DC and thermal protection on each channel automatically protects the amplifier and oped without shutting down the show.
  • - Carling switch Circuit breaker for safety.
  • - The lowest power consumption is less than 0.1A when working without load.
  • - High-quality components and exceptionally rugged construction ensure long life.
  • - Works perfect even at low voltage “Make for India”
  • - Conceived and Designed by AERONS INDIA, India.

HD 4001

Rated Power (1 KHz, THD+N=0.1%)

8Ω stereo   2x600W



4Ω stereo   2x1000W



2Ω stereo   2x1300W



8Ω bridge   2000W



4Ω bridge   2600W

Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz(±1dB)

Mode

Stereo/Bridge/Parallel

Input connectors

Jack & female XLR (Neutrik®)

Output connectors

Binding post & Speakon (Neutrik®)

Input Impedance

Balanced            20K

Unbalanced       10K

Input Sensitivity

0.775V, 36dB, 32dB

Crosstalk (20Hz~20KHz Rated Power 8Ω)

≥60dB

Intermodulation Distortion

≤0.5%

Total Harmonic Distortion        (20Hz~20KHz Rated Power, 80)

≤0.5%

S/N ratio (8Ω, Rated Power 8Ω)

≥105dB

Phase Response (1W, 8Ω 20Hz~20KHz)

+10° -70°

Damping Factor (1KHz, 89)

≥350

Dimension (W x H x D)

483x88x448 mm

Gross Weight

25.7Kg
