18CF1300
CARBON FIBER CONE

18CF1300

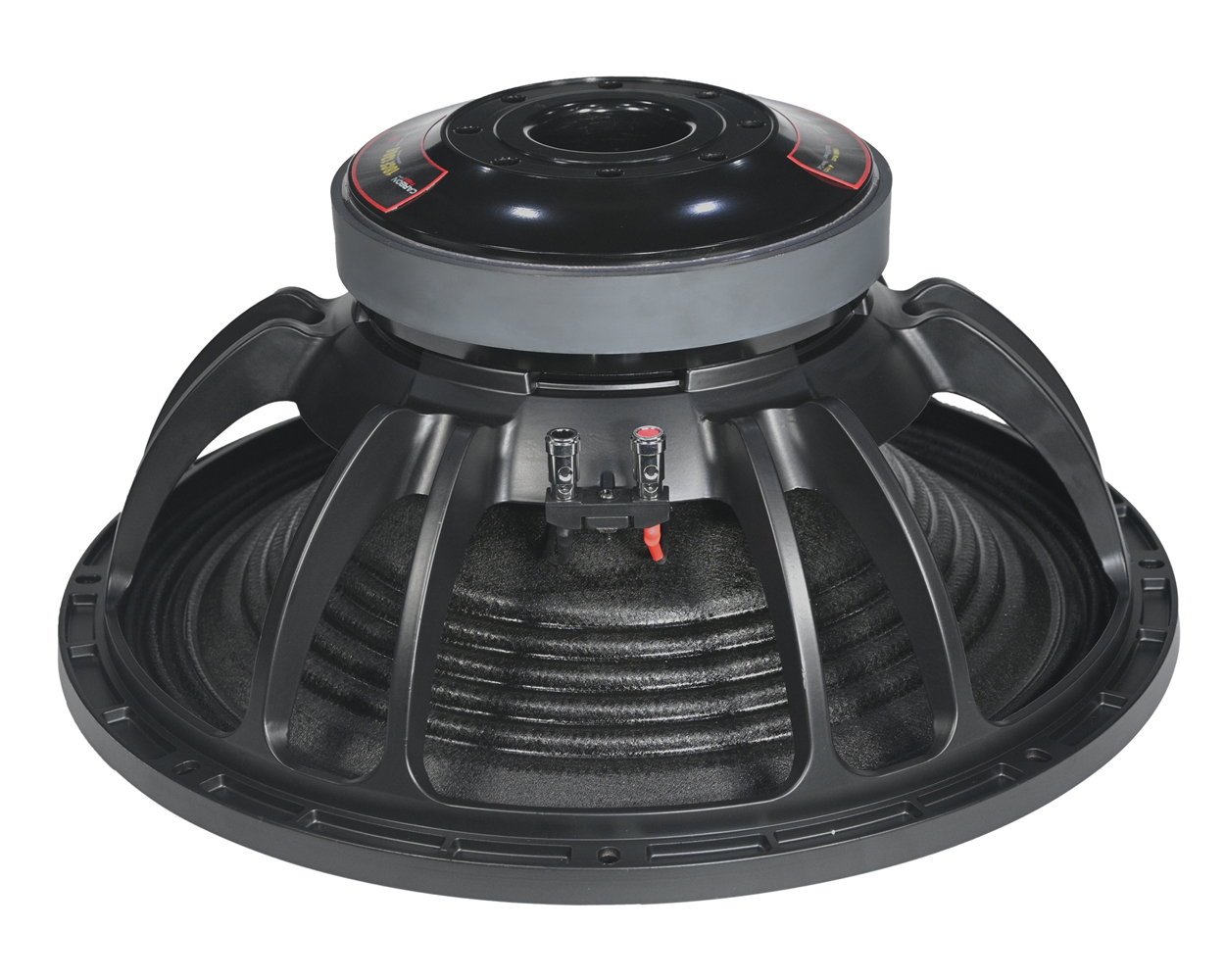

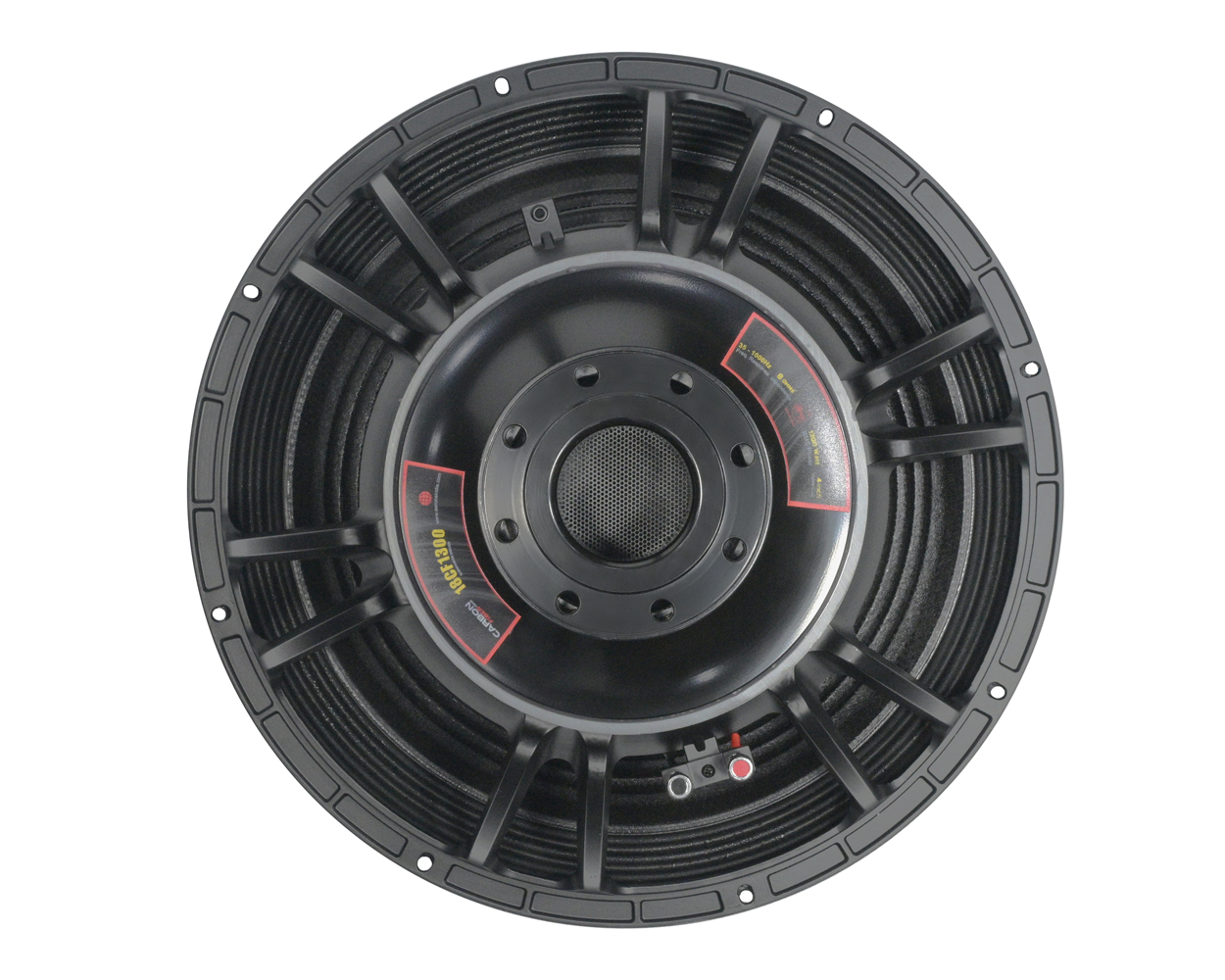

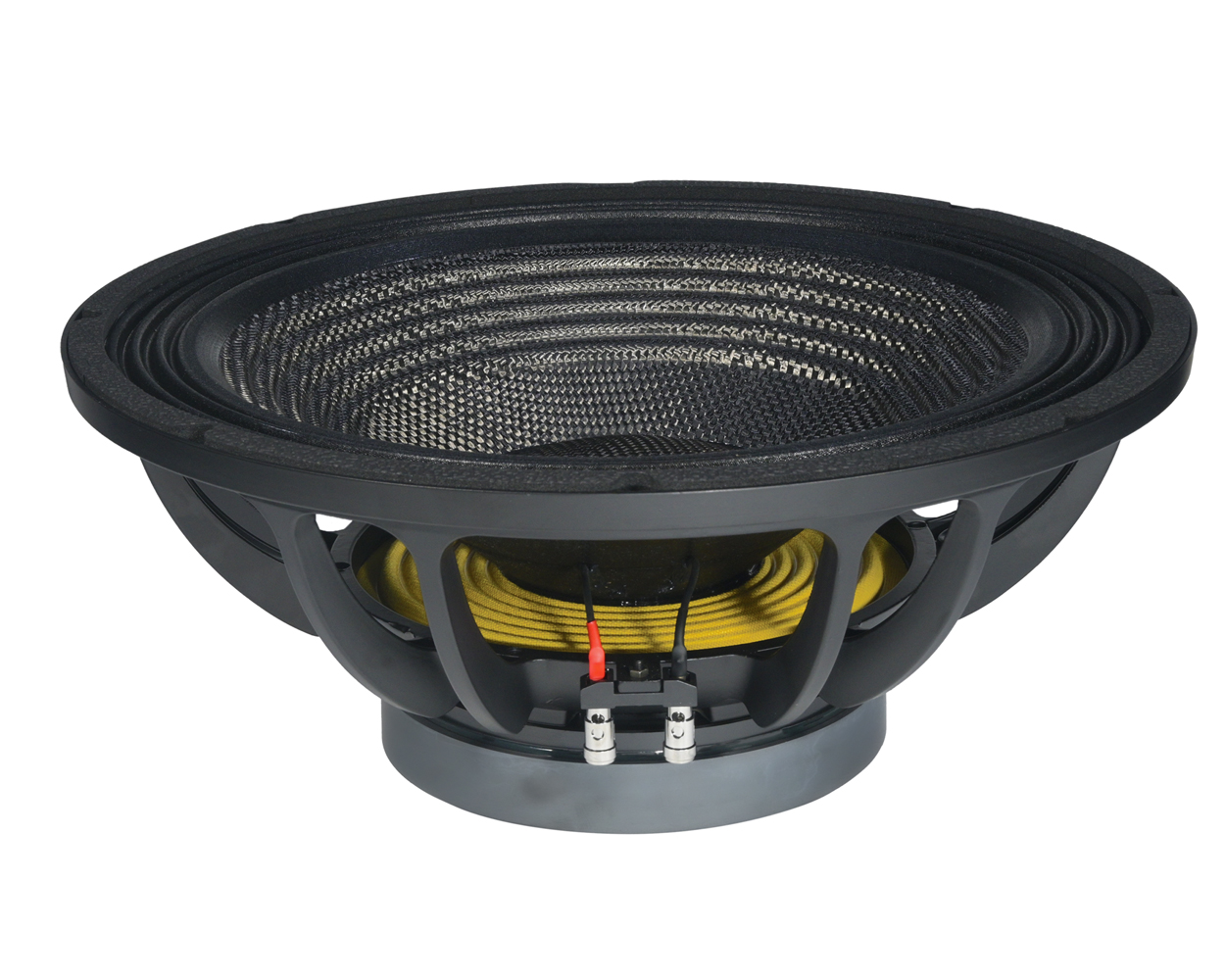

Introducing the Aerons India 18CF1300: a powerhouse subwoofer speaker designed to elevate your audio experience to new heights. With its cutting-edge technology and precision engineering, the 18CF1300 delivers unparalleled performance and fidelity, making it the perfect choice for enthusiasts and professionals alike.

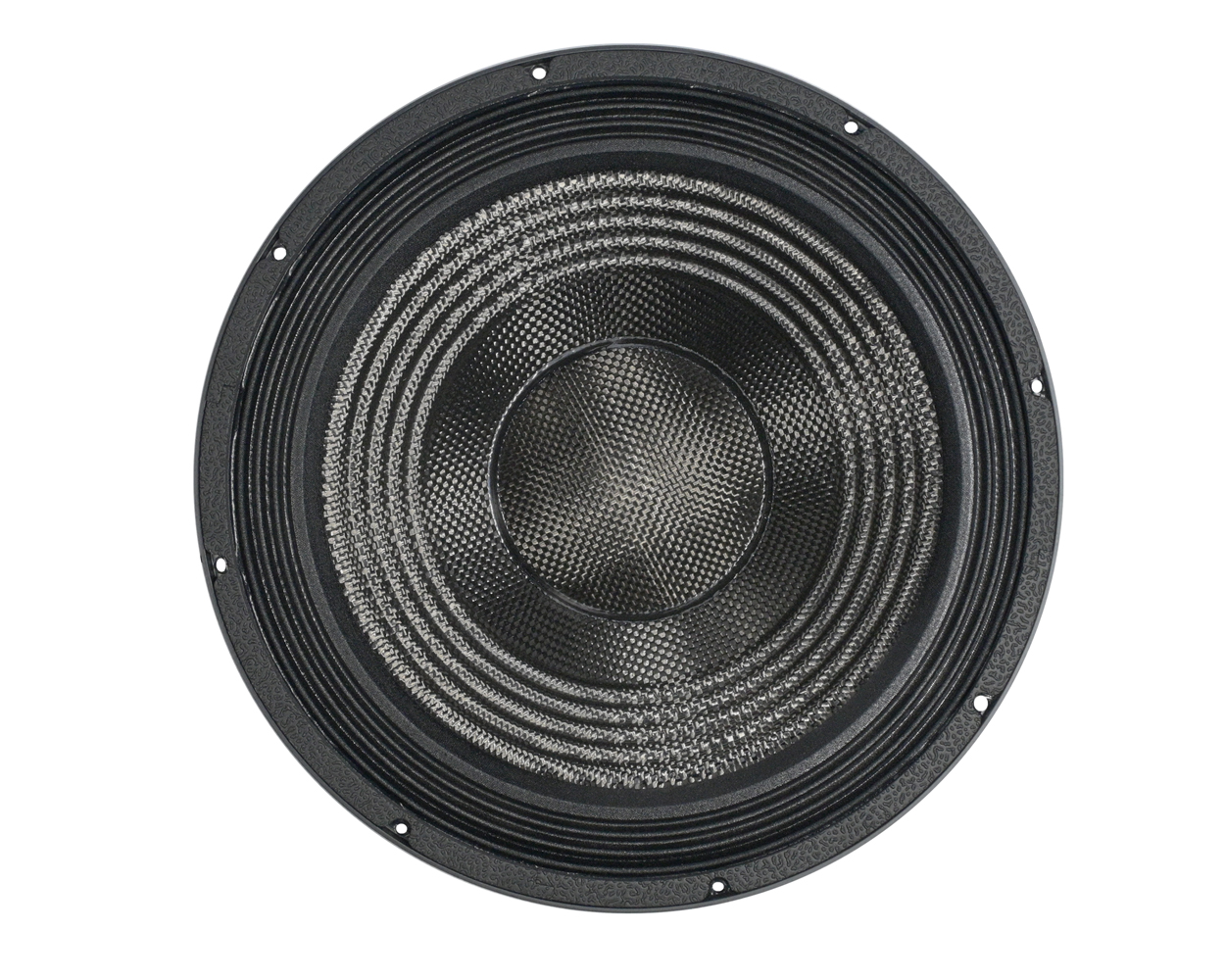

At the heart of the 18CF1300 lies its advanced carbon fiber cone. Crafted from high-quality materials, this cone is not only lightweight but also incredibly rigid, allowing it to reproduce bass frequencies with exceptional accuracy and detail. Whether you're listening to music, watching movies, or mixing tracks in the studio, the 18CF1300 ensures that every beat is felt and every note is heard with stunning clarity.

To complement its carbon fiber cone, the 18CF1300 features a robust 4-inch in/out copper voice coil. This coil is designed to handle high power levels while maintaining optimal performance, ensuring that the speaker can deliver deep, powerful bass without distortion or compression. Paired with a massive 220x30mm Y35 grade magnet, the 18CF1300 boasts impressive magnetic force, allowing it to move air with ease and fill any space with immersive sound.

With a formidable RMS power rating of 1300 Watts, the 18CF1300 is capable of delivering thunderous bass that shakes the room and captivates the listener. Its wide frequency range of 35Hz to 1000Hz ensures that no detail is missed, while its high sensitivity of 98dB guarantees impressive output levels with minimal power input.

Designed for durability and reliability, the 18CF1300 features an aluminum die-cast basket that provides exceptional strength and rigidity. This basket minimizes resonance and vibration, allowing the speaker to reproduce bass frequencies with precision and accuracy.

Whether you're a music enthusiast, a professional DJ, or a sound engineer, the Aerons India 18CF1300 is the perfect choice for all your bass needs. Elevate your audio experience with the 18CF1300 and discover a new level of clarity, power, and immersion.

18CF1300

GENERAL SPECIFICATIONS

Nominal Diameter

18inch

Nominal Impedance

8ohm

Minimum Impedance

5.5ohm

Nominal Power Handling

1300Watts

Continuous Power Handling

2600Watts

Sensitivity

98dB

Frequency Range

35-1000Hz

Voice-coil Diameter

100mm

Voice-coil Material

Copper

Voice-coil Winding Depth

26 mm

Effective Diaphragm Diameter

400Mm

Kind of layer

In/out

Number of layers

2

Top Plate Thickness

12mm

Spider

Polyester and cotton blended

Flux Density

1.1T

Magnet Diameter

220*30mm

Magnet Material

Ferrite

Magnet Grade

Y35

Magnet Gap Depth

12

THIELE SMALL PARAMETERS

Resonance Frequency

Fs

36.6Hz

DC Resistance

Rte

5.7ohm

Mechanical Factor

Qms

7.1

Electrical Factor

Qes

0.464

Total Factor

Qts

0.435

BL Factor

BL

24.1T-m

Effective Moving Mass

Mms

205.3gr

Equivalent Cas Air Load

Vas

206liter

Effective Piston Area

Sd

1.257 m’2

Max. Linear Excursion

Xmax

7mm

Half Space Efficiency

Eff

2.21%

Efficiency Bandwidth Product

EBP

79

Compliance Value

Cms

0.017

MOUNTING AND SHIPPING INFORMATION

Overall Diameter

460mm

Buffer Cut-out Dia.

422mm

Bolt Circle Dia.

440mm

Bolt Hole Dia.

7.0mm

Gasket Thickness

10mm

Overall Depth

208mm

Magnet Dia.

220mm

Net Weight

17 kg
