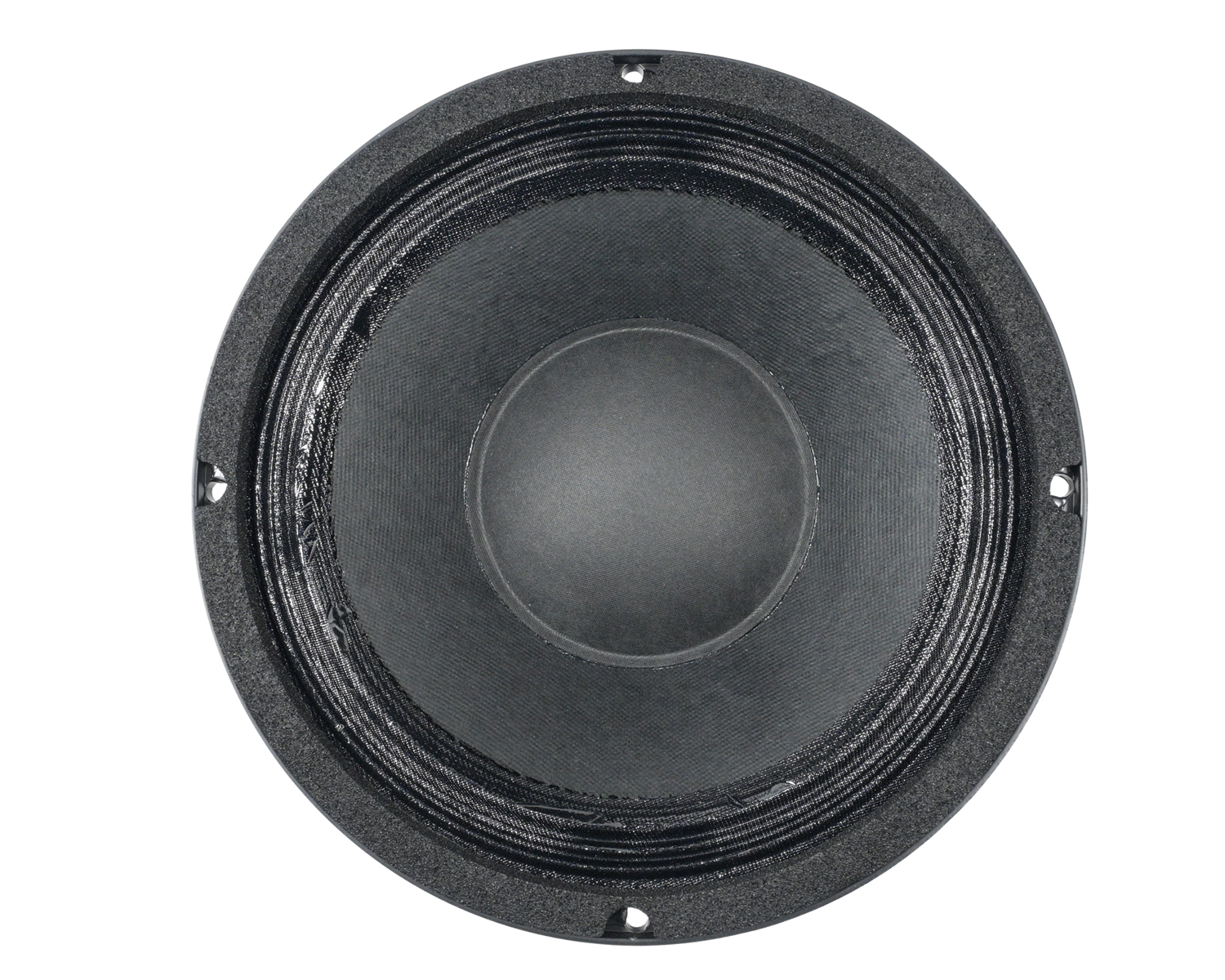

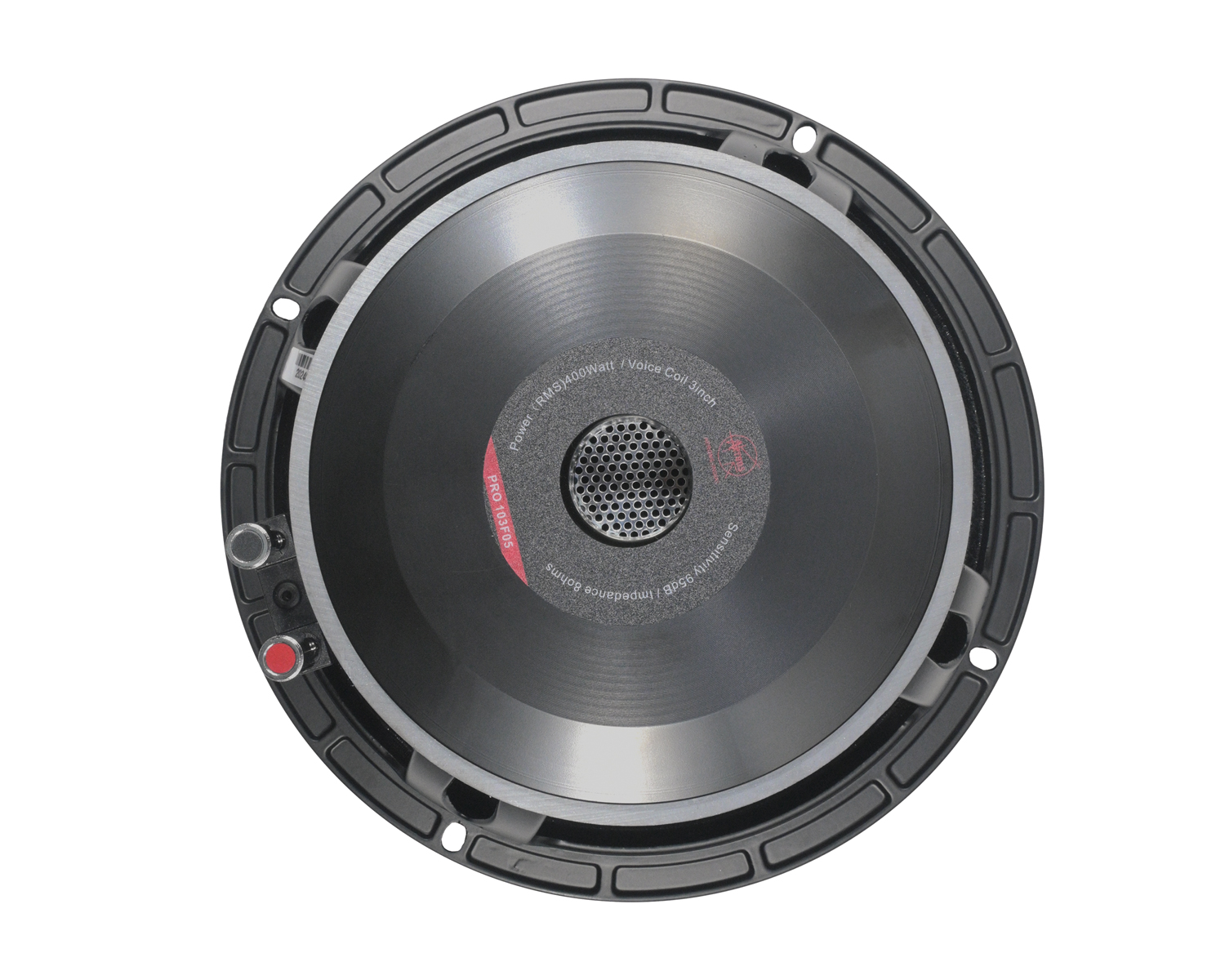

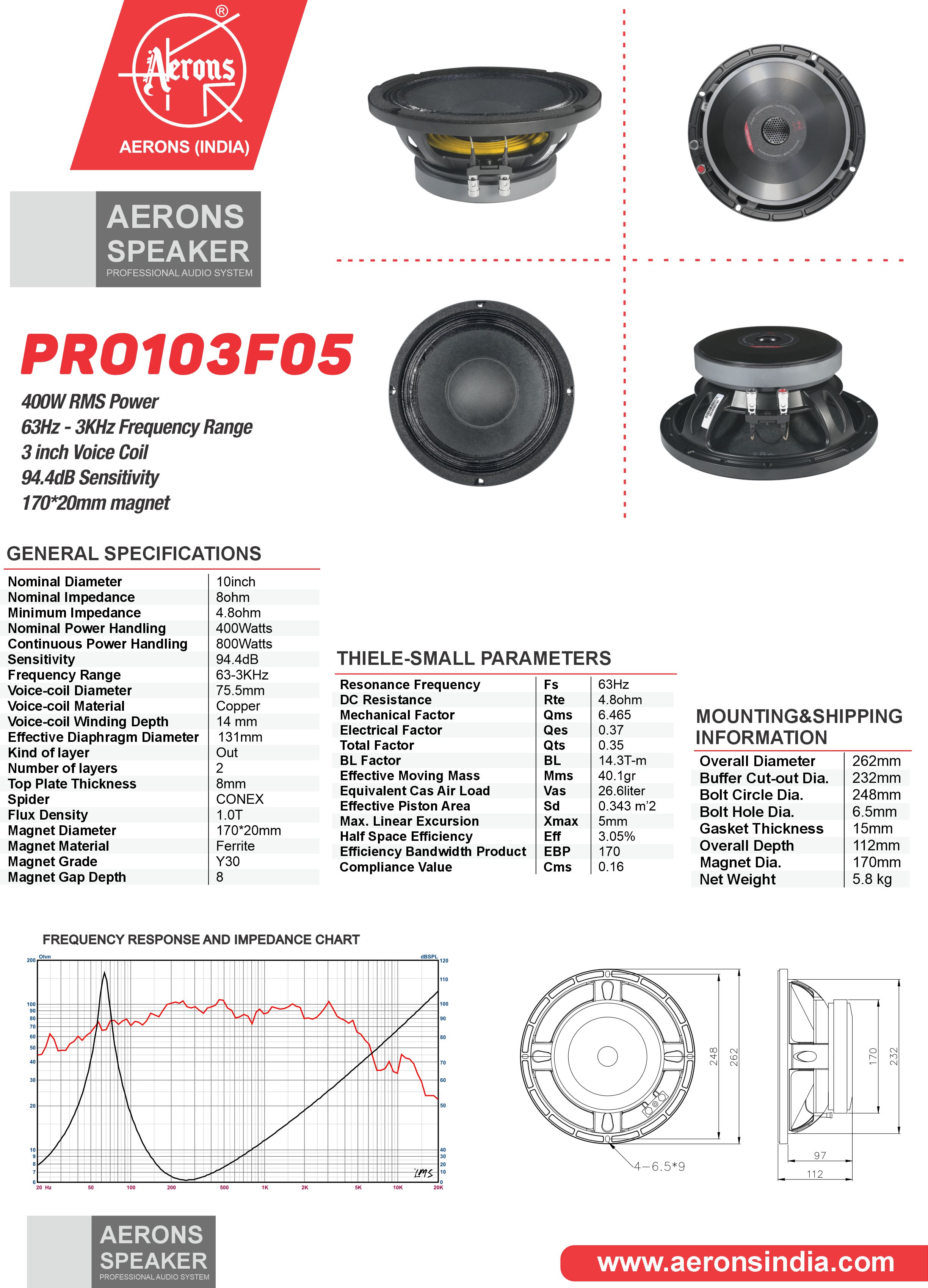

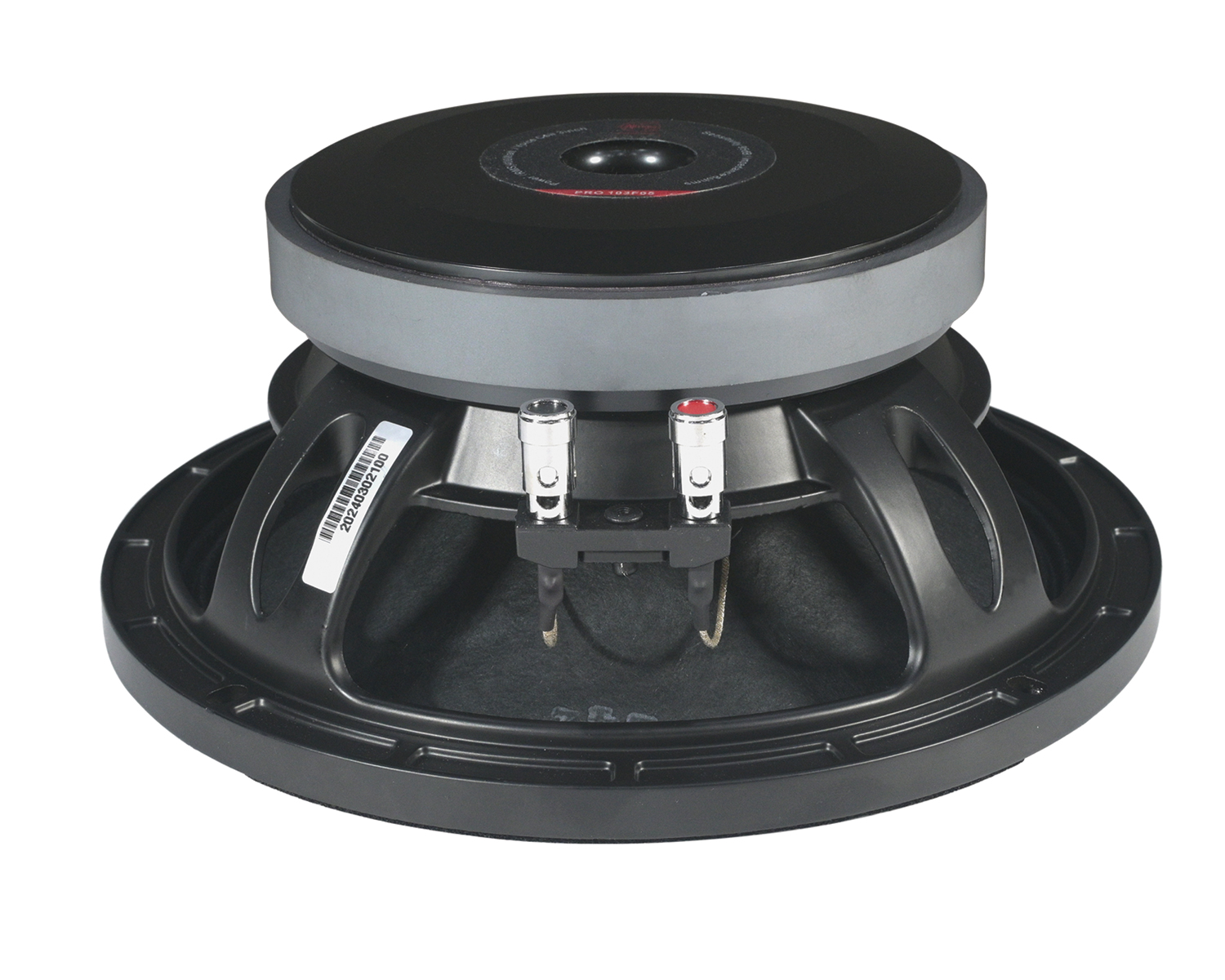

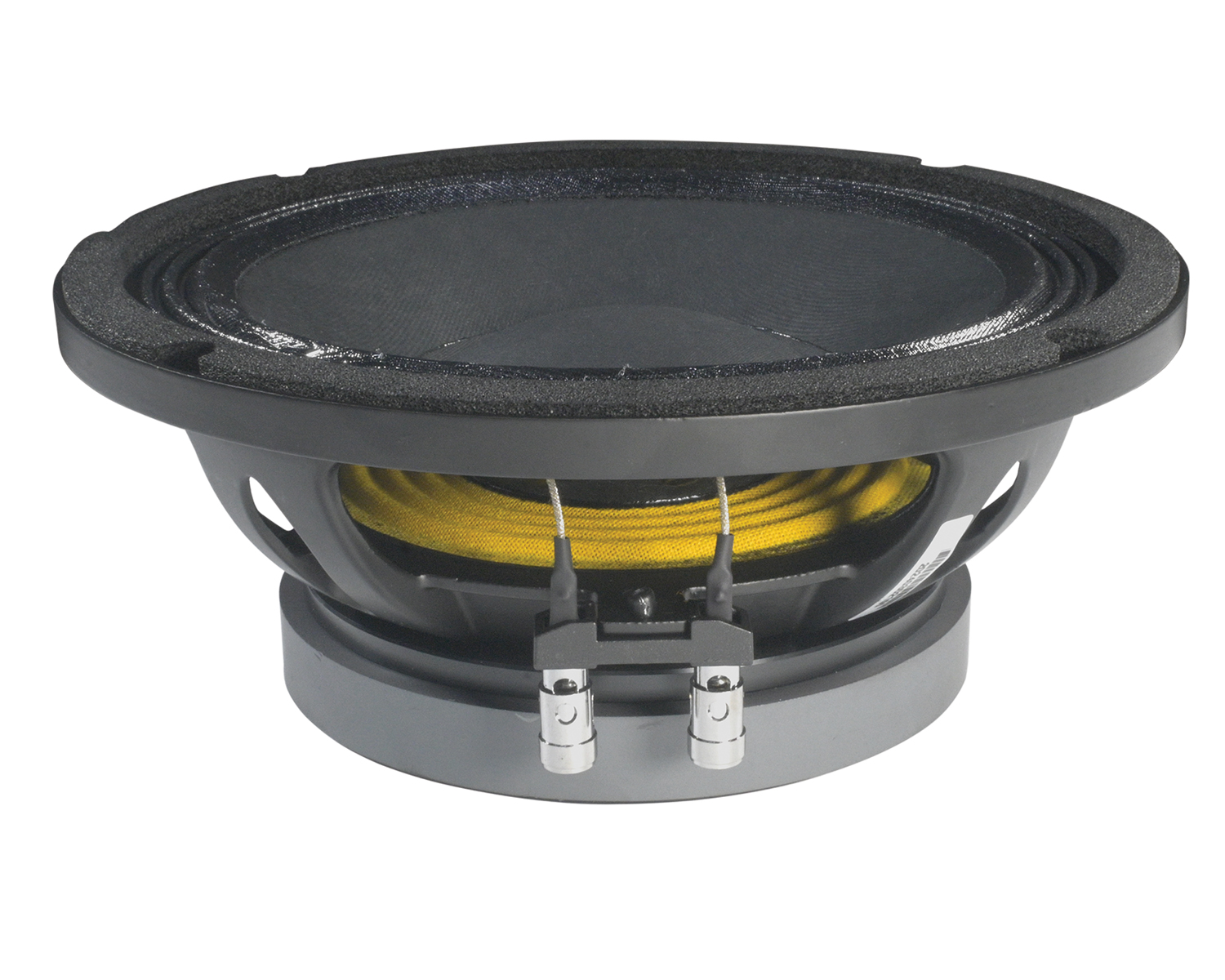

PRO103F05

  • 400W RMS power
  • 63 -3KHz Frequency range
  • 3 inch Voice coil
  • 94.4dB Sensitivity
  • Optimized magnet and FEA analyze
  •  WHATSAPP CATALOG AND PRICE

PRO103F05

PRO103F05

Nominal Diameter 10INCH
Nominal Impedance 8Ohm
Program Power 400W
Power Handling 800W
Sensitivity 94.4dB
Frequency Range 63-3KHz
Effective Diaphragm Diameter
Minimum Impedance 4.8Ohm
Voice Coil Diameter 3inch
Voice Coil material COPPER
Voice Coil Winding Depth 14MM
Number of Layers 2L
Kind of Layer
Top Plate Thickness 8MM
Magnet Grade Y30
Magnet Size 170*85*20
Spider CONEX
Flux Density
Magnet Gap Depth 8MM



THIELE- SMALL PARAMETERS



Resonance Frequency Fs 63HZ
DC Resistance Rte 4.8OHM
Mechanical Factor Qms 6.465
Electrical Factor Qes 0.37
Total Factor Qts 0.35
BL Factor BL 14.3
Effective Moving Mass Mms 40.1G
Equivalent Cas Air Load Vas 26.6 LITRES
Effective Piston Area Sd 0.343K/CM2
Max. Linear Excursion Xmax 5MM
Half Space Efficiency Eff 3.05%
Efficiency Bandwidth Product EBP 170
compliance value Cms 0.16MM/n



MOUNTING & SHIPPING INFORMATION

Overall Diameter ∅262mm
Bolt Circle Diameter ∅248mm
Bolt Hole Diameter 4-∅6.5*9
Mount Buffer Cut-out ∅232
Gasket Thickness 15mm
Depth 97mm
Magnet Diameter 170mm
Net Weight 5kg
Shipping Weight 5.8kg
Shipping Box 25x25x18cm
