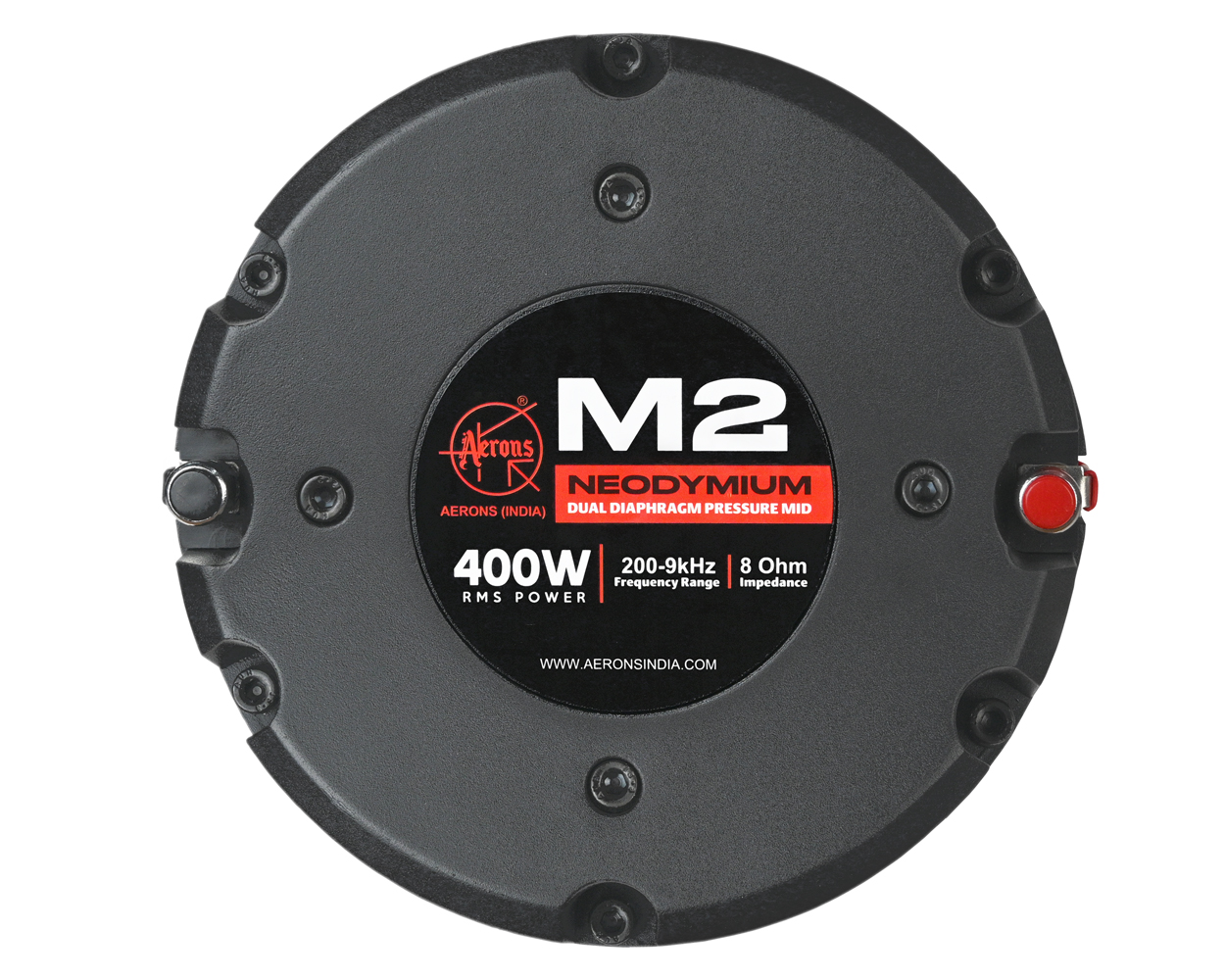

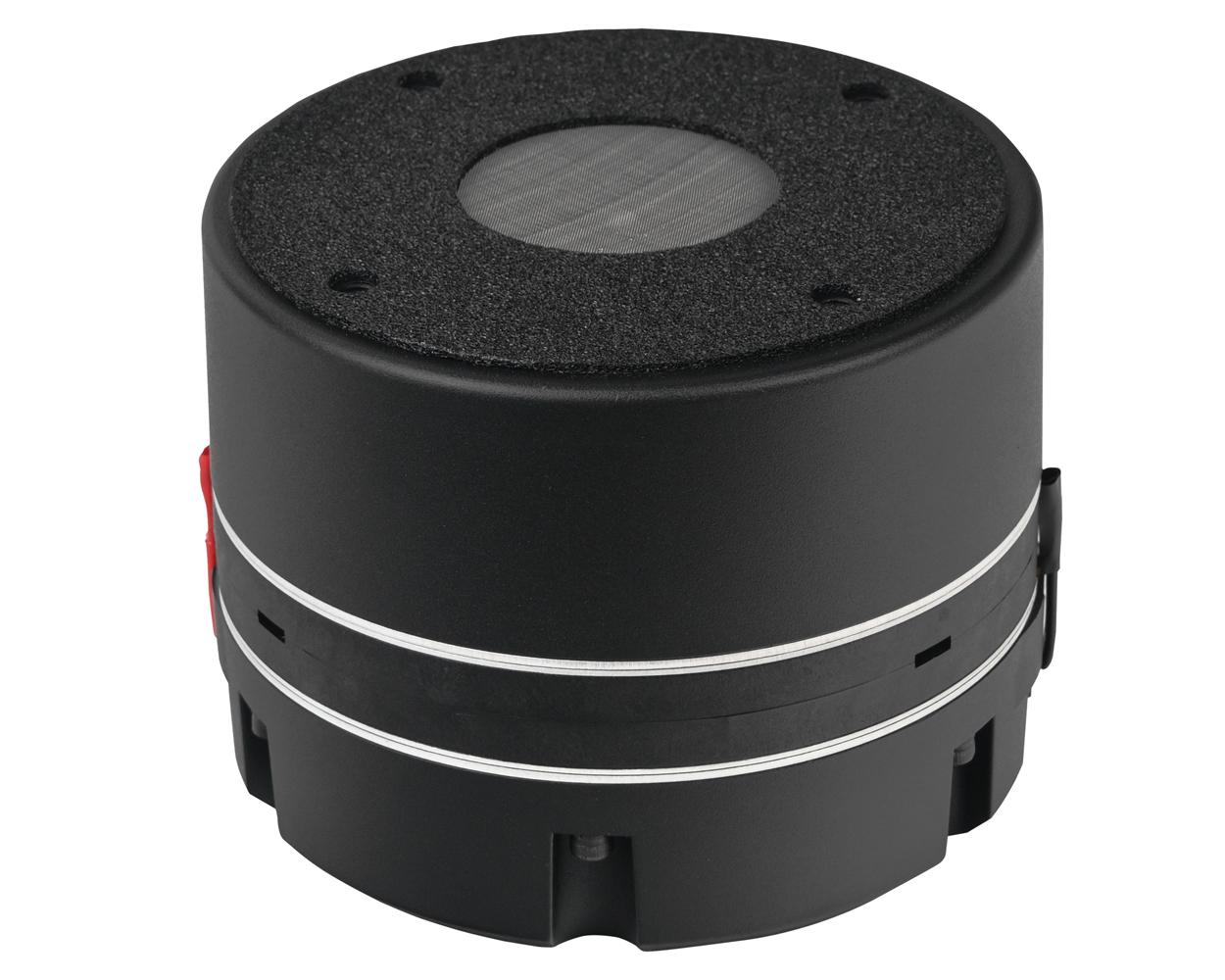

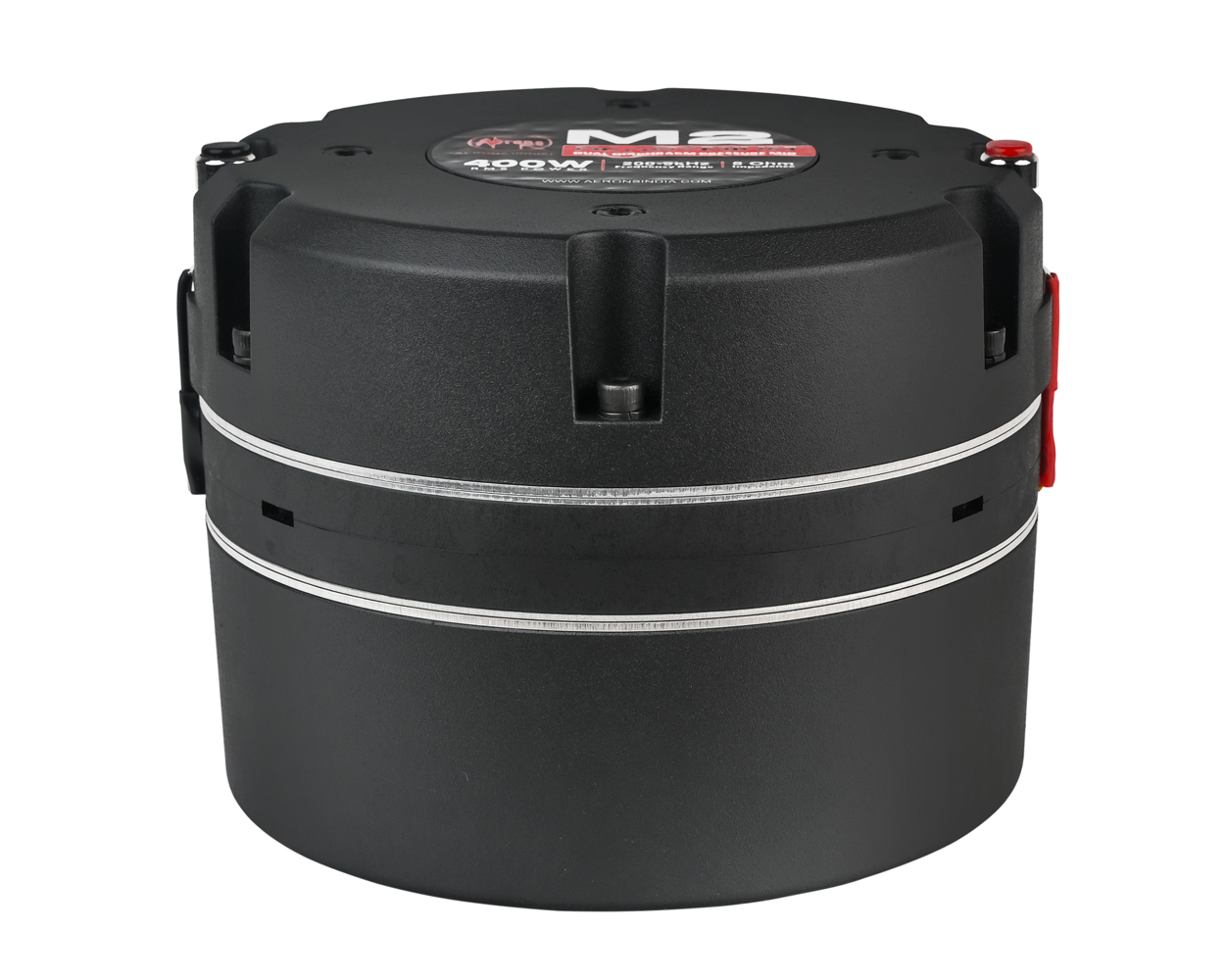

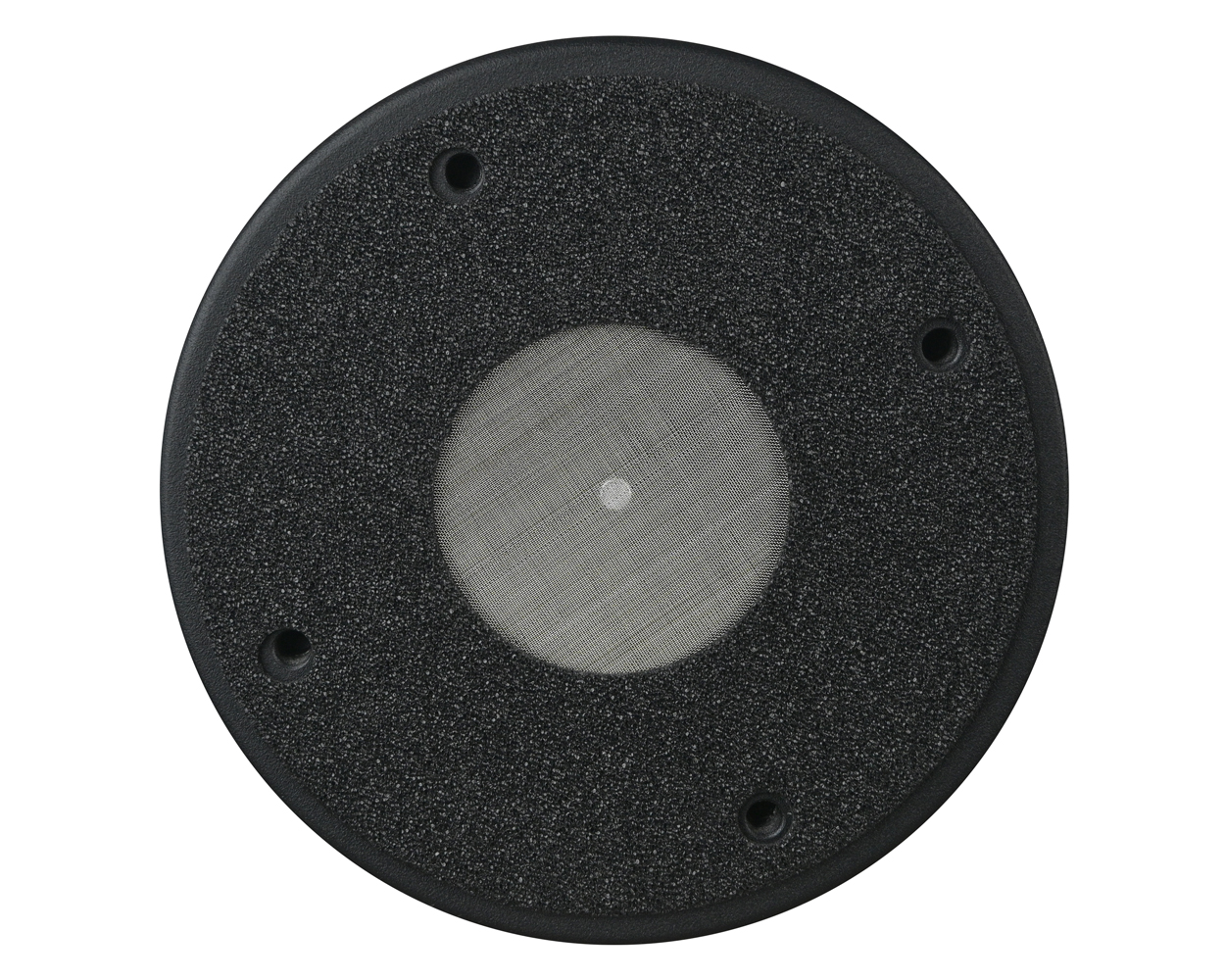

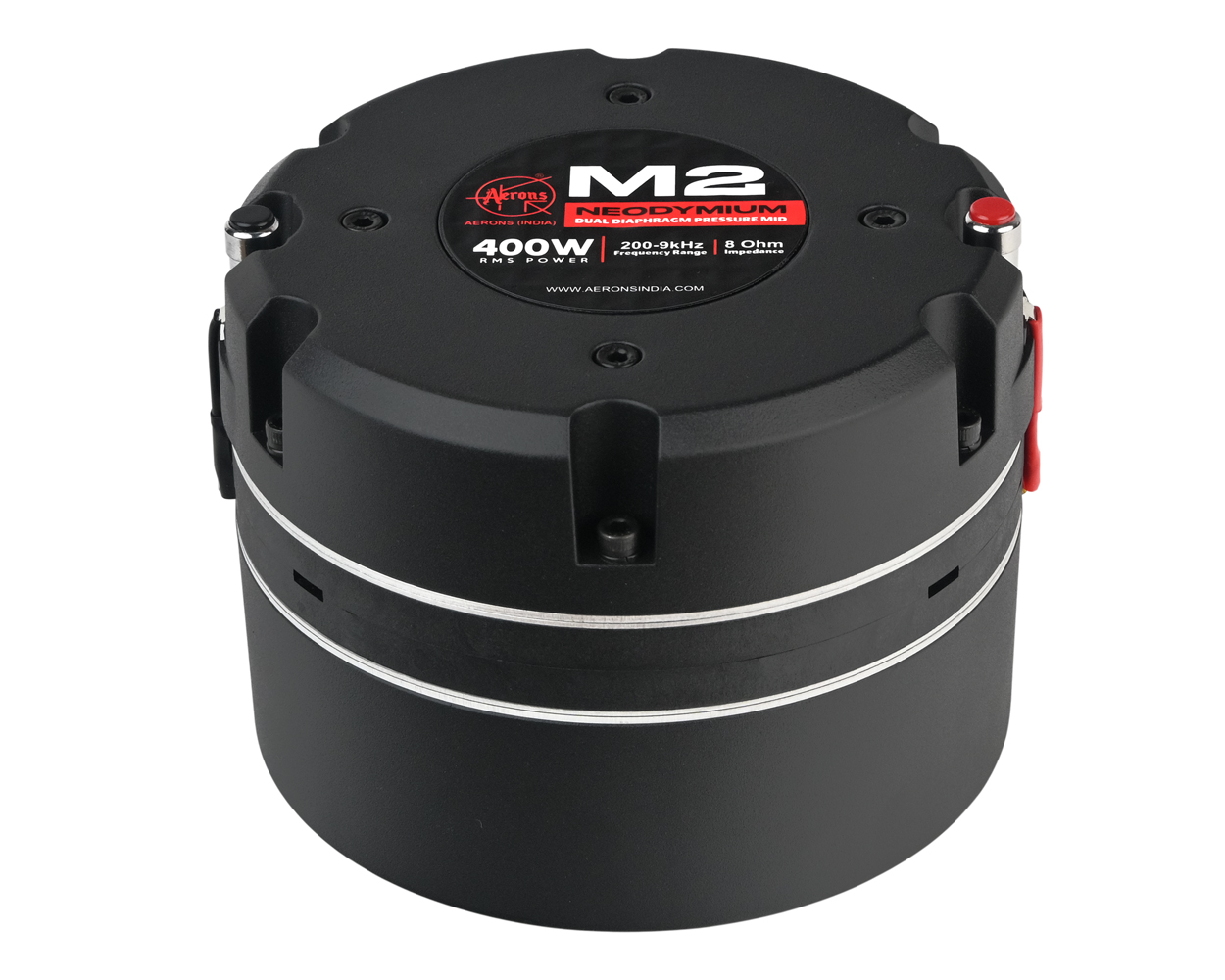

Aerons India M2 Pressure Mid Driver
The M2 is a powerful and dependable midrange driver designed for professional audio systems. It features dual 3.5-inch copper voice coils with an inside-outside winding design, which improves heat dissipation and ensures stable performance during long hours of use.
Powered by a high-grade N42SH neodymium magnet, the M2 delivers clear and detailed sound in the 200Hz to 9kHz range, making it perfect for reproducing midrange frequencies. With a power handling capacity of 400W RMS, it performs consistently even in demanding setups.
Built to last, the M2 combines high-quality materials with a durable design, making it ideal for use in PA systems, line arrays, and other professional audio applications. It’s the perfect choice for achieving clean, accurate, and powerful midrange sound.
|
50mm |
|
|
Nominal Impedance |
8ohm |
|
Nominal Power Handling |
400Watts |
|
Continuous Power Handling |
800Watts |
|
Sensitivity |
117dB |
|
Frequency Range |
200-9KHz |
|
Voice-coil Diameter |
90mm |
|
Voice-coil Material |
Copper |
|
Voice-coil Winding Depth |
3.2mm |
|
Kind of layer |
In/Out |
|
Number of layers |
2 |
|
Top Plate Thickness |
6mm |
|
Flux Density |
1.95T |
|
Magnet Material |
Neodymium |
|
Magnet Grade |
N42SH |
|
Magnet Gap Depth |
8mm |
|
Overall Diameter |
134mm |
|
Bolt Circle Dia. |
102mm |
|
Bolt Hole Dia. |
M6*4 |
|
Overall Depth |
106mm |
|
Magnet Dia. |
88mm |
|
Net Weight |
3.2 kg |
