MB15FE800

  • 800W RMS power
  • 40 -3.0KHz Frequency range
  • 4 inch Voice coil
  • 96.7dB Sensitivity
  • 220*25mm Strontium ferrite Magnet
  • WHATSAPP CATALOG AND PRICE

MB15FE800

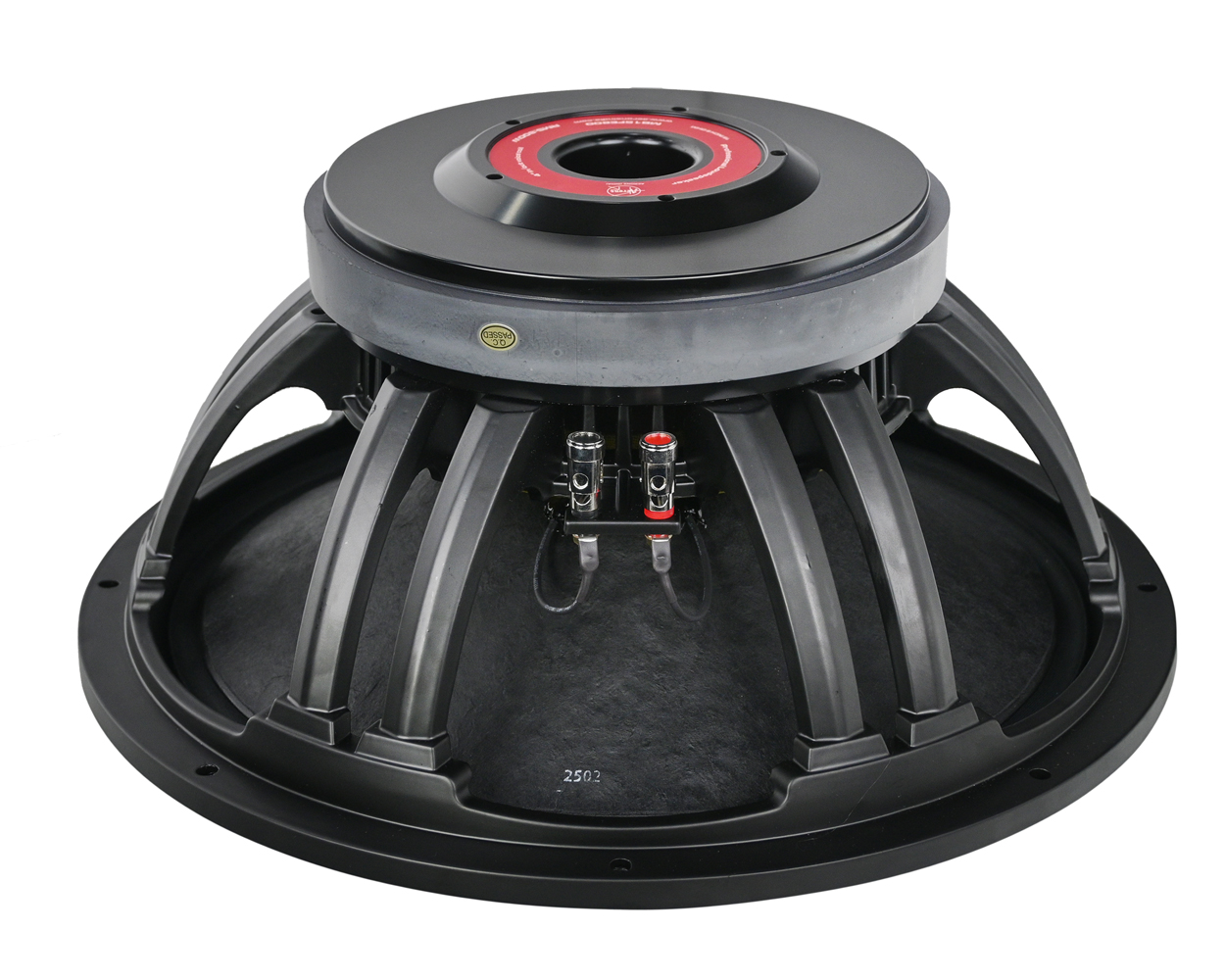

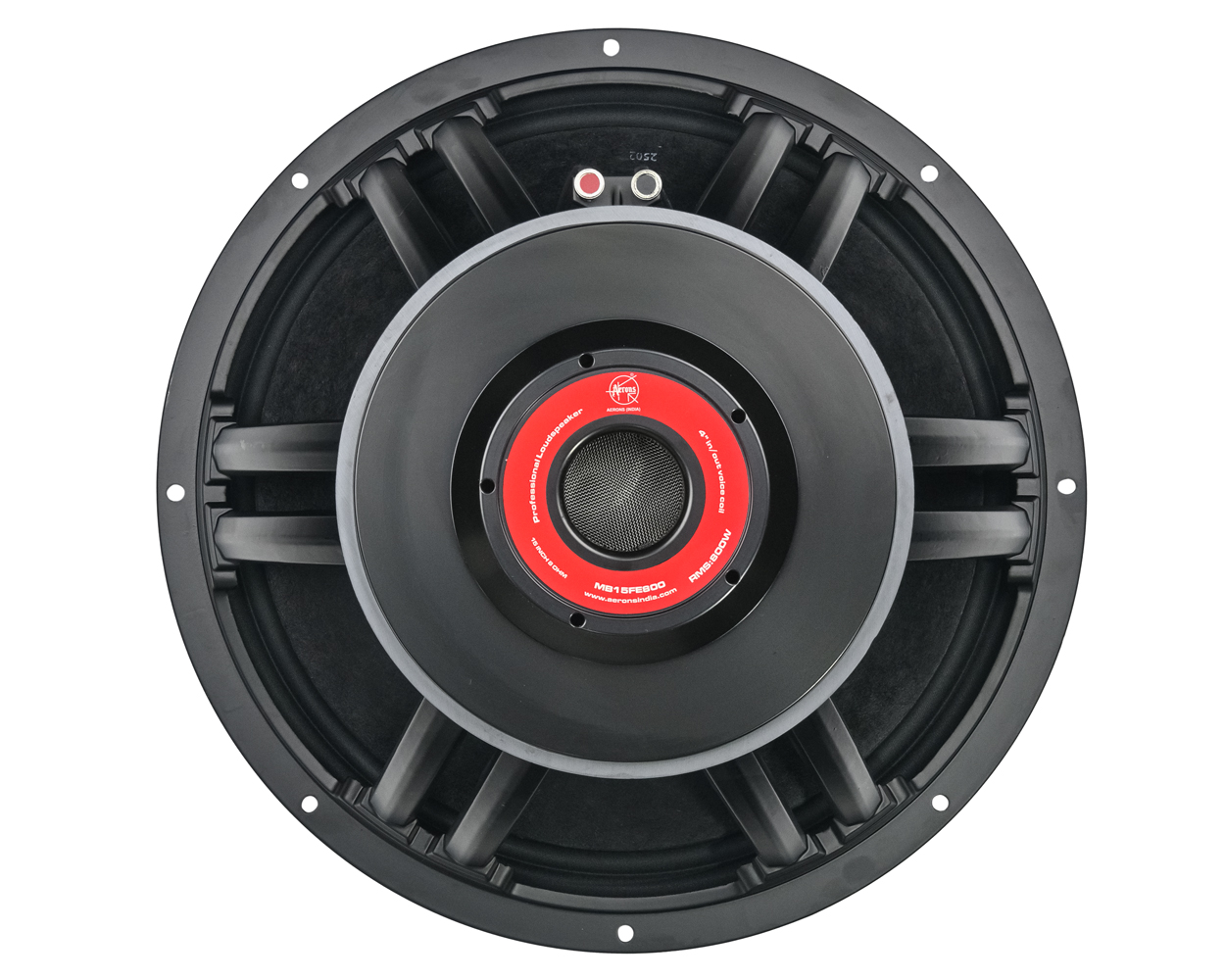

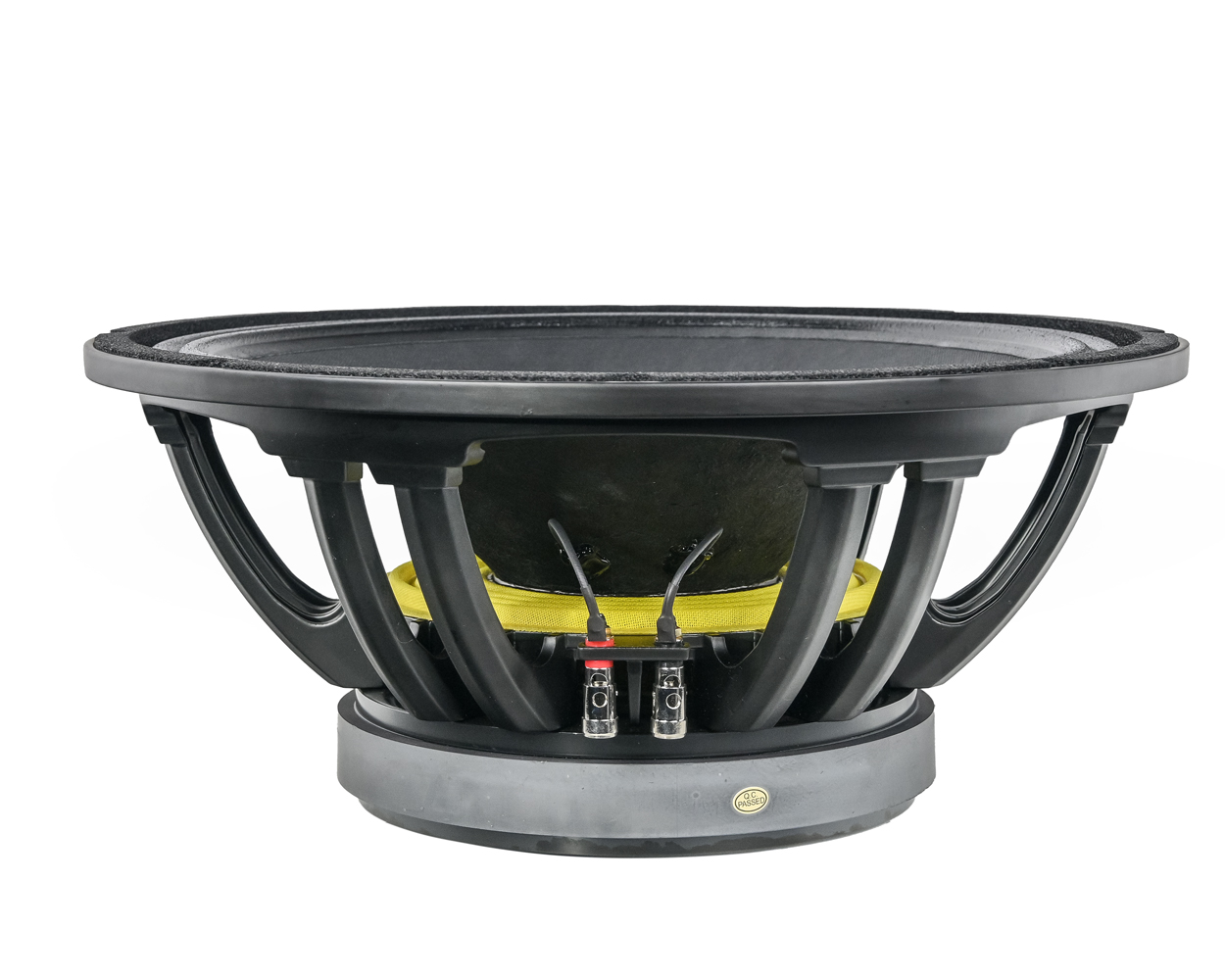

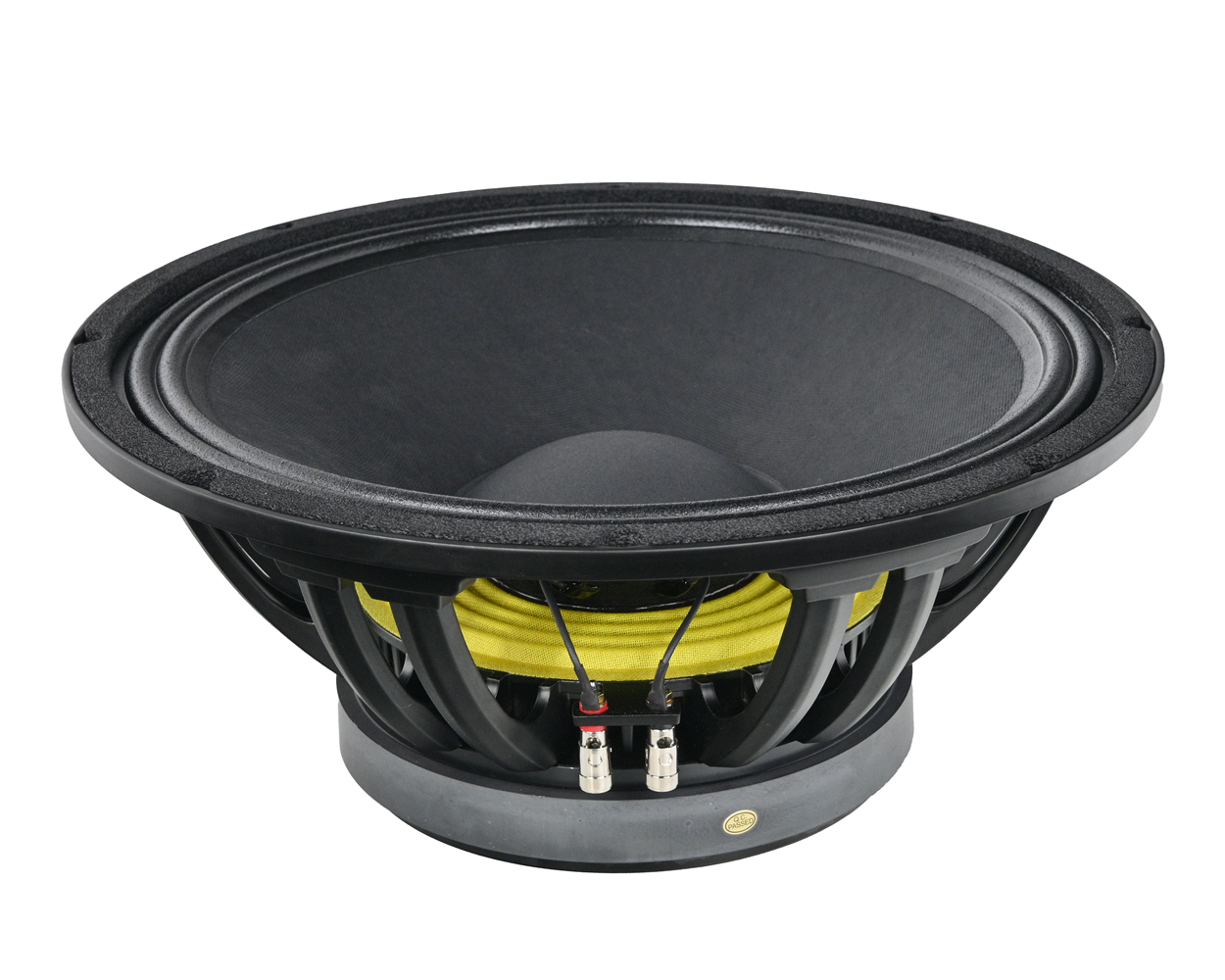

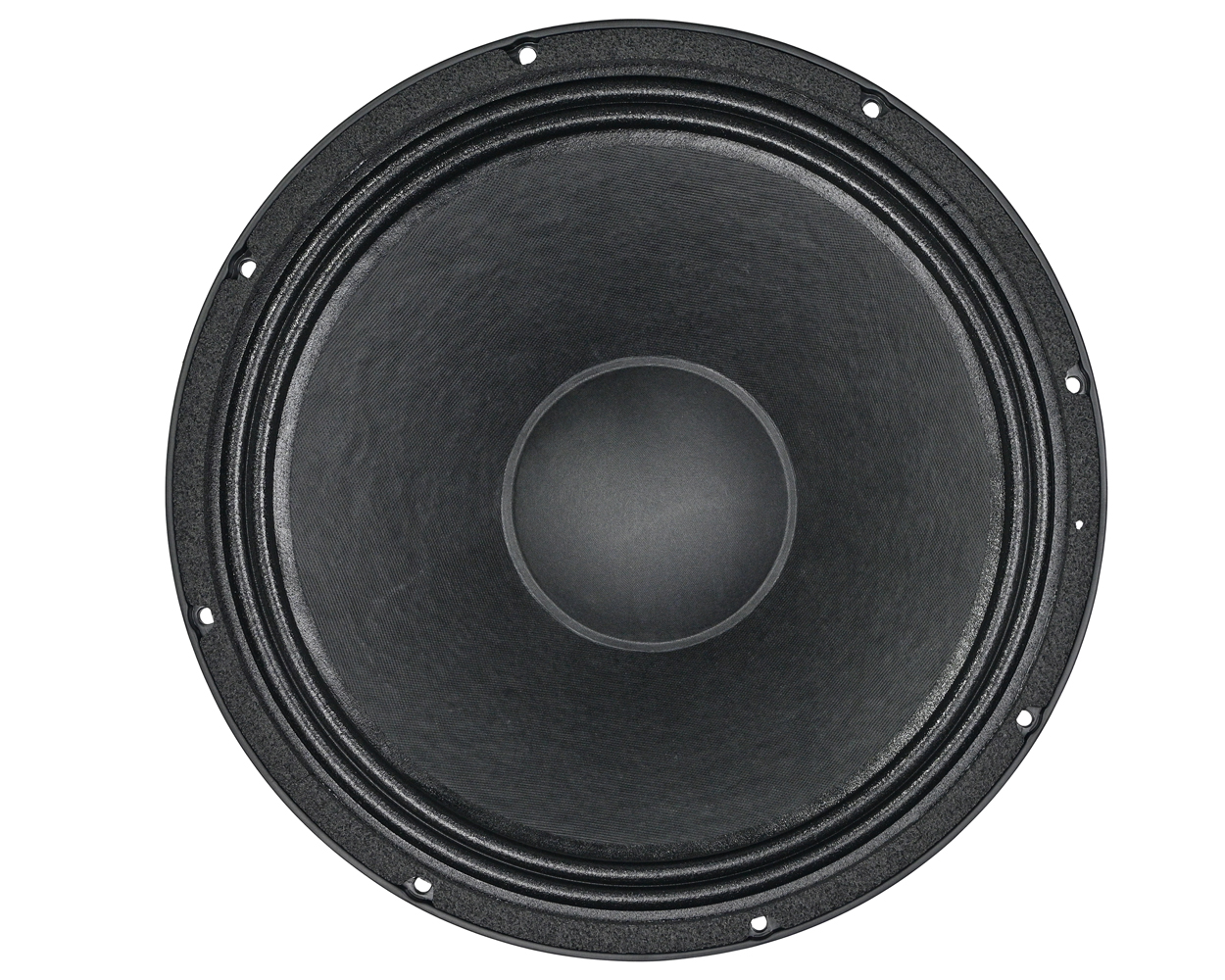

MB15FE800 – 15" Professional Speaker

Unleash the Power of Pure Sound

The MB15FE800 from Aerons India is a high-performance 15-inch speaker built for demanding audio environments. Designed with precision and durability in mind, it delivers powerful bass response and exceptional clarity across a wide frequency range. Whether used in live sound setups, DJ rigs, or custom speaker cabinets, this speaker ensures consistent performance and reliability.

Specifications:

  • Power Handling: 800 Watts RMS
  • Sensitivity: 96.7dB for efficient sound output
  • Impedance: 8 OHMS for versatile system compatibility
  • Frequency Response: 40Hz – 3KHz
  • Voice Coil: 4-inch high-temperature coil for extended durability

Applications:

Ideal for professional audio systems, stage monitors, and high-output speaker enclosures. The MB15FE800 is engineered to meet the needs of sound professionals who demand precision, power, and long-term performance.

MB15FE800

Nominal Diameter

15inch

Nominal Impedance

8ohm

Minimum Impedance

7ohm

Nominal Power Handling

800Watts

Continuous Power Handling

1600Watts

Sensitivity

96.7dB

Frequency Range

40-3000Hz

Voice-coil Diameter

100mm

Voice-coil Material

CCAW

Kind of layer

In/out

Number of layers

2

Magnet Diameter

220*25mm

Magnet Material

Ferrite

Magnet Grade

Y35





Resonance Frequency

Fs

40Hz

DC Resistance

Rte

7ohm

Mechanical Factor

Qms

9.21

Electrical Factor

Qes

0.4

Total Factor

Qts

0.38

BL Factor

BL

18.3 T-m

Effective Moving Mass

Mms

102.9gr

Equivalent Cas Air Load

Vas

183.53liter

Effective Piston Area

Sd

0.9 m’2

Max. Linear Excursion

Xmax

13.7mm

Compliance Value

Cms

0.15mm





Overall Diameter

397mm

Buffer Cut-out Dia.

360mm

Bolt Circle Dia.

377mm

Bolt Hole Dia.

6.5mm

Gasket Thickness

14mm

Overall Depth

180mm

Magnet Dia.

280mm

Net Weight

11.1 kg
