SUPER 184B

  • 1200W RMS power
  • 35 -1.0KHz Frequency range
  • 99.3mm Voice coil
  • 96dB Sensitivity
  • Optimized magnet and FEA analyse
  • WHATSAPP CATALOG AND PRICE

SUPER 184B

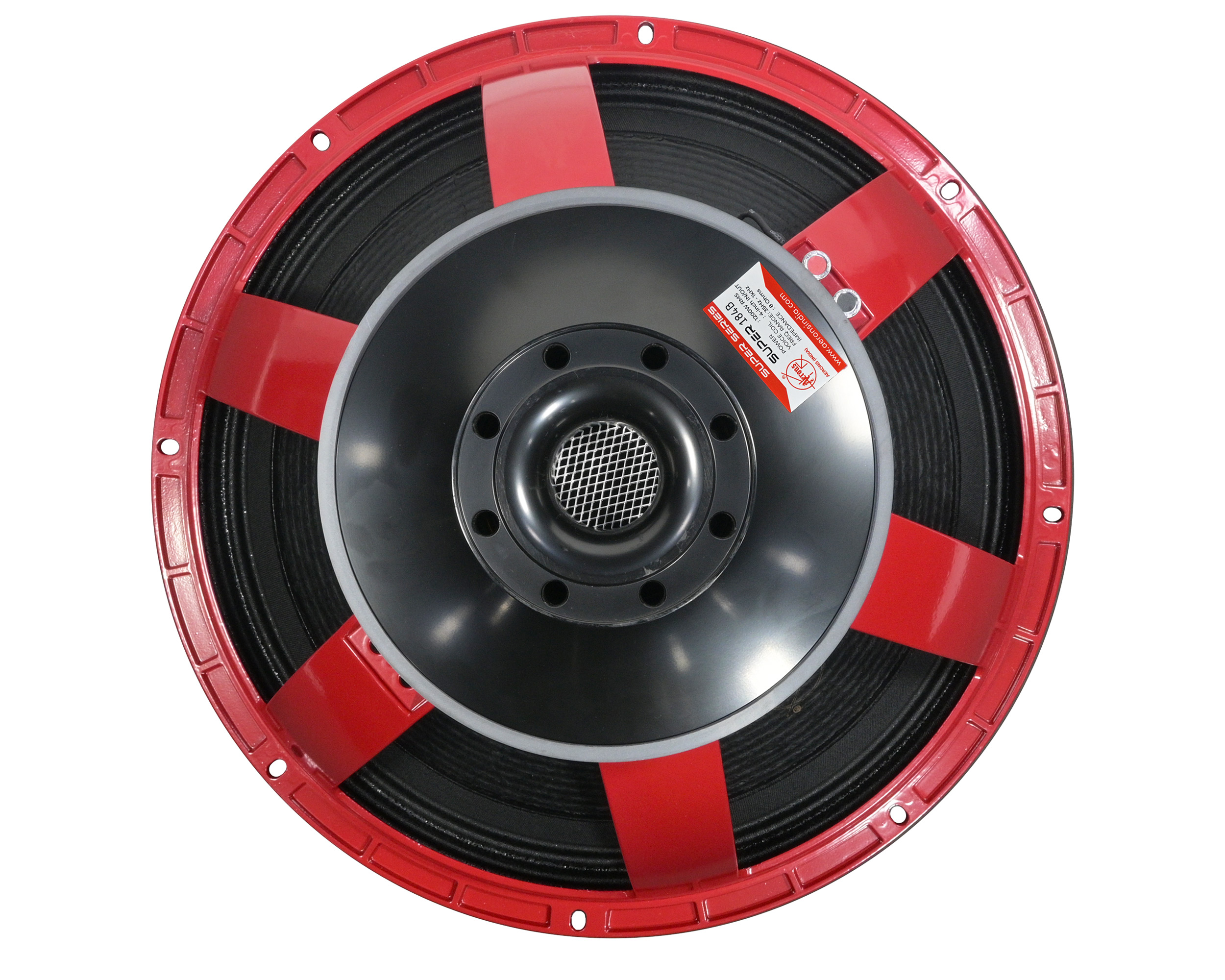

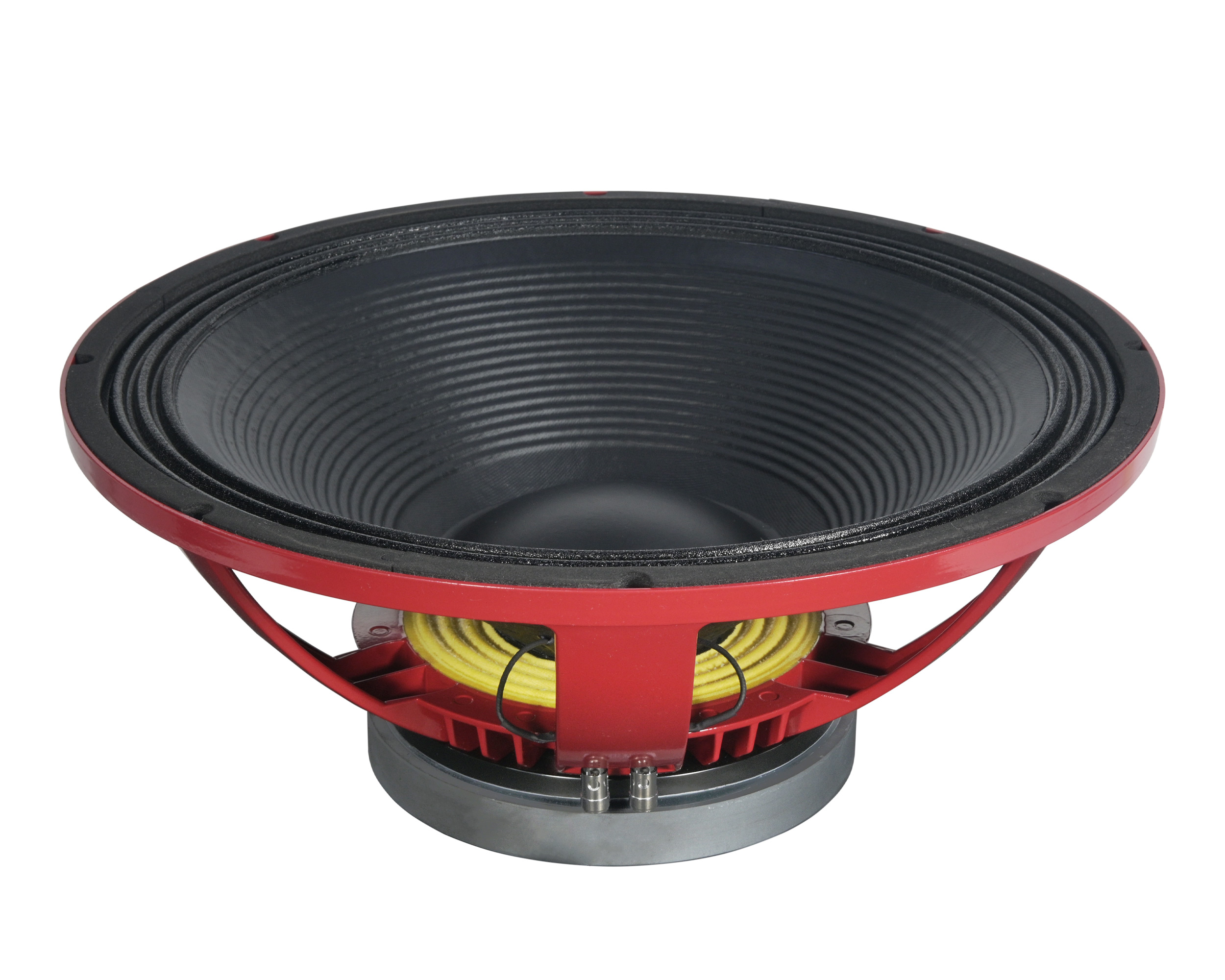

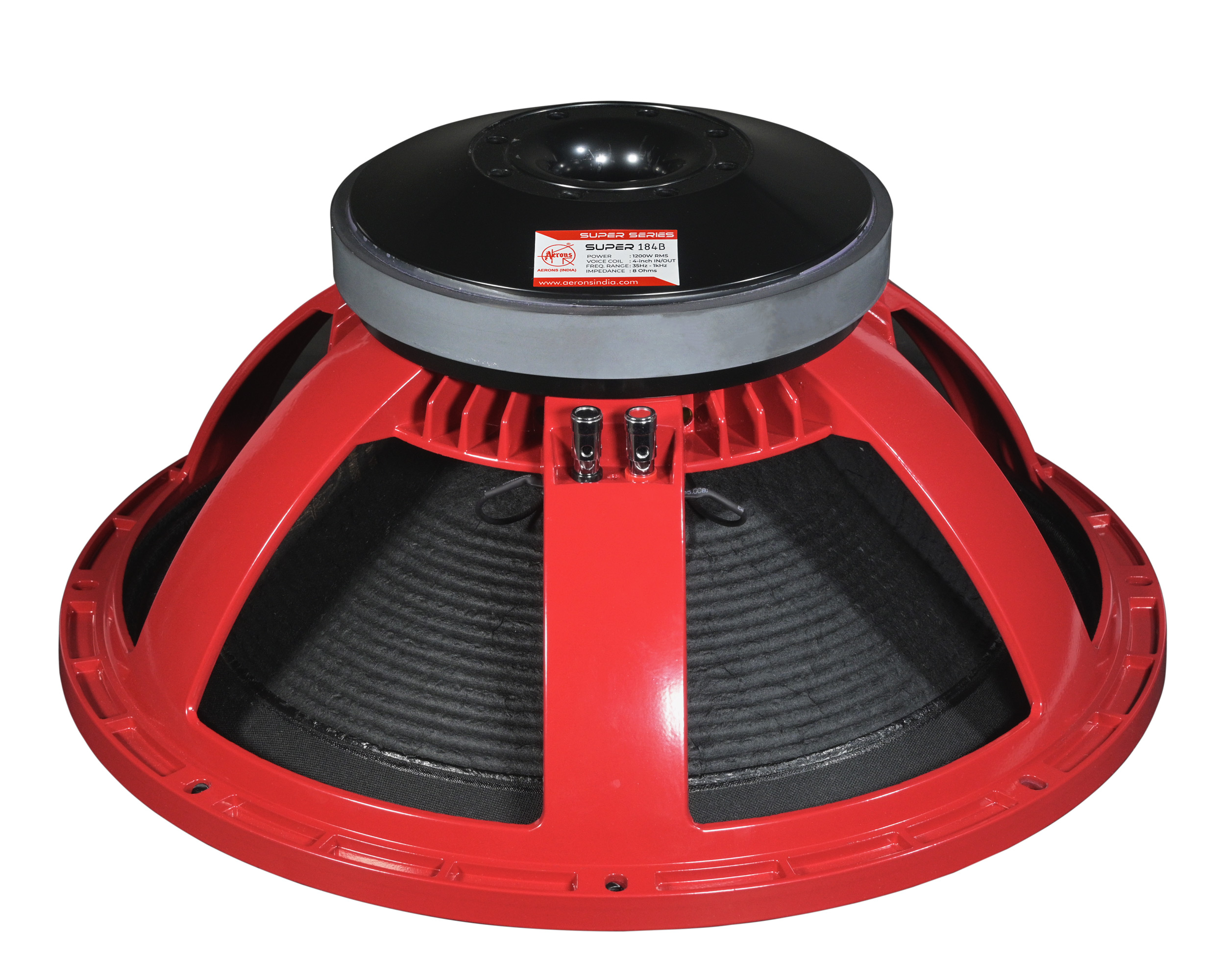

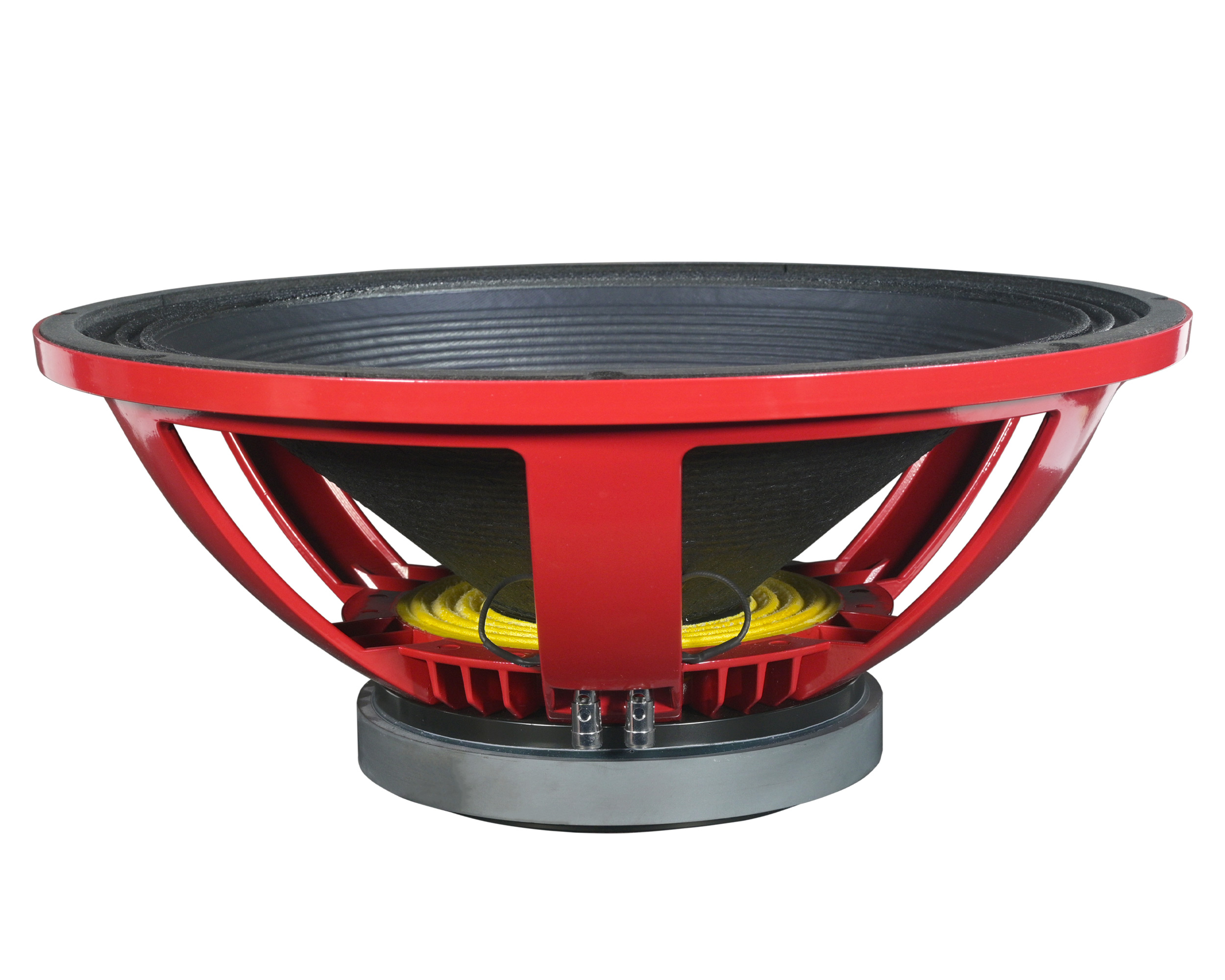

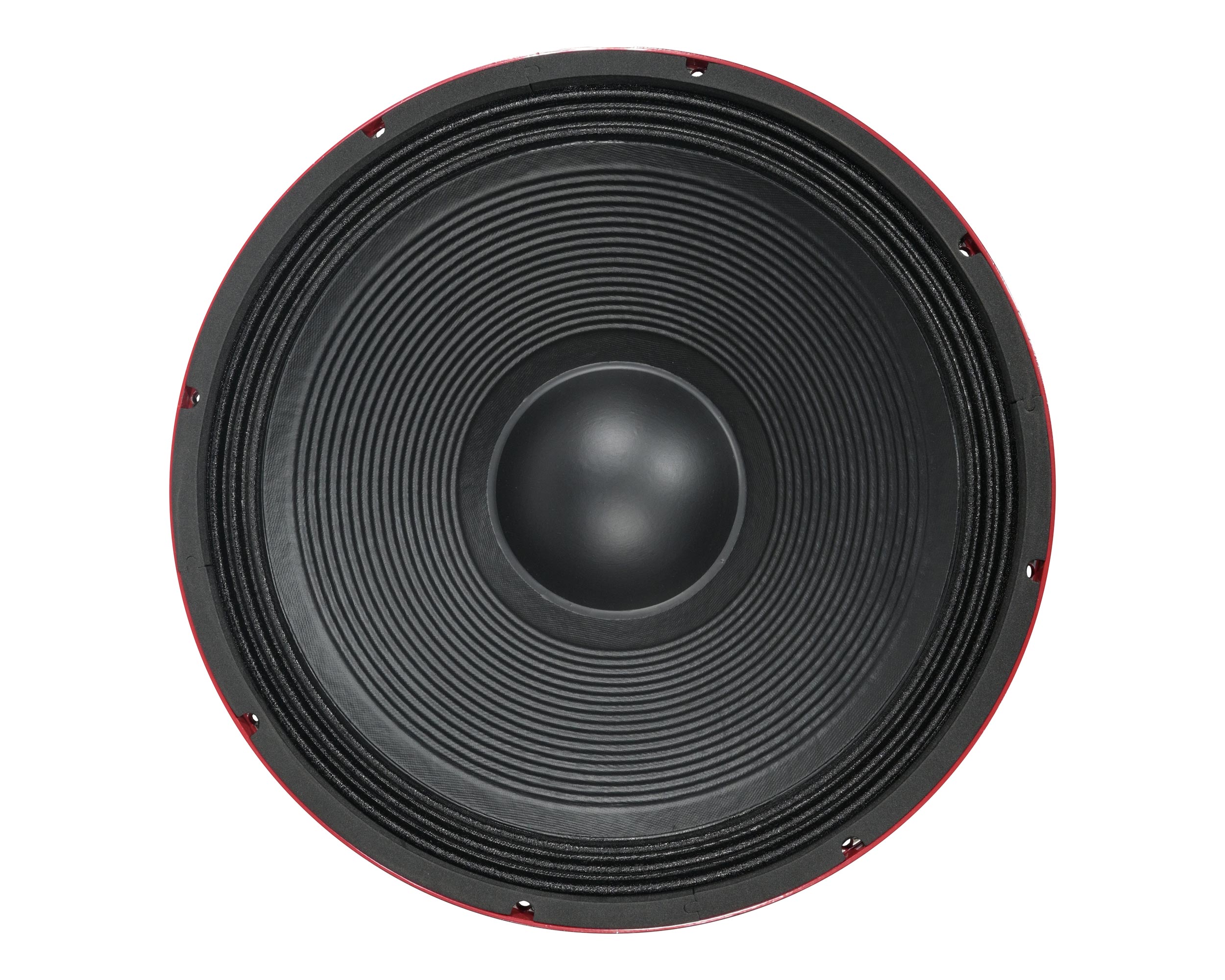

Introducing the Aerons Super 184B, a cutting-edge 18-inch subwoofer driver that combines power, precision, and affordability. With its striking majestic red color, this subwoofer not only commands attention but also delivers a dynamic audio experience that transforms your space into a sonic haven.



With a robust 1200W power capability, the Super 184B ensures a deep, resonant bass that fills the room with immersive sound. The 4-inch voice coil is engineered for efficiency and durability, providing a clear and powerful response across the low-frequency spectrum. The dual silicone spider design enhances stability, allowing for controlled and accurate bass reproduction.



Designed to cater to a wide range of budgets, the Super 184B offers an impressive 8 OHMS impedance, making it compatible with a variety of audio systems without compromising on performance. Whether you're a home audio enthusiast, a professional sound engineer, or setting up a budget-friendly home theater, the Super 184B is crafted to exceed expectations.



With a frequency response starting from 35Hz, this subwoofer ensures that you not only hear but feel the full impact of your music or movies. Immerse yourself in a world of deep, rumbling bass that adds a new dimension to your audio experience.



Upgrade your sound system without breaking the bank – the Aeron Super 184B is your ticket to powerful, budget-friendly bass that doesn't compromise on quality. Elevate your audio game and bring your entertainment to life with the Super 184B's winning combination of power, precision, and affordability.

SUPER 184B

Nominal Diameter

18inch

Nominal Impedance

8ohm

Minimum Impedance

5.4ohm

Nominal Power Handling

1200Watts

Continuous Power Handling

2400Watts

Sensitivity

96dB

Frequency Range

35-1KHz

Voice-coil Diameter

99.3mm

Voice-coil Material

PIT-W

Voice-coil Winding Depth

26mm

Effective Diaphragm Diameter

390mm

Kind of layer

In/out

Number of layers

2

Top Plate Thickness

12

Spider

Double Silicone

Flux Density

1.05T

Magnet Diameter

220*25mm

Magnet Material

Ferrite

Magnet Grade

Y30

Magnet Gap Depth

12





Resonance Frequency

Fs

35Hz

DC Resistance

Rte

5.4ohm

Mechanical Factor

Qms

16.72

Electrical Factor

Qes

0.558

Total Factor

Qts

0.540

BL Factor

BL

23.39T-m

Effective Moving Mass

Mms

243.36gr

Equivalent Cas Air Load

Vas

159.82liter







Effective Piston Area

Sd

0.119 m

Max. Linear Excursion

Xmax

8mm

Half Space Efficiency

Eff

1.31%

Efficiency Bandwidth Product

EBP

79.01

Compliance Value

Cms

0.085





Overall Diameter

460mm

Buffer Cut-out Dia.

420mm

Bolt Circle Dia.

442mm

Bolt Hole Dia.

7.0mm

Gasket Thickness

16mm

Overall  Depth

200mm

Magnet Dia.

220mm

Net Weight

12.3 kg
