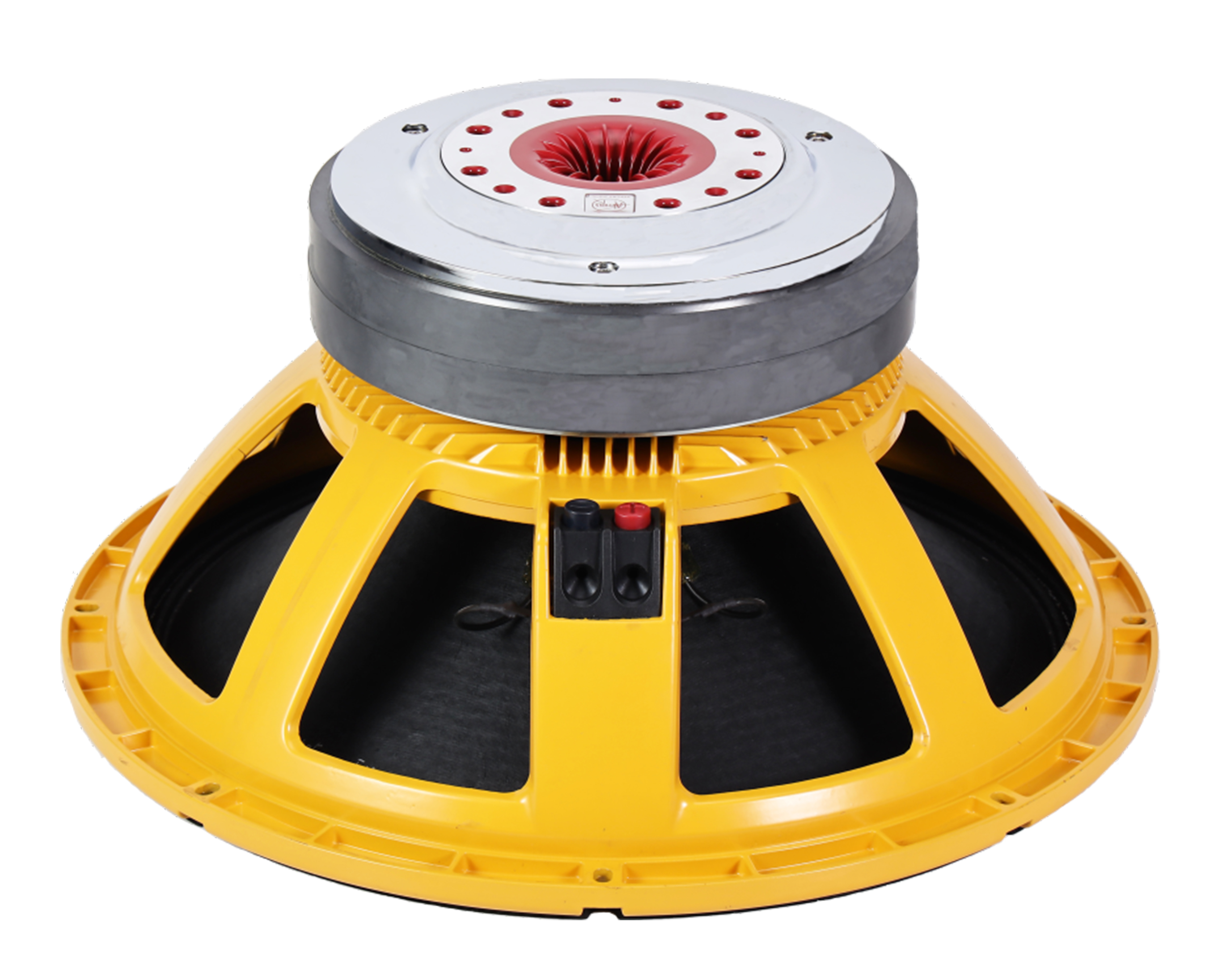

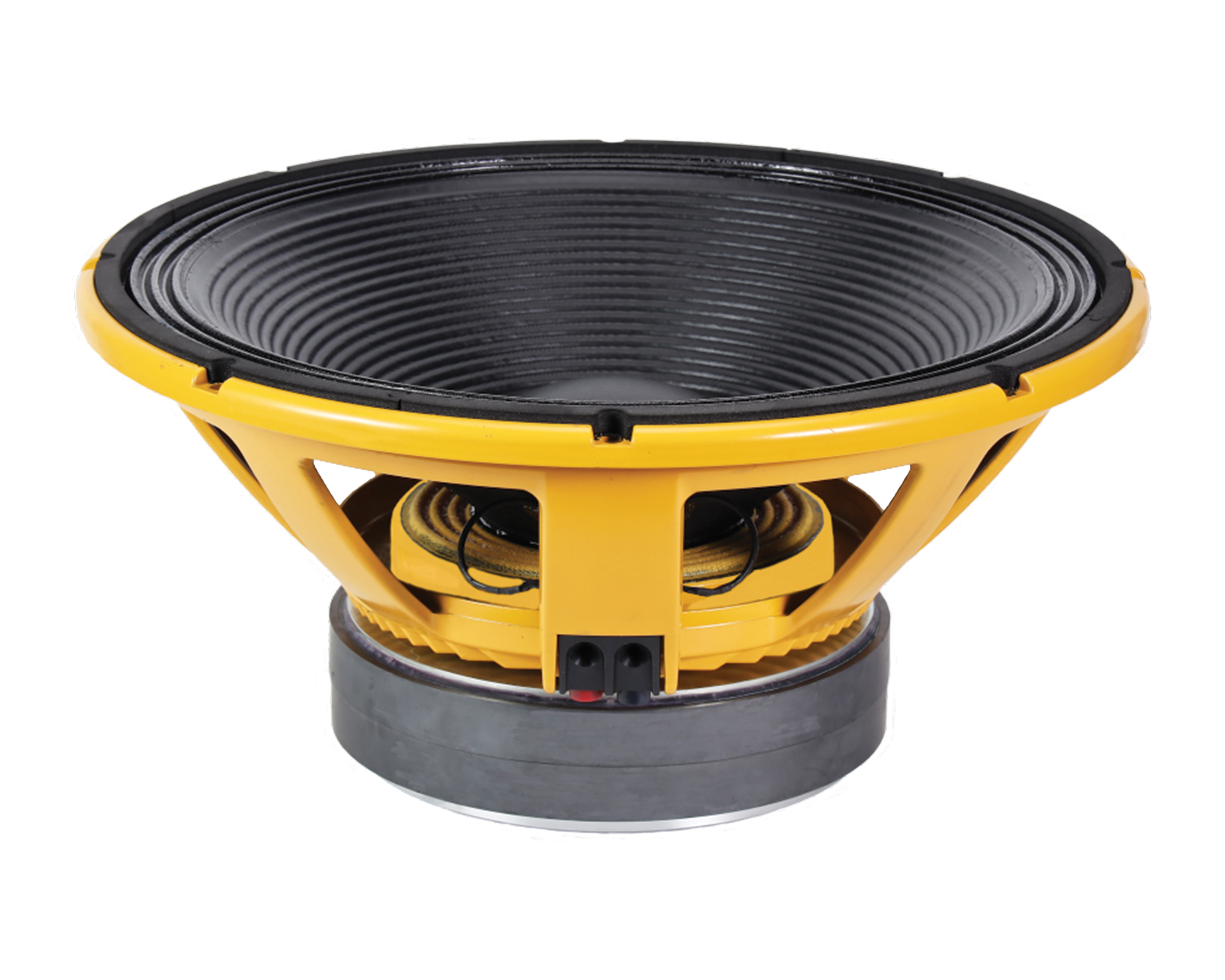

X452
Introducing the brand-new Aerons X452 Subwoofer Driver! This speaker is all about delivering deep, powerful bass sounds that you can feel. It's designed with two strong magnets, a big 4.5-inch voice coil, and it can handle a whopping 2000 watts of power, so your music will really pack a punch. We've also given it a tough new basket design to make sure it lasts a long time. And to keep it cool even when it's working hard, we've added a special I.C.E (Integrated Cooling Enhancement) technology. So, if you want to take your bass to the next level, check out the Aerons X452 Subwoofer Driver!
X452
GENERAL SPECIFICATIONS
|
Nominal Diameter
|
18inch
|
|
Nominal Impedance
|
8ohm
|
|
Minimum Impedance
|
4.8ohm
|
|
Nominal Power Handling
|
2000Watts
|
|
Continuous Power Handling
|
4000Watts
|
|
Sensitivity
|
98dB
|
|
Frequency Range
|
32-1KHz
|
|
Voice-coil Diameter
|
114.5mm
|
|
Voice-coil Material
|
1-APIPS7
|
|
Voice-coil Winding Depth
|
30.4mm
|
|
Effective Diaphragm Diameter
|
398mm
|
|
Kind of layer
|
In/out
|
|
Number of layers
|
3
|
|
Top Plate Thickness
|
14
|
|
Spider
|
Double Silicone
|
|
Flux Density
|
1.3T
|
|
Magnet Diameter
|
250*25mmX2
|
|
Magnet Material
|
Ferrite
|
|
Magnet Grade
|
Y30
|
|
Magnet Gap Depth
|
14
|
|
Resonance Frequency
|
Fs
|
32Hz
|
|
DC Resistance
|
Rte
|
4.8ohm
|
|
Mechanical Factor
|
Qms
|
18.87
|
|
Electrical Factor
|
Qes
|
0.291
|
|
Total Factor
|
Qts
|
0.286
|
|
BL Factor
|
BL
|
34.29T-m
|
|
Effective Moving Mass
|
Mms
|
314.9gr
|
|
Equivalent Cas Air Load
|
Vas
|
136.06liter
|
|
Effective Piston Area
|
Sd
|
1194 cm
|
|
Max. Linear Excursion
|
Xmax
|
10.5mm
|
|
Half Space Efficiency
|
Eff
|
1.85%
|
|
Efficiency Bandwidth Product
|
EBP
|
116.83
|
|
Compliance Value
|
Cms
|
0.067
|
|
Overall Diameter
|
465mm
|
|
Buffer Cut-out Dia.
|
422mm
|
|
Bolt Circle Dia.
|
446mm
|
|
Bolt Hole Dia.
|
7.0mm
|
|
Gasket Thickness
|
17mm
|
|
Overall Depth
|
230mm
|
|
Magnet Dia.
|
250mm
|
|
Net Weight
|
20 kg
|
|
