CD44A.8
NEW LAUNCH

  • 70W RMS power
  • 1000-18KHz Frequency range
  • 44.4mm Voice coil
  • 109 dB Sensitivity
  • Optimized magnet and FEA analyze
  • WHATSAPP CATALOG AND PRICE

CD44A.8

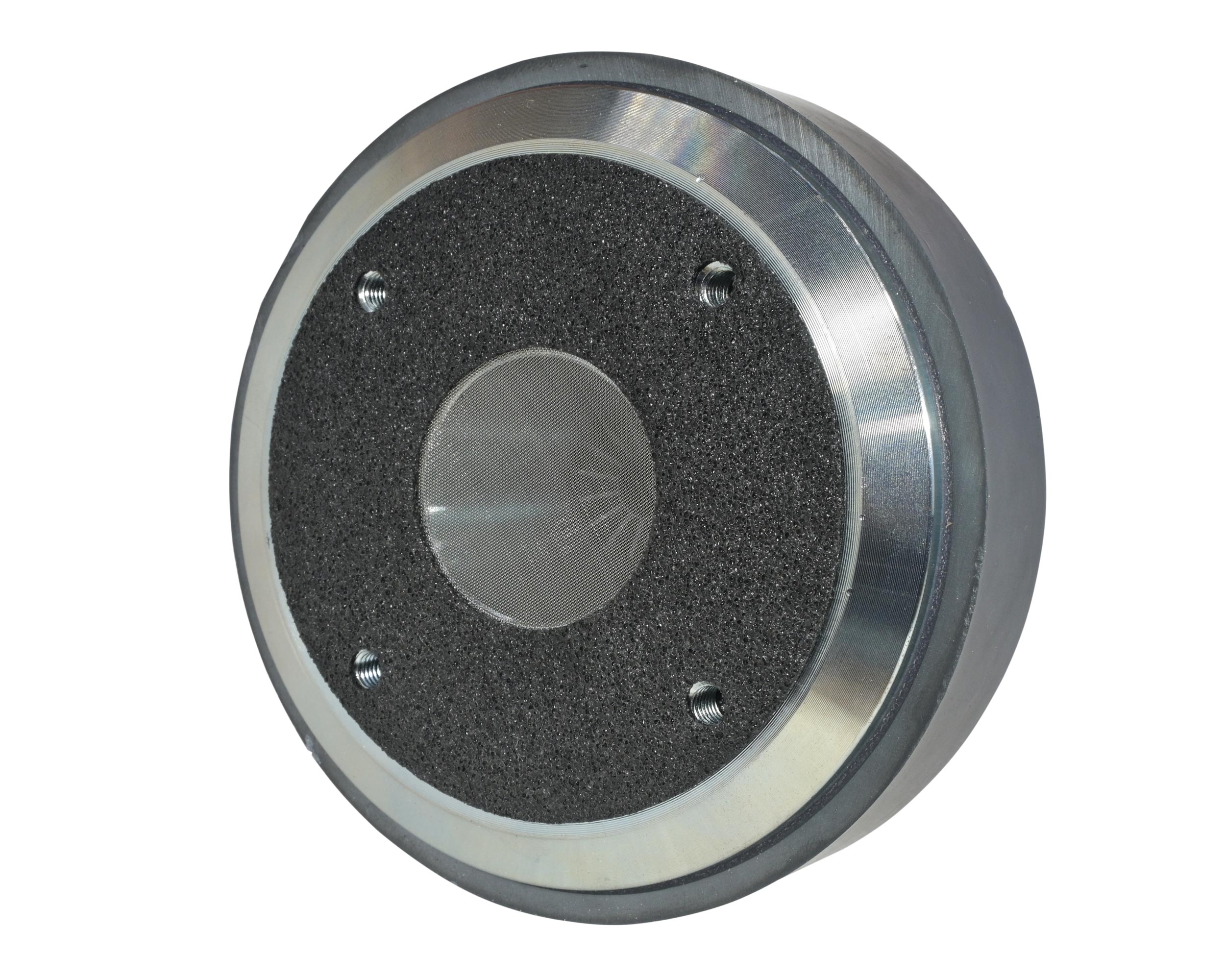

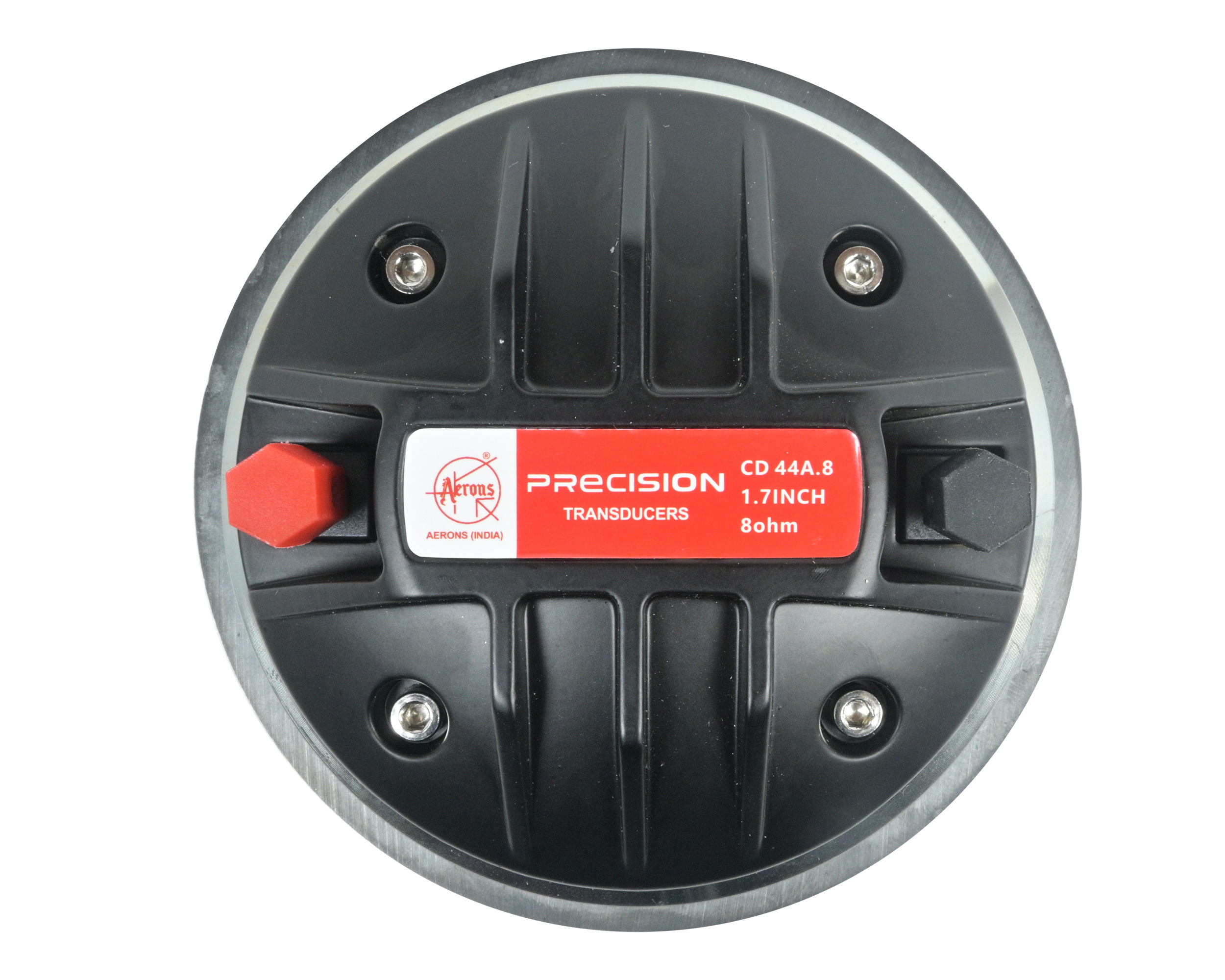

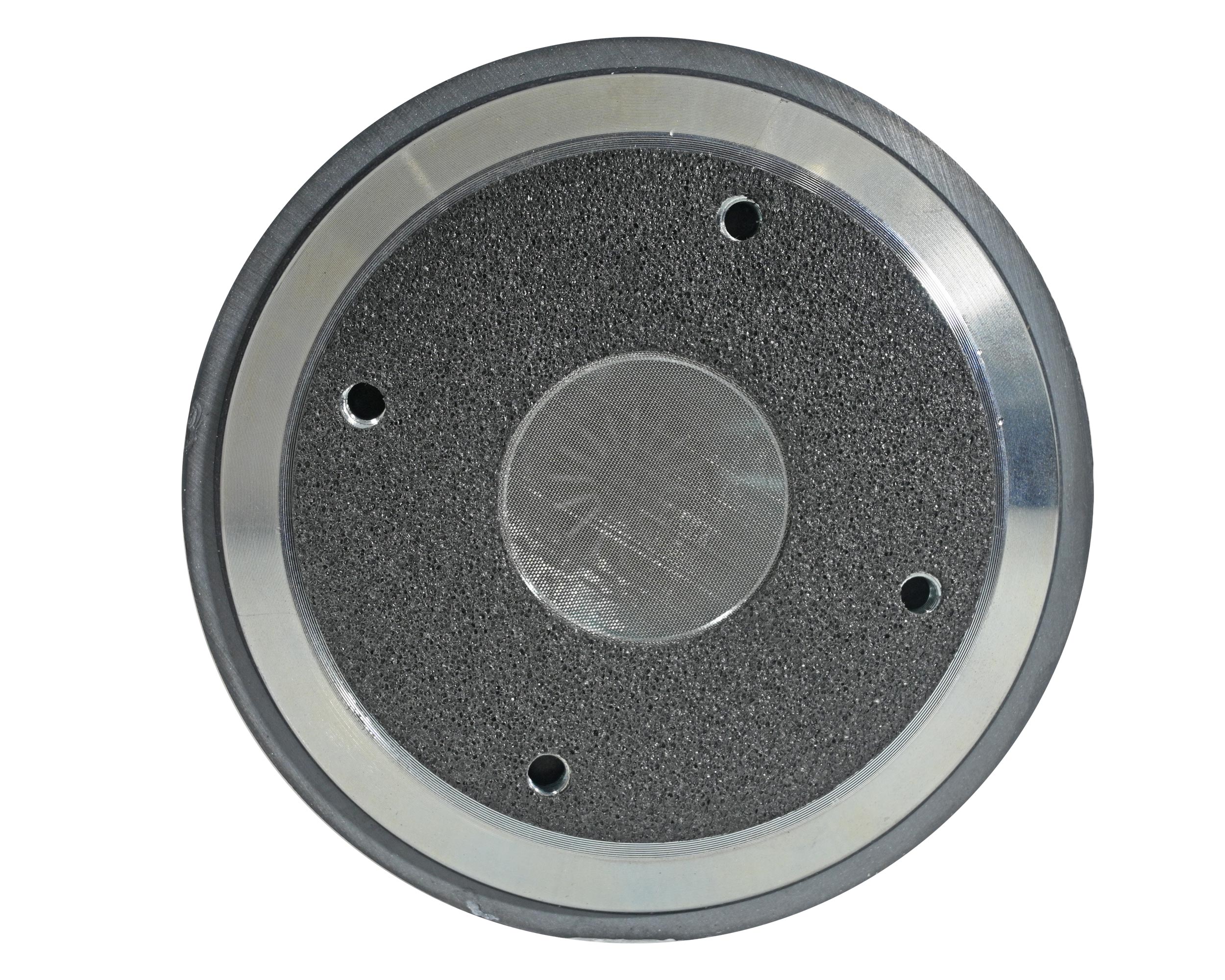

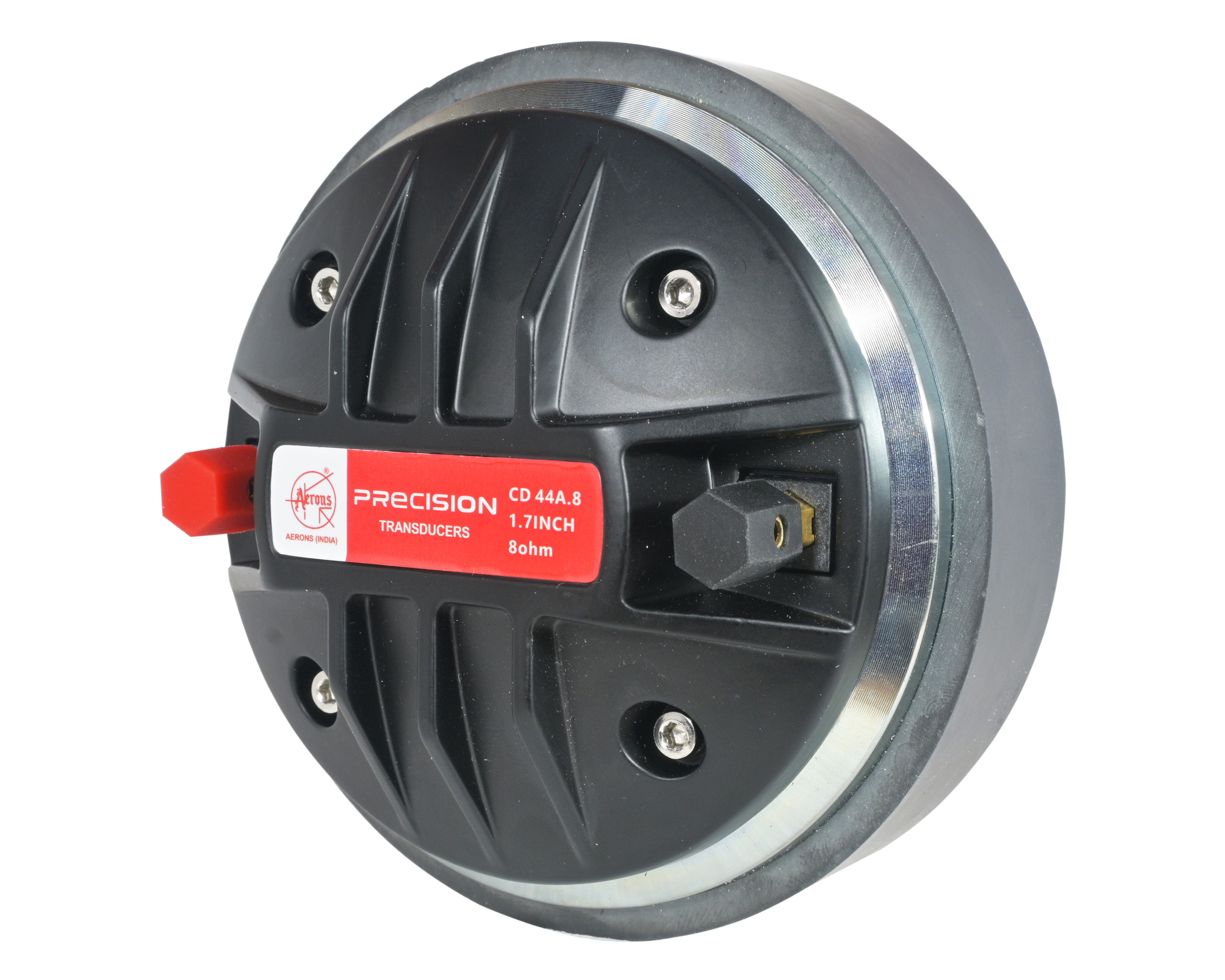

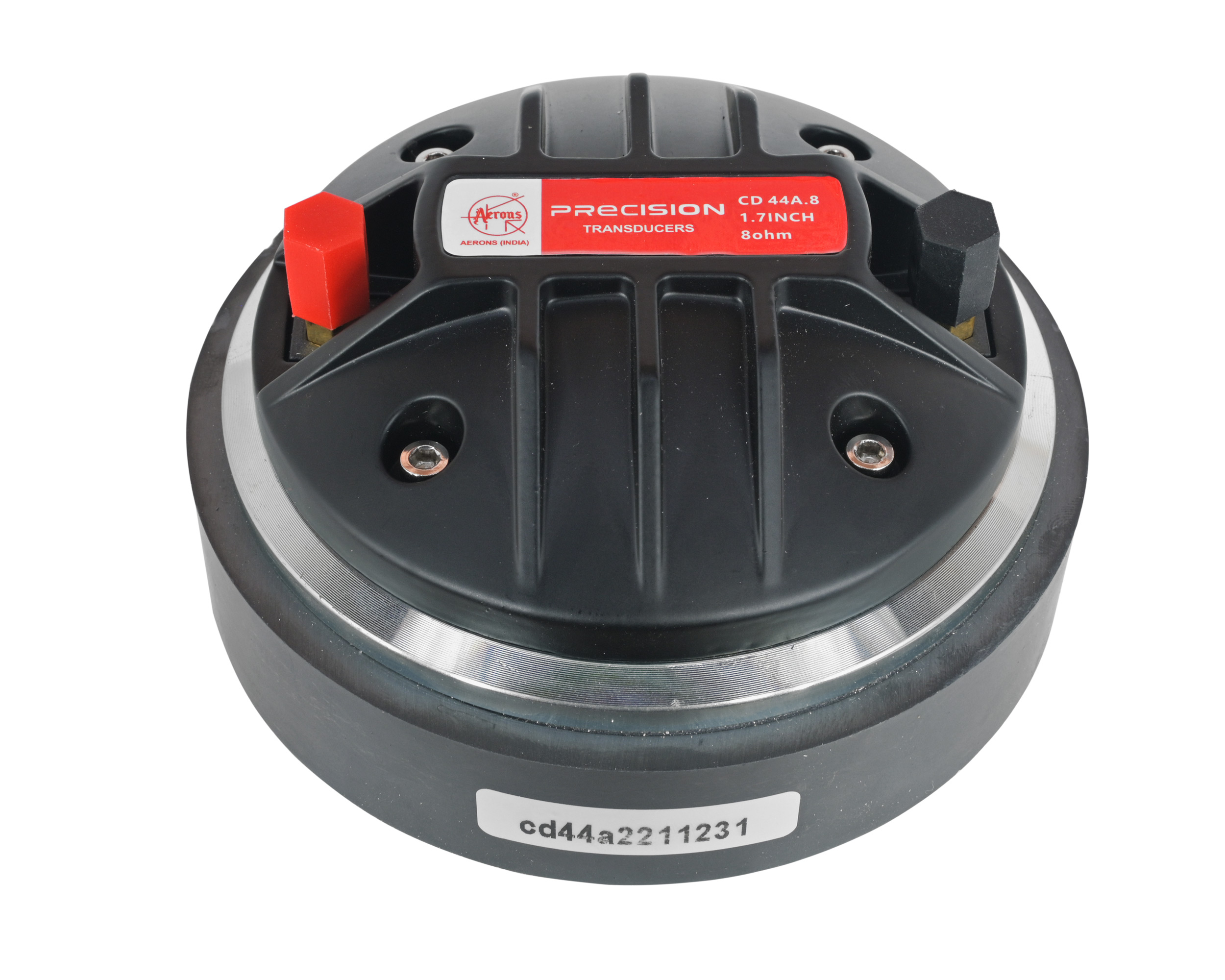

Discover the pinnacle of audio excellence with the Aerons CD44A.8 Compression Driver. Featuring a commanding 70W RMS power rating, a robust 44mm voice coil, a wide 25mm exit throat, and an advanced ferrite magnet design, the CD44A.8 is engineered to deliver unrivaled sound quality and performance. Elevate your audio experience with precision and power, courtesy of model CD44A.8 from Aerons.

CD44A.8

Throat Diameter

25.4mm

Nominal Impedance

8ohms

Program Power

70W

Nominal Power

140W

Sensitivity

109DB (1m/1w)

Frequency Range

1000Hz-18kHz

Voice-coil Diameter

44.4mm

Voice-coil Material

CCAR

Winding Material

CCAR

Winding Depth

2.8mm

Number of layers

1

Kind Of layer

Outside

Flux Density

1.8T

Phase plug Material

Plastic

Magnet Material

Ferrite

Magnet Grade

Y30A

Minimum Impedance

5.8ohms

Diaphragm Material

PEN





Overall Diameter

120mm

Bolt Circle Diameter

76mm

Bolt Hole Diameter

2-M6mm

Overall Depth

63mm

Net Weight (N.W)

2.3kg
