HF850TN

HF850TN

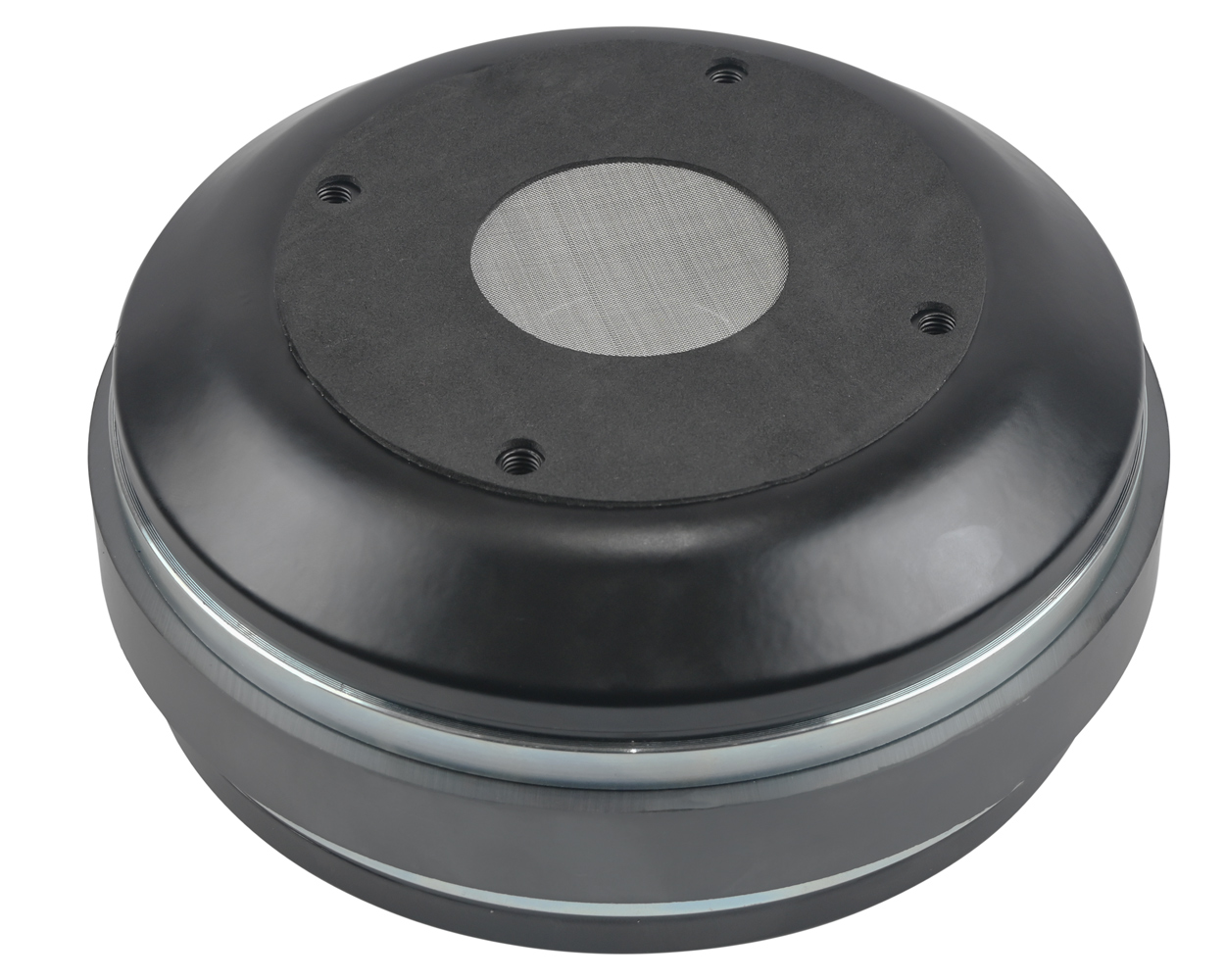

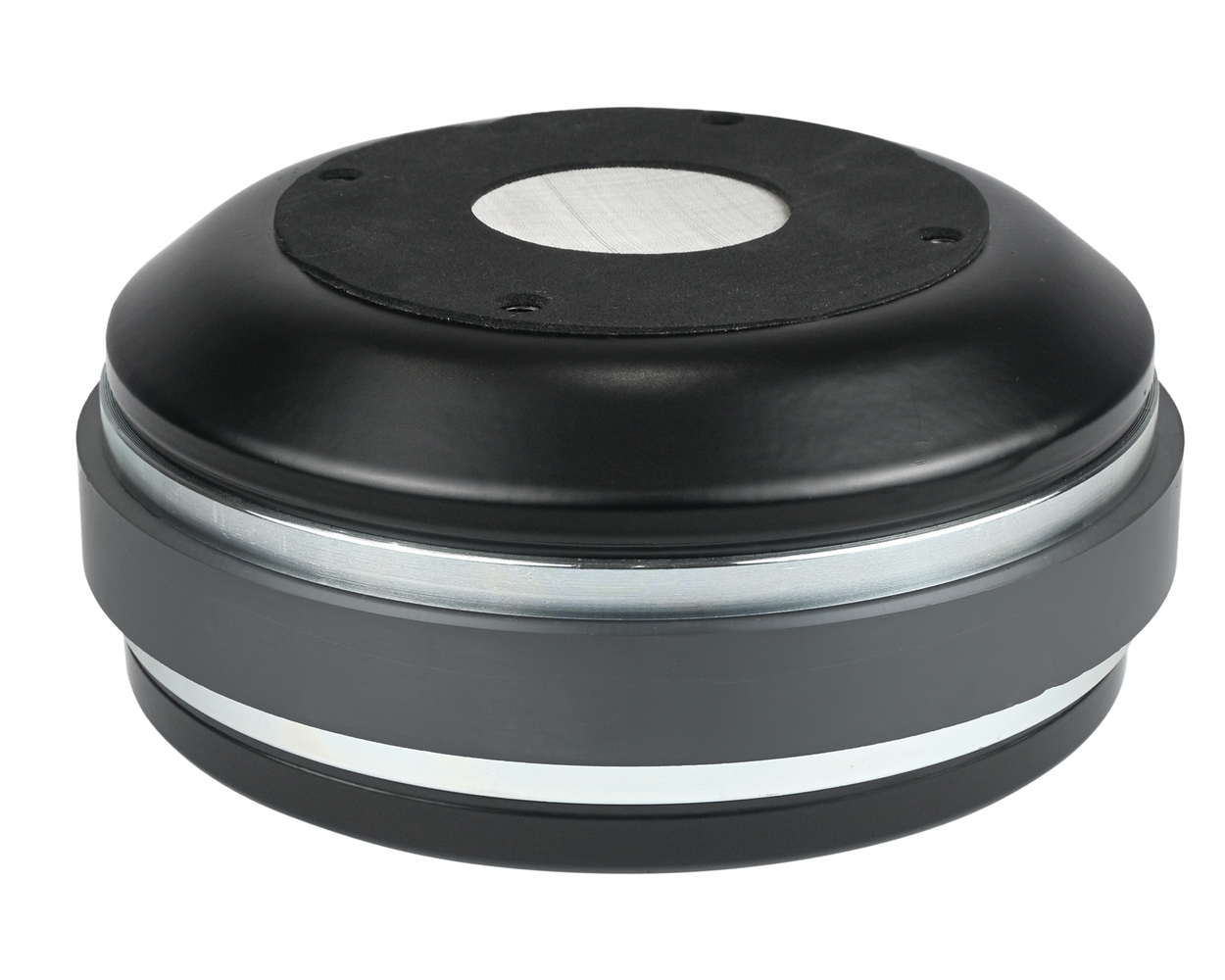

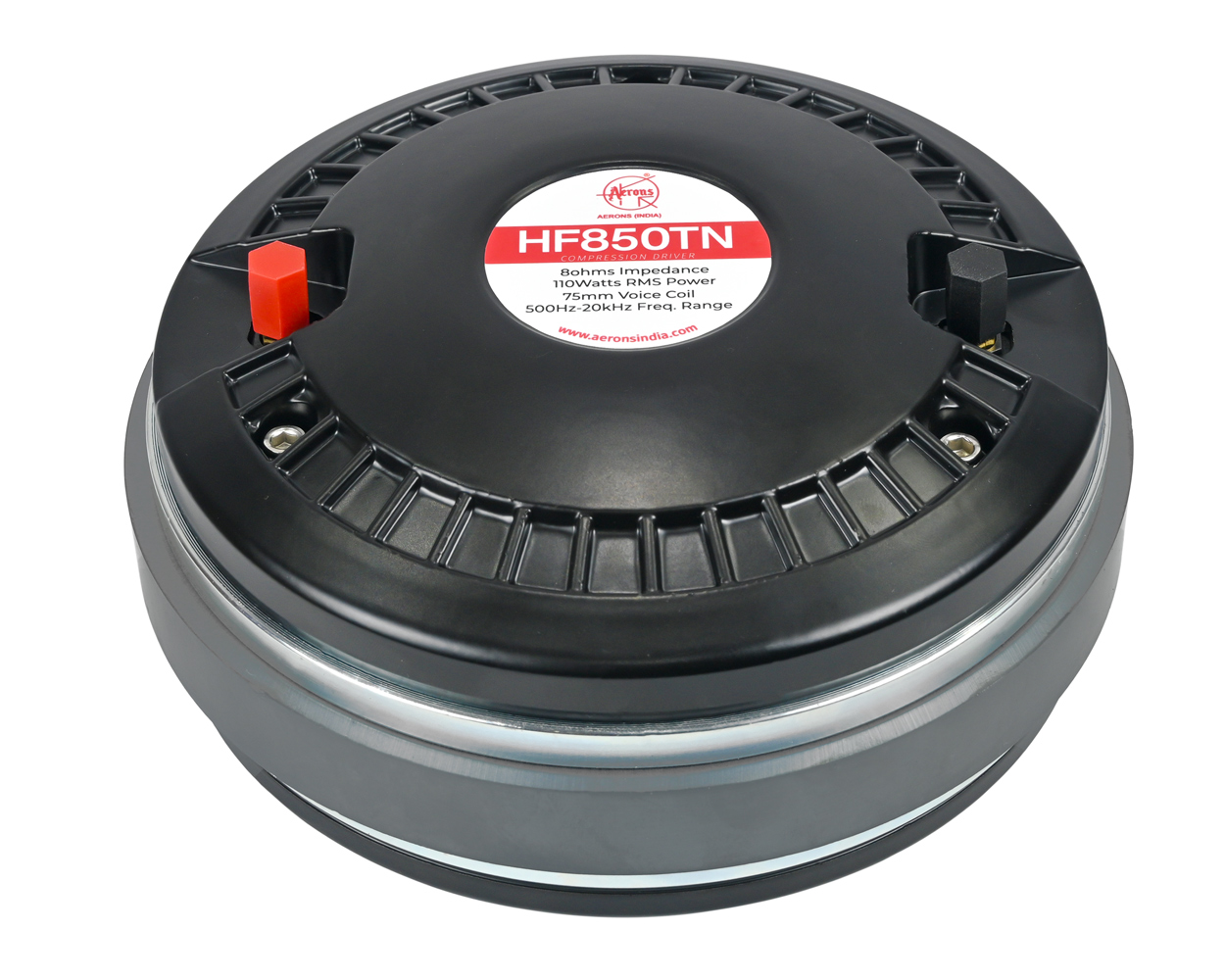

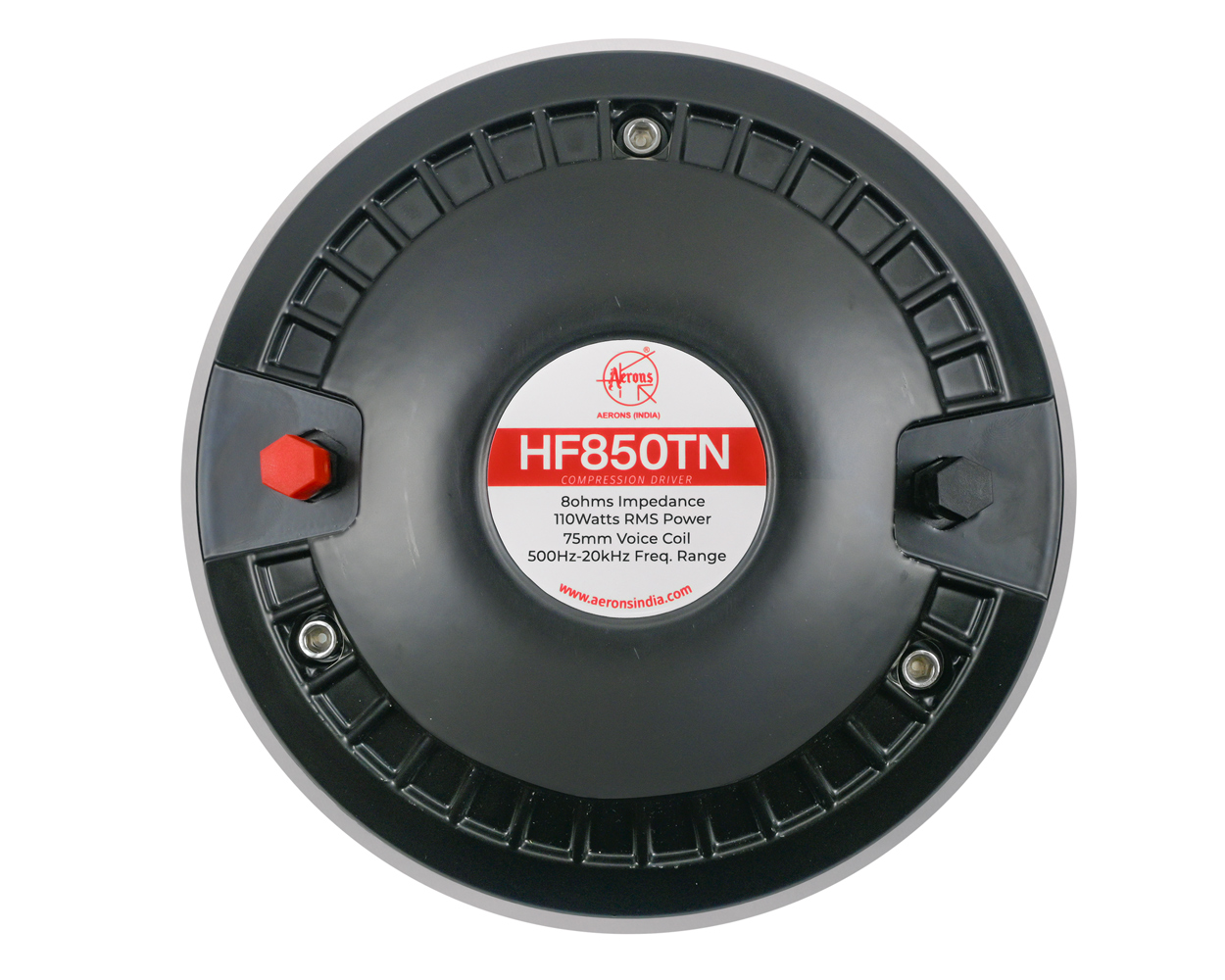

Introducing the Aerons HF850TN, a high-performance compression driver designed for professional audio applications.

Aerons HF850TN Compression Driver - Key Features:

  • Power Handling (110W RMS):
    Provides strong sound output with the ability to handle high power, making it ideal for larger setups and demanding audio environments.

  • Voice Coil (75mm):
    A larger voice coil ensures better heat dissipation and improved sound accuracy, enhancing overall performance.

  • Wide Frequency Response (500Hz – 20kHz):
    Covers a broad range of frequencies, from low mid-range to high-end, ensuring clear and detailed audio reproduction.

  • High Sensitivity (110dB):
    Offers efficient sound output with less power, making it suitable for high-performance audio systems that require loud and clear sound.

  • Y35-Grade Strontium Ferrite Magnet:
    Ensures a strong and stable magnetic field for optimal driver performance and durability, even under high power.

  • Professional Application:
    Perfect for PA systems, stage monitors, and other high-power audio setups, providing clear and reliable sound for live events and installations.

The Aerons HF850TN delivers exceptional sound quality, power, and durability, making it a great choice for professional audio systems.

HF850TN

Throat Diameter

50 mm

Nominal Impedance

8ohm

Nominal Power Handling

110Watts

Continuous Power Handling

220Watts

Sensitivity

110dB

Frequency Range

500-20KHz

Voice-coil Diameter

75mm

Voice-coil Material

CCAW

Voice-coil Winding Depth

3 mm

Voice-coil Former

Kapton

Diaphragm Material

Titanium

Kind of layer

Out

Number of layers

2

Top Plate Thickness

8.2mm

Flux Density

1.9T

Magnet Material

Strontium Ferrite

Magnet Grade

Y35

Magnet Gap Depth

8.2mm









Overall Diameter

181mm

Bolt Circle Dia.

102mm

Bolt Hole Dia.

M6*4

Overall  Depth

94mm

Magnet Dia.

8.2mm

Net Weight

6 kg
