HF200S

  • 800W RMS power
  • 1000-20KHz Frequency range
  • 51.6mm Voice coil
  • 109 dB Sensitivity
  • Y35 Grade FERRITE Driver
  • WHATSAPP CATALOG AND PRICE

HF200S

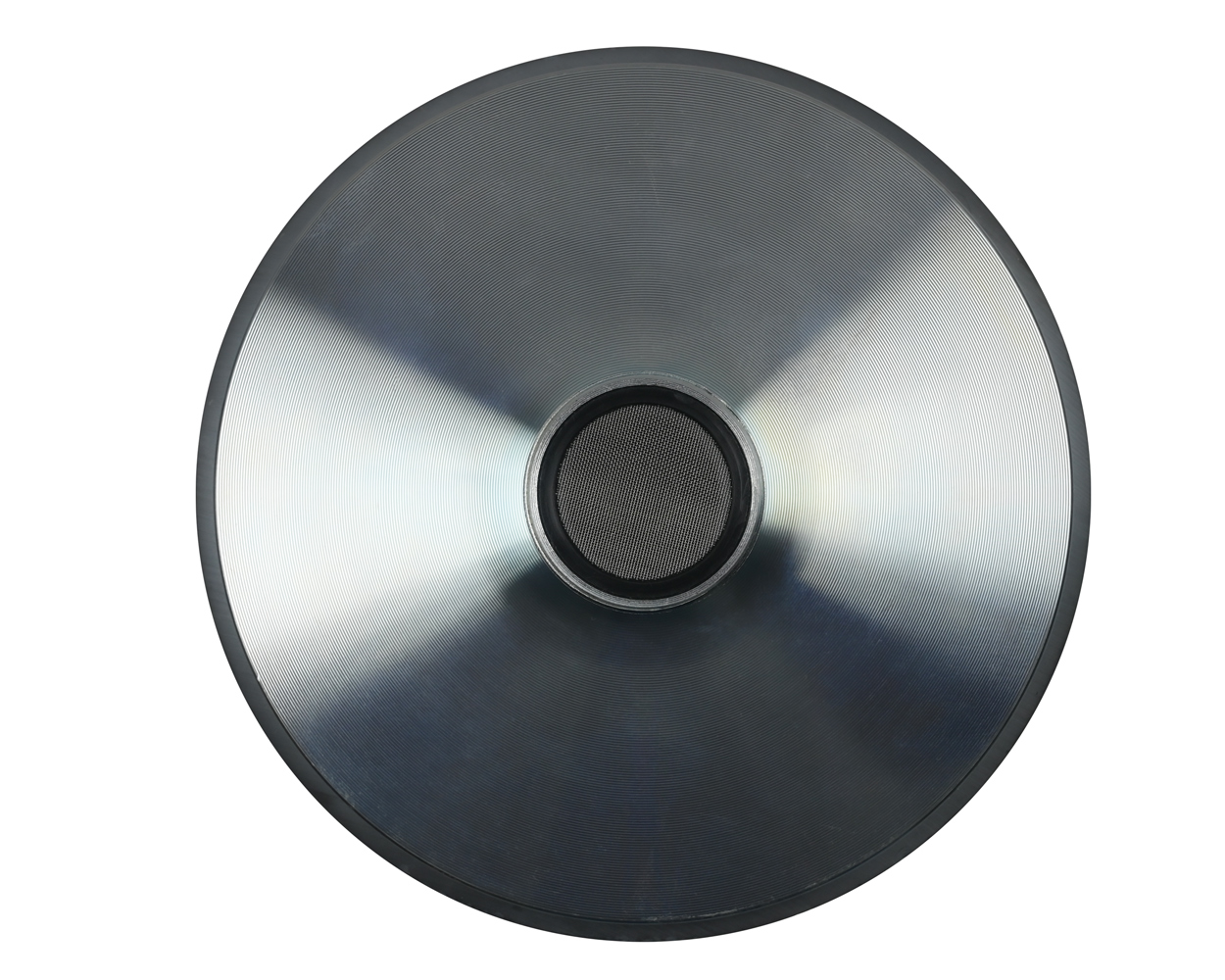

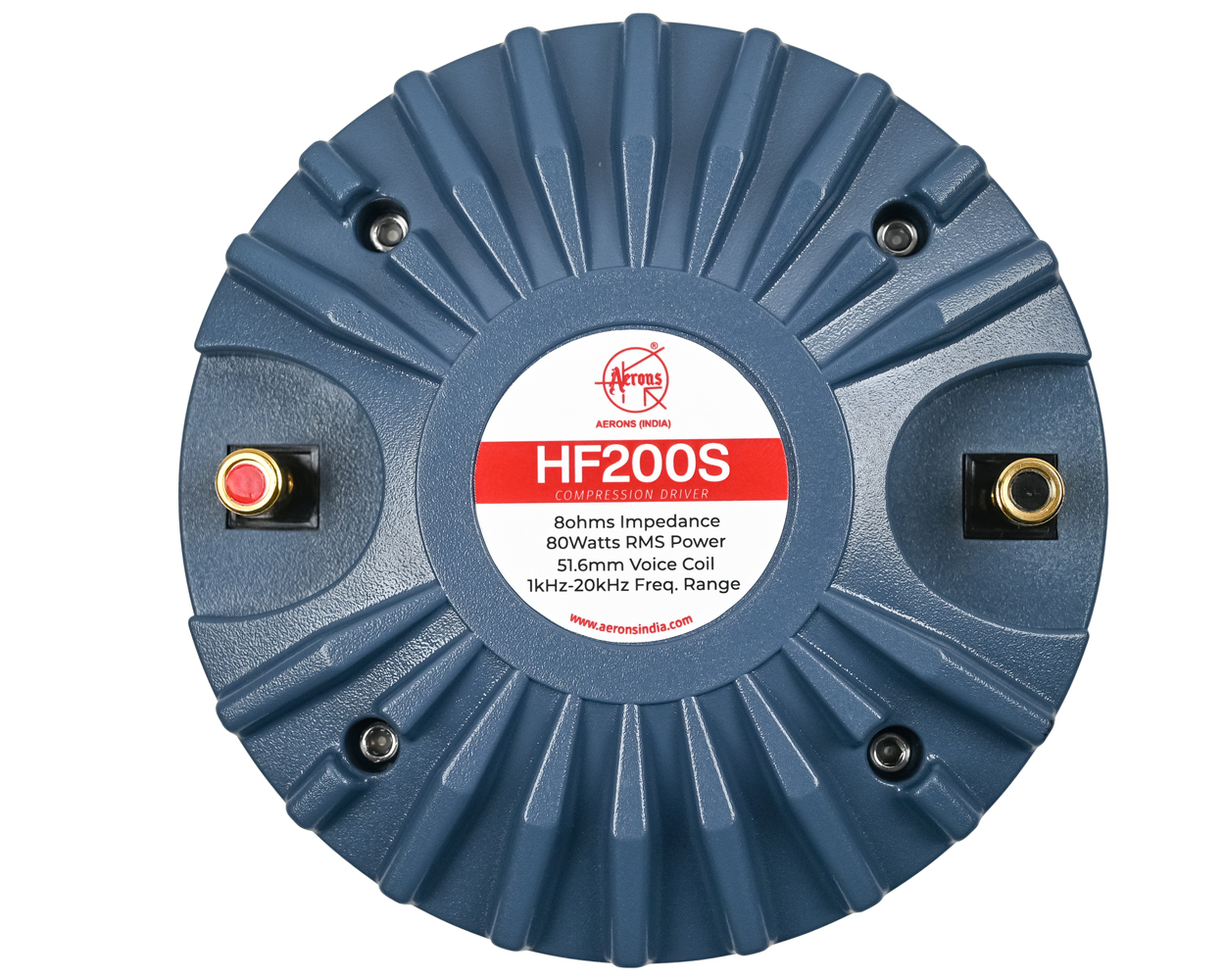

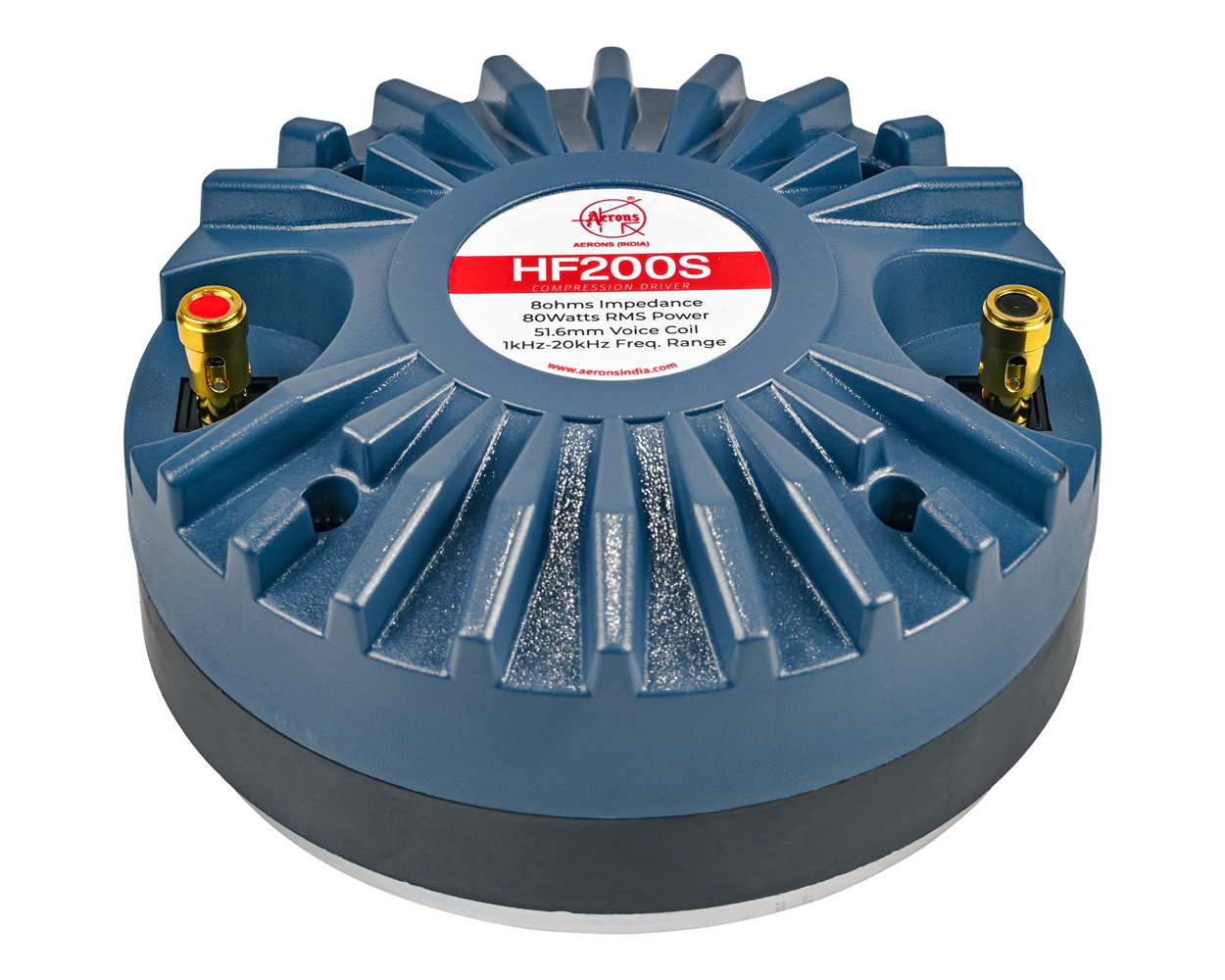

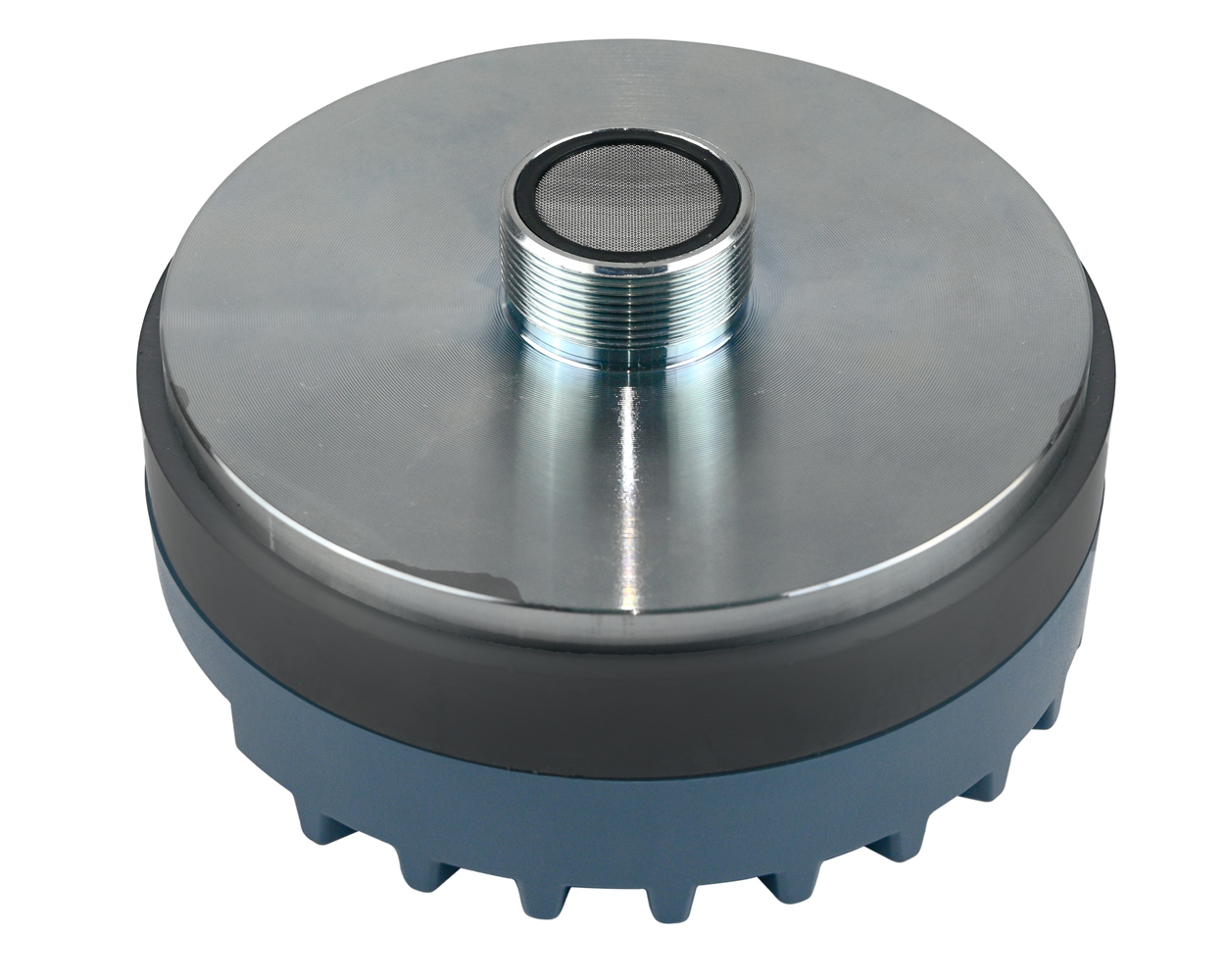

The Aerons India HF200S Compression Driver is engineered to meet the demands of high-performance sound systems, providing exceptional output and clarity. Designed for professional audio applications, this compression driver is built to deliver remarkable sound reproduction across a wide frequency range of 1,000Hz to 20kHz, ensuring that both high and low frequencies are captured with precision.

With an 80W RMS power handling capability, the HF200S is capable of delivering powerful sound even at high volume levels. The 51.6mm voice coil contributes to the driver’s efficiency and heat dissipation, allowing it to maintain consistent performance over extended periods of use.

The HF200S features a sensitivity of 109dB, making it highly efficient in converting input power into acoustic output, which allows for greater sound pressure levels with minimal amplifier power. This high sensitivity is ideal for applications requiring crisp, clear sound at loud volumes without distortion.

Equipped with a Y35-grade strontium ferrite magnet, the HF200S ensures superior magnetic strength and long-term durability, offering stable performance even under demanding conditions. The high-quality magnet material contributes to the driver’s overall reliability, ensuring consistent performance throughout its lifespan.

Whether for live sound reinforcement, PA systems, or high-fidelity speaker designs, the Aerons India HF200S Compression Driver provides the ideal combination of power, efficiency, and durability to meet the needs of professional audio engineers and sound enthusiasts alike.

HF200S

Throat Diameter

25.4 mm

Nominal Impedance

8ohm

Nominal Power Handling

80Watts

Continuous Power Handling

160Watts

Sensitivity

109dB

Frequency Range

1000-20KHz

Voice-coil Diameter

51.6mm

Voice-coil Material

CCAW

Voice-coil Winding Depth

2 mm

Voice-coil Former

Kapton

Diaphragm Material

Titanium

Kind of layer

Out

Number of layers

2

Top Plate Thickness

7mm

Flux Density

1.9T

Magnet Material

Strontium Ferrite

Magnet Grade

Y35

Magnet Gap Depth

7mm









Overall Diameter

134mm

Bolt Circle Dia.

34.2mm

Bolt Hole Dia.

M6*4

Overall  Depth

79mm

Magnet Dia.

134mm

Net Weight

2.65 kg
