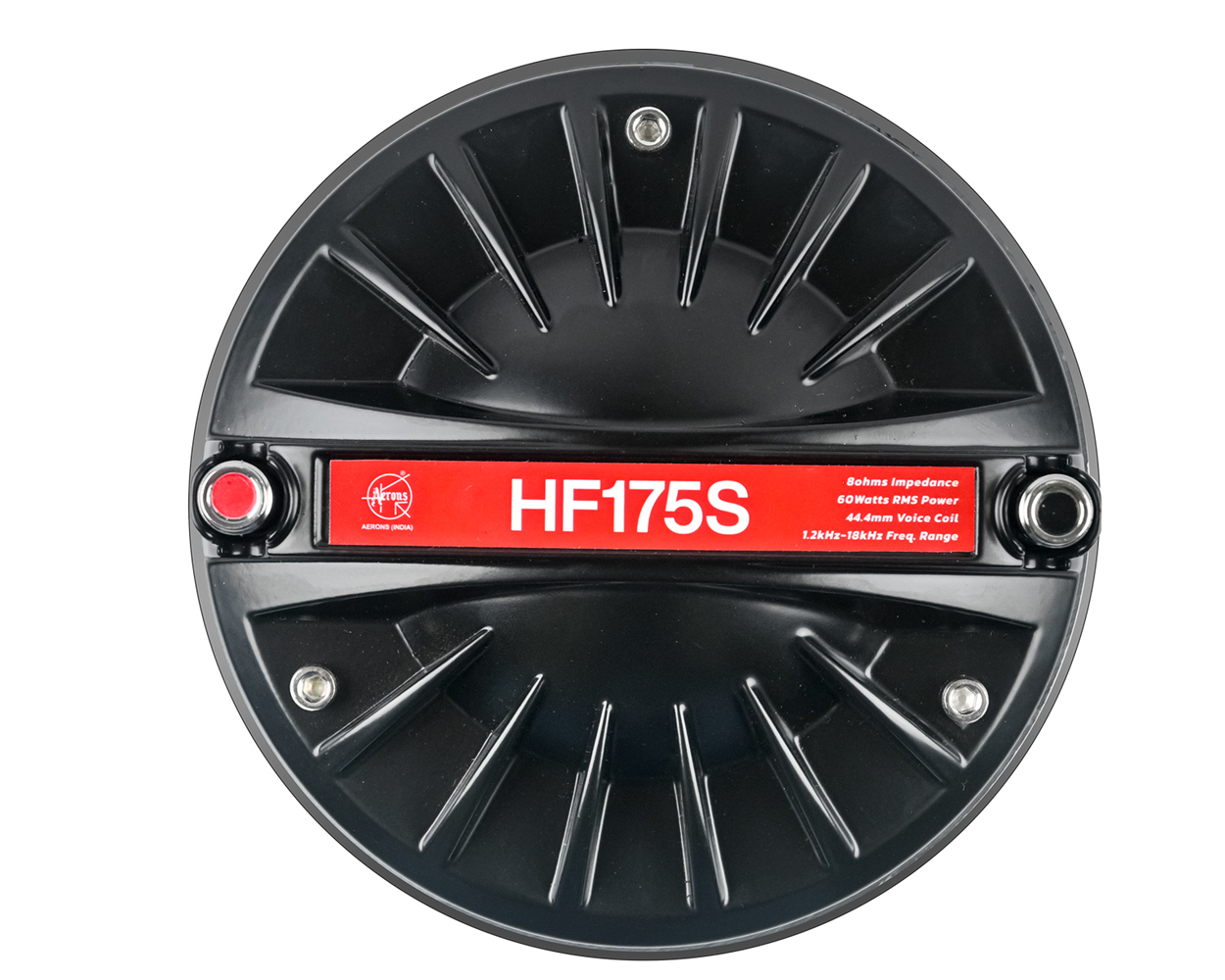

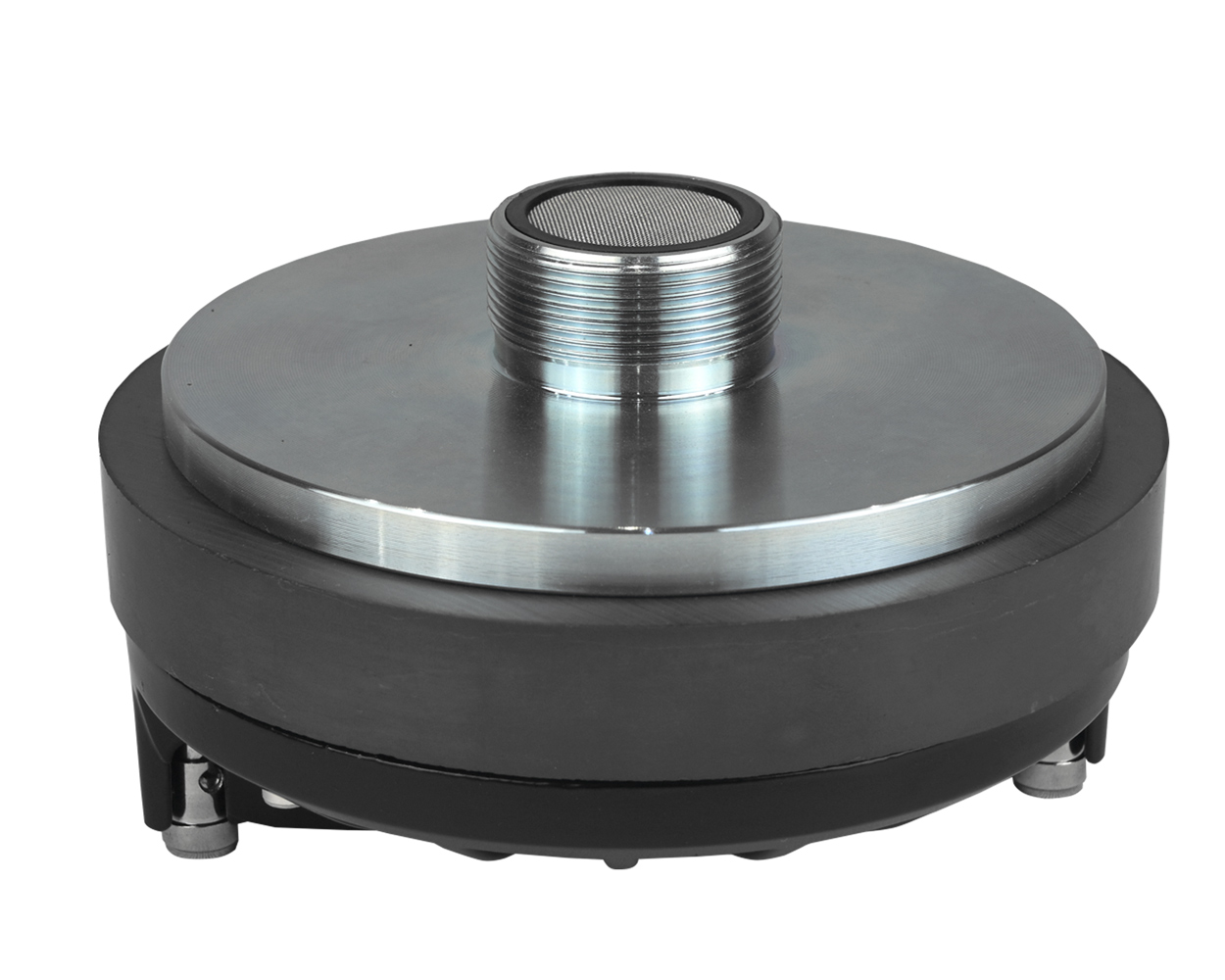

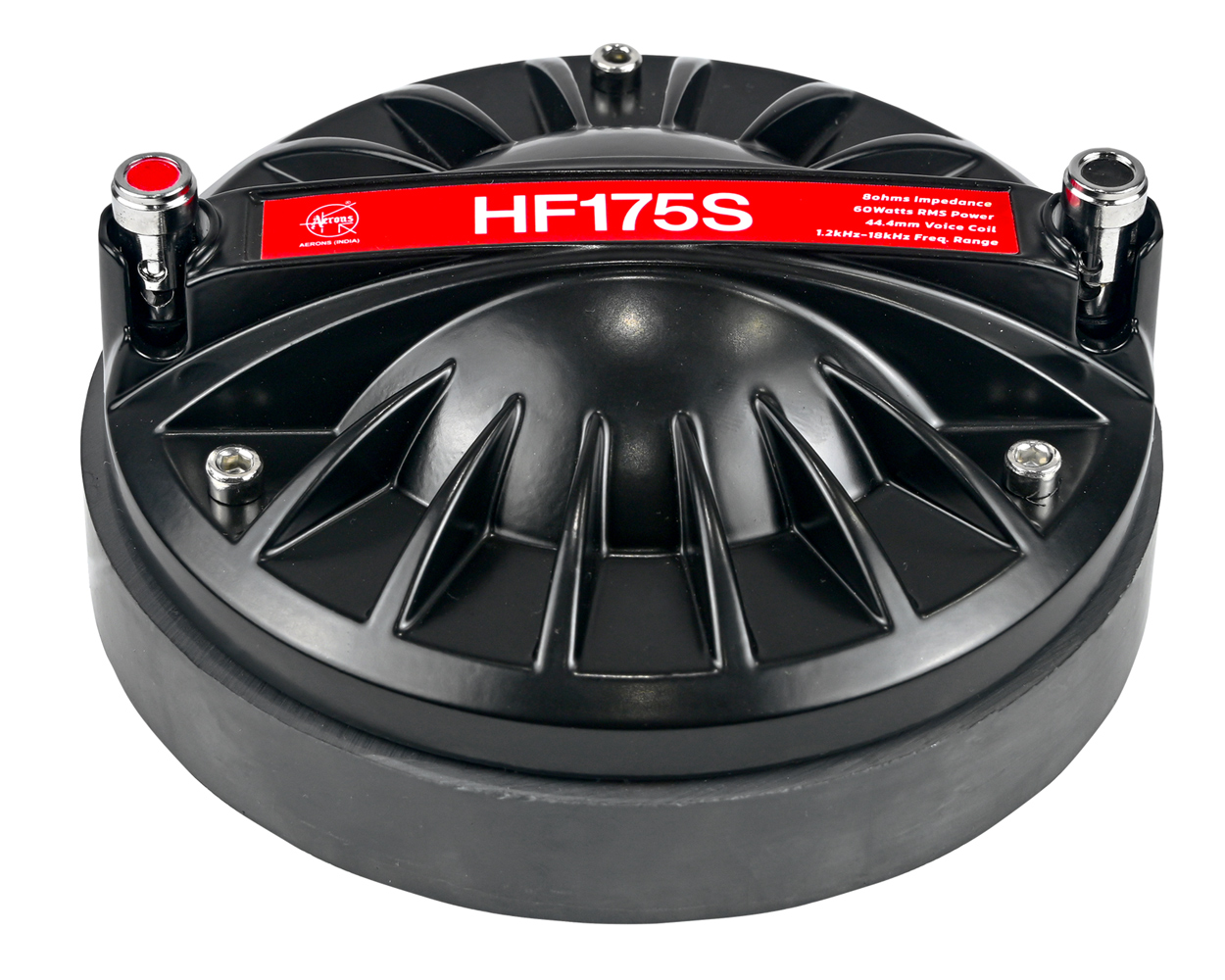

Aerons India proudly presents the HF175S, a high-performance compression driver designed to deliver exceptional audio clarity and power.
Aerons HF175S Compression Driver - Features:
Powerful Output (60W RMS):
Delivers strong and consistent sound for any audio setup.
Durable Voice Coil (44.4mm):
Ensures clear sound and long-lasting performance.
Wide Frequency Range (1200Hz – 20kHz):
Covers both mid high and high frequencies for detailed audio.
High Sensitivity (108dB):
Produces loud sound with less power, making it efficient.
Strong Magnet (Y35-Grade Strontium Ferrite):
Provides reliable performance and durability.
Perfect for Professional Use:
Great for PA systems, stage monitors, and other sound systems.
|
25.4 mm |
|
|
Nominal Impedance |
8ohm |
|
Nominal Power Handling |
60Watts |
|
Continuous Power Handling |
120Watts |
|
Sensitivity |
108dB |
|
Frequency Range |
1200-18KHz |
|
Voice-coil Diameter |
44.4mm |
|
Voice-coil Material |
PAFW |
|
Voice-coil Winding Depth |
2.8 mm |
|
Voice-coil Former |
Kapton |
|
Diaphragm Material |
Polyimide |
|
Kind of layer |
Out |
|
Number of layers |
2 |
|
Top Plate Thickness |
7mm |
|
Flux Density |
1.85T |
|
Magnet Material |
Strontium Ferrite |
|
Magnet Grade |
Y35 |
|
Magnet Gap Depth |
7mm |
|
Overall Diameter |
125mm |
|
Bolt Circle Dia. |
34.2mm |
|
Bolt Hole Dia. |
M6*4 |
|
Overall Depth |
79mm |
|
Magnet Dia. |
125mm |
|
Net Weight |
2.3 kg |
