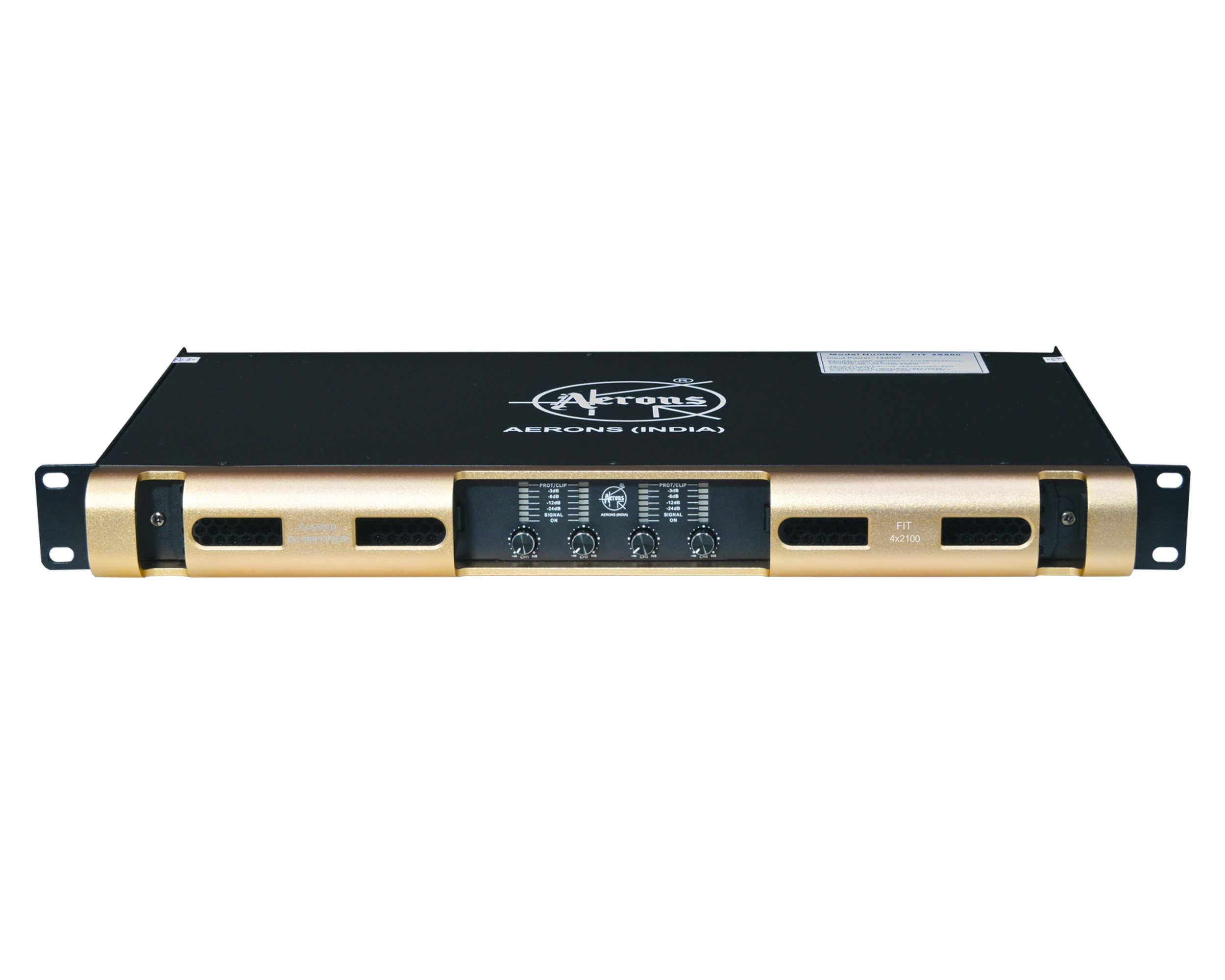

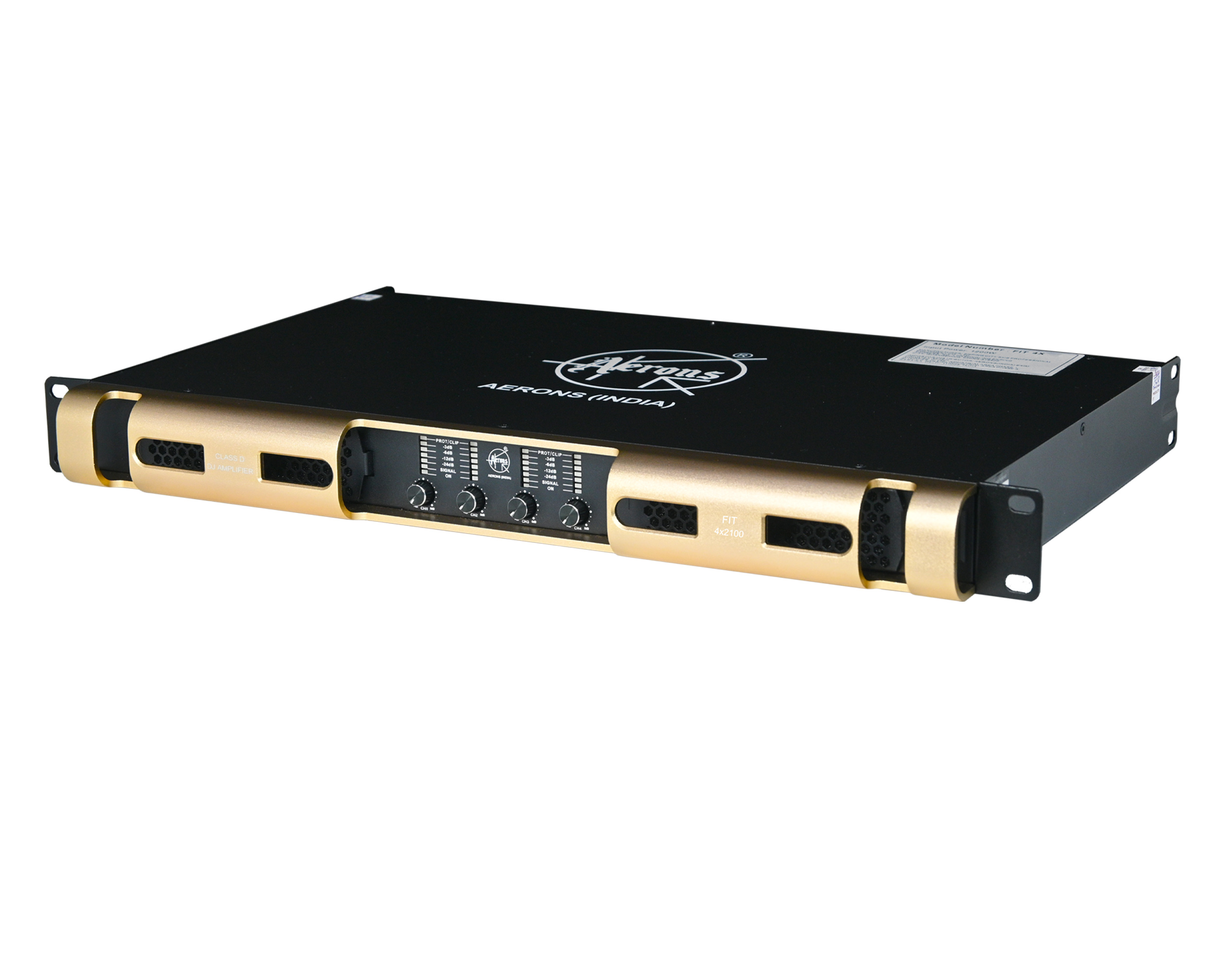

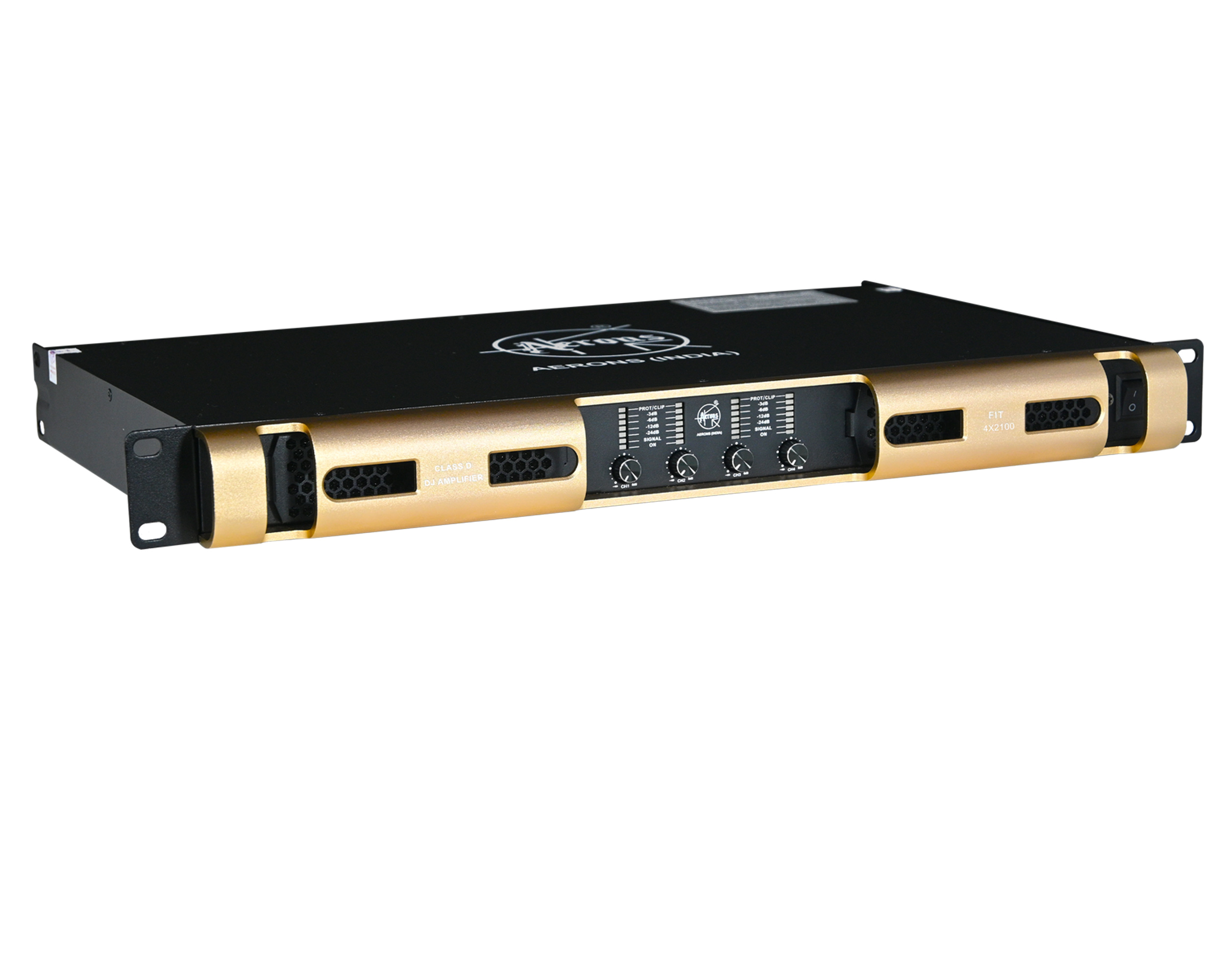

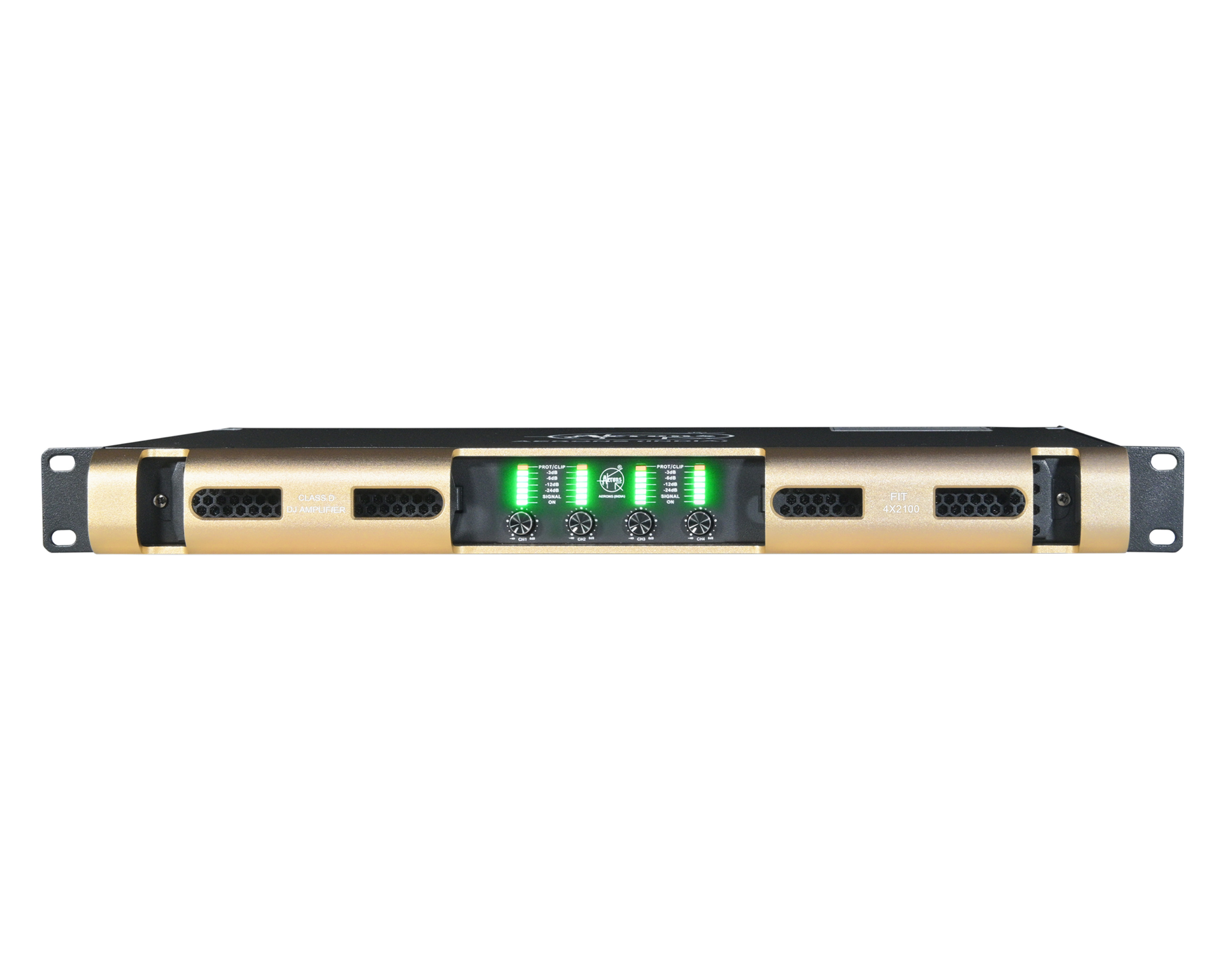

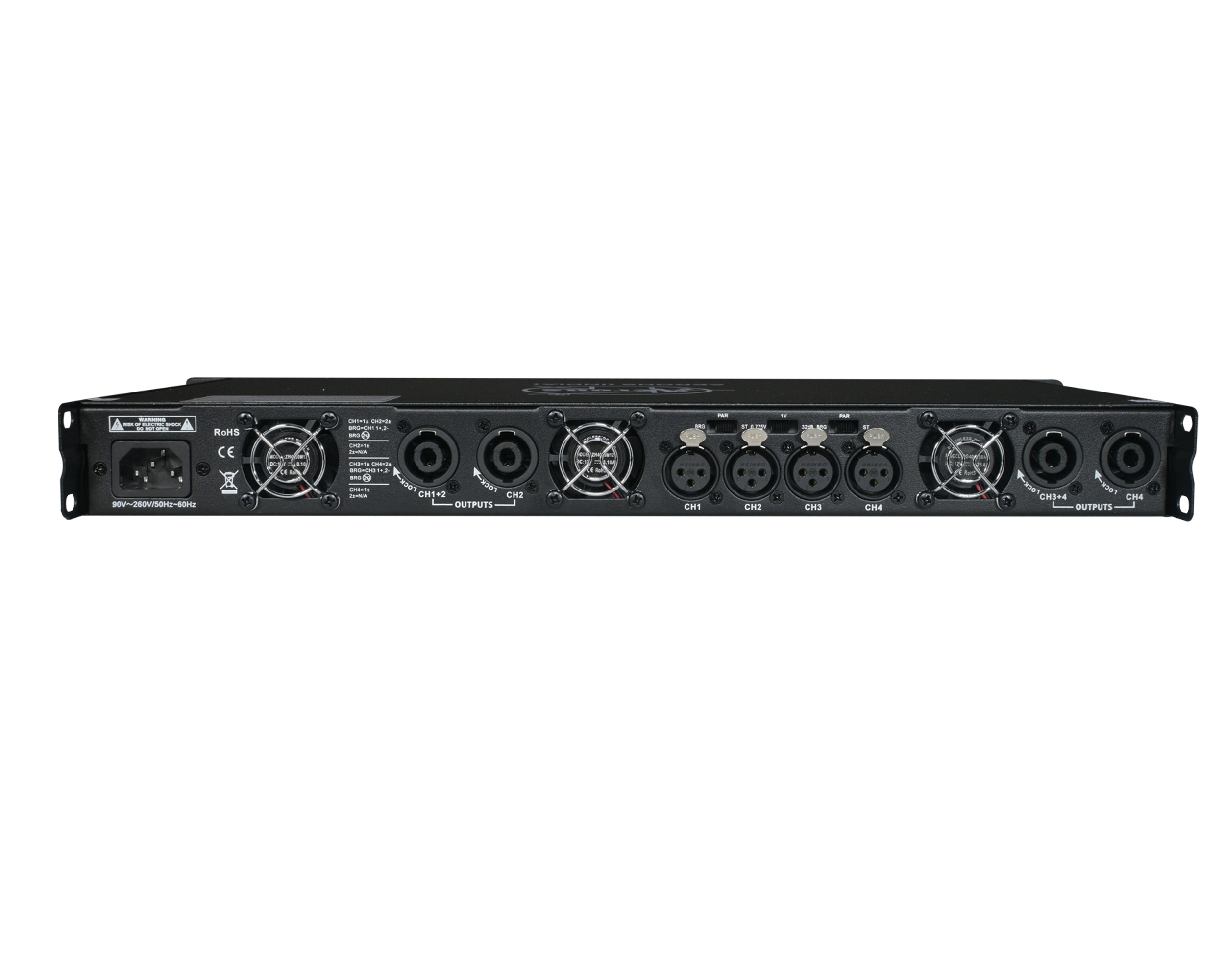

FIT 4X2100

Aerons’s new FIT series offers brand new flexibility and high efficiency. Featuring mature D class technology, in a costeffective 1U rach height, designed for small to middle-range sound system. The use of the Power Factor Correction(PFC) shows Aerons’s target in energy saving, PFC will hugely improve performance and contain mains current draw and consumption. As the newest addition to Aerons’s touring line of amplifier, FIT series is launched for requirements of cost-effective and high-performance.

FEATURES

► Class D amp modules ensures over 92% high working efficiency.

• Lower operating temperature.
• Lower power consumption.
• Lower heat dissipation.
• High power density.

► Regulated-Switch Mode Power Supply (R-SMPS) ensures constant power output at all times

► Multiple protection features: DC/Short Circuit/High Temp/Overload/Soft start up/CLIP/VHF

► Power Factor Correction(PFC) solve most concerns in working voltage.

• Stable performances and independent from the mains (very useful in countries where the mains quality is below standards)
• Lighter weight
• Higher reliability
• Reduced circuit components stress by supplying well-regulated DC
• World Wide Range Operation (from 90 to 265 Vac, 50/60 Hz)
• Significant reduction in required electrical supply capacity
• Cooler operation for a reduced air conditioning necessities in fixed installations
• Significant saving of energy cost

► Clip limiter circuit can work independently of the impedance load. The limiter range is much wider and smoother. It can avoid square wave caused by output level. Even with much stronger music signal, there is no clipping. This can effectively protect the whole sound system.

► The slew rate is more than 20V/μs. Again, this ensure very nice sound. Even for the most fast and strongest music signal. It can deliver well without losing any signal.

► A smaller, lighter, and more powerful amplifier is easier to transport.
► Thanks to the power density fewer units can be specified, with a direct effect on running costs and cooling costs.
