FIT 2X1000

  • RMS  Power (Per Channel,8Ω): 600W
  • RMS  Power (Per Channel,4Ω): 1000W
  • Rated Power (Bridge 8Ω): 2000W
  • Output Circuity: CLASS D
  • WHATSAPP CATALOG AND PRICE

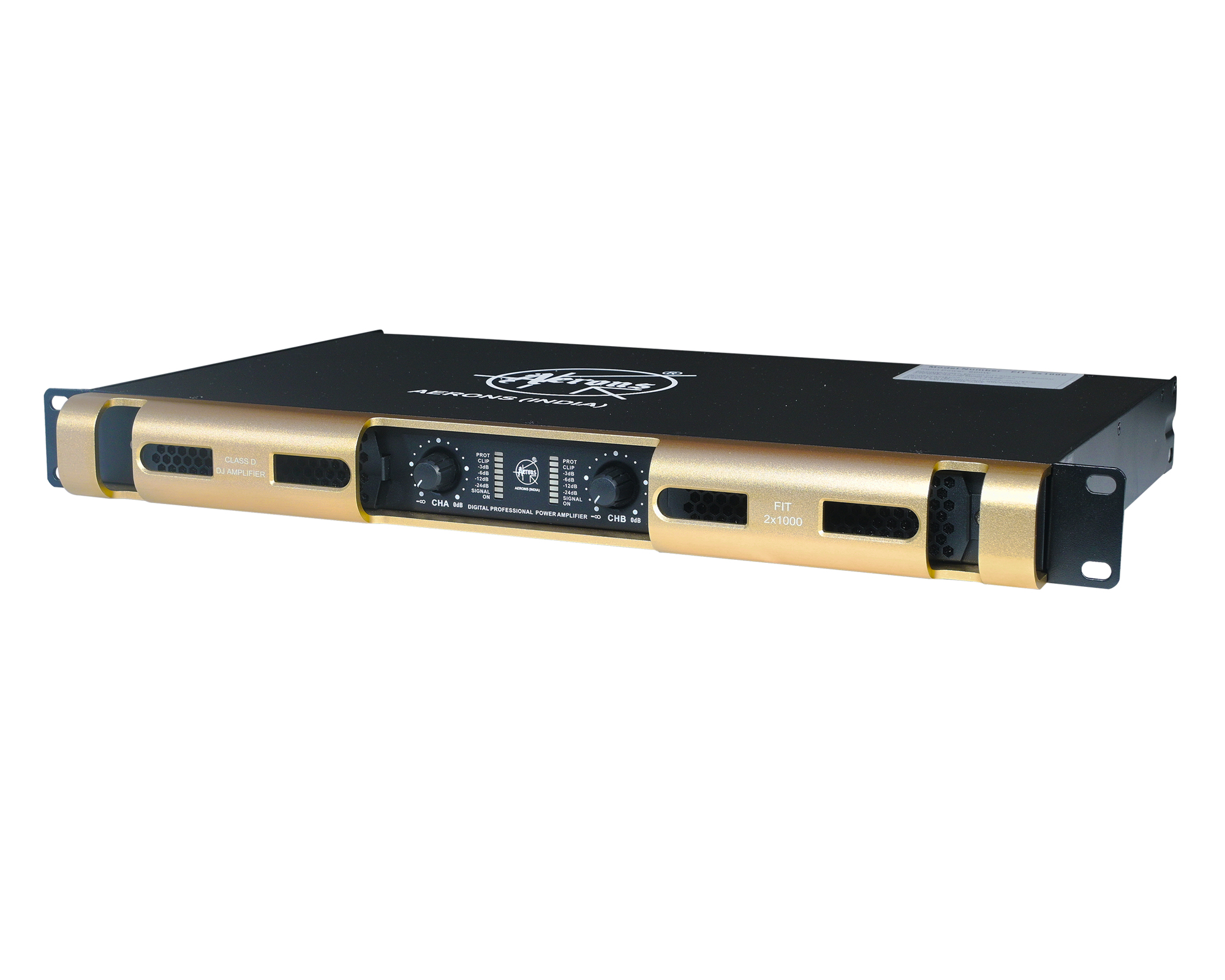

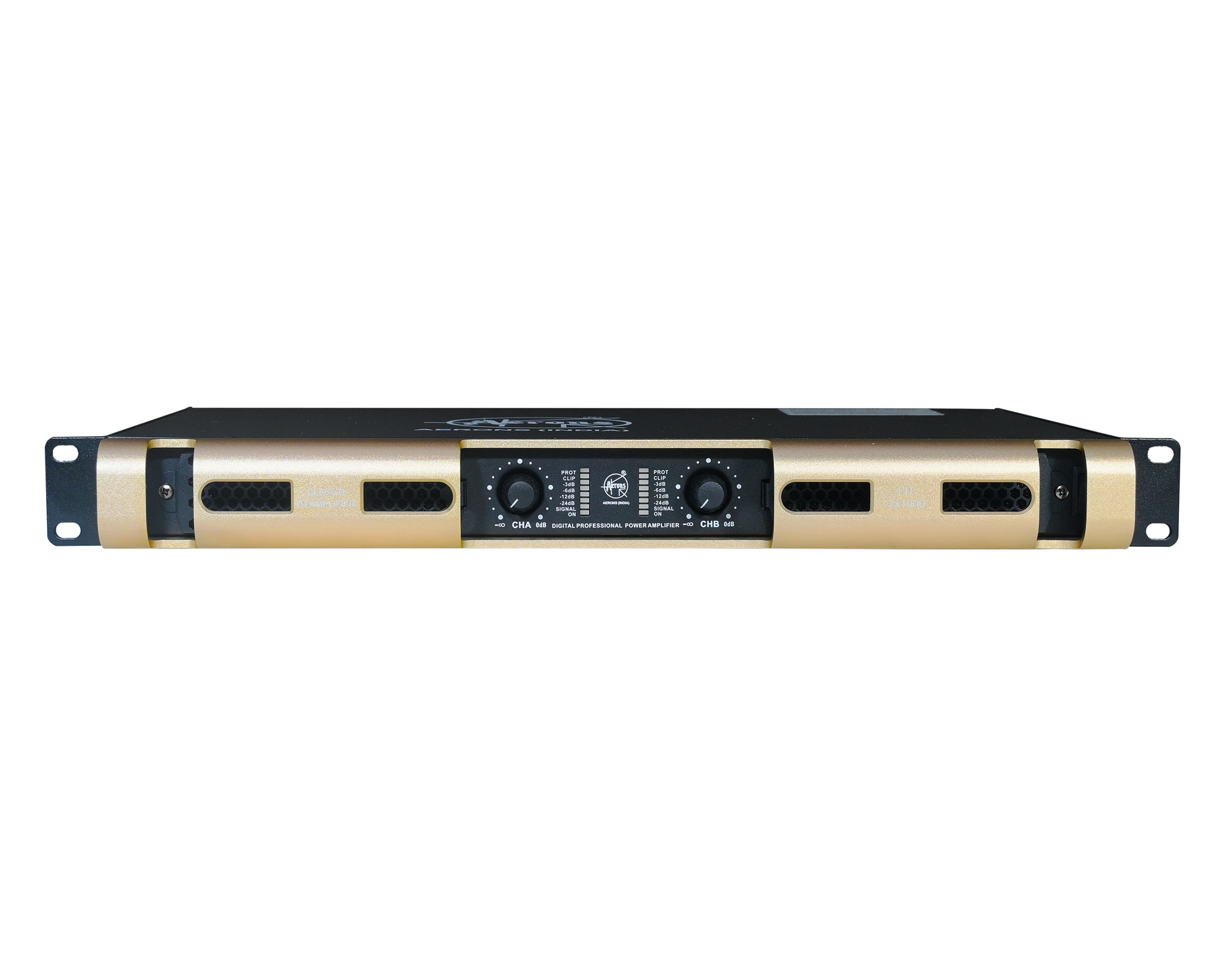

FIT 2X1000

- FIT 2X1000: 1000Wx2 @ 4ohms; 2000W @ 8ohms(Bridged)
- 1U height 9" width of the standard cabinet, compact size, lightweight and portable.
- Class D power amplifier module provides 92% high working efficiency and outputs high power density. Regulated-Switch Mode Power Supply(R-SMPS) ensures constant power output at all         times.
- The Active Power Factor Correction (PFC) ensures the amps can work in working voltage ranges from 90V to 260V. Precision Power, Signal, CLIP, and PROT to monitor performance
- Independent limiters per channel offer reliable protection against overload and distortion.
- Independent DC and thermal protection on each channel automatically protect the amplifier and speaker without shutting down the show.
- Comprehensive protection scheme including current, voltage, DC, temperature, short circuit, and open  load warnings
- “Front to rear” ventilation system avoids uncomfortable feelings when operating the amps from the front panel. High-quality electronic elements and extraordinarily robust construction ensure long lifespan.
-  An efficient cooling system dissipates more heat for extended peak output
- Designed by AERONS INDIA, India.

FIT 2X1000



Rated Power (1 KHz, THD+N=0.1%)



8Ω stereo

2x600W

4Ω stereo

2x1000W

8Ω bridge

2000W

Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz(±0.5dB)

Sensitivity (8Ω stereo @1Khz)

0.775V/1V/32dB





Protection

DC Protection, Short circuit protection, High-temperature protection, Output overload protection, Soft start protection, Clip limit protection, VHF protection, and Progressive volume protection.

Mode

Stereo/Parallel/Bridge

Fan Speed Regulation

Auto-speed

Connectors (Each channel)

Input connectors

XLR (Neutrik®)

Output connectors

Speakon (Neutrik®)

Filter Capability

1500µF/100Vx4

Input Impedance

Balanced

20K

Unbalanced

10K

Channel separation (8Ω load, 1KHz and below)

≥70dB

Slew Rate

20V/µs

S/N ratio (8Ω, Rated Power 8Ω)

≥106dB

Damping Factor (1KHz, 8Ω)

≥800

Working Voltage

PFC, 90˜265V

Output Circuitry

Class D

Dimension (W x H x D)

483x44x251 mm

Gross Weight

4.2Kg
