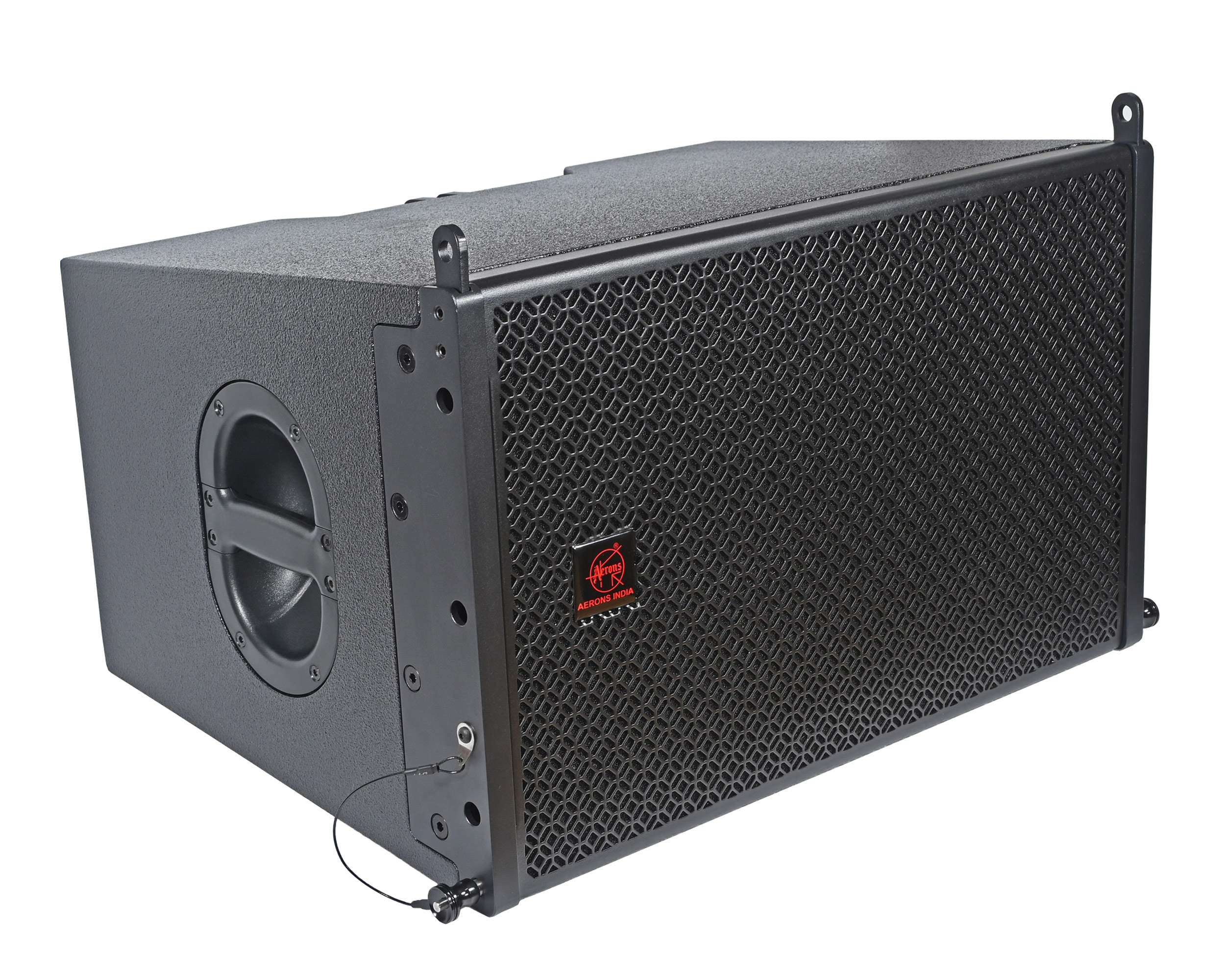

The HDLA 12 is a small and medium scale line array loudspeaker for long throw distance scale sound reinforcement, 2-way design, one 12" LF driver and one 1.4" exit throat HF unit with special line array horn, made of high-quality plywood with polyurea waterproof paint.
FEATURES
- High-quality plywood with wear-resistant and waterproof polyurea paint
- Exceptional sound quality, powerful response & long throw.
- High-grade & durable cabinet design.
- True 90°(-6dB) horizontal mid and HF pattern control.
- High power- maximum SPL 123dB continuous, 129dB Peak.
- High-quality passive crossover network for maximum reliability.
- Extra textured anti-scratch paint finish.
- Convenient for hanging and stacking
- Easy carry handles & heavy-duty protective grille.
|
FREQUENCY RESPONSE |
60Hz- 20kHz |
|

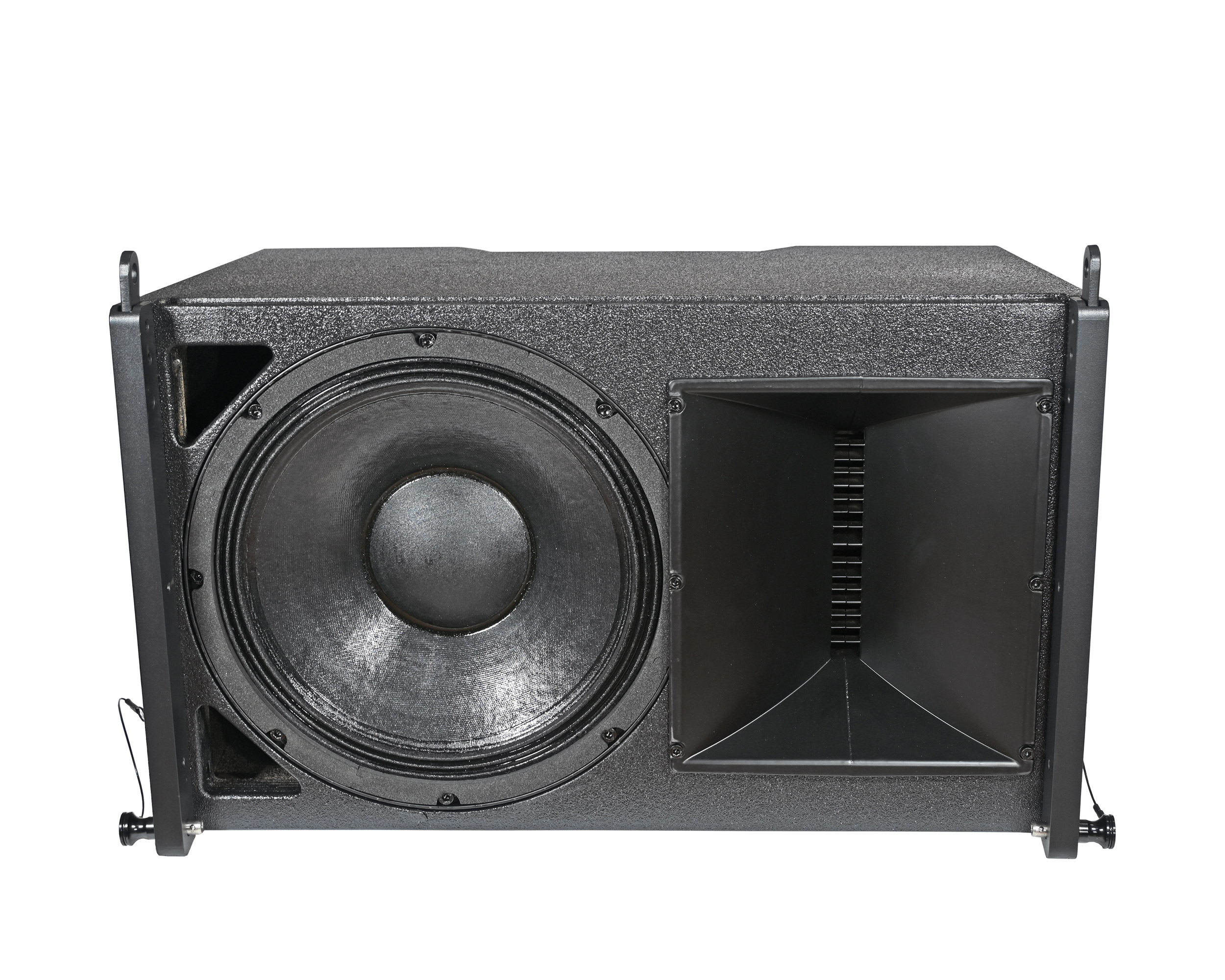

DRIVERS |
1X12” (300mm)/3.5” voice coil LF driver |
|
1x1.4” (36mm)/ 3” voice coil HF driver |
|
|
RATED POWER |
650W |
|
PEAK POWER |
2600W |
|
SENSITIVITY |
98Db 1watt/1Metre |
|
SPL |
123dB |
|
MAXIMUM SPL |
129dB |
|
IMPEDANCE |
8Ω |
|
DISPERSION (-6dB) |
Horizontal Coverage: 90° Vertical Coverage: varies, Depending on array length and configuration |
|
CROSSOVER |
1.4kHz Passive |
|

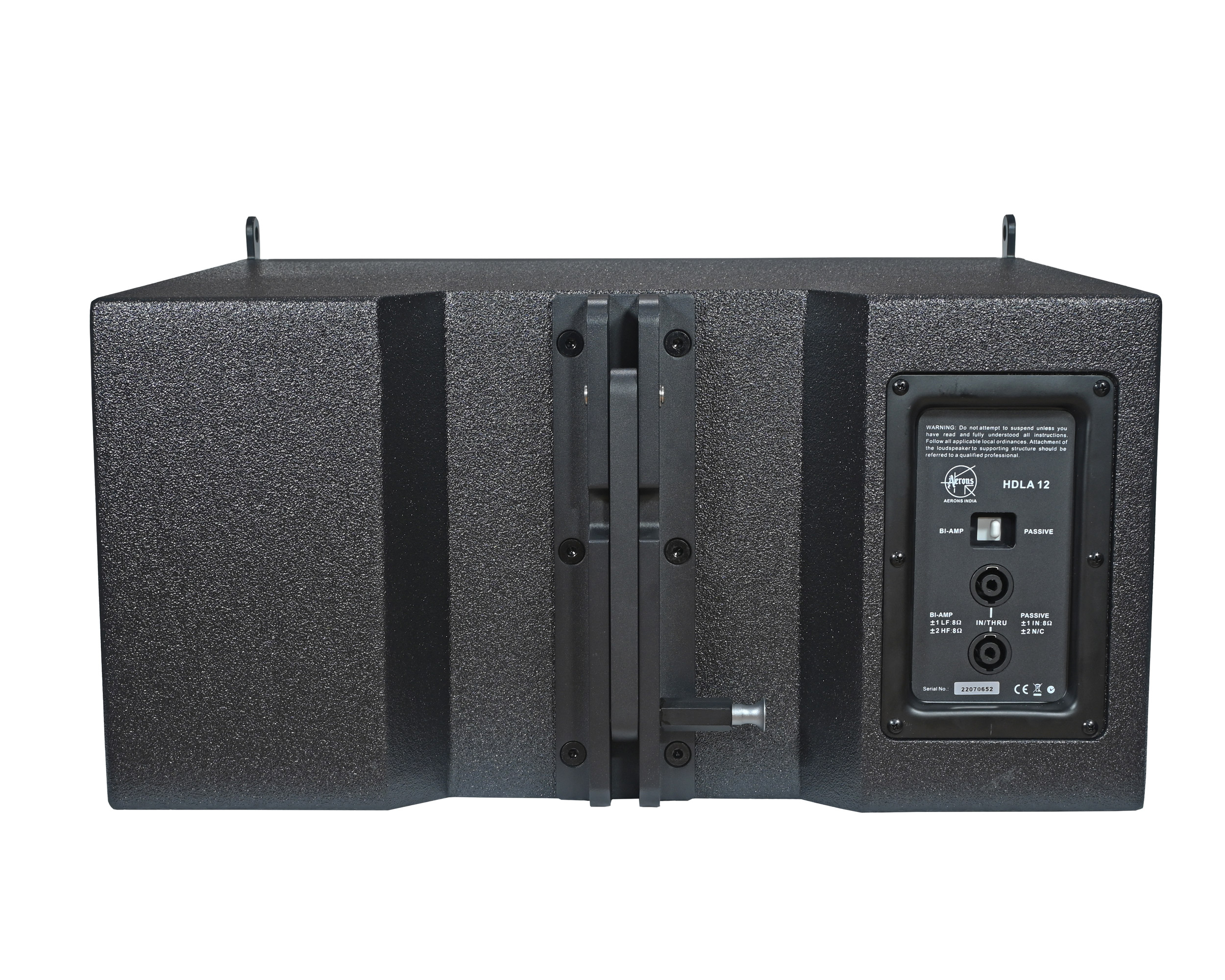

CONNECTORS |
2XSpeakON NL4 |
|
DIMENSIONS |
(W)580mmX(D)393mmX(H)351.5mm |
|
WEIGHT |
27KG |
