MA118

  • Active DSP-controlled 18” subwoofer
  • 1x18"/4.0” Voice Coil LF Driver
  • RMS POWER: 1000W
  • PEAK POWER: 2000W
  • MAX SPL: 134dB
  • Frequncy Response: 30Hz - 140Hz
  • Net Weight: 39.0Kg



MA118

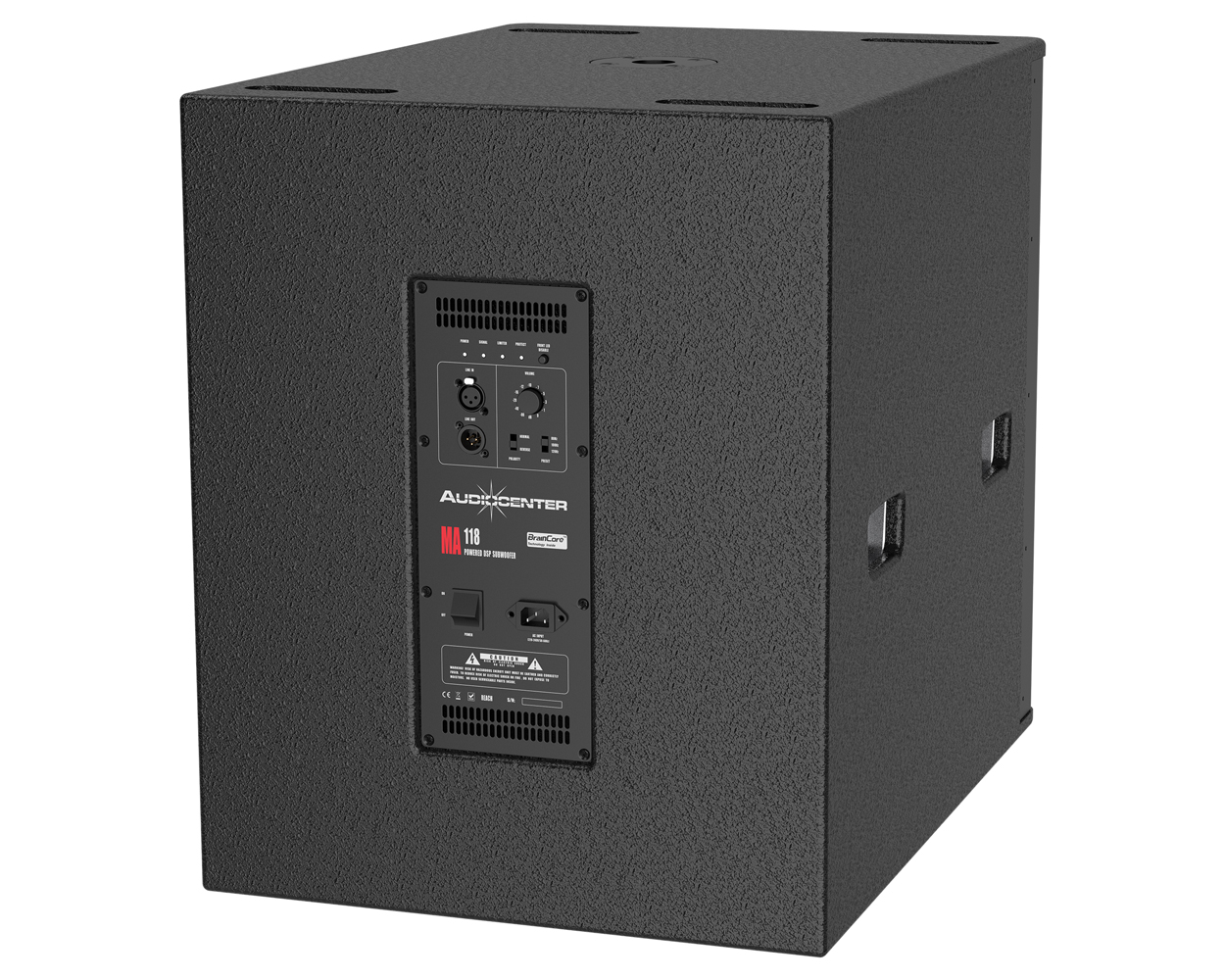

3 low-pass filters (80Hz, 100Hz, 120Hz) in MA118 are available to choose according to different venues and music styles. There is also phase switch. All connectors and function buttons are on the back panel.

MA118 subwoofer is with 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution.



Drawing



Configuration

MA full range loudspeaker or the same type of full range loudspeaker

MA118

Type

Active DSP-controlled Compact Subwoofer

Frequency Response(-10dB)

30Hz-140Hz

Maximum Calculated SPL/1M (Continuous/Peak)

128dB/134dB

LF Driver

Customized 18” driver, 4.0” voice coil

DSP

Processor

48kHz signal sampling frequency

Presets

80Hz, 100Hz, 120Hz

AMPLIFIER

Amplifier Circuitry

Class D

Power (RMS standards)

1000W

Peak Power

2000W

Frequency Response(1W 8Ω 2ch)

20Hz-20kHz(±0.5dB)

Intermodulation Distortion

<0.05%

Total Harmonic Distortion

<0.05%

Cooling System

Cooling with fans, air convection

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Signal Input

Female XLR

Signal Output

Male XLR

Power Input

IEC power connector

Working Voltage

100-130V~/220-240V~(±10%,50/60Hz)

Power consumption (1/8 output power)

120W

CABINET



Cabinet Material

CNC machined plywood

Cabinet Color

Black is the default color. Contact Audiocenter for customization

Grille

Iron mesh

Handles

4 side

Pole Mount

M20 base Φ35mm

Speaker Dimension (W×H×D)

510x632x695mm

Carton Dimension (W×H×D)

596x750x780mm

Net Weight

39.0kg

Shipping Weight

42.0kg
