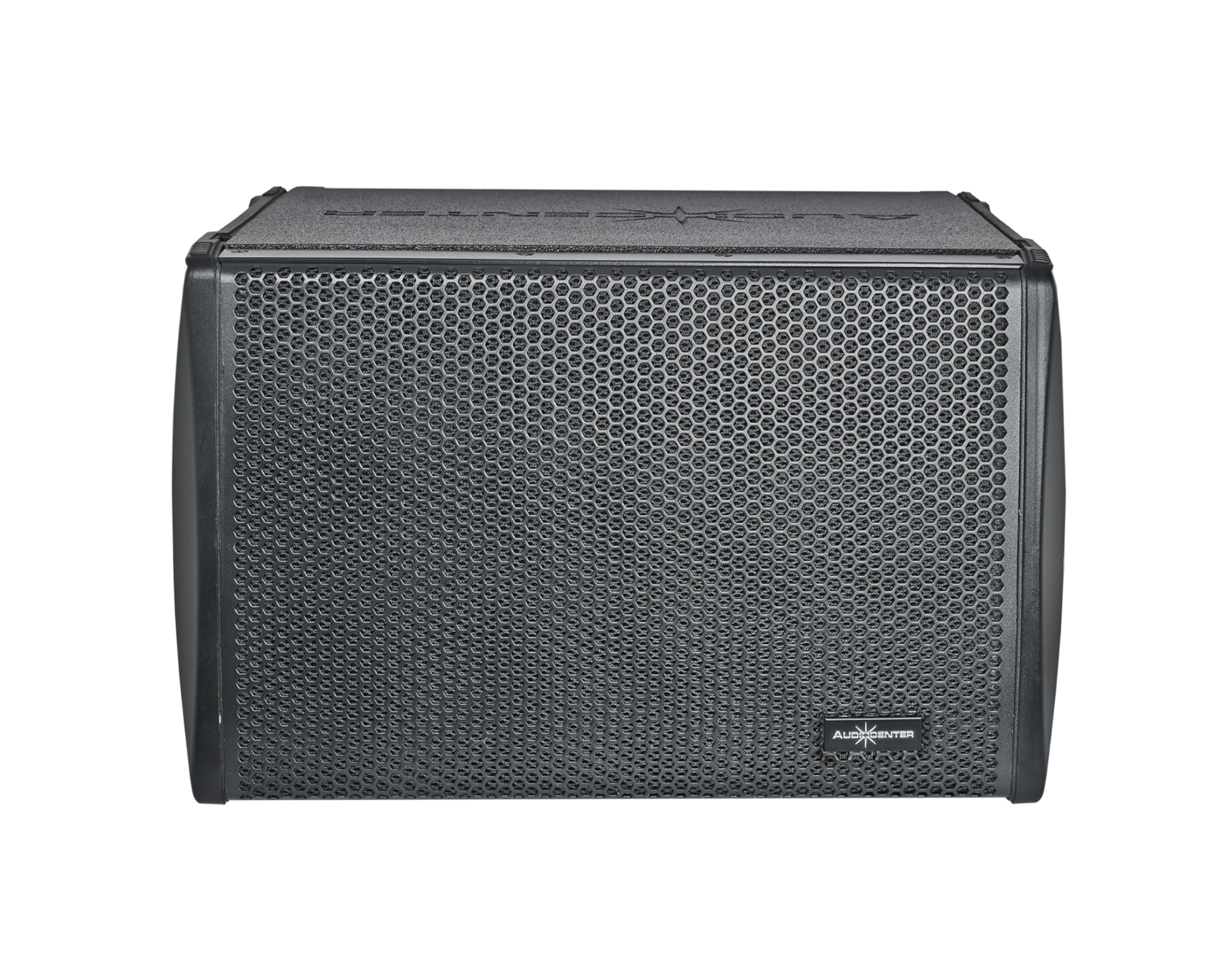

ARTIST T45-DSP

  • Active DSP-controlled Line Array
  • Rated Power : 1000W
  • 4x 5" Customized LF drives
  • 2x 1" Customized HF drivers
  • SPL (Continues/ Peak): 130dB/136dB
  • Frequency Response: 63Hz-20KHz
  • Net Weight: 18.0Kg



ARTIST T45-DSP



Overview

Artist T45-DSP active DSP-controlled line array adopts front bass reflex design and elaborate driver layout, the cabinet is very small and lightweight. With innovative ETE™ wave guide technology, T45-DSP delivers supreme sound performance that no need too much correction while tuning. T45-DSP is very compact, but with very high SPL and long throw.

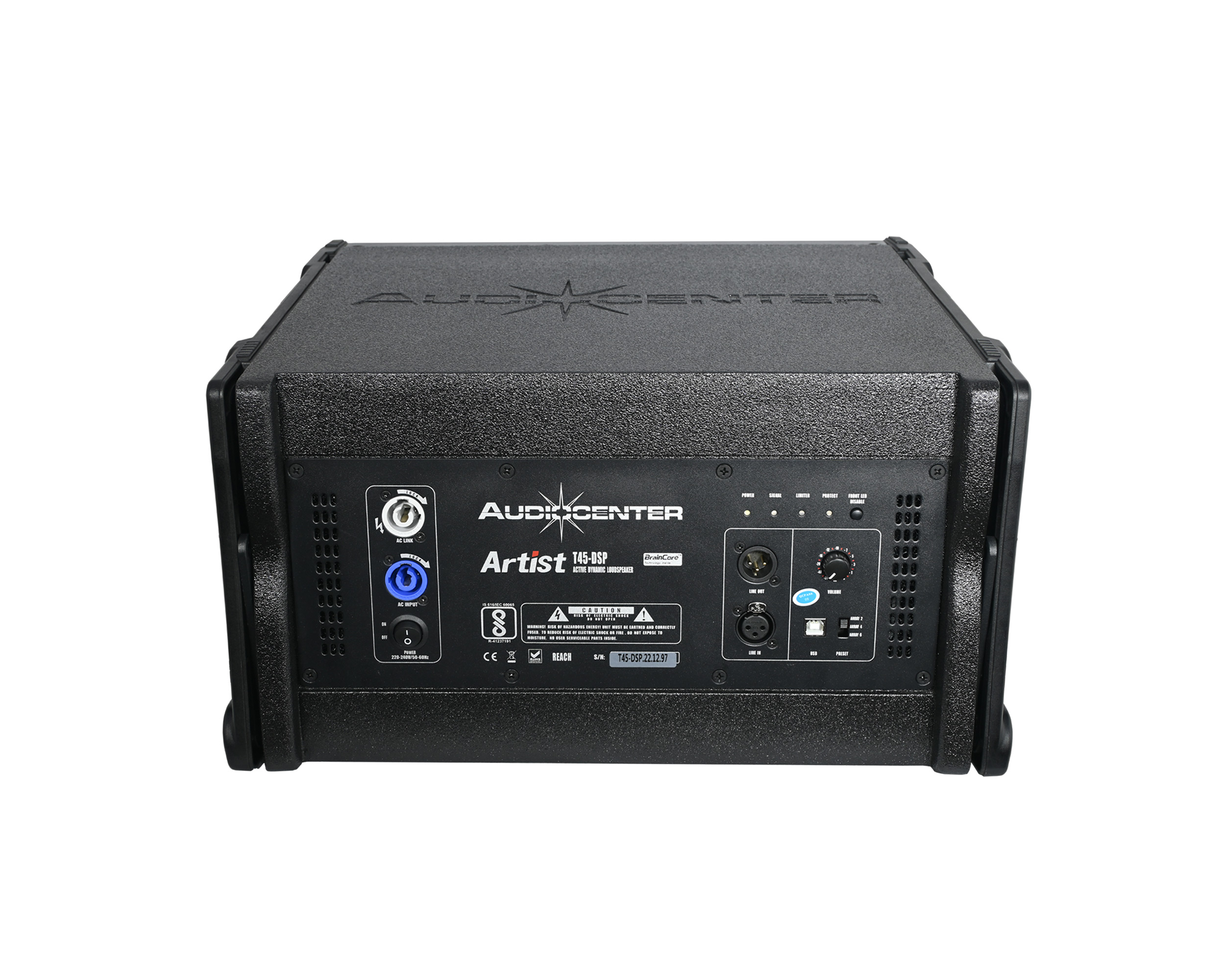

Artist T45-DSP is highly integrated with the BrainCore™ technology. 3 presets can be recalled easily by the switch on back panel. It is a plug and play system with user-friendly ergonomic design accessories to ensure easy and quick installation. The angle of the fly bar can be adjusted 0.5 °, 1.5 °, 3 °, 5 °, 7 °, 10° according to different venues.



Key Features

  • Maximum SPL 136 dB
  • Customized driver
  • The innovative ETETM waveguide technology can ensure excellent frequency response, to achieve very smooth transitions between HF and LF, which provides precise horizontal coverage and ensures clear and balanced sound for the system.
  • Built in DSP with 96kHz signal sampling frequency
  • Class D amplifier
  • Advanced cooling system in the driver
  • Optimized, compact and light weight cabinet design for easy usage
  • Comprehensive accessories for different applications



Drawing



Internal Structure

ARTIST T45-DSP

Specifications

Type

Active DSP-controlled line array loudspeaker

Frequency Response(-10dB)

63Hz-20kHz

Horizontal Coverage

120°

Vertical Coverage

Splay angle dependent

Maximum Calculated SPL/1M (Continuous/Peak)

130dB/136dB

HF

Customized driver,1.0” voice coil,1.0” exit

LF

Customized 4X5” driver, 1.0” voice coil

DSP

DSP

Processor

96kHz signal sampling frequency

Presets

ARRAY2,ARRAY4,ARRAY6

AMPLIFIER

AMPLIFIER

Amplifier Circuitry

Class D

Power(RMS standards)

1000W

Peak Power

2000W

Frequency Response(1W 8Ω 2ch)

20Hz-20kHz(±0.5dB)

Intermodulation Distortion (20Hz-20kHz, half power)

<0.05%

Total Harmonic Distortion (20Hz-20kHz,Rated power 8Ω)

<0.05%

Cooling System

Cooling with fans, air convection

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Signal Input Connectors

Female XLR

Signal Output Connectors

Male XLR

Power Input Connectors

Power connector

Power Output Connectors

Power connector

Working Voltage

100V-130V~ or 220V-240V~(±10%,50/60Hz)

Power consumption (1/8 output power)

65W

CABINET



Cabinet

CNC made of excellent wood

Angle Adjustment

0.5°, 1.5°, 3°, 5°, 7°, 10°

Coating

Durable Polyurea Coating

Cabinet Color

Black is the default color. Contact Audiocenter for customization

Grille

Iron mesh

Handles

2 side

Optional Accessories

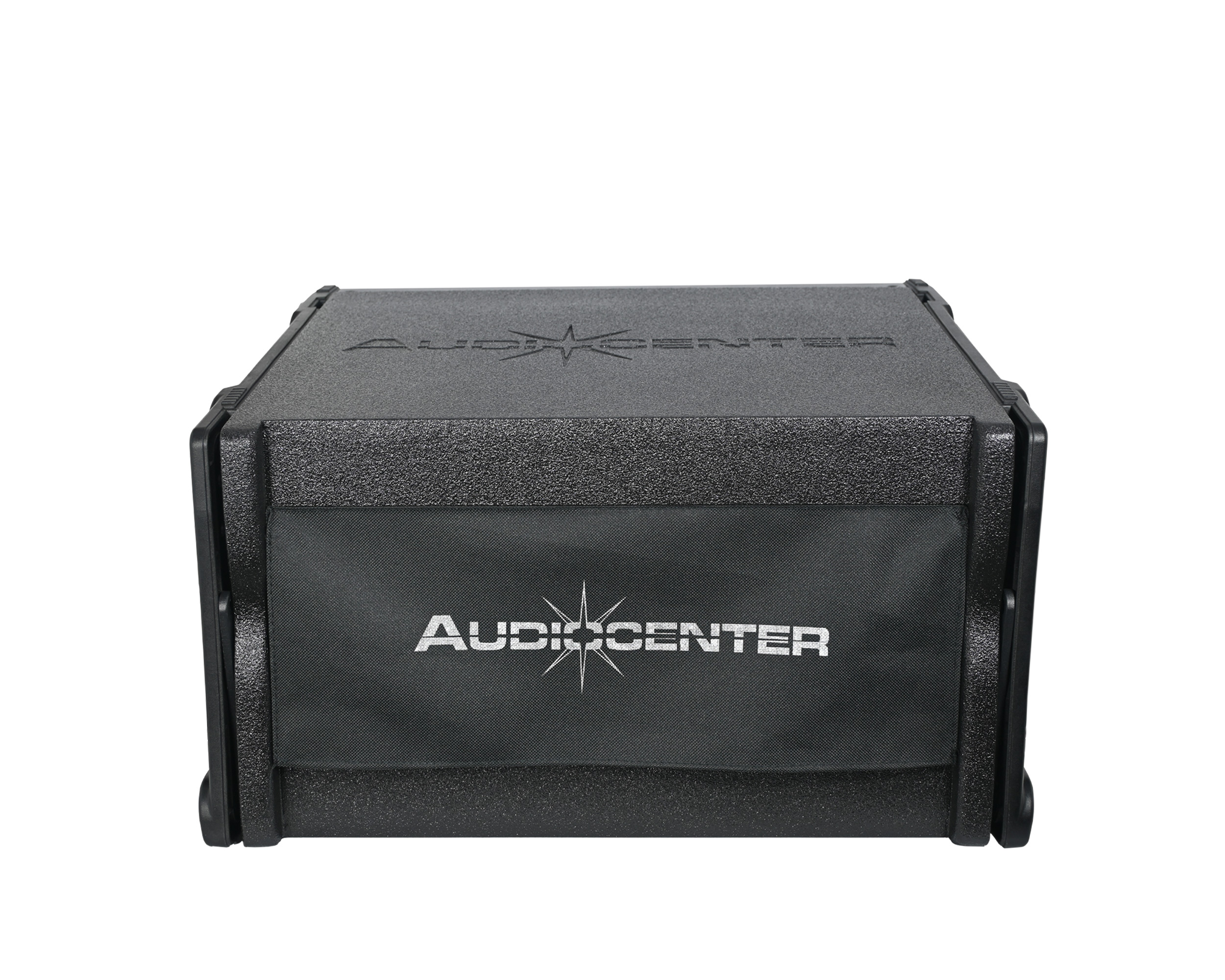

Flightcase with 100mm wheels / Durable rain bag/ Frame for flying and ground stacking

Speaker Dimension(W×H×D)

458×293×381mm

Carton Dimension(W×H×D)

389×553×476mm

Net Weight

18.0kg

Shipping Weight

20.5kg

Technical Support and After-sales Service

Global application support team,EASE GLL files available
