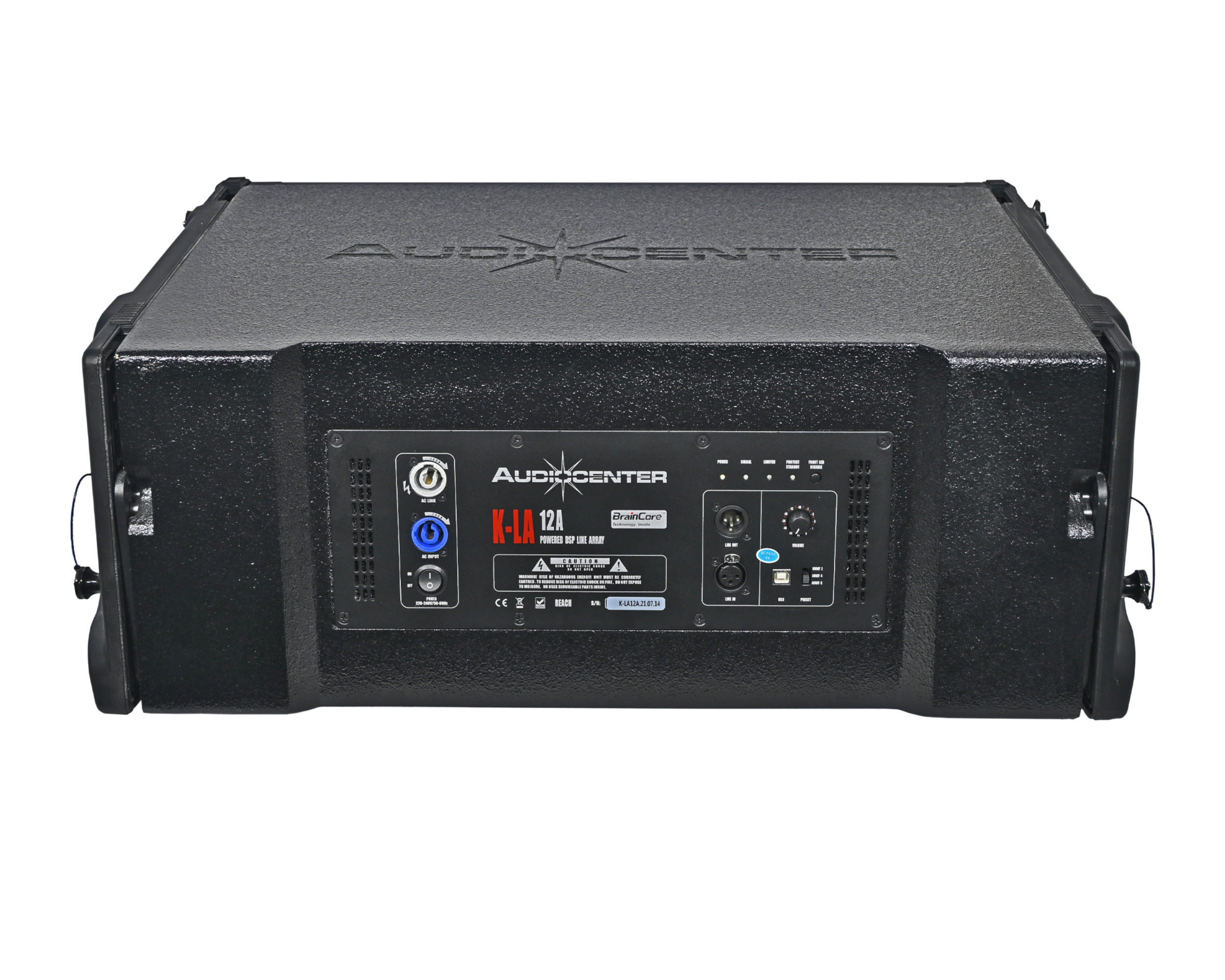

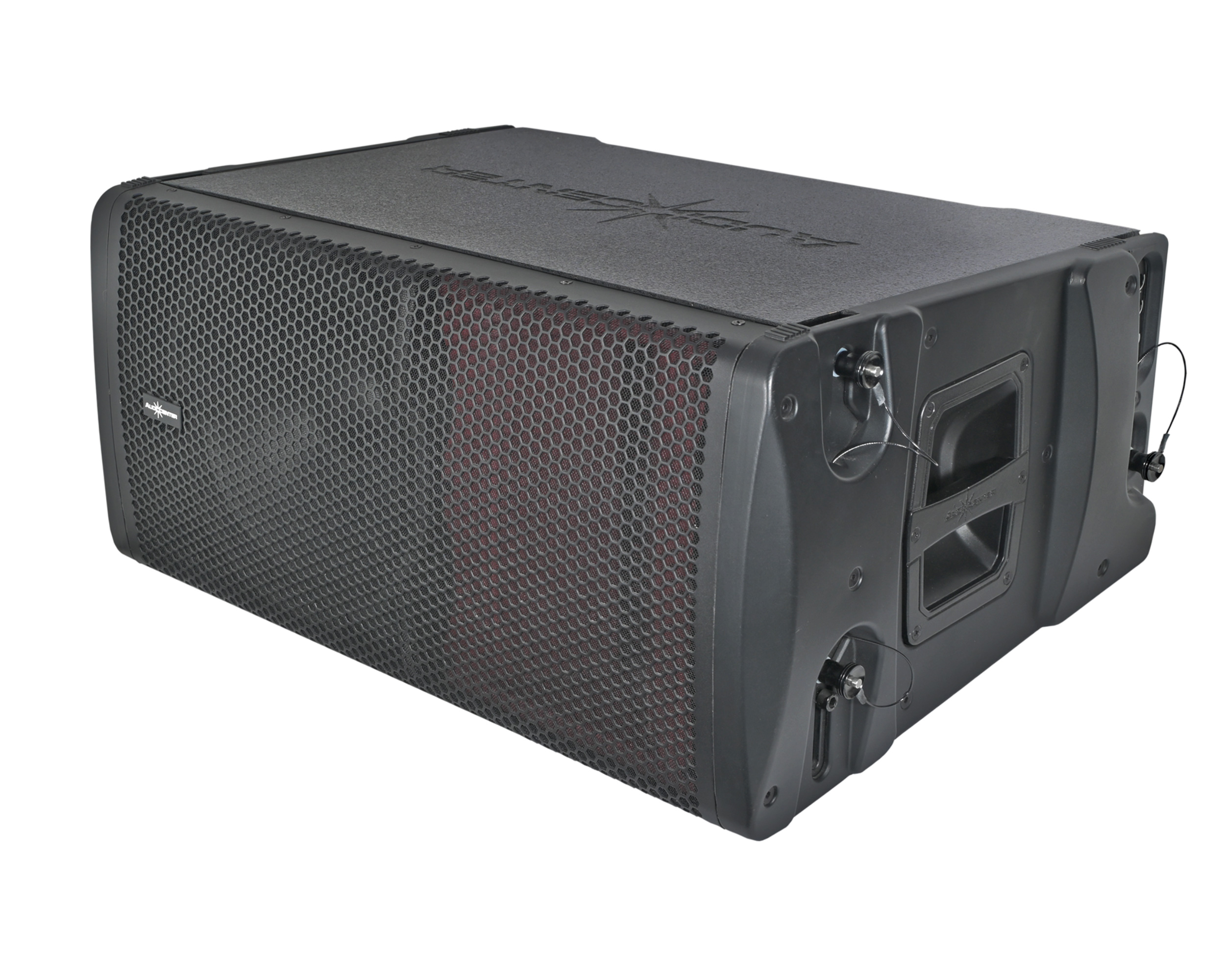

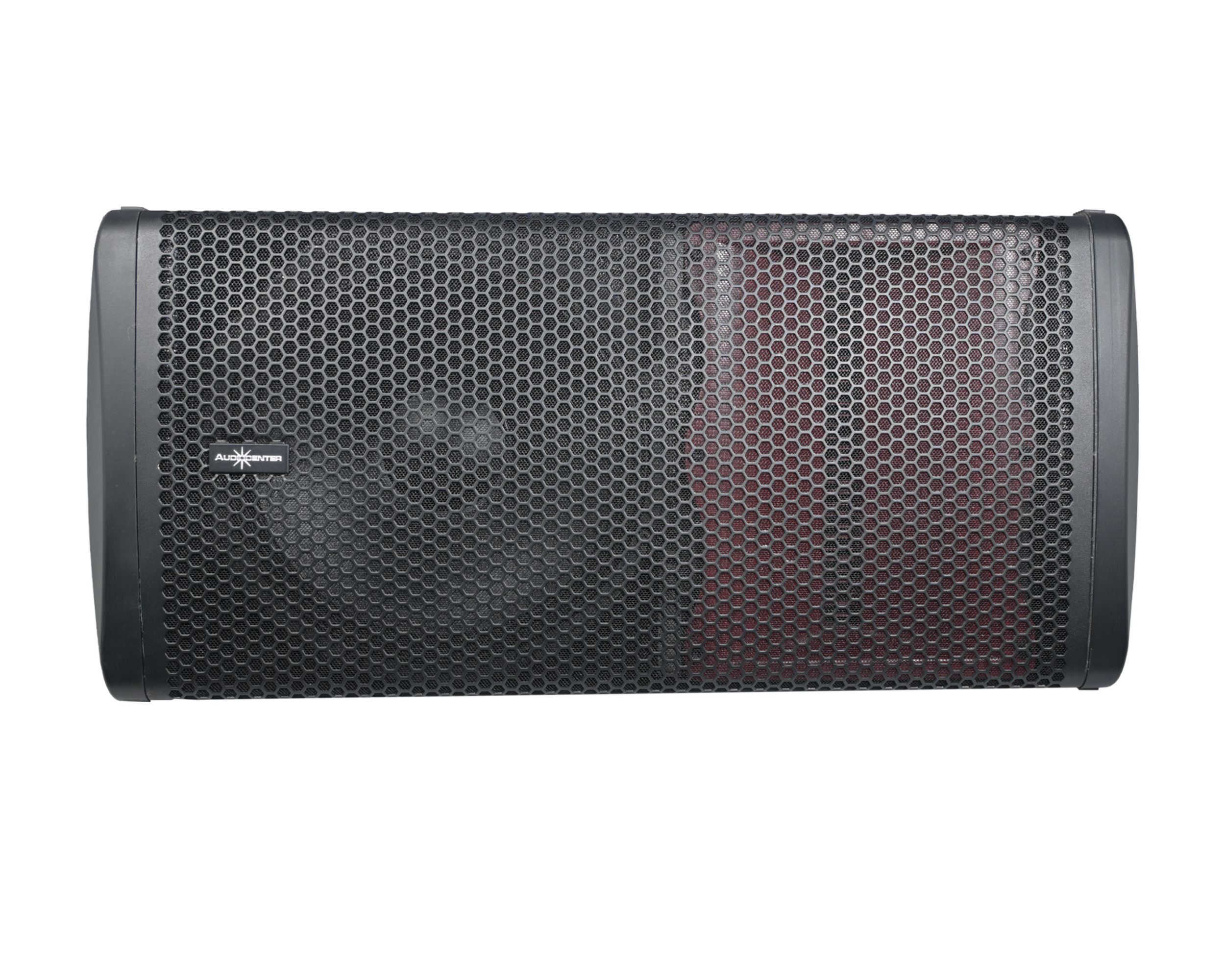

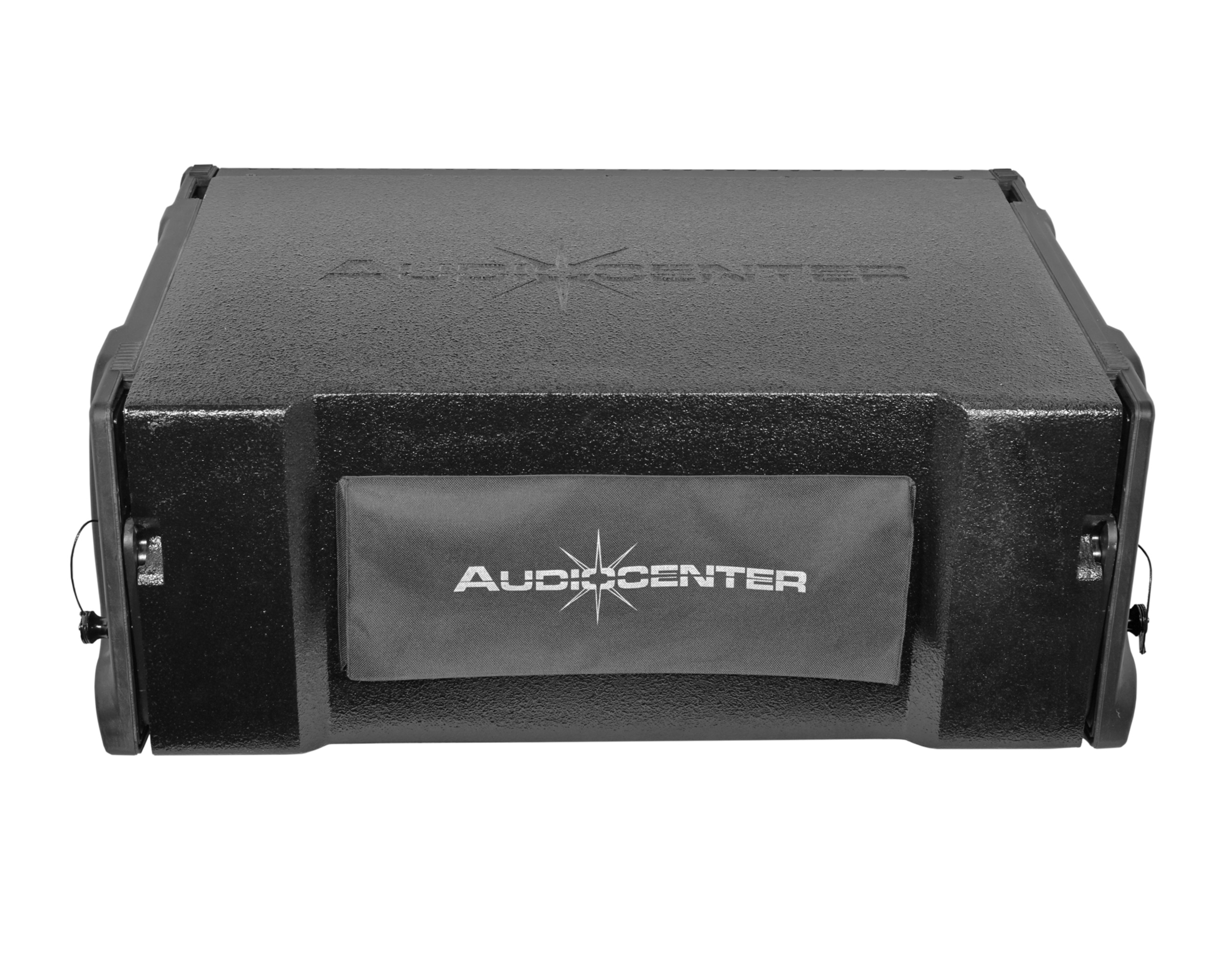

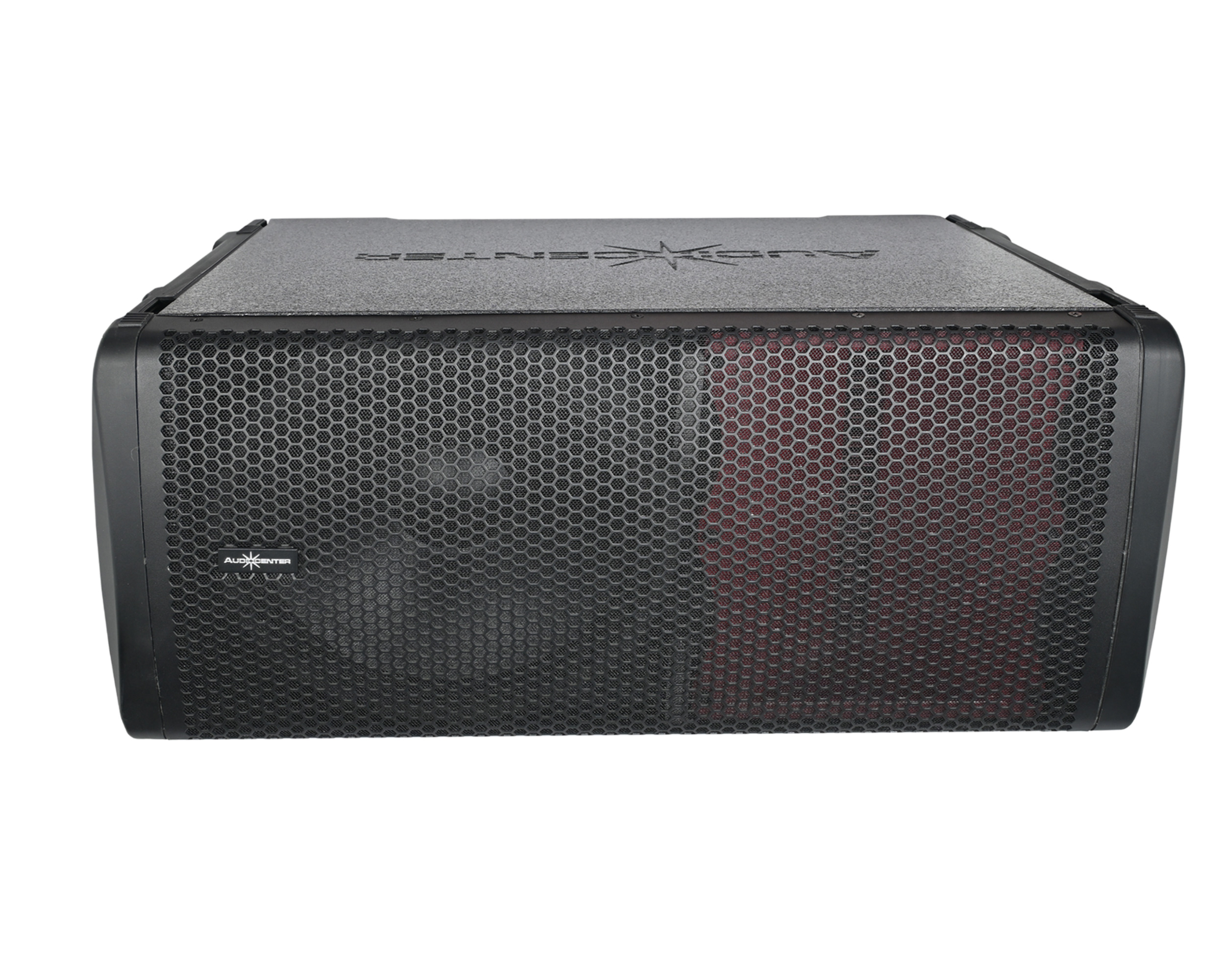

K-LA12A active DSP-controlled line array is a very compact system which is very flexible to use and with high efficiency and reliability. The system is perfectly integrated with BraincoreTM technology, and fashionable design idea. It can be used in various venues and meet the mixed demands of different applications. The system is specially designed for touring performances and fixed installations like live sound, Touring systems, Clubs, Auditoriums, Theatres and House of Worship.
|
Type |
Active DSP-controlled full range loudspeaker |
|
Frequency Response(-6dB anechoic chamber) |
47Hz-19kHz |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
129dB/135dB |
|
LF Driver |
Customized 12” driver, 3” voice coil |
|
HF Driver |
Customized driver, 1.75” voice coil and 1.0”exit |
|
Horizontal Coverage Angle (Symmetrical) |
100° |
|
Vertical Coverage Angle (Symmetrical) |
Depend on the amount of the speaker and curvature of the line array |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
2000W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Cooling with fans |
|
DSP |
|
|
Processor |
96kHz signal sampling frequency, 56bit precision |
|
Presets |
ARRAY2,ARRAY4,ARRAY6 |
|
Crossover |
Controlled by DSP |
|
Output/Input |
|
|
Signal Input |
1× female XLR |
|
Signal Output |
1× male XLR |
|
Power Input |
Power connector |
|
Power Output |
Power connector |
|
Working Voltage |
100V~130V or 220V~240V(±10%,50/60Hz) |
|
Cabinet |
|
|
Angle Adjustment |
0°,1°,2°,3°,4°,5°,6°,7°,8°,9°,10° |
|
Cabinet Material |
CNC made of excellent wood |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Dimension(W×H×D) |
698×324×468mm |
|
Net Weight |
31.0Kg |
