R3000

  • RMS  Power (Per Channel,8Ω): 750W
  • RMS  Power (Per Channel,4Ω): 1200W
  • Rated Power (Bridge 8Ω): 2100W
  • Output Circuity: CLASS AB
  • WHATSAPP CATALOG AND PRICE

R3000

R3000 is the most cost-effective transformer power amplifier which is suitable for small to middle-sized performances. Adopts mature Class AB circuit layout, R3000 is of high stability and reliability. The clean and clear sound performance makes R3000 can perform various functional requests for most applications without distortion. Multiple protections and innovative heat radiation ensure R3000 amplifier can work for the long term but with low failure.

FEATURES

♦    Full range power models available, which is convenient for you to build up a sound system.
♦    Good quality toroidal transformer, for further reliability even at high and low voltage.
♦    Excellent heat radiation creates high efficiency.
♦    Multiple protection features: DC/Short Circuit/High Temp/Overload/Soft start-up/CLIP/VHF
♦    The slew rate is more than lSV/µs. Again, this ensures a very nice sound. Even for the fastest and strongest music signal. It can deliver well without losing any signal.

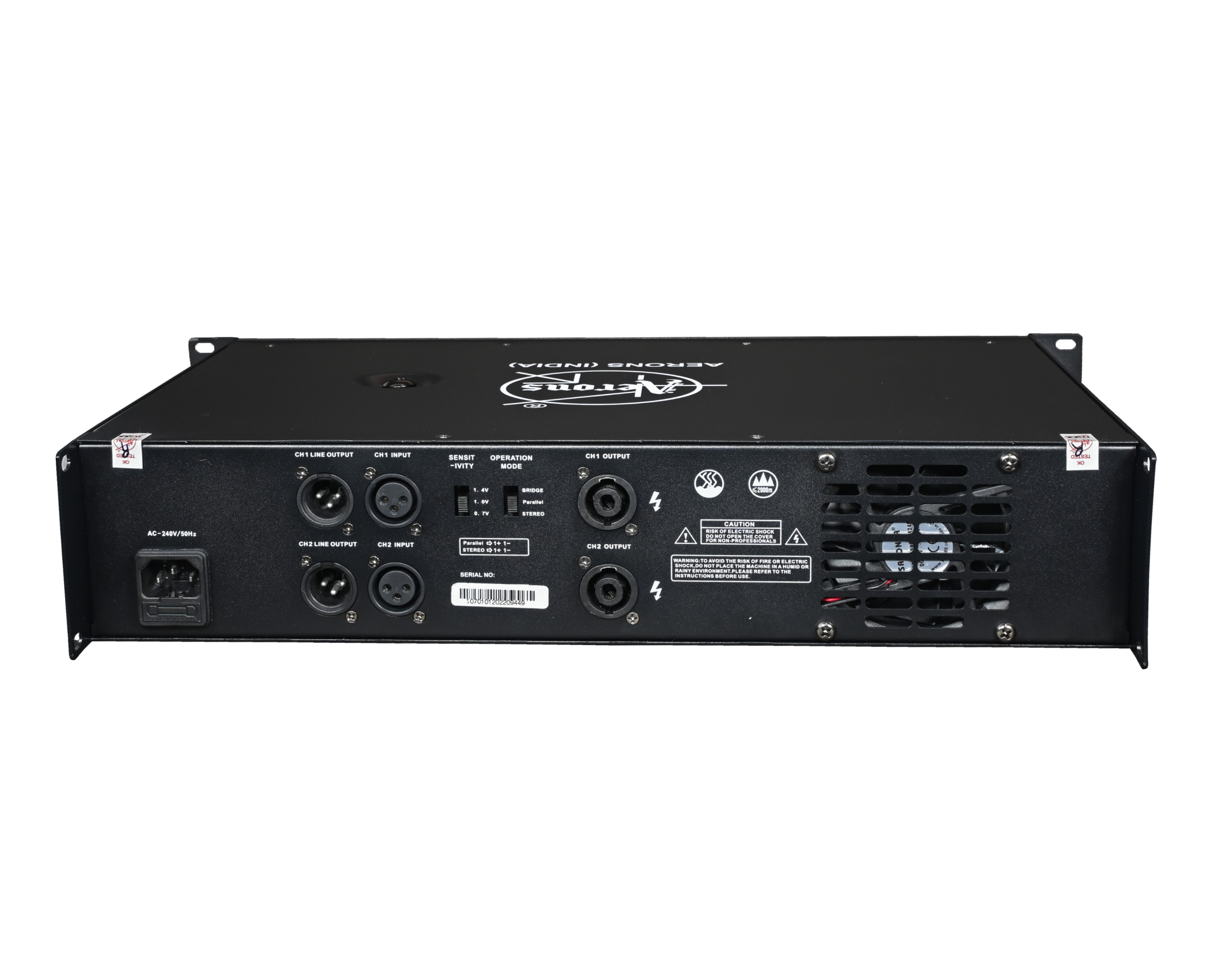

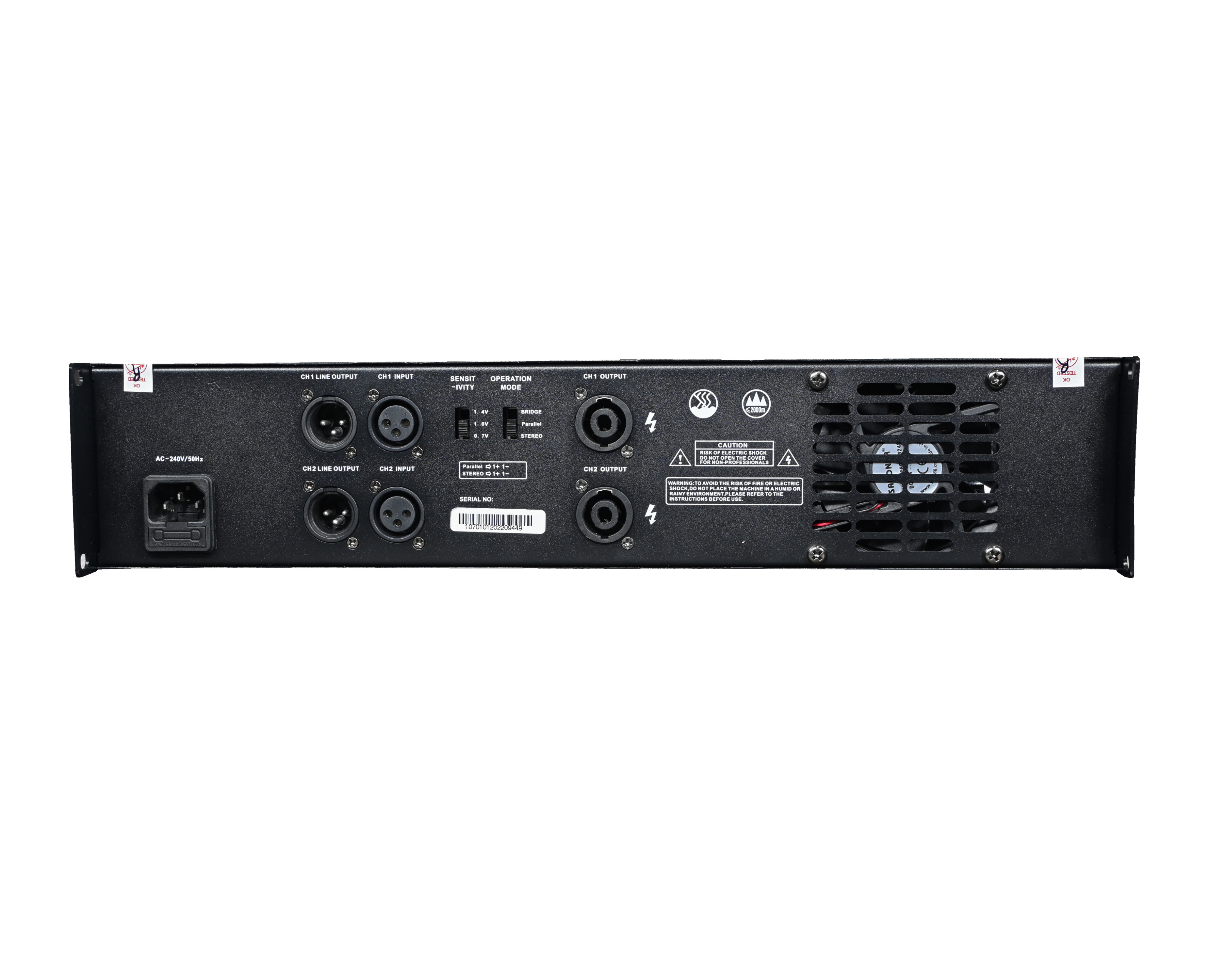

♦    Routing mode selector (stereo/bridge/parallel) on the rear panel.
♦    High dynamic range and low distortion, sound clean and clear.

R3000

Rated Power (1 KHz, THD+N=0.1%)



8Ω stereo

2x750W

4Ω stereo

2x1200W

8Ω bridge

2100W

Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz(±2dB)

Sensitivity (8Ω stereo @1Khz)

0.775V/1V/1.4V

Mode

Stereo/Parallel/Bridge

Fan Speed Regulation

Auto-speed

Connectors (Each channel)

Input connectors

XLR (Neutrik®)

Output connectors

Speakon (Neutrik®)

Filter Capability

120V 15000uFx4

Input Impedance

Balanced

20K

Unbalanced

10K

Channel separation (8Ω load, 1KHz and below)

≥65dB

Slew Rate

≥15V/µs

S/N ratio (8Ω, Rated Power 8Ω)

≥96dB

Damping Factor (1KHz, 8Ω)

≥200

Power consumption

2200W

Output Circuitry

Class AB

Dimension (W x H x D)

482x335x89 mm

Nets Weight

17.6Kg
