Rated Power (1 KHz, THD+N=0.1% |
8Ω stereo 2x350W 4Ω stereo 2x550W 8Ω bridge 960W |
Frequency Response (1W 8Ω stereo) |
20Hz ̴ 20KHz(±2dB) |
Sensitivity (8Ω stereo @1Khz) |
0.775V/1V/1.4V |
Mode |
Stereo/Parallel/Bridge |

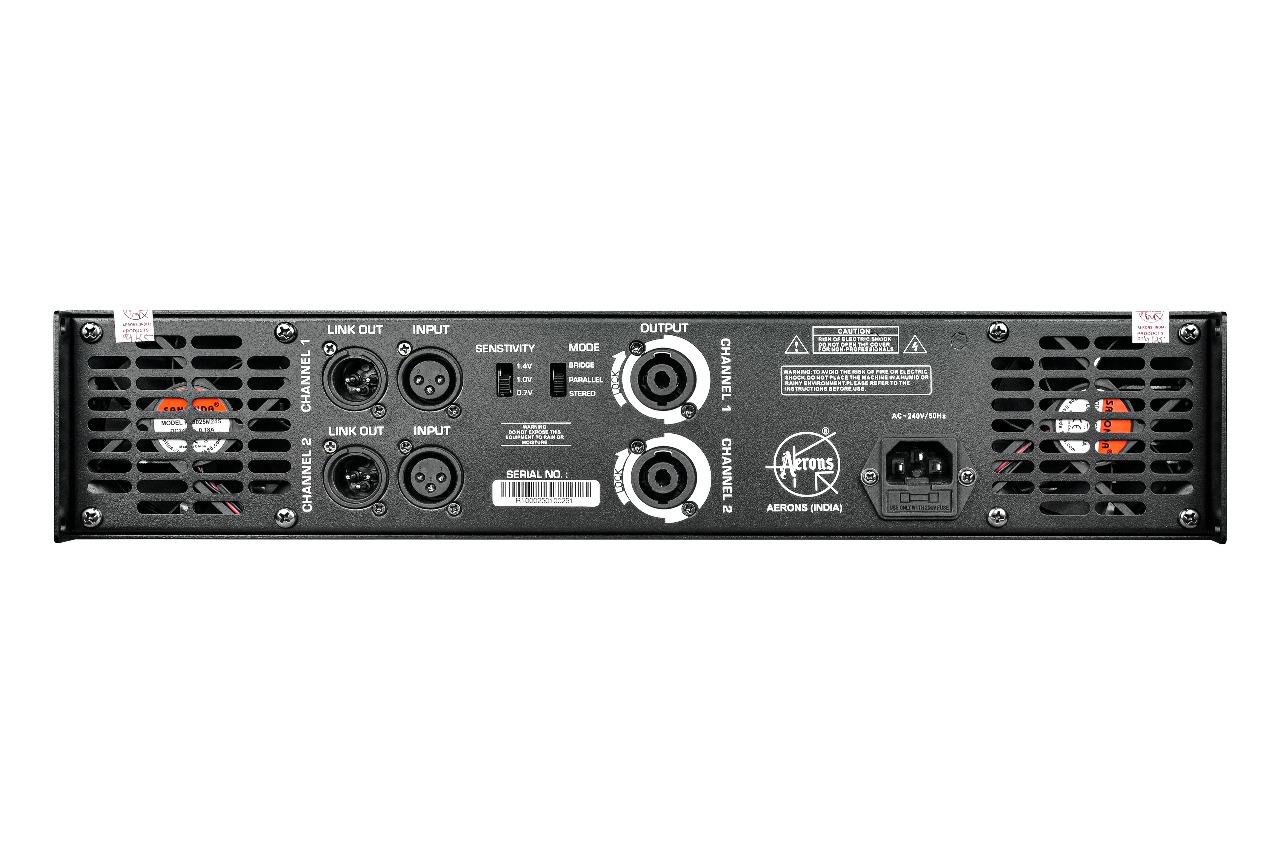

Input connectors |
XLR (Neutrik®) |
Output connectors |
Speakon (Neutrik®) |
Filter Capability |
100V 10000uFx4 |
Input Impedance
|
Balanced 20K Unbalanced 10K |
Channel separation |
≥65dB |
Slew Rate |
≥15V/µs |
S/N ratio |
≥97dB |
Damping Factor |
≥150 |
Output Circuitry |
Class AB |
Dimension (W x H x D) |
550x410x190 mm |
Gross Weight |
14.5Kg |
