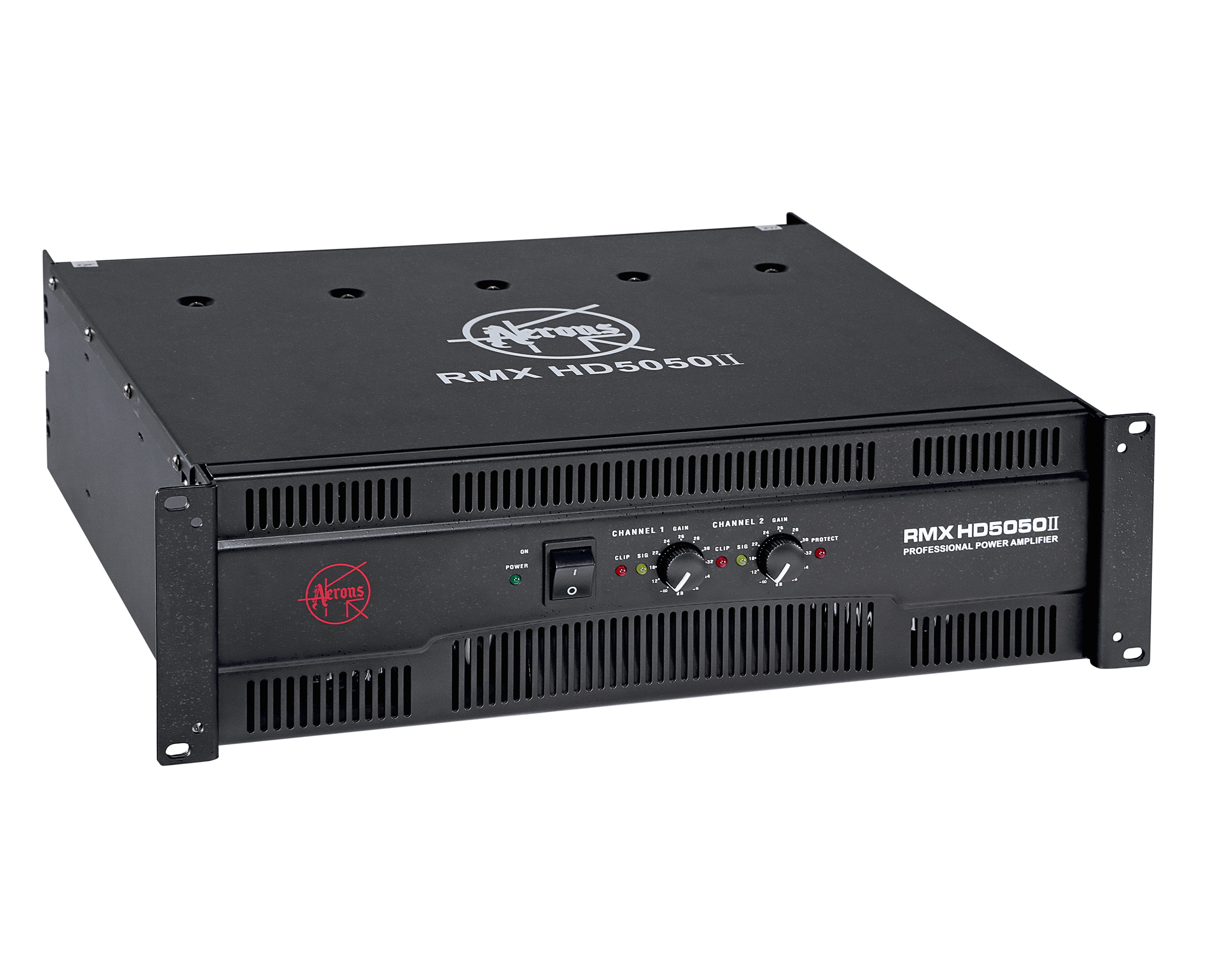

RMX HD 5050 II

  • RMS  Power(Per Channel,8Ω): 1100W
  • RMS  Power(Per Channel,4Ω): 1800W
  • RMS  Power(Per Channel,2Ω): 2500W
  • Rated Power(Bridge 8Ω): 3600W
  • Rated Power(Bridge 4Ω): 5000W



      WHATSAPP CATALOG AND PRICE

RMX HD 5050 II

  • The RMX HD5050II features a dual mono,high-current power supply for increased reliability and performance.
  • The RMX HD5050II, provides improved thermal performance yielding higher continuous power in 2-ohm stereo or 4 ohms bridged applications.
  • Compact size—up to 5100 watts in 3 rack spaces.
  • High-current toroidal transformers for greater 2-ohm power and low noise.
  • Independent user-defeatable clip limiters reduce distortion.
  • Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
  • Balanced 1/4" (6.3 mm) TRS and XLR.
  • Precise Power, Signal, Clip, Protect LEDs to monitor performance.

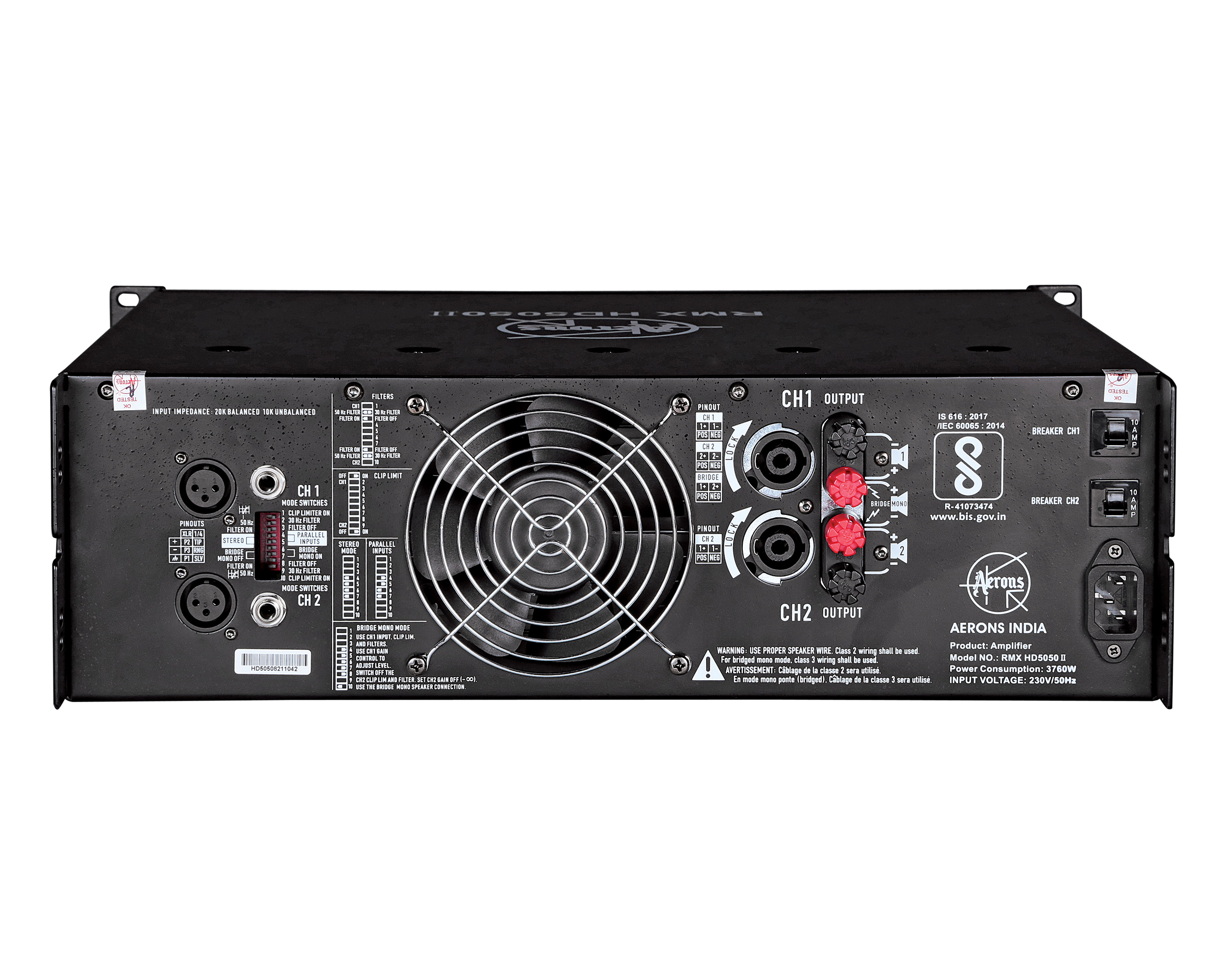

  • Touch-proof binding post and Neutrik Speakon outputs support most speaker wiring systems.
  • Front-mounted gain controls for easy access.
  • Independent DC and thermal overload protection on each channel automatically protect amplifier and speakers.
  • High-quality components and exceptionally rugged construction ensure long life.
  • The professional quality performance incorporates--road-proven AERONS designs.



RMX HD 5050 II

Rated Power (1 KHz, THD+N=0.1%)

8Ω stereo   1100W



4Ω stereo   1800W



2Ω stereo   2500W



8Ω bridge   3600W



4Ω bridge   5000W

Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz

Mode

Stereo/Bridge/Parallel

Input connectors

Jack & female XLR (Neutrik®)

Output connectors

Binding post & Speakon (Neutrik®)

Input Impedance

Balanced            20K

Unbalanced       10K

Input Sensitivity

1.42V

Filter Capability

12000µf/ 63V

Total Harmonic Distortion (20Hz~20KHz Rated Power, 8Ω)

≤0.02%



S/N ratio (8Ω, Rated Power 8Ω)

≥100dB

Damping Factor (1KHz, 89)

≥250

Dimension (W x H x D)

482x132x404 mm

Net Weight

33.6Kg

Gross Weight

37.7Kg
