K-LA210

  • Customized Beyma driver, 2.5” voice coil LF driver
  • Customized Beyma driver, 1.4”exit, 2.84” voice coil, HF driver
  • AES POWER: 500W
  • PEAK POWER: 2000W
  • MAXIMUM SPL: 133dB
  • FREQUENCY RESPONSE: 57Hz-20KHz

K-LA210

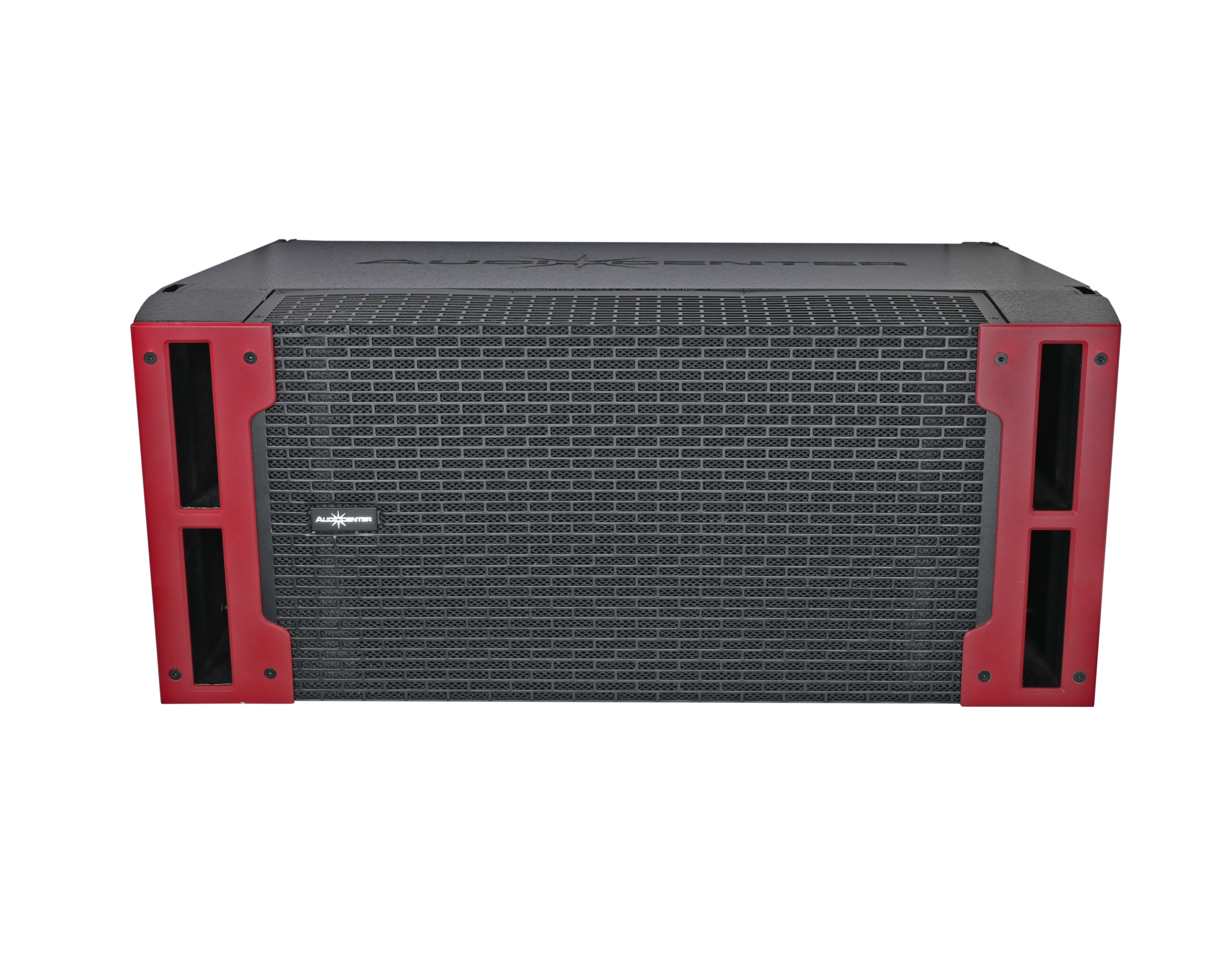

K-LA210, a passive crossover line array speaker, is designed to meet the high requirements of touring performance, rental and fixed installation.

The HF driver of K-LA210 is customized Beyma driver with composite membrane (2.84”voice coil), and the LF drivers are two customized Beyma 10”drivers (2.5”voice coil).

K-LA210 system can be used as main sound reinforcement for stage with 3pcs at least or 16pcs at most per array. For system application, we suggest one amp to drive two cabinets (amp working at 2 ohm impedance). Together with Audiocenter CA450, a “plug&play” system can be built up easily to meet the demands from small to large sound system.

K-LA210 can be installed vertically. The hanging accessories are built in the cabinet. There are 9.5mm diameter highly durable pins. The system can be configured in modularization according to the venues. Same frame can be either for flying the arrays or for stacking the arrays (We suggest 4pcs maximum for stacking) to meet different demands.

FEATURES

● Customized drivers from Beyma

● PTV HF horn design ensures even coverage and highly accurate directivity

● Dual effect phase correction technology

● American Benelec XPP audio capacitor with stable quality and reliable performance

● Manually soldered fiber board to ensure zero consumption even in very high dynamic

● Unique driver protection circuit and high-efficient cooling system of the driver

● Optimized and compact light weight cabinet design

● Rock solid humidity free birch plywood CNC made cabinet

● Comprehensive accessories suitable for different applications



K-LA210

Type

Passive crossover line array speaker

Application System

3pcs minimum, 16pcs maximum per array

Frequency Response (-6dB anechoic chamber)

57Hz-20KHz

Rated Power(AES standard)

LF: 500W    HF: 70W

Maximum SPL

133dB

Horizontal Coverage Angle(Symmetrical)

100°

Vertical Coverage Angle(Symmetrical)

Depend on the amount of the speaker and curvature of the line array

MF/LF Driver

Customized Beyma driver, 2.5” voice coil, 250W(AES)

HF Driver

Customized Beyma driver, 1.4” exit, 2.84” voice coil, 70W(AES)

Crossover Point

1.2KHz, passive crossover

Rated Impedance

8Ω(+1, -1)

1 Way Amplifier

2pcs maximum, 4Ω

Adjusted Angles

0°, 1°, 2°,3°,4°, 6°, 8°, 10°

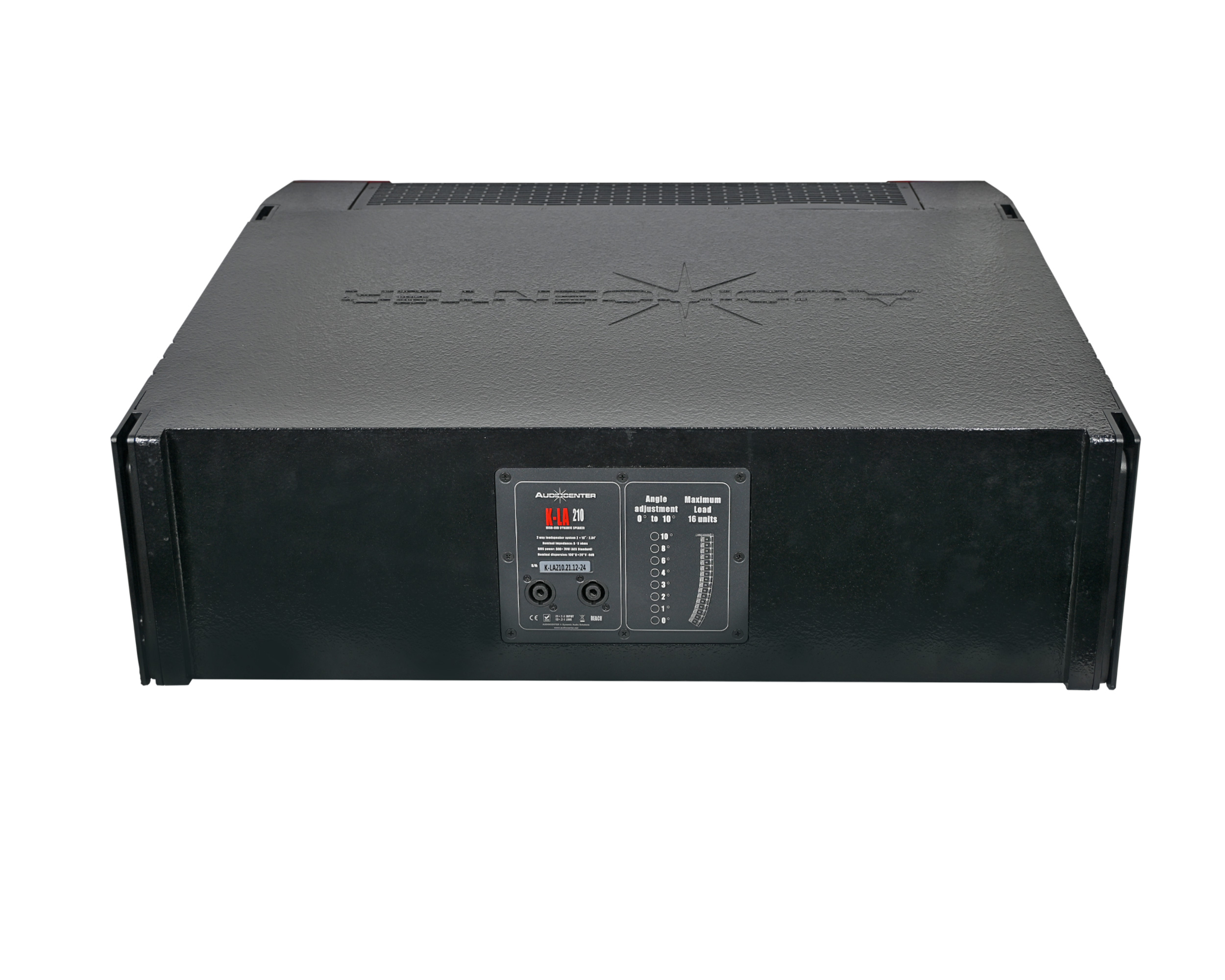

Input Connectors

2×NEUTRIK® NL4MP

Cabinet Material

Russian birch plywood CNC made

Cabinet Color

Black is standard and default color.Consult with sales team for the other customized colors

Dimension(W×H×D)

742×302×615mm

Net Weight

33.5Kg
