PRO12.0

  • RMS  Power(Per Channel,8Ω): 2X1200W
  • RMS  Power(Per Channel,4Ω): 2X1800W
  • RMS  Power(Per Channel,2Ω): 2X2000W
  • Rated Power(Bridge 8Ω): 3600W
  • Rated Power(Bridge 4Ω): 4000W

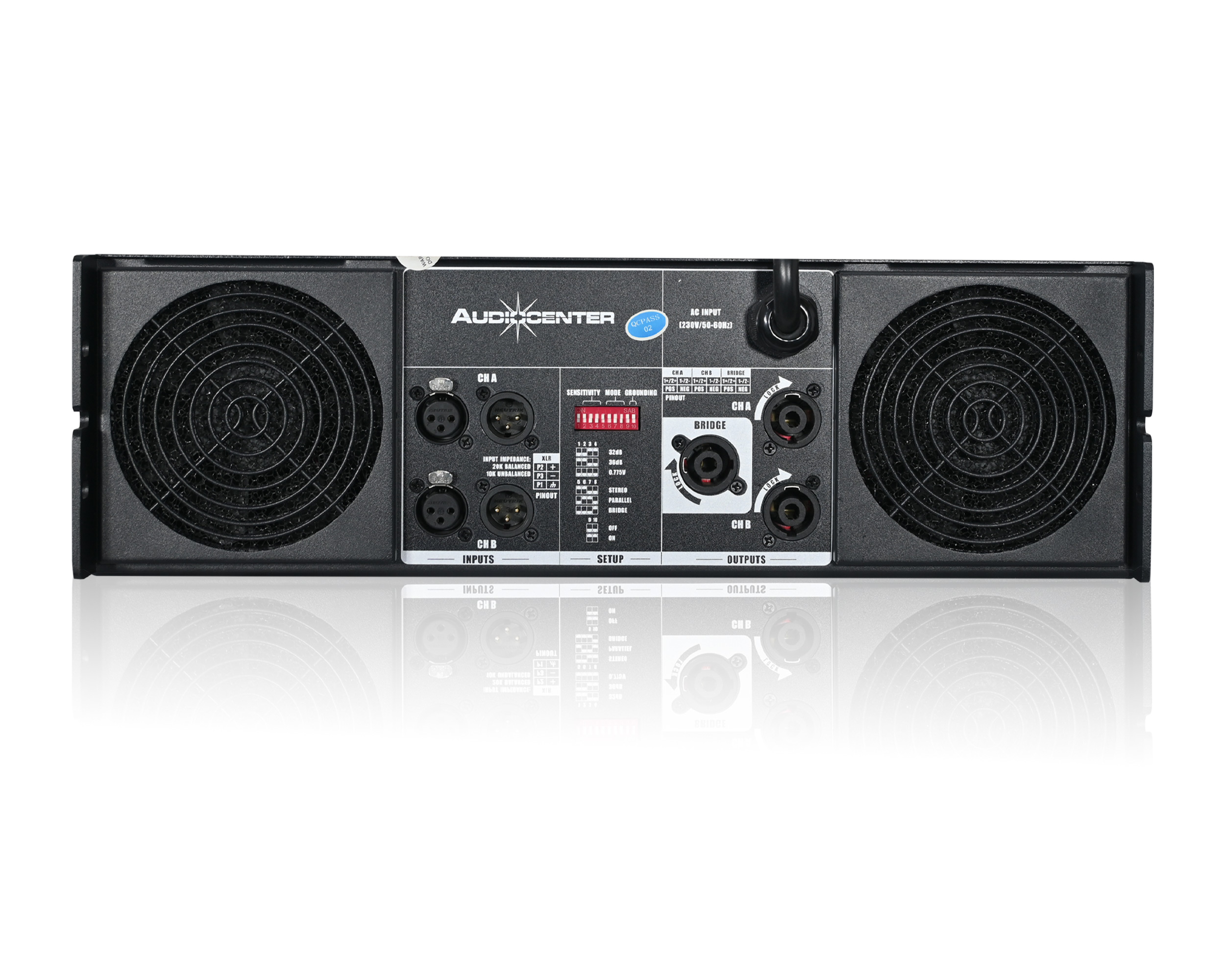

PRO12.0

PRO12.0 offers 1200 watts at 8Ω stereo. Each channel works at 2Ω to satisfy all requirements.

PRO12.0 adopts Audiocenter latest Class H+ circuitry to eliminate the Class H cross switching distortion.

With carefully selected components like toroidal transformers, audiophile Wima capacitors, Toshiba transistors, Carling switch circuit breakers, Neutrik® connectors and Belden wires, etc. PRO12.0 has very clear and clean sound and high damping factor. This makes PRO12.0 suitable for any kind of application, from high power loudspeakers to critical monitoring where very high requirements are mandatory. It can be widely used in fixed installation and touring performance such as bar, nightclub, multi-functional hall, museum, religious venue, commerce site, lecture hall, wedding ceremony, etc.

PRO12.0

Rated Power(20Hz-20KHz, <0.1%THD)

2×1200W@8Ω stereo

2×1800W@4Ω stereo

2×2000W@2Ω stereo

3600W@8Ω bridge

4000W@4Ω bridge

A-Guard Protection System

DC protection /Short circuit protection /Smart overheat management /Overheat protection /Input overload protection /Output overload protection /Soft startup protection / Limiter protection Up to 9V

Frequency Response(1W 8Ω stereo)

20Hz-20KHz(±0.5dB)

Sensitivity

0.775V / 36dB /32dB

Input Connectors

Output Connectors

NEUTRIK® male XLR & female XLR

3×NEUTRIK® Speakon NL4MP

Filter Capacitor Capacity

15000μf / 100V×12

Input Impedance

Balanced 20KΩ/ Unbalanced 10KΩ

Crosstalk(20Hz-20KHz, Rated power 8Ω)

≥65dB

S/N Ratio(Rated power 8Ω, A weighted)

≥108dB

Damping Factor(1KHz&8Ω)

≥800

Intermodulation Distortion(20Hz-20KHz, half power)

≤0.05%

Total Harmonic Distortion(20Hz-20KHz, Rated power 8Ω)

≤0.05%

Phase Response(1W&8Ω, 20Hz-20KHz)

20Hz+4°  20KHz-12°

Slew Rate

≥45V/μs

Output Circuitry

Class H+

Power Consumption(Dual channel driven 4Ω, 1/8RMS/230V)

6.0A

Rack Space

3U

Cooling

Back to front venting, mandatory cooling

Dimension(W×H×D)

483×132×484mm

Net Weight

38.0Kg
