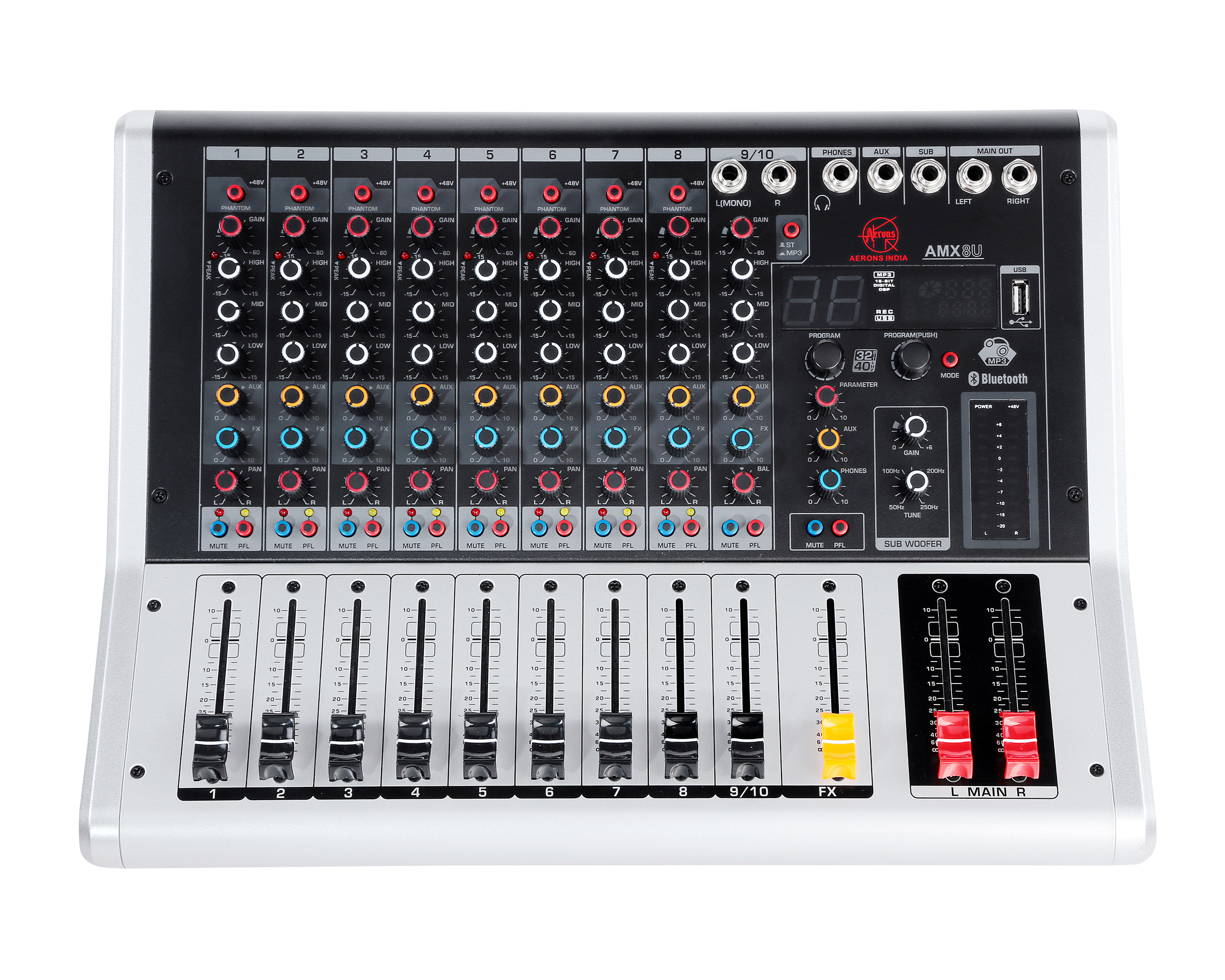

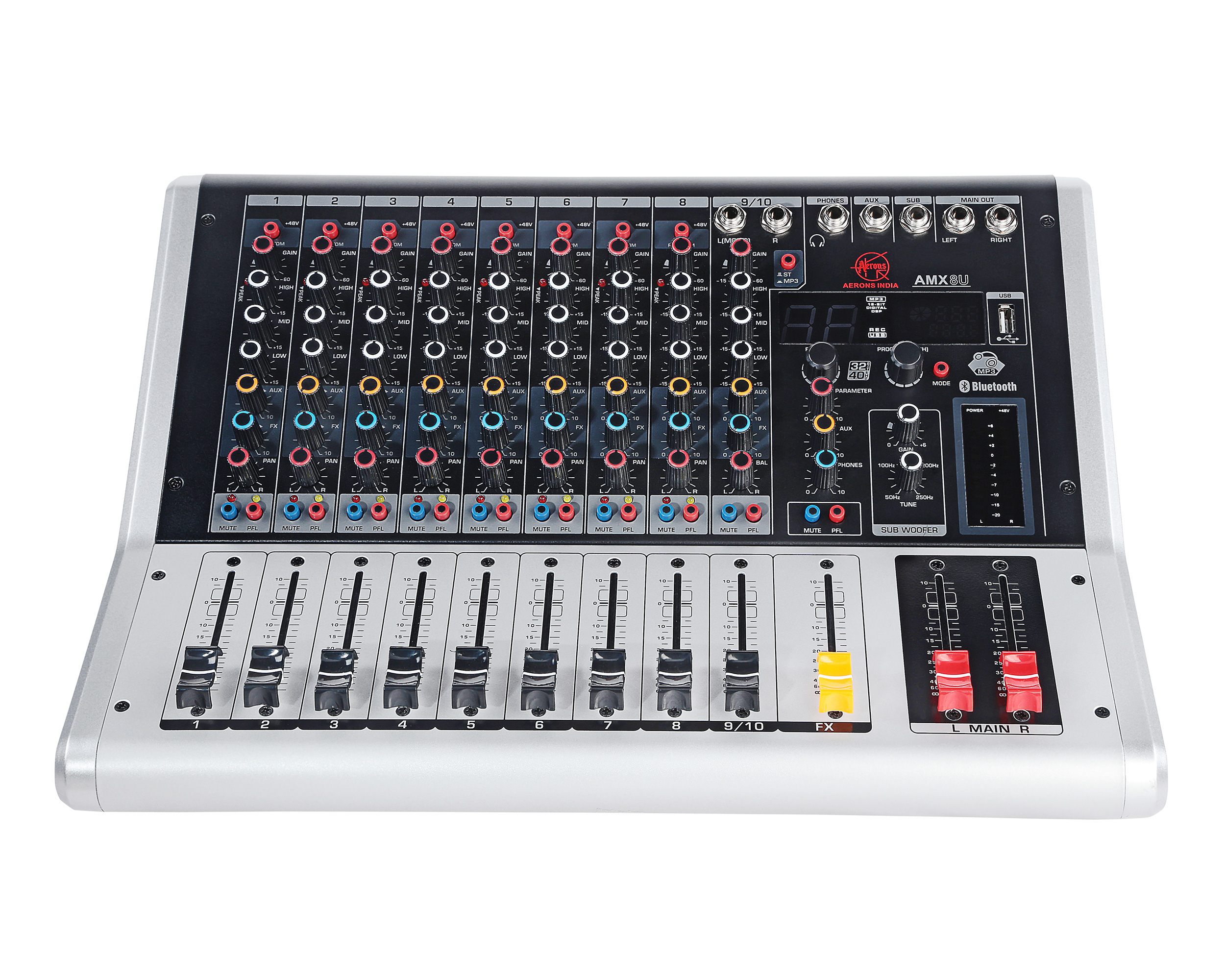

AMX8U

8 Mic/Line channel +1 Stereo channel mixing console.
Rugged, stable, high-quality analog mixers with user-friendly construction & aesthetically designed side panels.
Build-in 16-bit digital DSP effect.
3 Band EQ per channel.
High-quality MP3 player with display and direct Recording function.
Built-in Bluetooth wireless streaming from smartphones, tablets, and laptops.

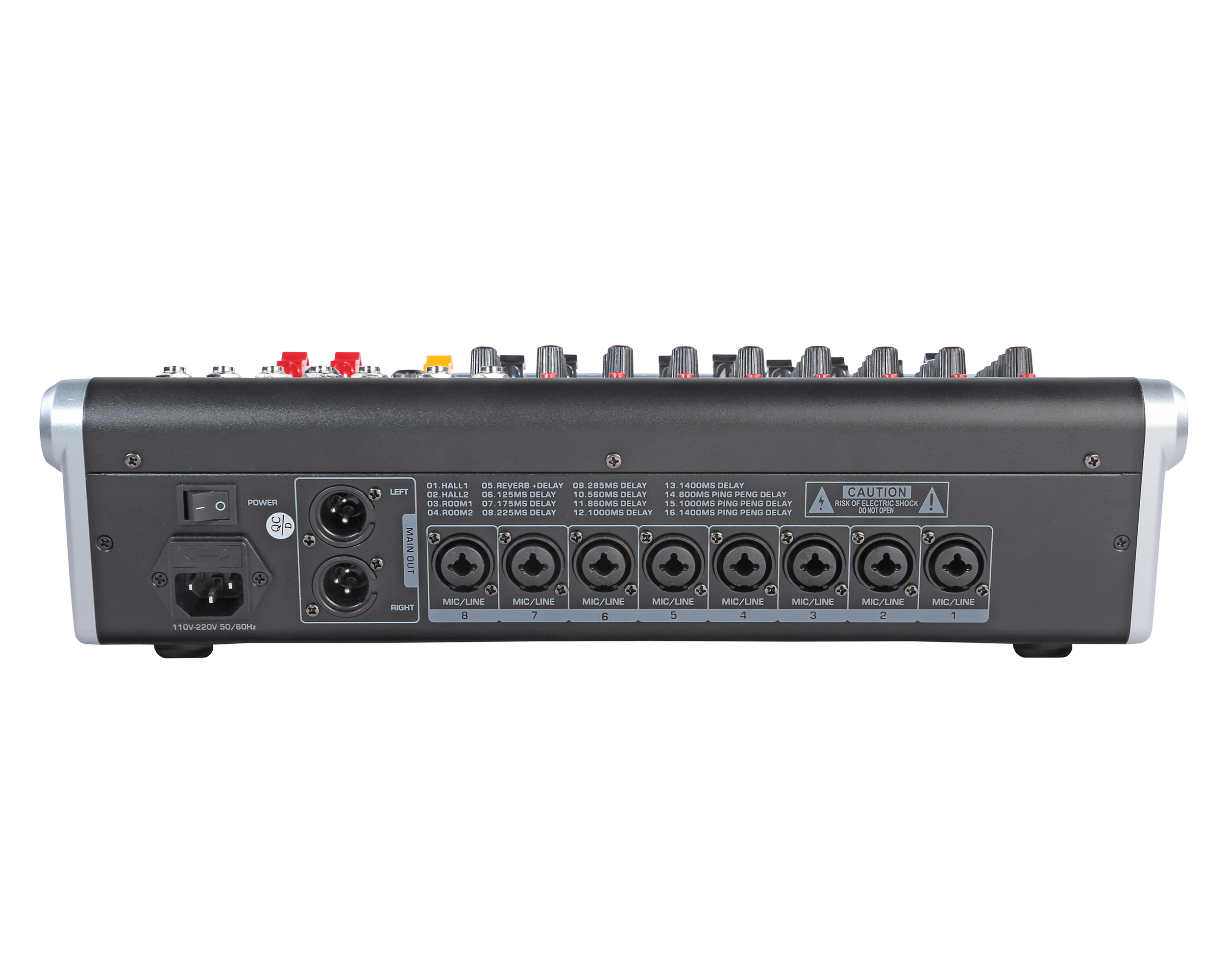

8 mic/line(mono) input with combo jack + 1 stereo input.
USB port for MP3, recording, and connecting computer with mixer.
Smooth premium-quality faders.
1 aux sending.
Robust metal construction for tour-grade build quality and reliability.
Signal & clip LED indication for master level.
Peak LED indication per channel.
Each channel with mute and PFL switch.
Headphone monitor output.
Each channel with individual +48v Phantom switch.
Separate switch to change the mode from stereo to MP3.
Direct subwoofer output jack with gain and tune control nobs.
Each channel has gain control, 3 band EQ control, AUX control, FX control, and PAN control.

MODEL NO	AMX 8U
MIC (Gain Min/Gain Max)	+14db/+60db
LINE (Gain Min/Gain Max)	-6dbDB /+38db
MAIN OUTPUT LEVEL (Nominal/Max)	+22DB balanced
FREQUENCY RESPONSE	10HZ to 60KHzm +-3DB
TOTAL HARMONIC DISTORTION	0.01% at +4DBu,1KHz,Bandwidth 60KHz
SIGNAL TO NOISE RATIO	+112DB,all channels at Unity Gain
CLIP INDICATION	0DBu
EQUALISATION(HIGH/MID/LOW)	12KHZ+- 15DB /2.5HZ+- 15DB /80HZ+-15DB
INPUT LEVEL SENSITIVITY	-55DBu
INPUT IMPEDANCE	MIC 2Kohms/LINE 15 Kohms
POWER SUPPLY	18W
DIMENSIONS	40.7x30.7x10cm
GROSS WEIGHT	5kg
NET WEIGHT	3.75kg
