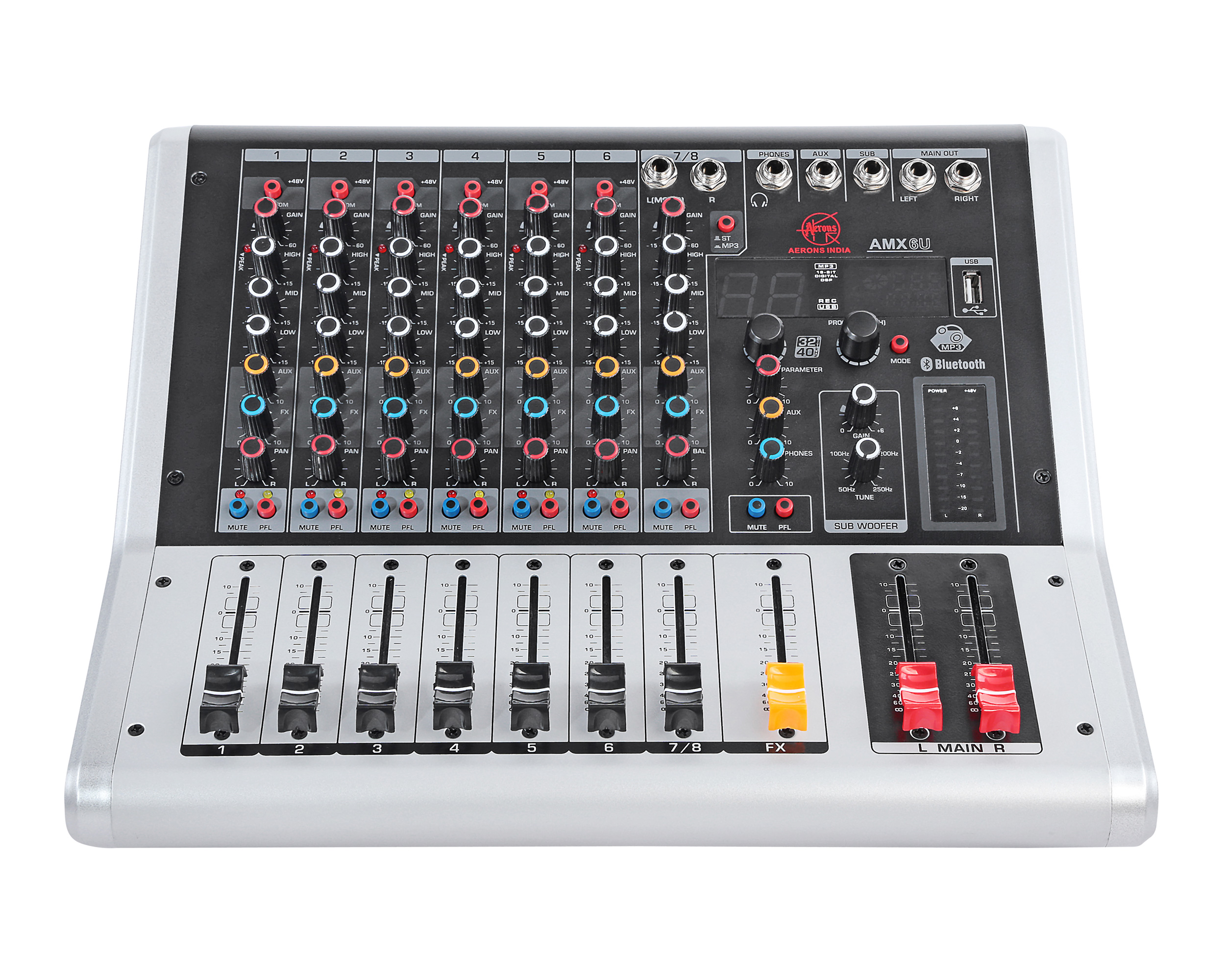

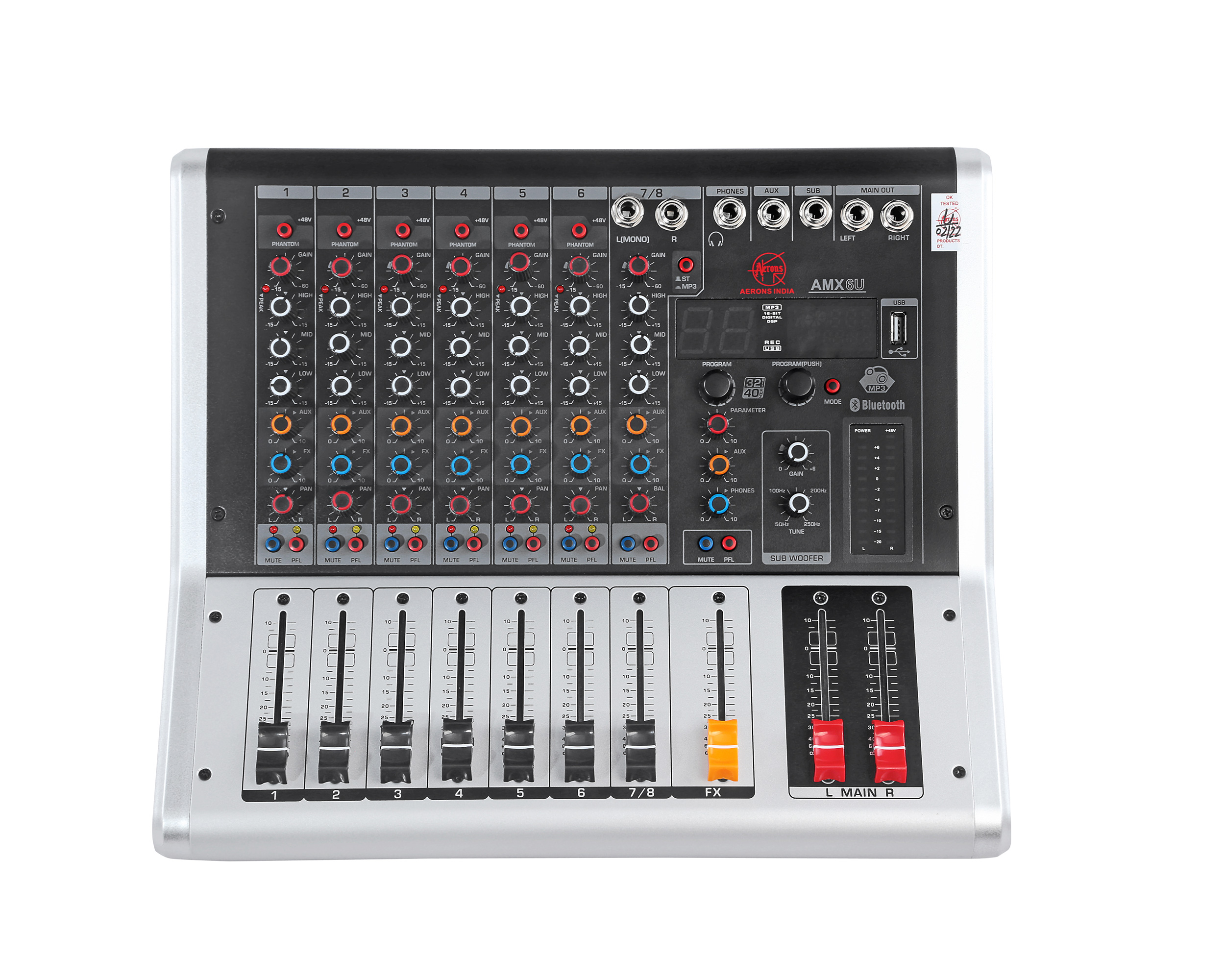

AMX6U

  • 6 Mic/Line channel +1 Stereo channel mixing console.
  • Built-in 16-bit digital DSP effect.
  • 3 Band EQ per channel.
  • Built-in Bluetooth wireless streaming from smartphones, tablets, and laptops.
  • USB port for MP3, recording, and connecting computer with mixer.
  • 1 aux sending
  • WHATSAPP CATALOG AND PRICE

AMX6U

  • 6 Mic/Line channel +1 Stereo channel mixing console.
  • Rugged, stable, high-quality analog mixers with user-friendly construction & aesthetically designed side panels.
  • Built-in 16-bit digital DSP effect.
  • 3 Band EQ per channel.
  • High-quality MP3 player with display and direct Recording function.
  • Built-in Bluetooth wireless streaming from smartphones, tablets, and laptops.
  • 6 mic/line(mono) input with combo jack + 1 stereo input.
  • USB port for MP3, recording, and connecting computer with mixer.
  • Smooth premium-quality faders.
  • 1 aux sending.
  • Robust metal construction for tour-grade build quality and reliability.
  • Signal & clip LED indication for master level.
  • Peak LED indication per channel.
  • Each channel with mute and PFL switch.
  • Headphone monitor output.
  • Each channel with individual +48v Phantom switch.
  • Separate switch to change the mode from stereo to MP3.
  • Direct subwoofer output jack with gain and tune control nobs.
  • Each channel has gain control, 3 band EQ control, AUX control, FX control, and PAN control.



AMX6U

MODEL NO

AMX 6U

MIC (Gain Min/Gain Max)

+14db/+60db

LINE (Gain Min/Gain Max)

-6dbDB /+38db

MAIN OUTPUT LEVEL (Nominal/Max)

+22DB balanced

FREQUENCY RESPONSE

10HZ to 60KHzm +-3DB

TOTAL HARMONIC DISTORTION

0.01% at +4DBu,1KHz,Bandwidth 60KHz

SIGNAL TO NOISE RATIO

+112DB,all channels at Unity Gain

CLIP INDICATION

0DBu

EQUALISATION(HIGH/MID/LOW)

12KHZ+- 15DB  /2.5HZ+- 15DB /80HZ+-15DB

INPUT LEVEL SENSITIVITY

-55DBU

INPUT IMPEDANCE

MIC 2Kohms/LINE 15 Kohms

POWER SUPPLY

18W

DIMENSIONS

35.6x30.7x10cm

GROSS WEIGHT

4.2kg

NET WEIGHT

3.3kg
