NF8BT

  • Weather-resistant – IP46 rating
  • 1×8"(200mm)/1" voice coil LF
  • 1×1(25mm)/ 1" voice coil HF
  • Indoor or Outdoor application
  • Tested to withstand rain and salt
  • Engineering plastic injection molding
  • UV rays protection
  • Vertical and horizontal installation
  • Internal waterproof fabric

NF8BT

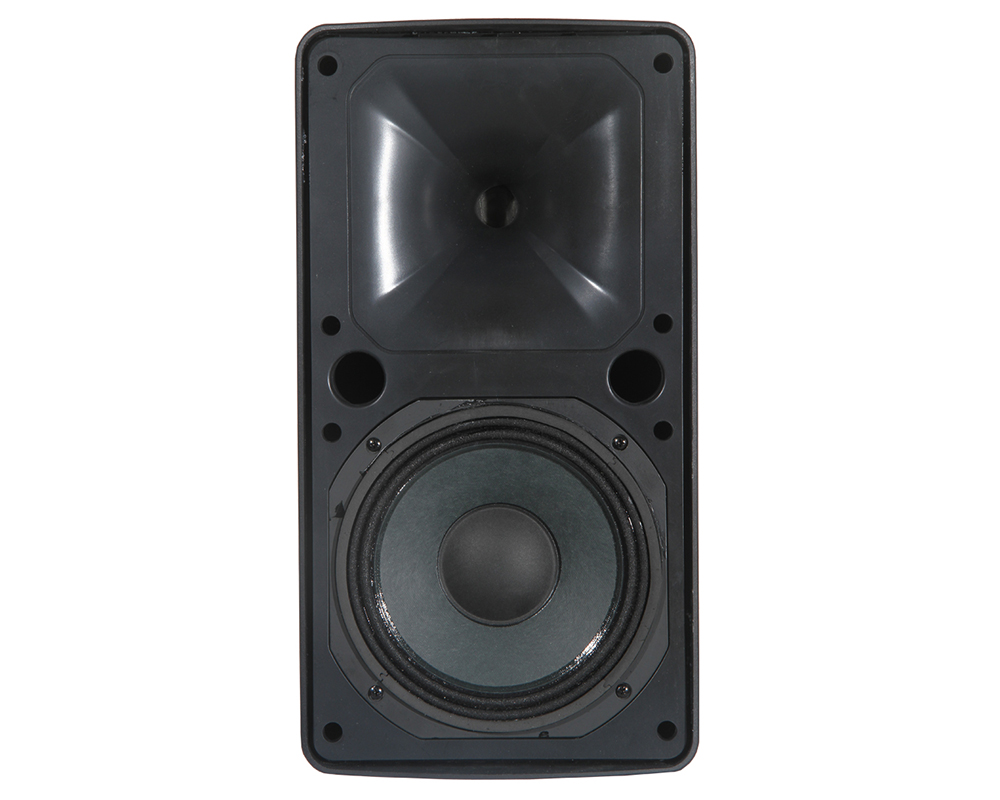

The NF-8BT comprises one 8″ low/mid-woofer with one 1″ compression driver and is equipped with a multitap transformer. Its available in Black color so can be used indoor and outdoor



High durability and superior performance with full sound over a large listening area. It has a sturdy structure and IP-rated system which can be used both indoors and outdoors, being able to withstand the elements. Also, its elegant and discreet design makes it the ideal speaker for outdoor installations such as beach clubs, pools, cruise ships, and terraces.



The NF-8BT can be set up either vertically or horizontally. The body is made of engineered plastic injection molding and polypropylene guaranteeing complete protection against ultraviolet rays. The grille is perforated aluminum, internally covered in waterproof fabric, and open-cell expanded polyurethane.

The system conforms to IP46 international standards.

NF8BT

Design

Full Range cabinet, bass reflex

Components

1×8"(200mm)/ 2" voice coil LF

1×1"(25mm)/ 1” voice coil HF

Connectors

2 x 2-pin EUROBLOCK Barrier Strip

Dimensions

(W)241mm×(H)287mm×(D)450mm

Net Weight

10Kg/pc

Shipping Weight

12Kg/pair

Colour

Black

Options

RAL colours on request

Rigging

4 x M8 mounting points for installation brackets and wall mount.

Additional data

Engineering plastic injection with durable scratch resistant & waterproof finish, kick-proof steel grill, Wall Mount

Impedance

16 ohms

Transformer taps

100V: 37.5W/75W/150W

Power

150W RMS, 600W PEAK

Sensitivity

94Db 1watt/1 meter

Peak SPL

122dB

Frequency Response: - 3dB

60Hz to 18Khz

Crossover

2.3 kHz passive

Dispersion

90° x 50°
