NF4BT

  • Weather-resistant – IP46 rating
  • 1×4"(100mm)/1" voice coil LF
  • 1×0.8"(20mm)/ Dome Tweeter
  • Indoor or Outdoor application
  • Tested to withstand rain and salt
  • Engineering plastic injection molding
  • UV rays protection
  • Vertical and horizontal installation
  • Internal waterproof fabric

NF4BT

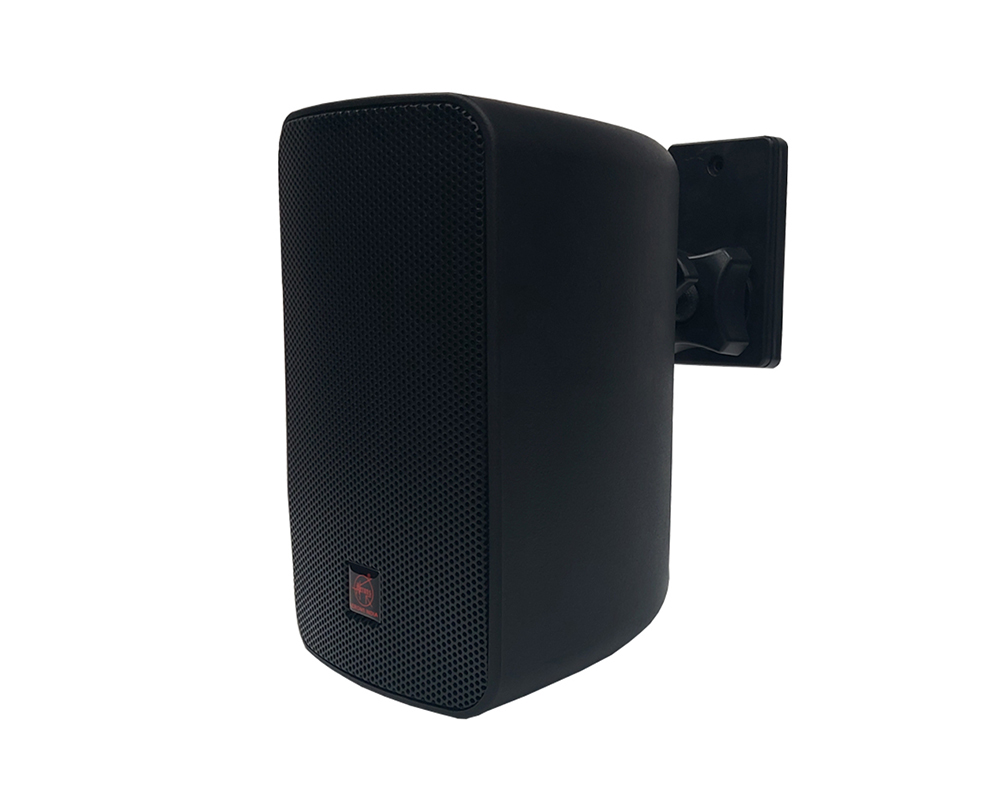

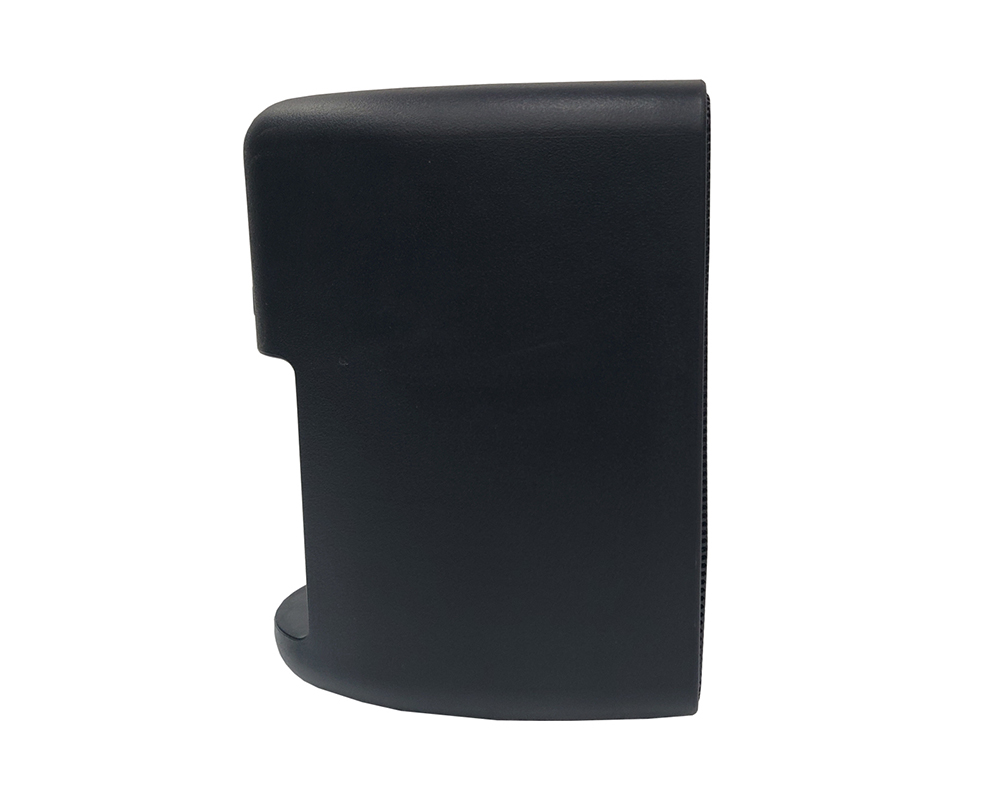

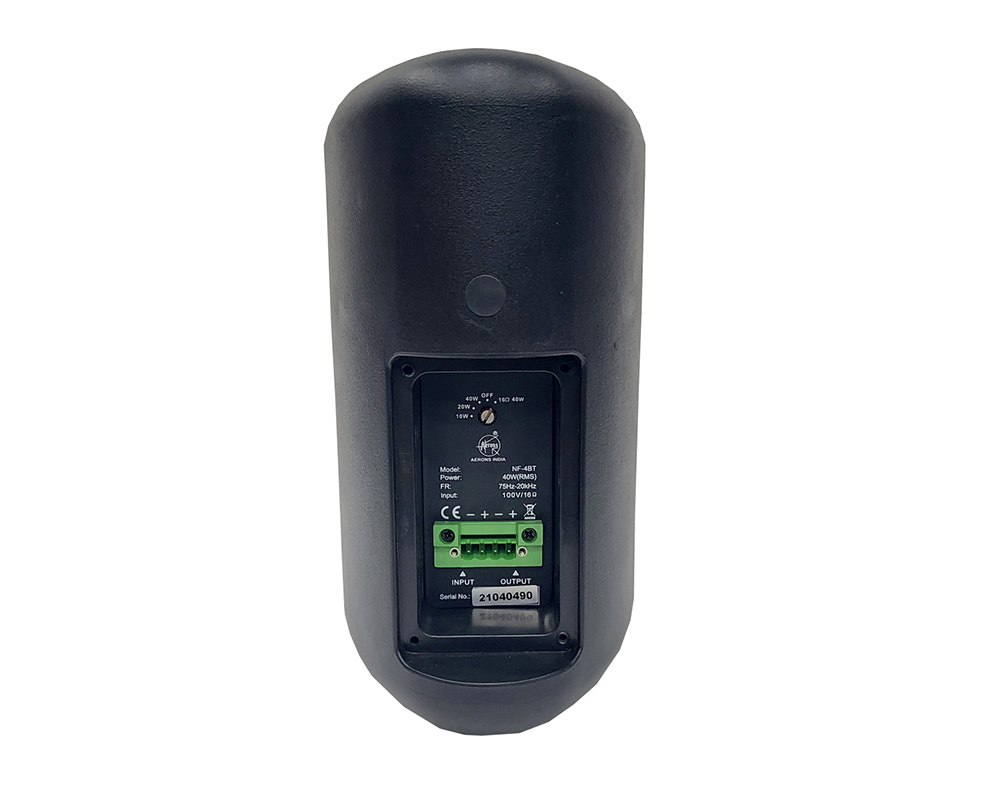

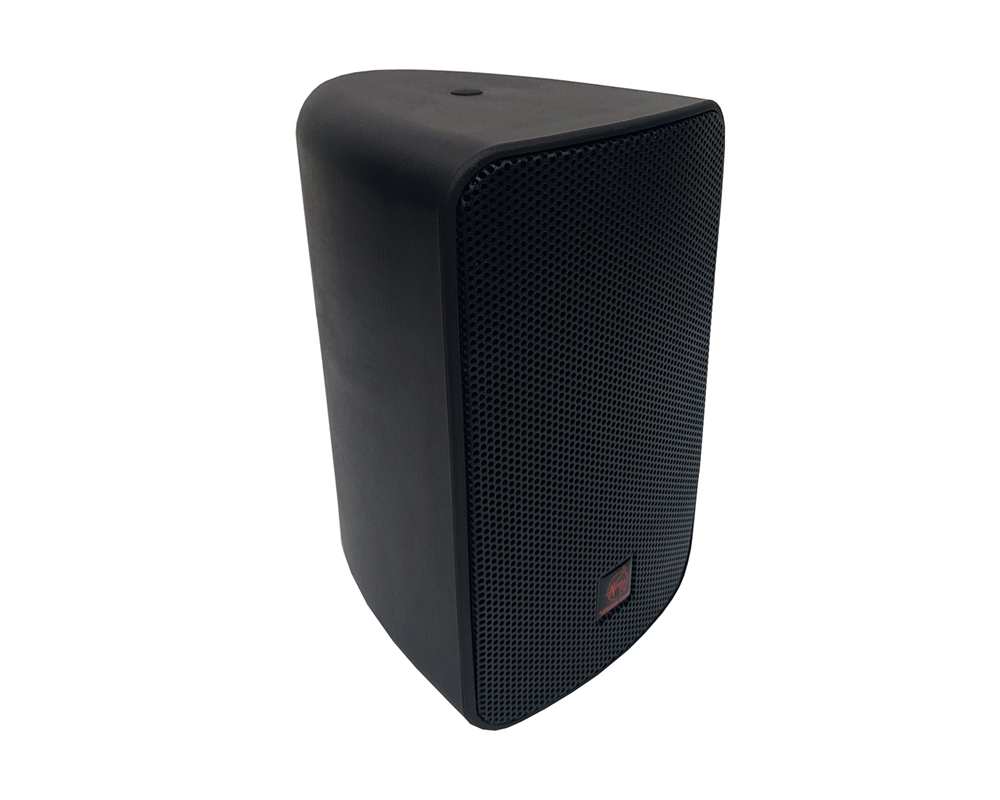

The NF-4BT comprises one 4″ low/mid-woofer with one 0.8″ dome tweeter and is equipped with a multitap transformer. Its available in Black color so can be used indoor and outdoor



High durability and superior performance with full sound over a large listening area. It has a sturdy structure and IP-rated system which can be used both indoors and outdoors, being able to withstand the elements. Also, its elegant and discreet design makes it the ideal speaker for outdoor installations such as beach clubs, pools, cruise ships, and terraces.



The NF-4BT can be set up either vertically or horizontally. The body is made of engineered plastic injection molding and polypropylene guaranteeing complete protection against ultraviolet rays. The grille is perforated aluminum, internally covered in waterproof fabric, and open-cell expanded polyurethane.

The system conforms to IP46 international standards.

NF4BT

Design

Full Range cabinet, bass reflex

Components

1×4"(100mm)/1" voice coil LF

1×0.8"(20mm)/ Dome Tweeter

Connectors

2 x 2-pin EUROBLOCK Barrier Strip

Dimensions

(W)141mm×(H)170mm×(D)230mm

Net Weight

3Kg/pc

Shipping Weight

7Kg/pc

Colour

Black

Options

RAL colours on request

Rigging

3 x M8 mounting points for installation brackets and wall mount.

Additional data

Engineering plastic injection with durable scratch resistant & waterproof  finish, kick-proof steel grill, Wall Mount

Impedance

16 ohms

Power handling

10W/20W/40W/OFF/16Ω

Sensitivity

88Db 1watt/1 meter

Peak SPL

110dB

Frequency Response: - 3dB

75Hz to 20Khz

Crossover

3.5 kHz passive

Dispersion

120° x 90°
