AI 118

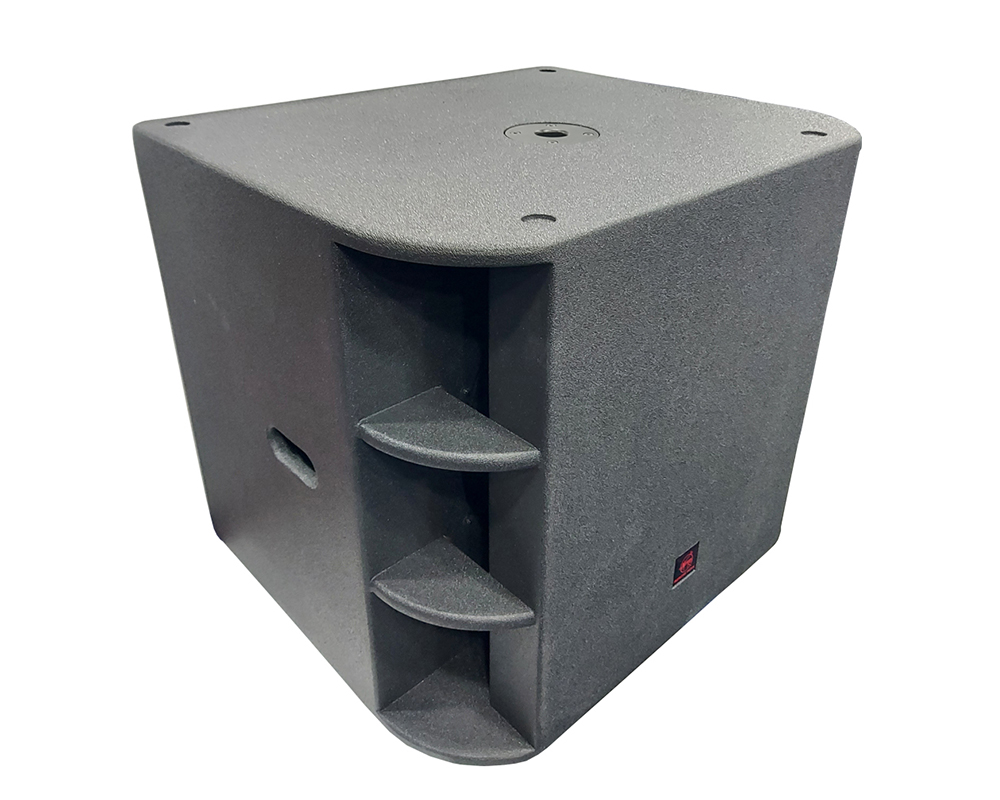

AI 118SUB is a compact, 6th order Bandpass subwoofer, designed for installation or portability. With the exceptional low frequency of 40 Hz and a fast response time of the 8 ohms, 18” driver, the AI 118SUB is capable of 133 dB SPL. Weighing 37kg with integrated handles this product is perfect for portable use. AI118SUB is a 6th order Bandpass subwoofer designed to be used with the AI series of mid-high cabinets extending low-frequency response. This conventionally shaped cabinet can be hidden against a wall or under seating. When used in multiples the AI 118SUB can cover a large room and still blend in nicely to the interior. The discreet design with reticulated foam front and acrylic textured paint finish and multiple integrated fixing points achieve a high-class look suitable for any application.

Bandpass Enclosure Design is extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion bandpass design utilized in the AI 118SUB reinforces the bass musical instrument frequencies, and steep cut-off slopes ensure an effective acoustic transition for use with AI Series full-range loudspeakers. A typical application could consist of an AI118SUB providing the low-frequency bass extension for one, or two AI Series top cabinets.

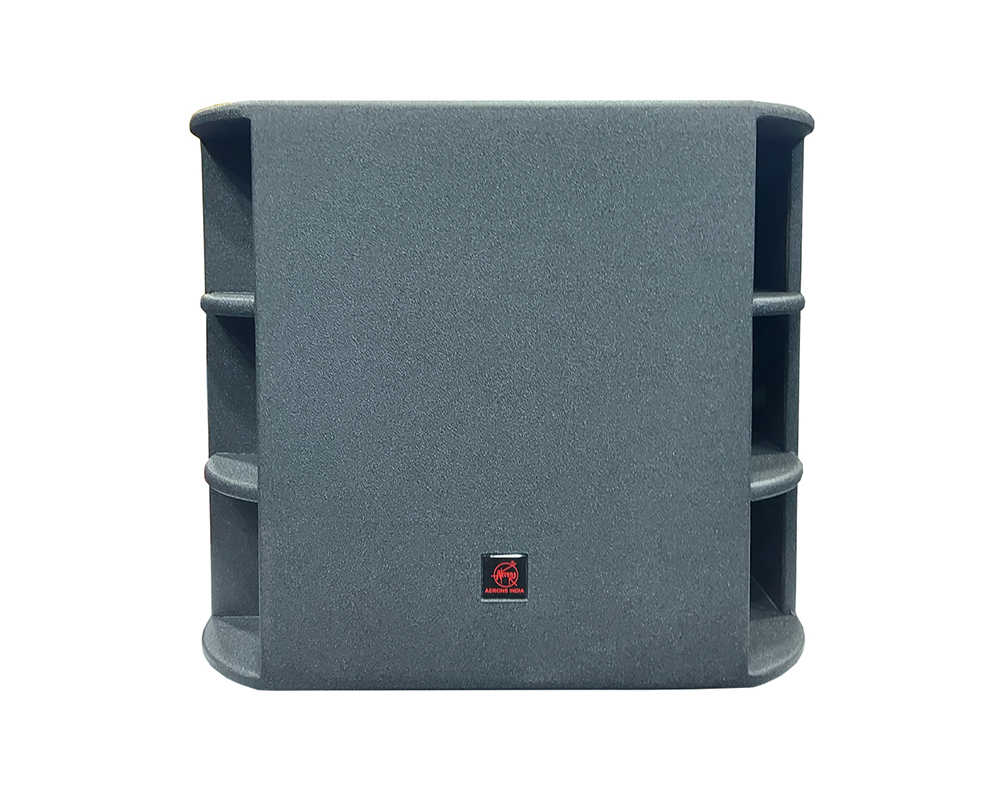

Built for Durability and Versatility the AI 118SUB’s enclosure consists of solid birch plywood with a hard-wearing semi matt black paint finish, and is ribbed internally to eliminate resonances and to minimize vibration. The standard pole-mount socket allows loudspeakers to be mounted, either vertically or raised higher and angled down to optimize audience coverage.

Rock-Solid Performance Designed to provide exceptional performance for traveling musicians, houses of worship, banquet facilities, nightclubs – and a host of other venues, the 1,500-Watt AI 118SUB puts touring grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.

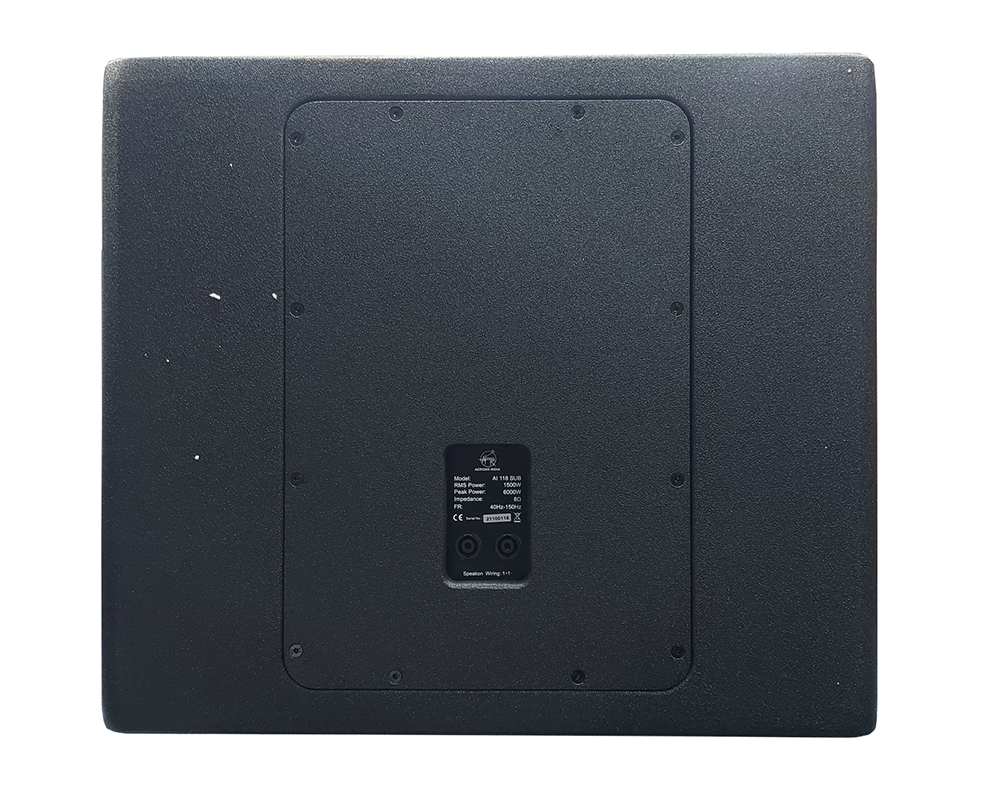

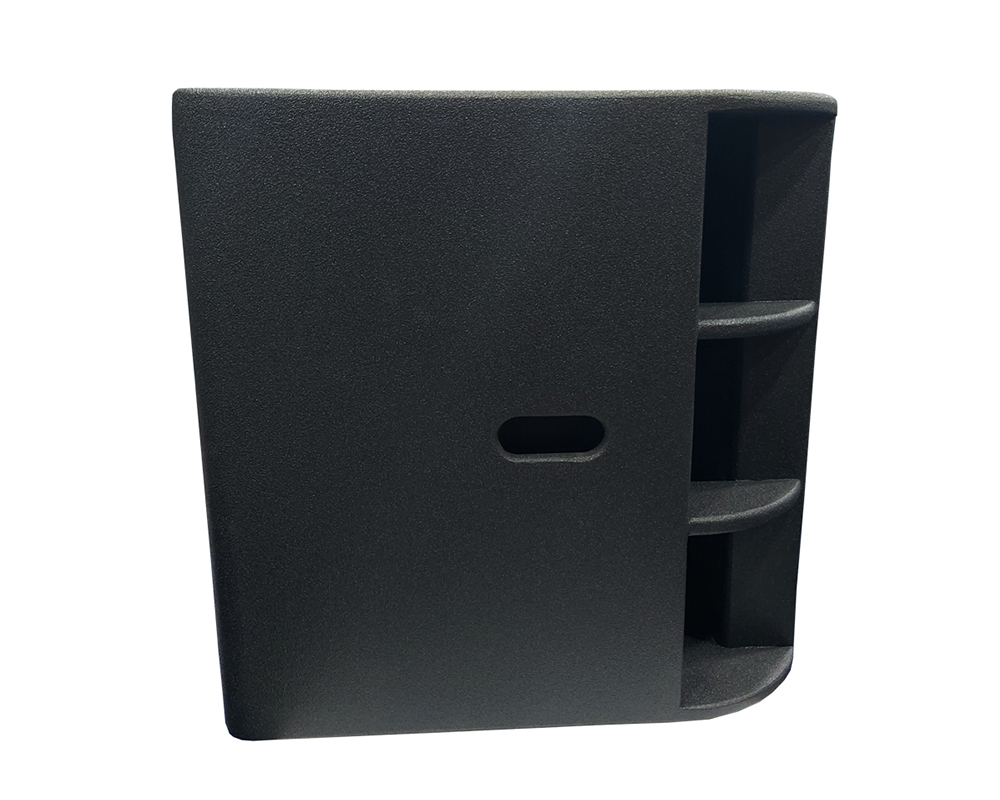

Mounting options include a threaded insert for pole mounting of mid-high cabinets, location cups for easy storage or stacking together when used in a larger system and internal pocket handles for easy transportation. The rear cast aluminum connection plate has two 4 pin speakON® connectors fitted as standard, one input, and one link. The speakON® connectors are wired on pins +1-1, with a pass-through of pins +2-2.

Key Features:

• Compact small physical footprint

• 18” proprietary AERONS driver

• Exceptional low frequency of 40 Hz

• 133 dB SPL

• Integrated stacking system

• Designed for portable use or fixed installations
