SYSTEM SPECIFICATION
|
Frequency Range |
UHF 620-680MHz |
|
Oscillation Mode |
Quartz Controlled Fixed Frequency |
|
Frequency Stability |
±0.005% |
|
Dynamic Range |
＞110dB |
|
Maximum Frequency Deviation |
±45KHz |
|
Frequency Response |
60Hz-18KHz（±3dB） |
|
S/N |
>105dB |
|
T.H.D |
≦0.5% |

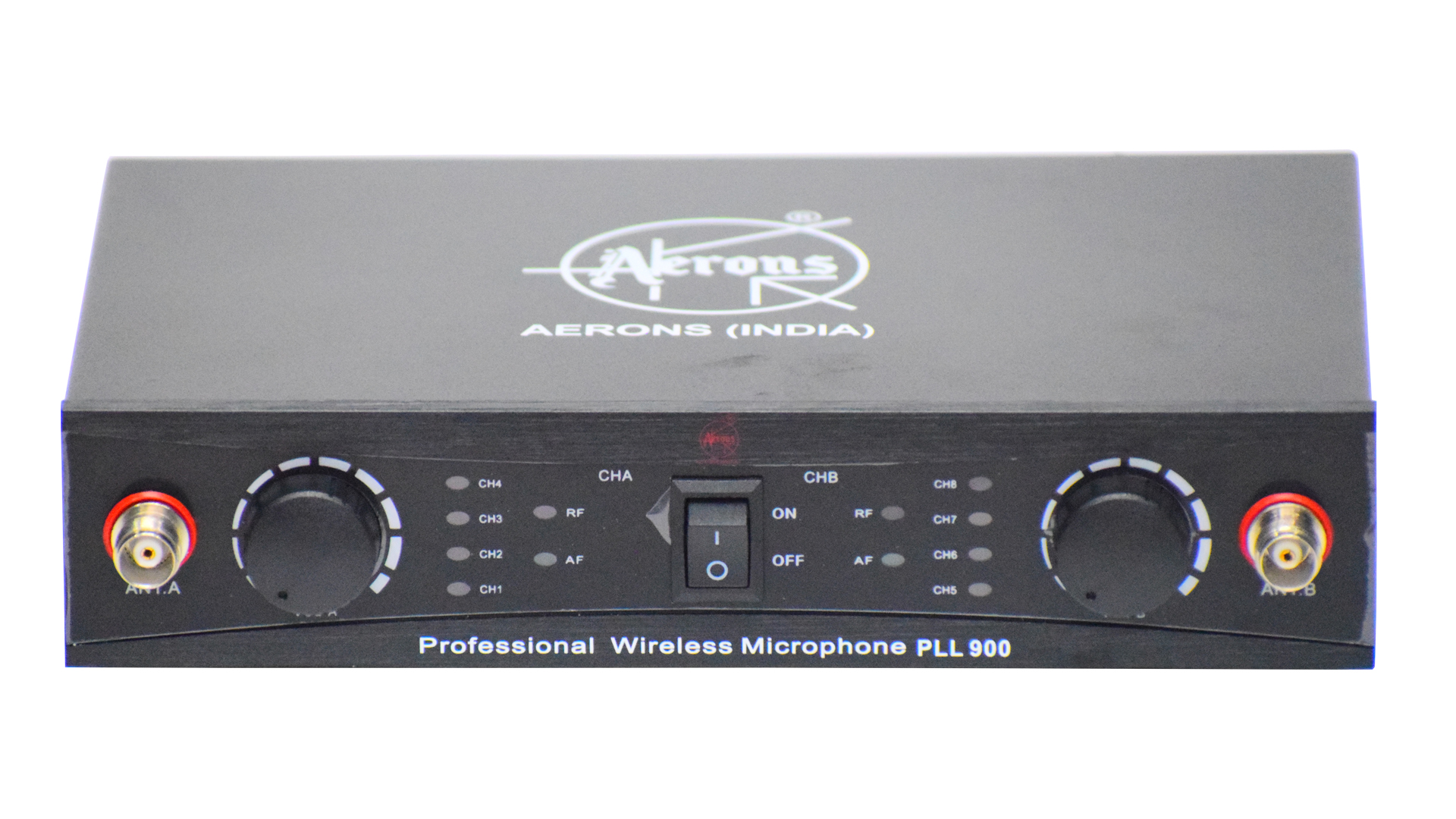

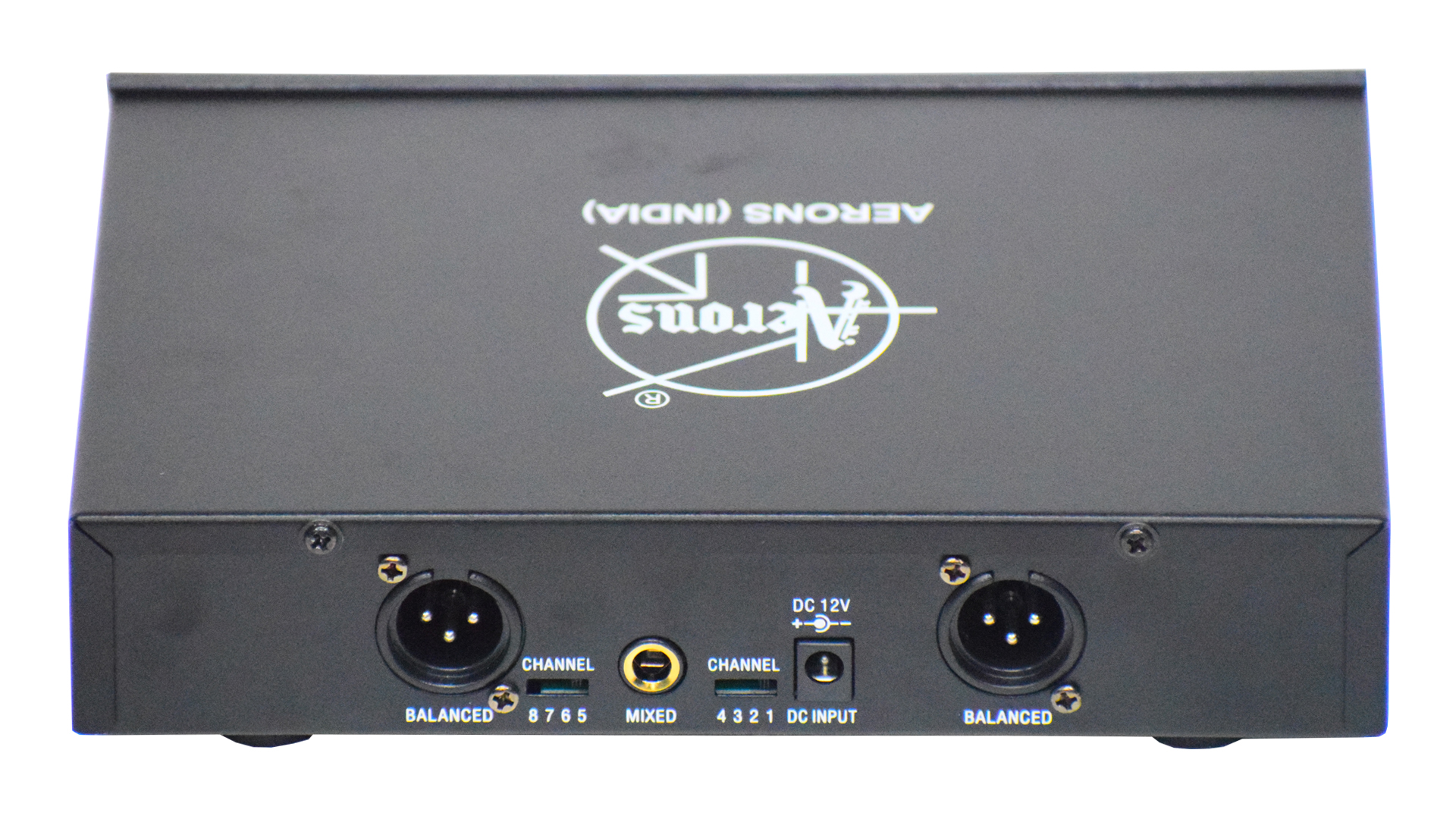

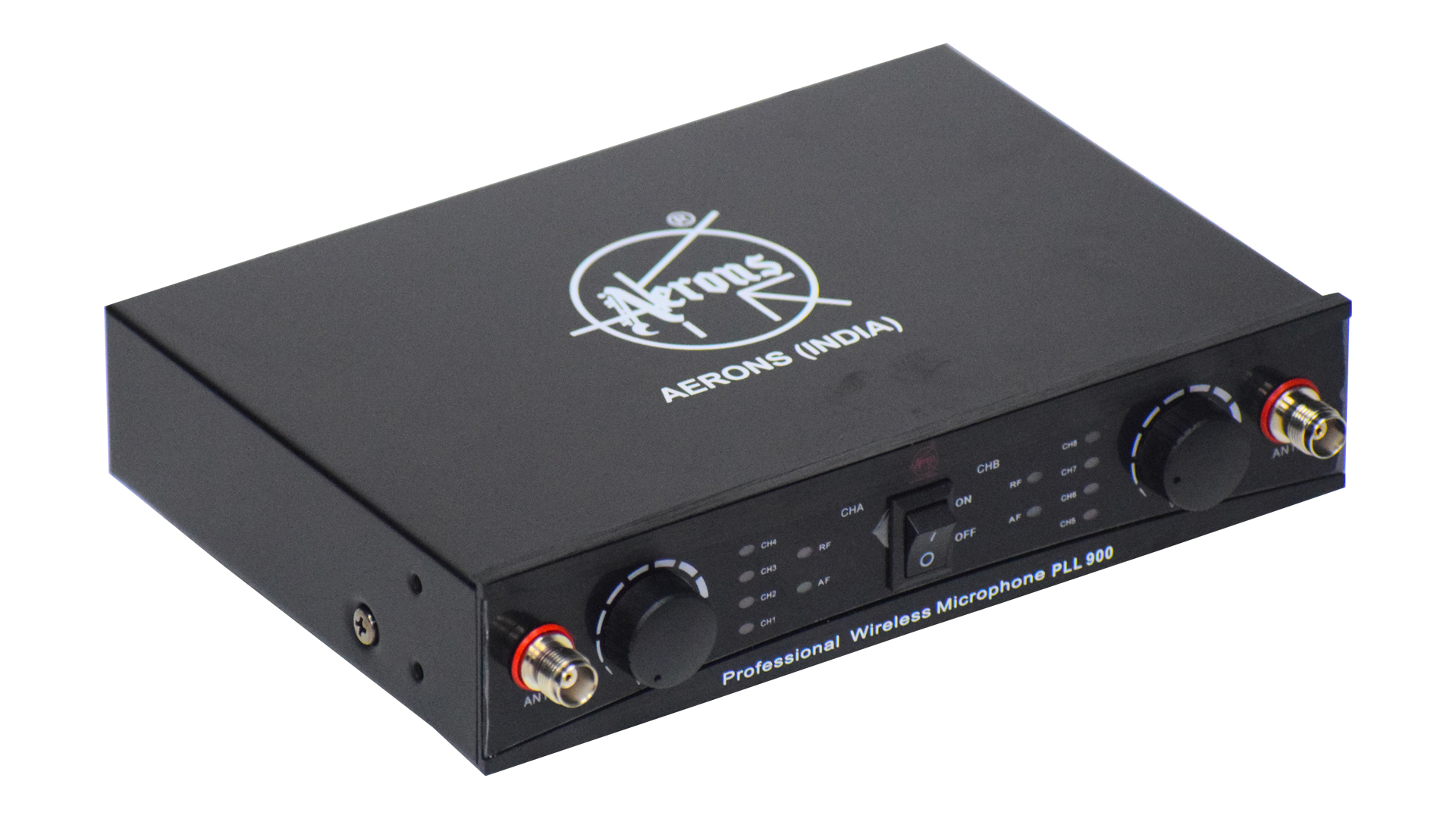

RECEIVER SPECIFICATION
|
Wireless Interface |
BNC/50WΩ |
|
Sensitivity |
12dB（80dBS/N） |
|
Spur Suppression |
＞80dB |
|
Power Supply |
DC 11-16V（rated 12V）, 500mA |
TRANSMITTER SPECIFICATION
|
Output power |
10mW |
|
Spur Suppression |
-60dB |
|
Power supply |
2x1.5V AA battery |
|
Battery life |
less than 10 hours |
