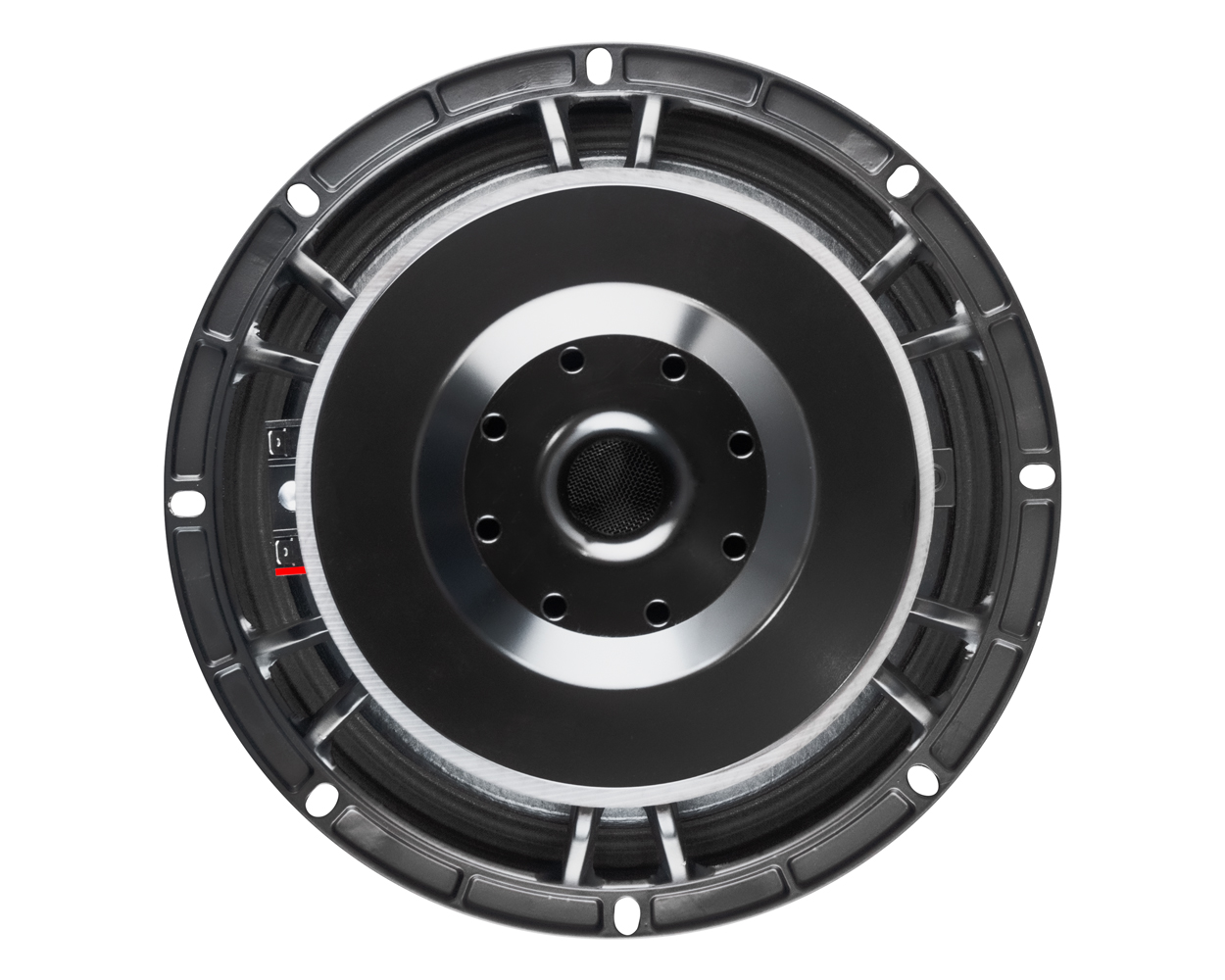

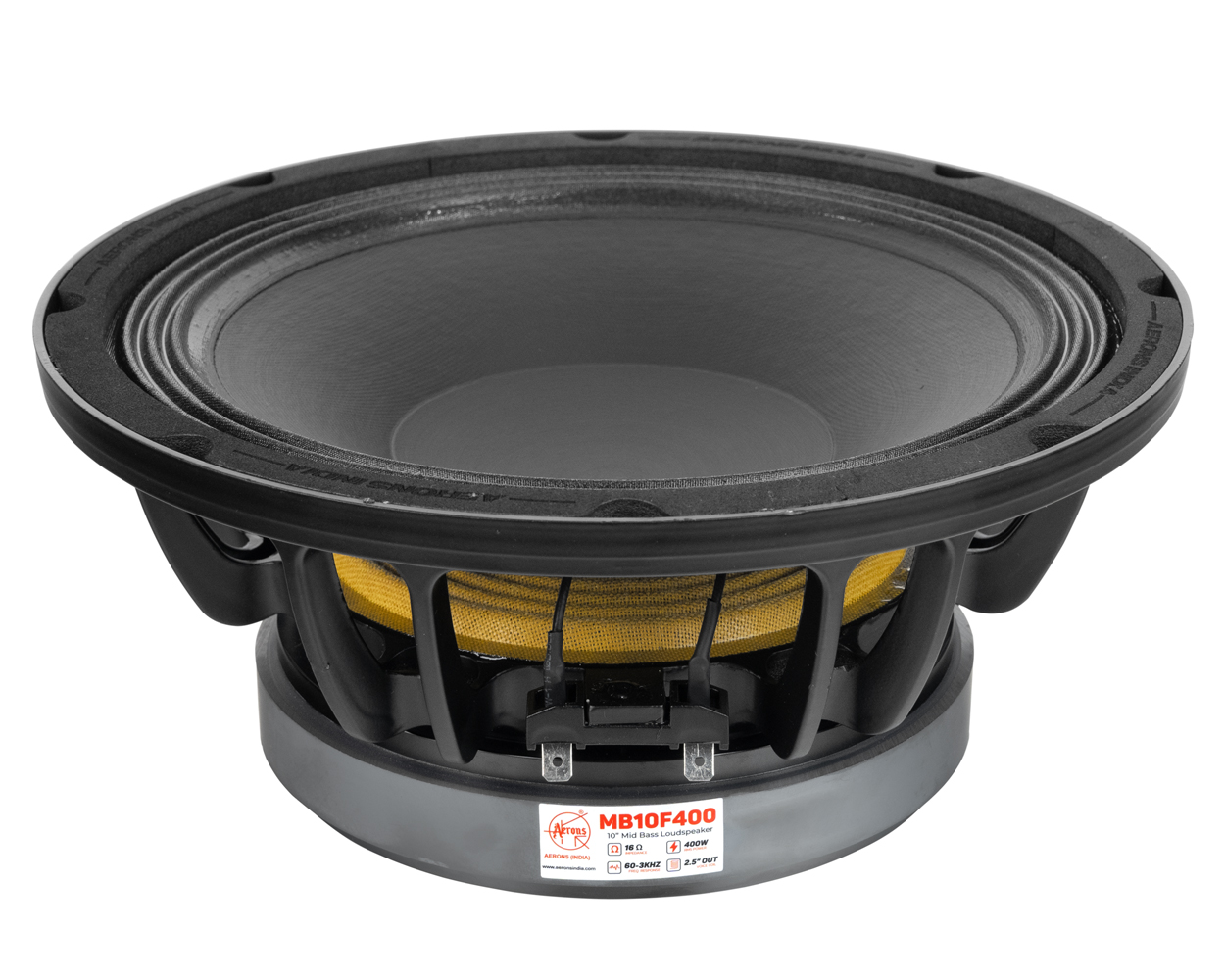

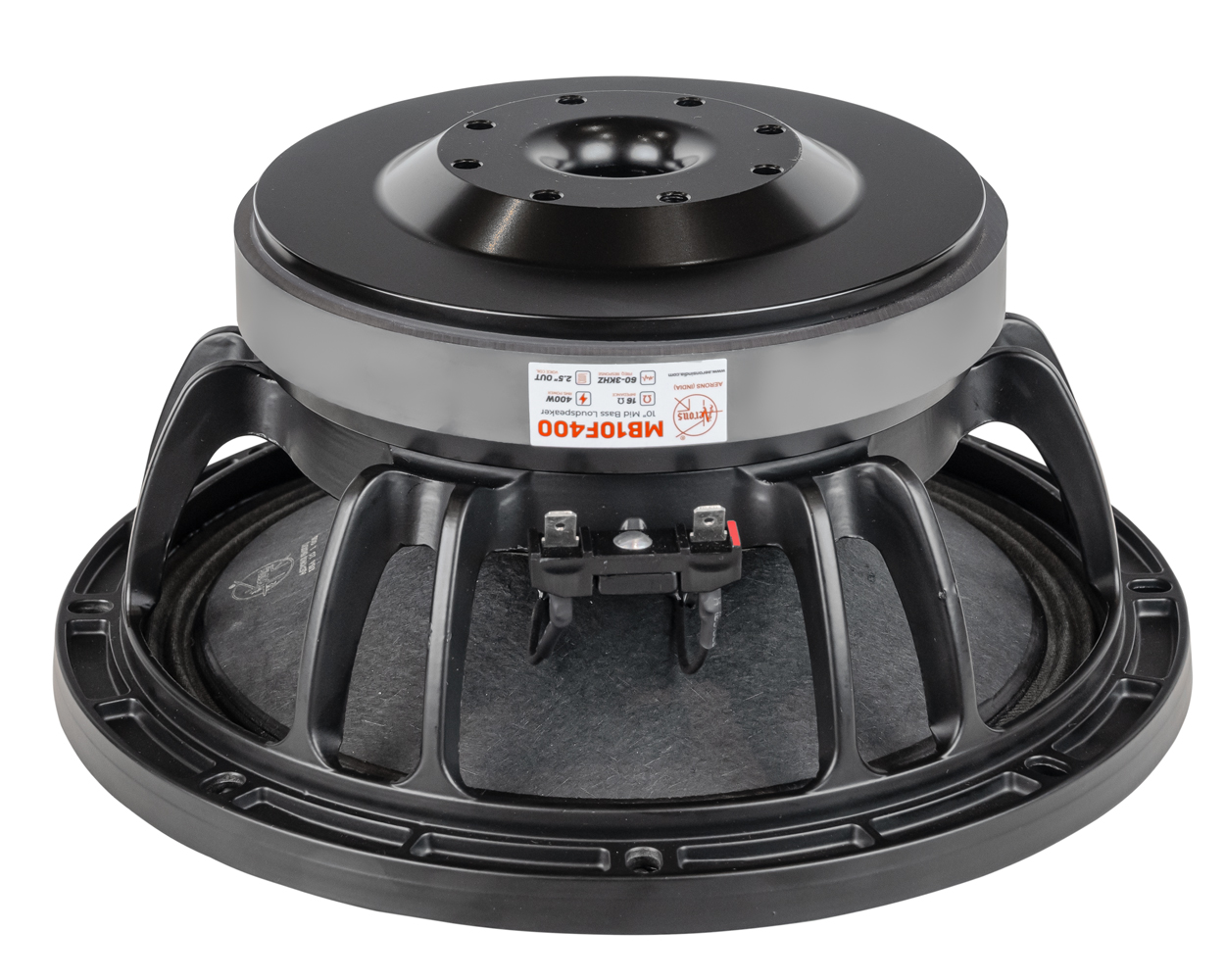

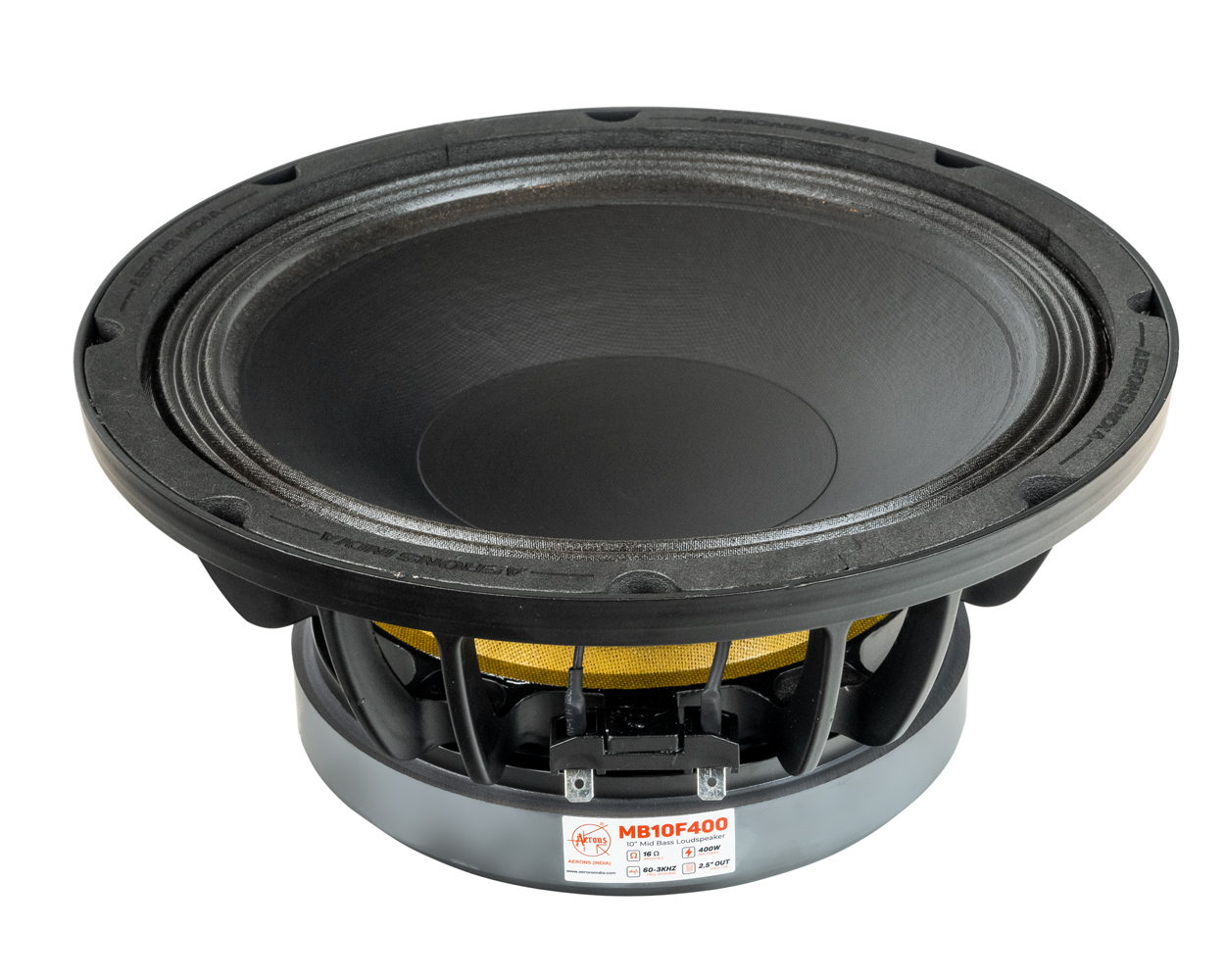

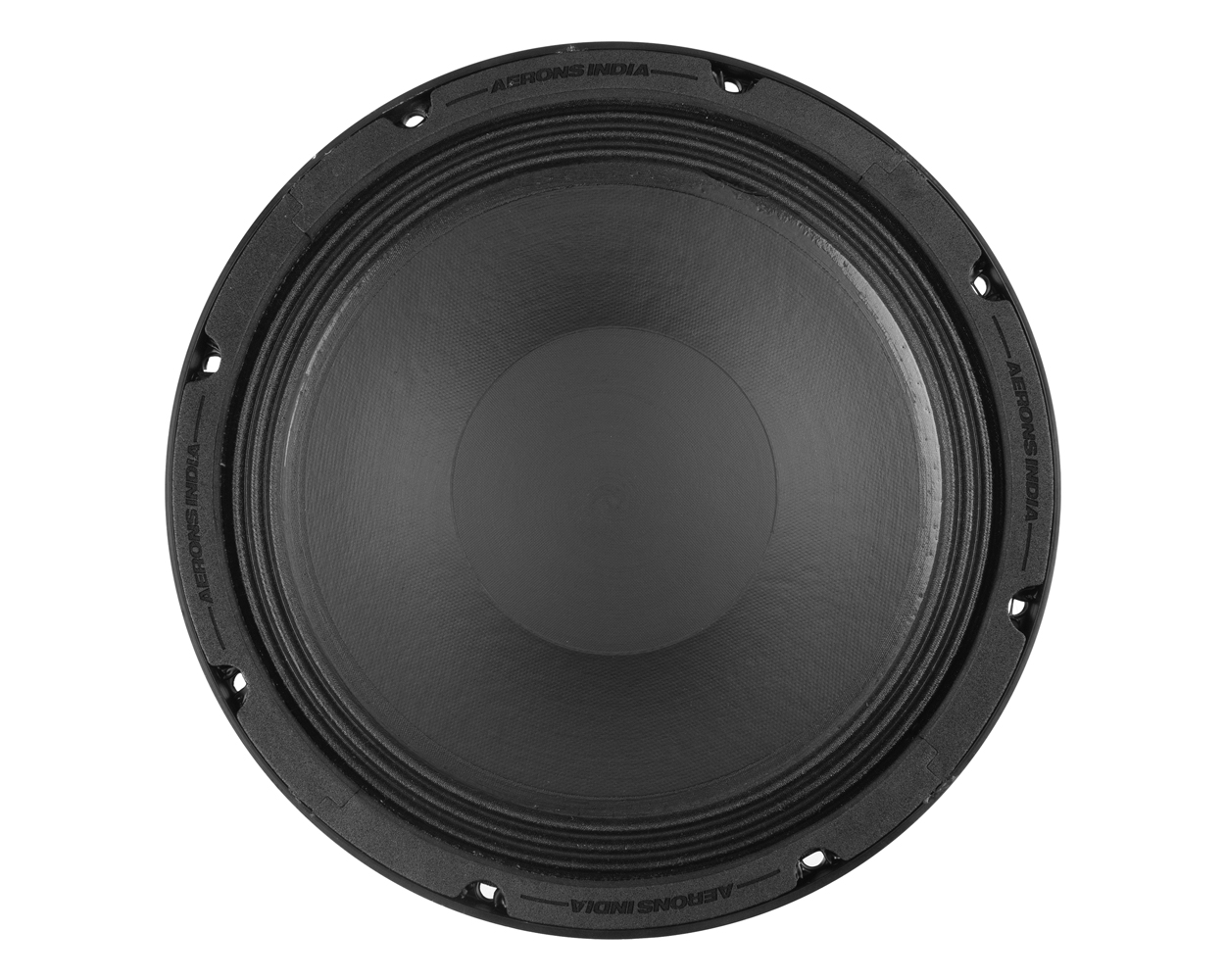

MB 10F400 – 10" Mid Bass Speaker
Precision. Power. Performance.
Engineered for audio professionals and enthusiasts alike, the MB 10F400 from Aerons India delivers uncompromising mid bass clarity with robust build quality. Designed to perform in demanding environments, this 10-inch speaker combines high sensitivity with exceptional power handling to ensure consistent, distortion-free output.
Product Highlights:
Applications:
Perfect for use in professional sound reinforcement systems, custom audio installations, and high-performance speaker cabinets. Whether on stage or in studio, the MB 10F400 delivers the precision and reliability that audio professionals demand.
|
Nominal Diameter |
10inch |
|
Nominal Impedance |
16ohm |
|
Minimum Impedance |
10.5 ohm |
|
Nominal Power Handling |
400Watts |
|
Continuous Power Handling |
800Watts |
|
Sensitivity |
97dB |
|
Frequency Range |
60-3000Hz |
|
Voice-coil Diameter |
65.5mm |
|
Voice-coil Material |
Copper |
|
Voice-coil Winding Depth |
15.5 mm |
|
Effective Diaphragm Diameter |
220Mm |
|
Kind of layer |
out |
|
Number of layers |
2 |
|
Top Plate Thickness |
8mm |
|
Spider |
Silicon |
|
Flux Density |
1.25T |
|
Magnet Diameter |
170*20mm |
|
Magnet Material |
Ferrite |
|
Magnet Grade |
Y35 |
|
Magnet Gap Depth |
8 mm |
|
Resonance Frequency |
Fs |
60Hz |
|
DC Resistance |
Rte |
10.5ohm |
|
Mechanical Factor |
Qms |
5.36 |
|
Electrical Factor |
Qes |
0.390 |
|
Total Factor |
Qts |
0.364 |
|
BL Factor |
BL |
22.26 T-m |
|
Effective Moving Mass |
Mms |
43.00gr |
|
Equivalent Cas Air Load |
Vas |
22.67liter |
|
Effective Piston Area |
Sd |
3.63 m’2 |
|
Max. Linear Excursion |
Xmax |
4mm |
|
Half Space Efficiency |
Eff |
1.88% |
|
Overall Diameter |
262mm |
|
Buffer Cut-out Dia. |
231mm |
|
Bolt Circle Dia. |
245mm |
|
Bolt Hole Dia. |
6.8mm |
|
Gasket Thickness |
8mm |
|
Overall Depth |
118mm |
|
Magnet Dia. |
170mm |
|
Net Weight |
5.3 kg |
