The AK612 is a high-performance passive speaker built for professional sound applications. It features a robust, premium-grade birch plywood cabinet with a durable premium paint finish, ensuring long-lasting protection against wear and tear. Designed for versatility, it excels in live sound, installations, and portable PA systems.
Key Specifications:

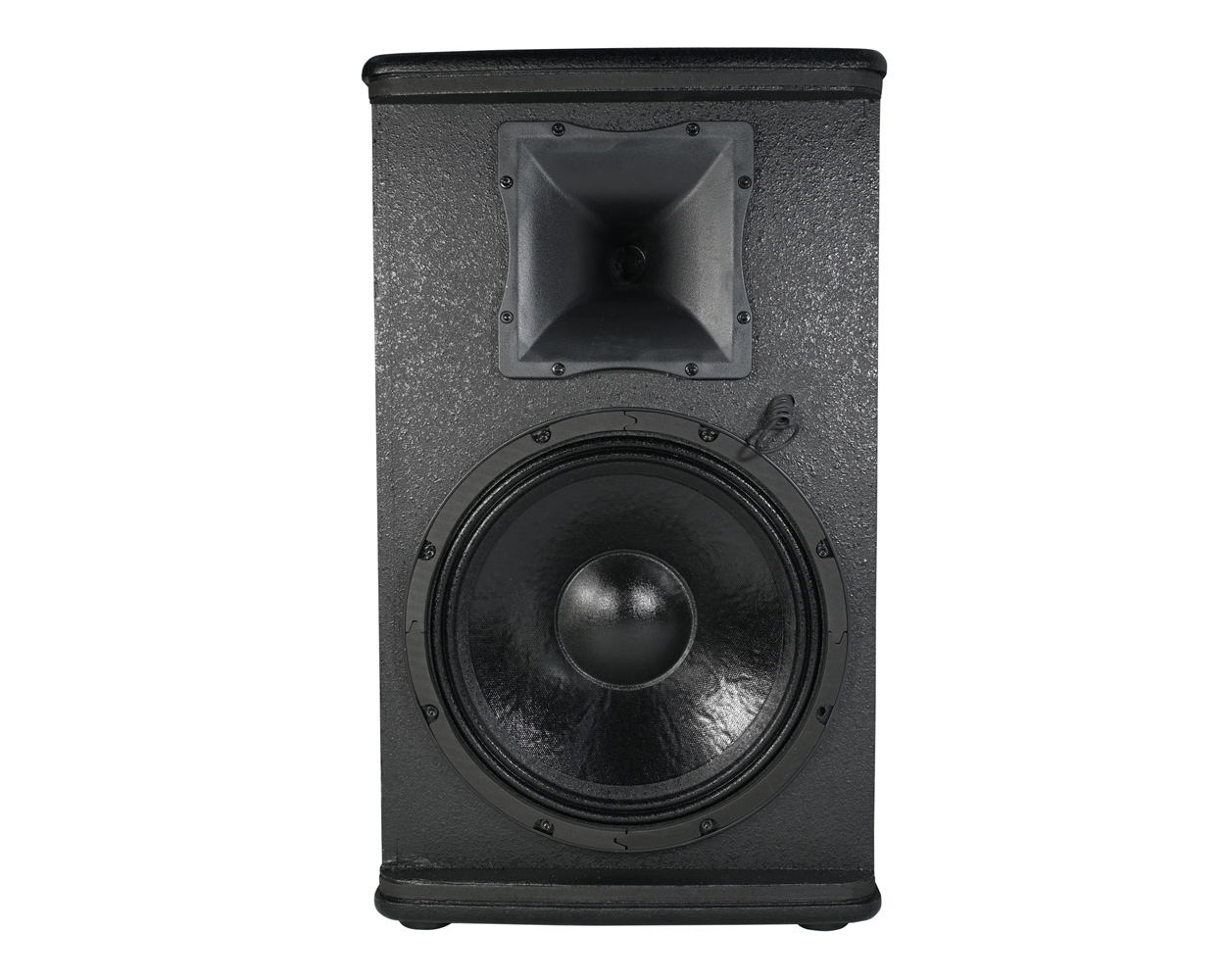

- LF Driver: 12-inch LF driver with a 75mm voice coil, providing powerful and responsive bass.
- HF Driver: 1-inch HF driver with a 44mm voice coil, delivering clear and accurate highs.
- Power Rating: 500W RMS, ensuring consistent output for demanding audio environments.
- Maximum SPL: Produces up to 130 dB, making it suitable for large venues and high-volume settings.
- Durable Construction: Built with high-quality birch plywood and finished with premium paint for enhanced durability and protection.
- LED Logo: A front-facing illuminated logo adds a modern, professional look, complementing any stage or venue setup.
The AK612 strikes a balance between performance, durability, and design, making it an ideal choice for sound professionals seeking reliability and quality.
|
|
Design |
12” 2-Way Bass reflex Passive Speaker |
RMS Power |
500W |
Peak Power |
2000W |
Freq. Response (-3dB) |
58 Hz-20kHz(±3dB) |
Drivers |
1x12” Ferrite LF driver/ 75mm VC 1x1” HF driver/ 44mm VC |
Sensitivity |
97.5dB 1watt/1 metre |
SPL |
124dB |
Peak SPL |
130dB |
Impedance |
8 ohms nominal |
Input Connectors |
2×Speakon NL4 |
Dispersion (HxV) |
70x90 |
Cabinet |
Premium Grade Birch Plywood with Black paint |
Front grille |
Steel grille with anti-corrosion coating |
Colour |
Black |
Dimensions |
(W)300mm×(D)370mm×(H)533mm |
Net weight |
20kg |
