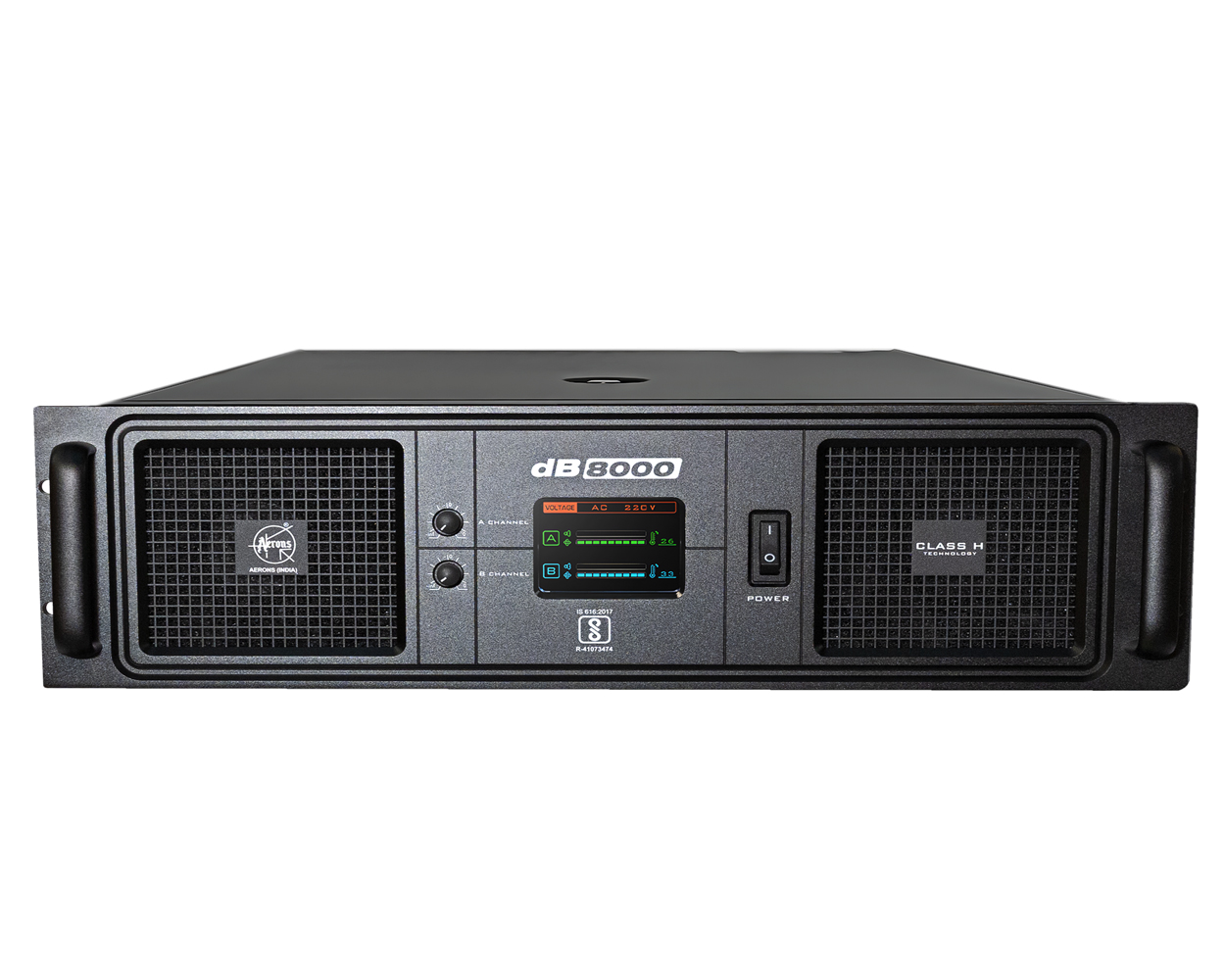

This series of amplifiers hankers for higher speed, a bigger damping factor, more rich functions,and an advanced protection system. It is designed with an excellent cooling system, compact and stable mechanical aseismatic capabilities, SMT technology, as well as precise components. This
series of amplifiers can handle stereo 2 ohm loads, bridge 4 ohm loads, and adapt to drive line array speaker systems. They can be used in live concerts, discos, nightclubs, and other high-energy environments.
Offering top power, superior performance, and comprehensive professional features in a roadworthy, compact chassis, the dB Series is ideal for the most demanding sound reinforcement installations and touring applications. This manual covers the operating instructions for all dB Series professional power amplifiers. The operation and functions of these units are consistent, except where noted.
Key Operating Features:
Design and Construction:
Comprehensive Safety and Reliability Features:
The dB Series is engineered to endure the rigors of touring while delivering the reliability and performance essential for professional audio applications.
8Ω Stereo Power |
1500W |
4Ω Stereo Power |
2600W |
2Ω Stereo Power |
4000W |
8Ω Bridge Power |
5200W |
4Ω Bridge Power |
8000W |
Output Circuitry |
CLASS H |
Frequence response (1W@8Ω) |
20Hz-20kHz +1/-1Db |
THD+N (20Hz-20kHz for 1W THD+N) |
<0.1% |
Damping factor |
800 |
S/N rate |
≥100dB |
Input Sensitivity |
0.775V/1.2V/2.5V |
Input impedance |
>10KΩ, Balance or Unbalanced, All Models |
Input Connector |
Male XLR, Female XLR |
Output Connector |
2x NL4 SpeakON |

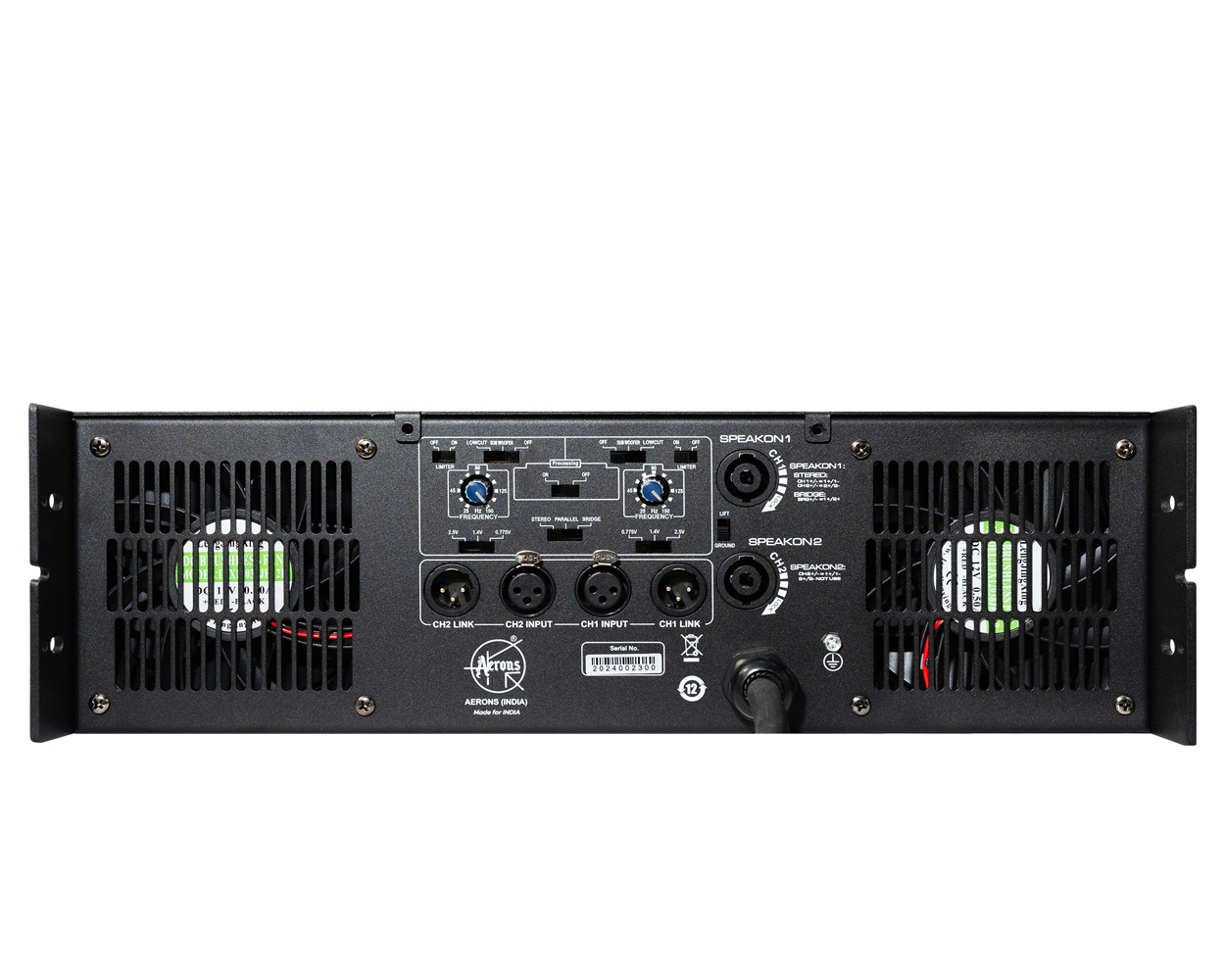

Rear Panel Control |
Input Mode Switch: Stereo/ Parallel/ Bridge, Sensitivity: 0.775V/1.4V/2.5V, Limiter: OFF/ON, Grounding: Lift/Ground |
Dimensions |
483x132x577.3mm |
Power Requirement |
220V/50-60Hz |
Net Weight |
39kgs |
