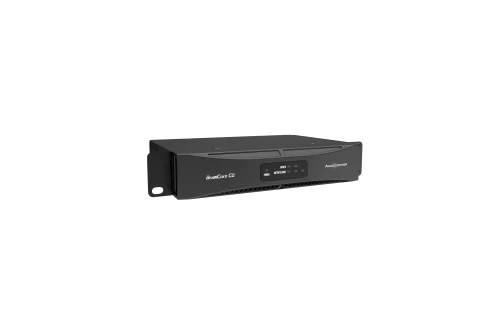

BrainCore CU is an audio black box with flexible applications and easy configuration. Through the BrainCore™ technology, an innovative core technology independently developed by Audiocenter, based on the characteristics of different speakers and different application scenarios, scene presets that can meet a variety of application needs have been created. Users only need to call the corresponding presets according to the combination of speakers and application scenarios, and can quickly create an audio system without professional debugging, and get a more satisfactory sound effect.
Audio System Delay |
0.25ms(INPUT to OUTPUT) |
AD/DA Converter |
24Bit |
Sampling Rate |
96kHz |
Input Channels |
Two-way balanced |
Input Interface |
Female XLR |
Output Channels |
Three-way balanced |
Output Interface |
Male XLR |
Input Impedance |
>10kΩ |
Output Impedance |
<100Ω |
Maximum Input Level |
≥+15dBu |
Requency Response |
±0.3dB,20Hz-20kHz |
Dynamic |
≥106dB |
THD+N |
≤0.05% @1kHz,0dBu |
Connection type |
USB, drive free |
AC Power Operating Range |
100-240V/(±10%,50-60Hz) |
Power consumption |
<10W |
Rack space |
1U design and half 19” rack space enclosure |
Dimensions(WxHxD) |
218x44x153mm |
Net weight |
1.0kg |
