18CF2100
CARBON FIBER CONE
DUAL MAGNET

  • 2100W RMS POWER
  • 35-1000Hz Frequency range
  • 5.5 inch Voice coil
  • 98.5dB Sensitivity
  • DUAL MAGNET WITH CARBON FIBER CONE
  • WHATSAPP CATALOG AND PRICE

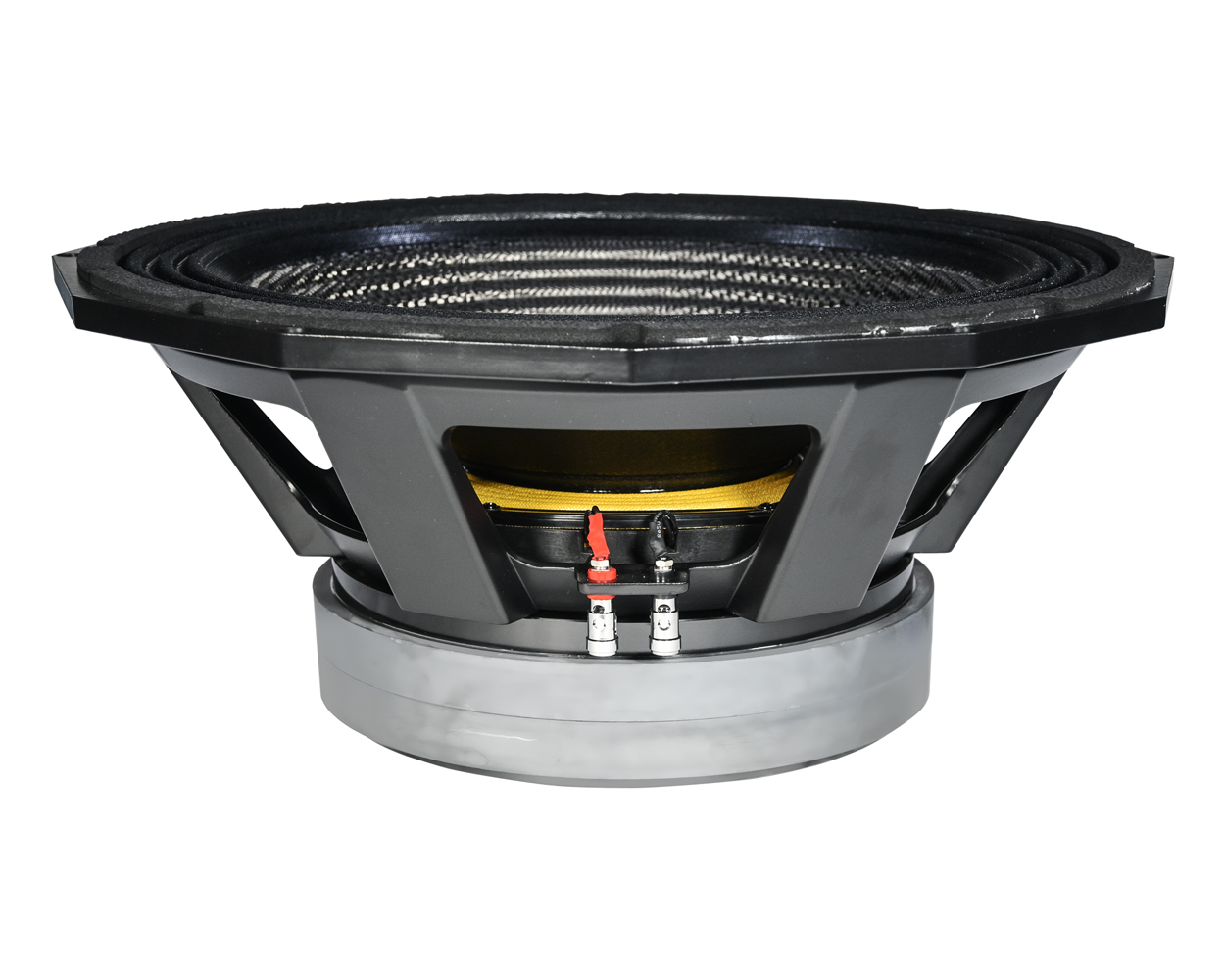

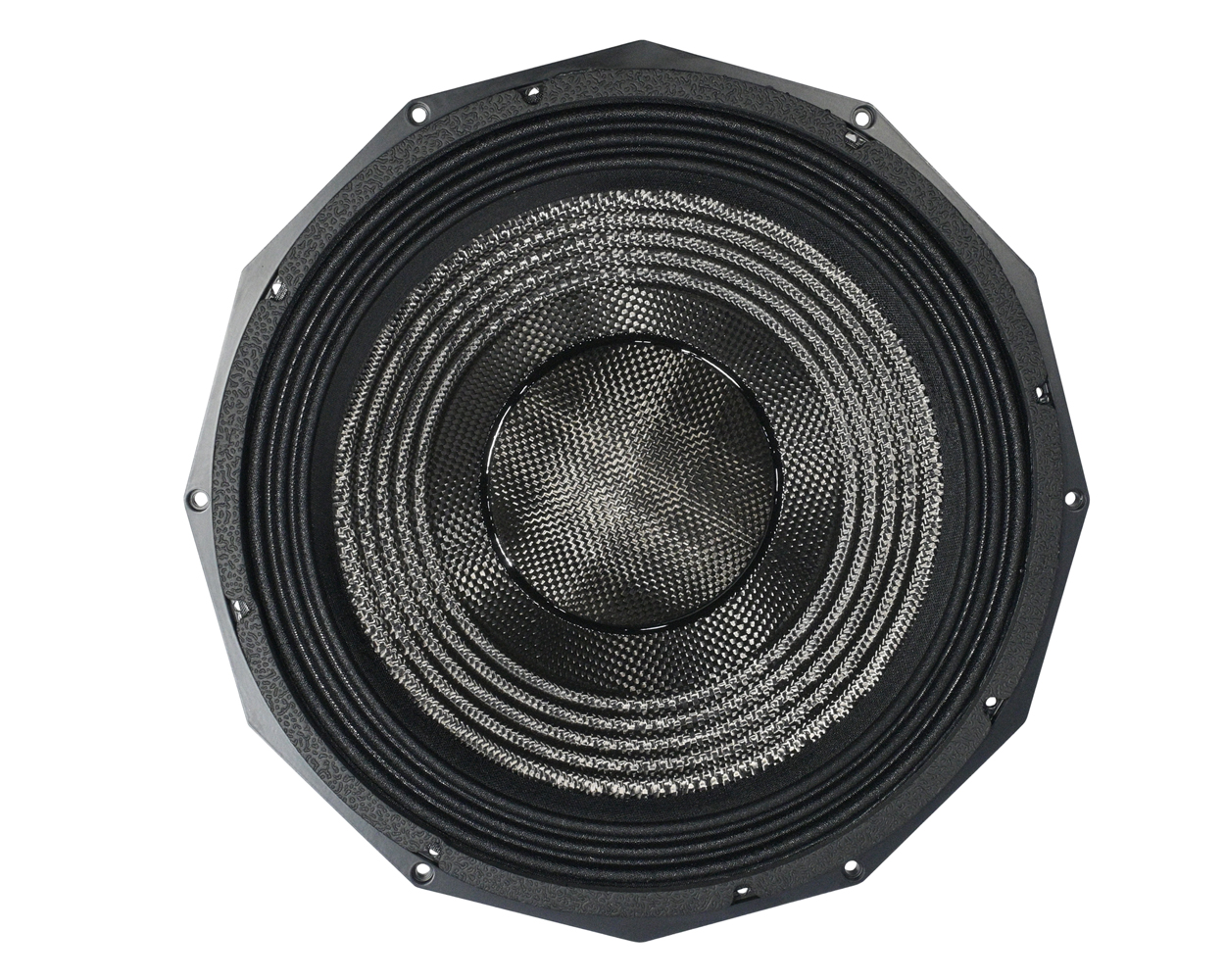

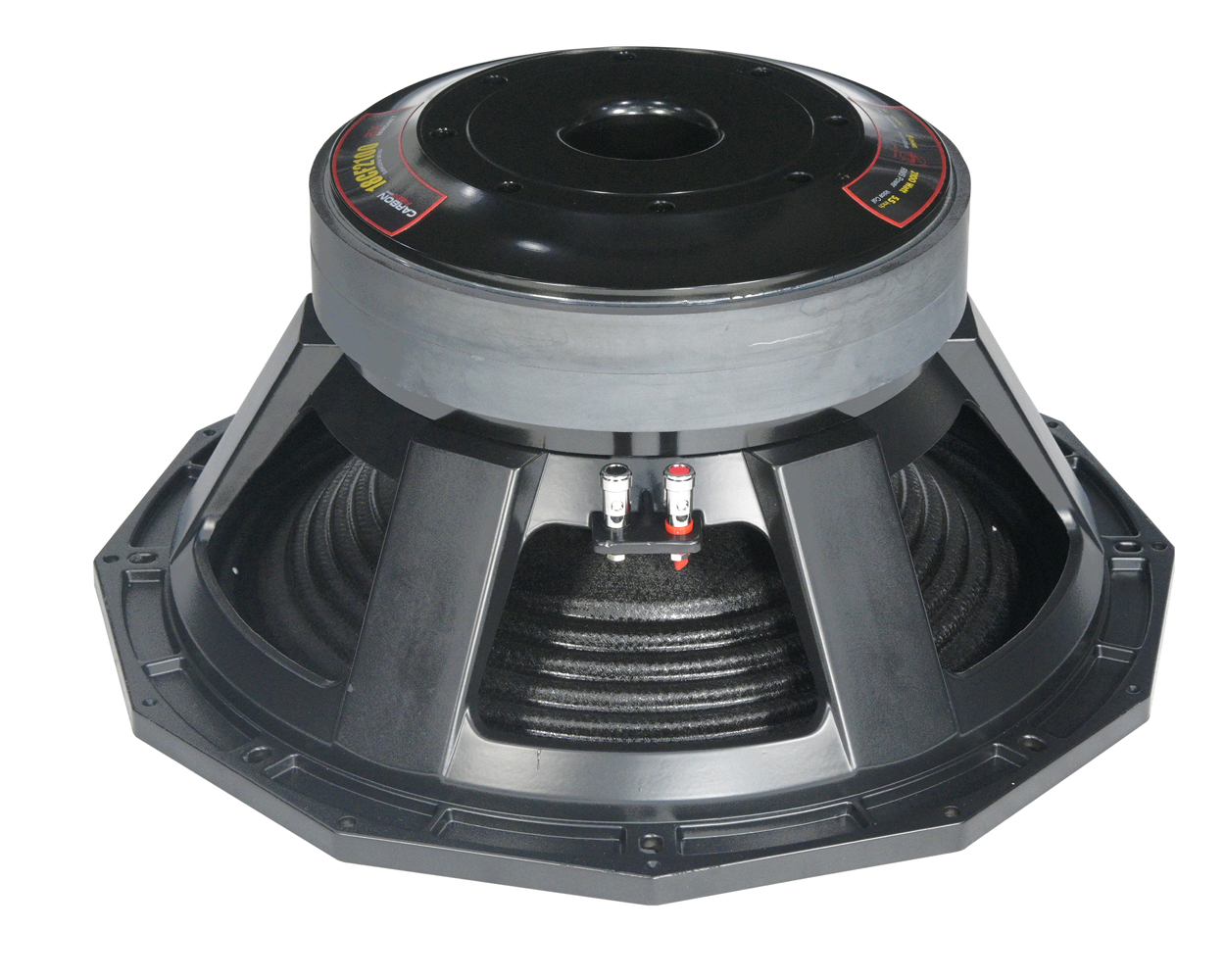

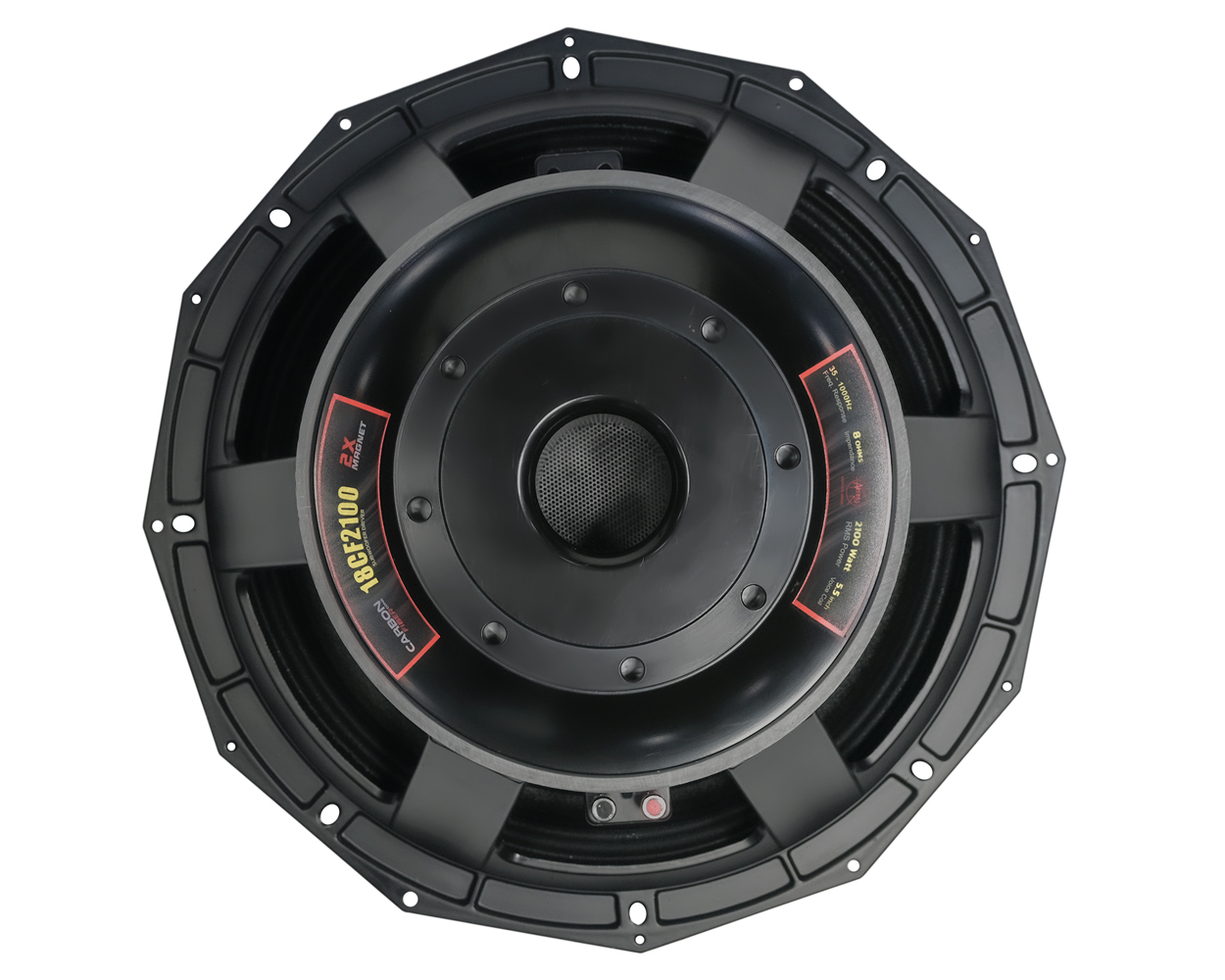

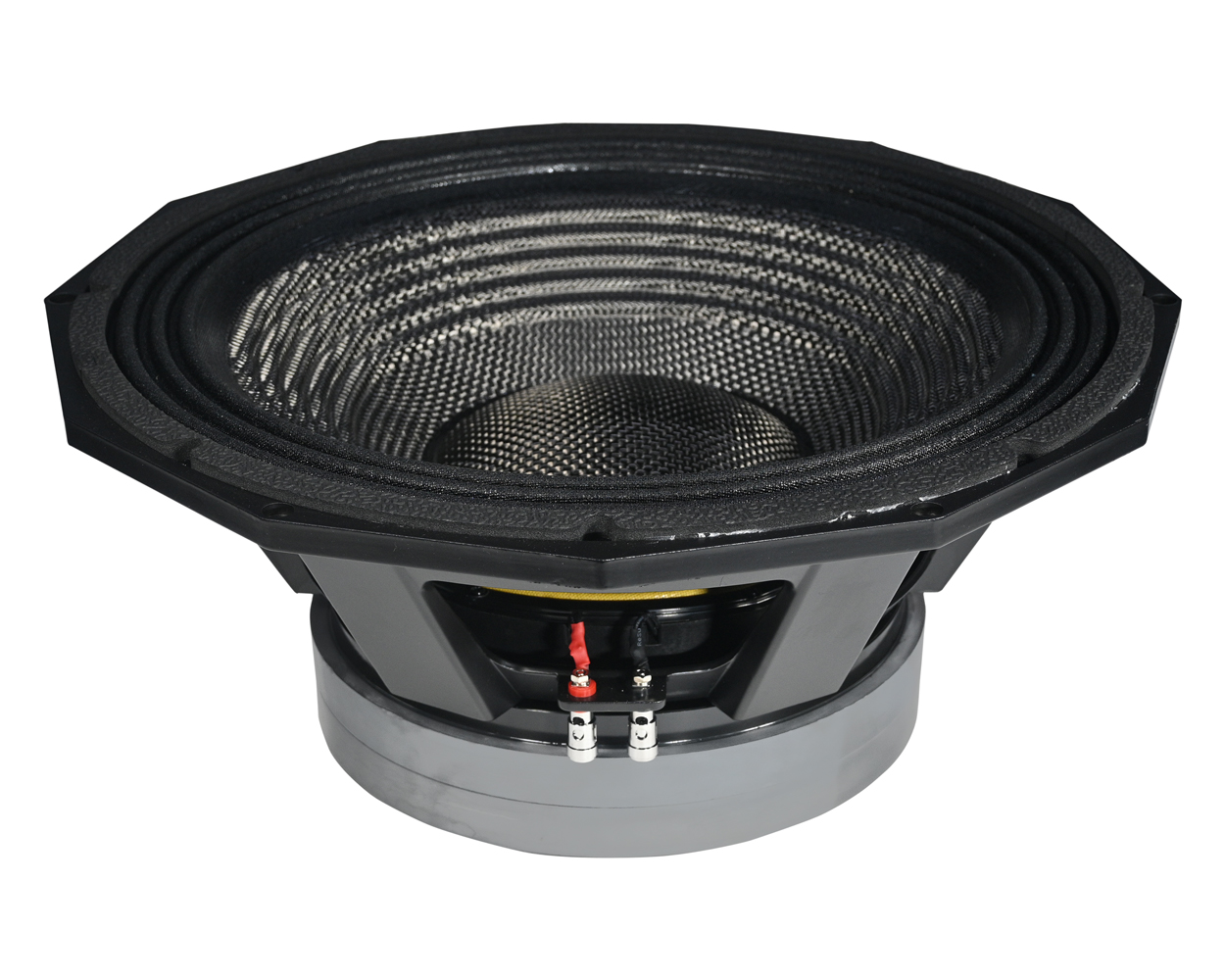

18CF2100

Introducing the latest addition to the Aerons India family: the Carbon Series Subwoofer Speaker, model no. 18CF2100. Engineered to deliver unparalleled performance and precision, the 18CF2100 sets a new standard for professional audio excellence.

At its core, the 18CF2100 features an impressive 18-inch subwoofer speaker with a cutting-edge carbon fiber cone. This lightweight yet incredibly rigid cone design ensures exceptional bass response with unparalleled clarity and detail, allowing you to experience every beat and note with stunning fidelity.

Equipped with a powerful 5.5-inch in/out copper voice coil, the 18CF2100 delivers unmatched power handling and thermal stability, even under the most demanding conditions. Paired with a dual magnet system consisting of two 280x25mm Y35 grade magnets, this speaker boasts immense magnetic force for maximum excursion and impact, ensuring that every bass note is felt with visceral intensity.

With a staggering RMS power rating of 2100 watts, the 18CF2100 is built to deliver thunderous bass that fills any venue with spine-tingling sound. Its wide frequency range of 35Hz to 1000Hz ensures seamless integration with any audio system, while the high sensitivity of 98.5dB guarantees impressive output levels with minimal distortion.

Crafted with precision and durability in mind, the 18CF2100 features an aluminum die-cast basket that provides exceptional strength and rigidity while minimizing resonance for cleaner, more accurate bass reproduction.

Whether you're a professional musician, sound engineer, or audio enthusiast, the Aerons India Carbon Series Subwoofer Speaker, model no. 18CF2100, is your ultimate choice for immersive bass performance. Elevate your sound experience to new heights with the 18CF2100 and unleash the full potential of your audio system.

18CF2100

GENERAL SPECIFICATIONS

Nominal Diameter

18inch

Nominal Impedance

8ohm

Minimum Impedance

5.5ohm

Nominal Power Handling

2100Watts

Continuous Power Handling

4200Watts

Sensitivity

98.5dB

Frequency Range

35-1000Hz

Voice-coil Diameter

140mm

Voice-coil Material

Copper

Voice-coil Winding Depth

32 mm

Effective Diaphragm Diameter

400Mm

Kind of layer

In/out

Number of layers

2

Top Plate Thickness

16mm

Spider

Polyester and cotton blended

Flux Density

1.2T

Magnet Diameter

280*25mm x2

Magnet Material

Ferrite

Magnet Grade

Y35

Magnet Gap Depth

16



THIELE SMALL PARAMETERS

Resonance Frequency

Fs

35Hz

DC Resistance

Rte

5.6ohm

Mechanical Factor

Qms

9.9

Electrical Factor

Qes

0.435

Total Factor

Qts

0.417

BL Factor

BL

38.5T-m

Effective Moving Mass

Mms

237gr

Equivalent Cas Air Load

Vas

58.6liter

Effective Piston Area

Sd

1.257 m’2

Max. Linear Excursion

Xmax

8mm

Half Space Efficiency

Eff

2.31%

Efficiency Bandwidth Product

EBP

123

Compliance Value

Cms

0.026



MOUNTING AND SHIPPING INFORMATION

Overall Diameter

471mm

Buffer Cut-out Dia.

422mm

Bolt Circle Dia.

442mm

Bolt Hole Dia.

7.0mm

Gasket Thickness

10mm

Overall Depth

220mm

Magnet Dia.

280mm

Net Weight

30 kg
