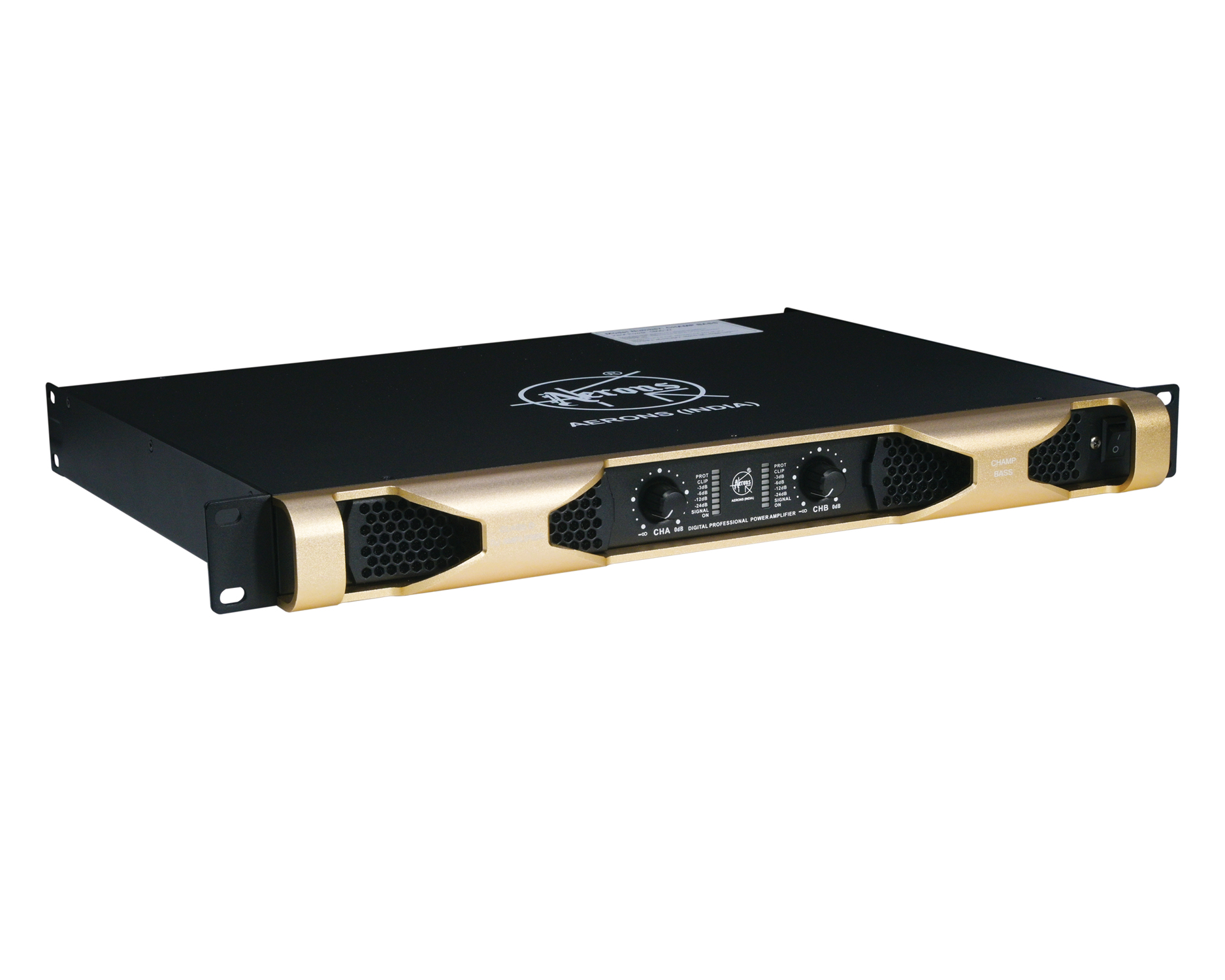

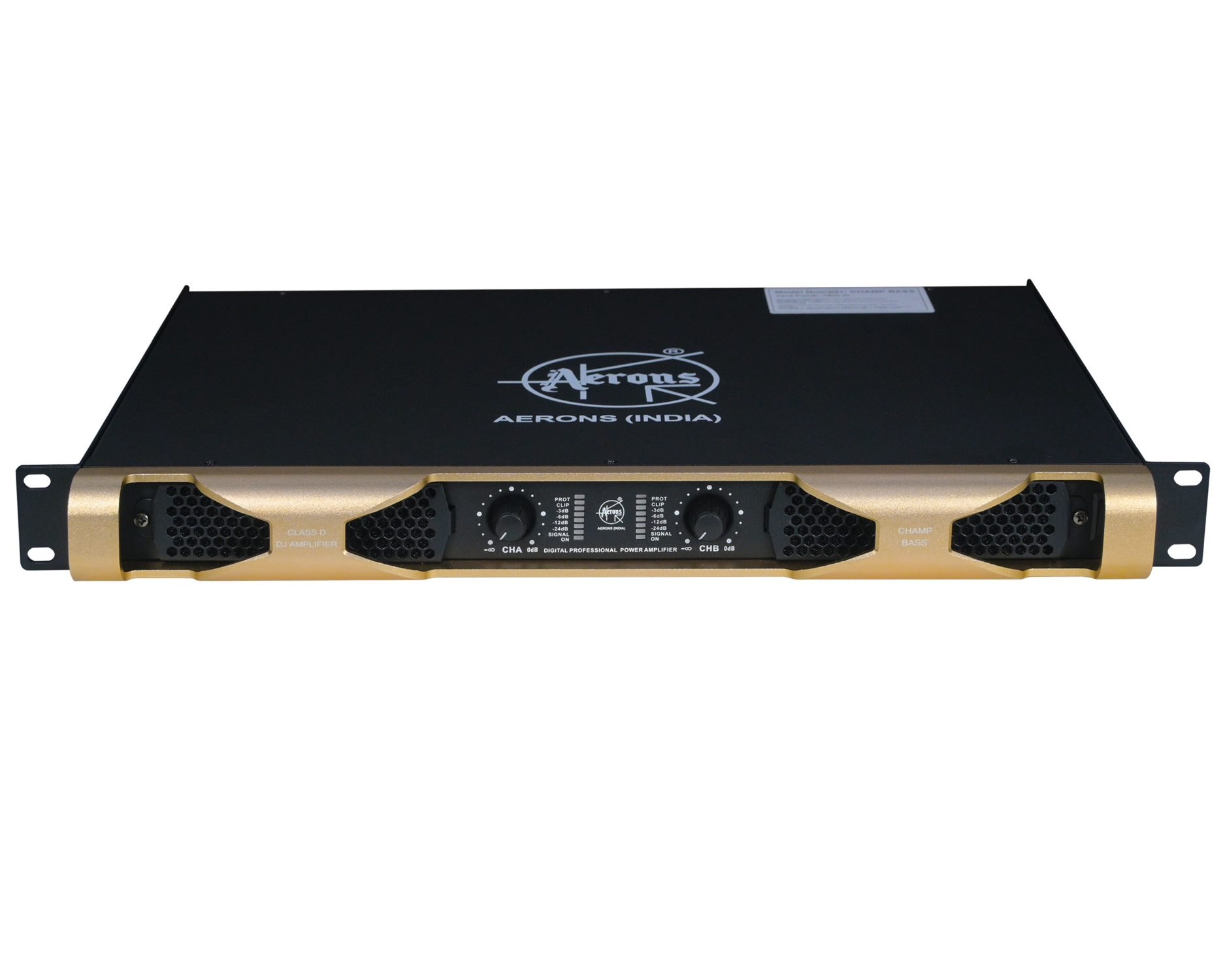

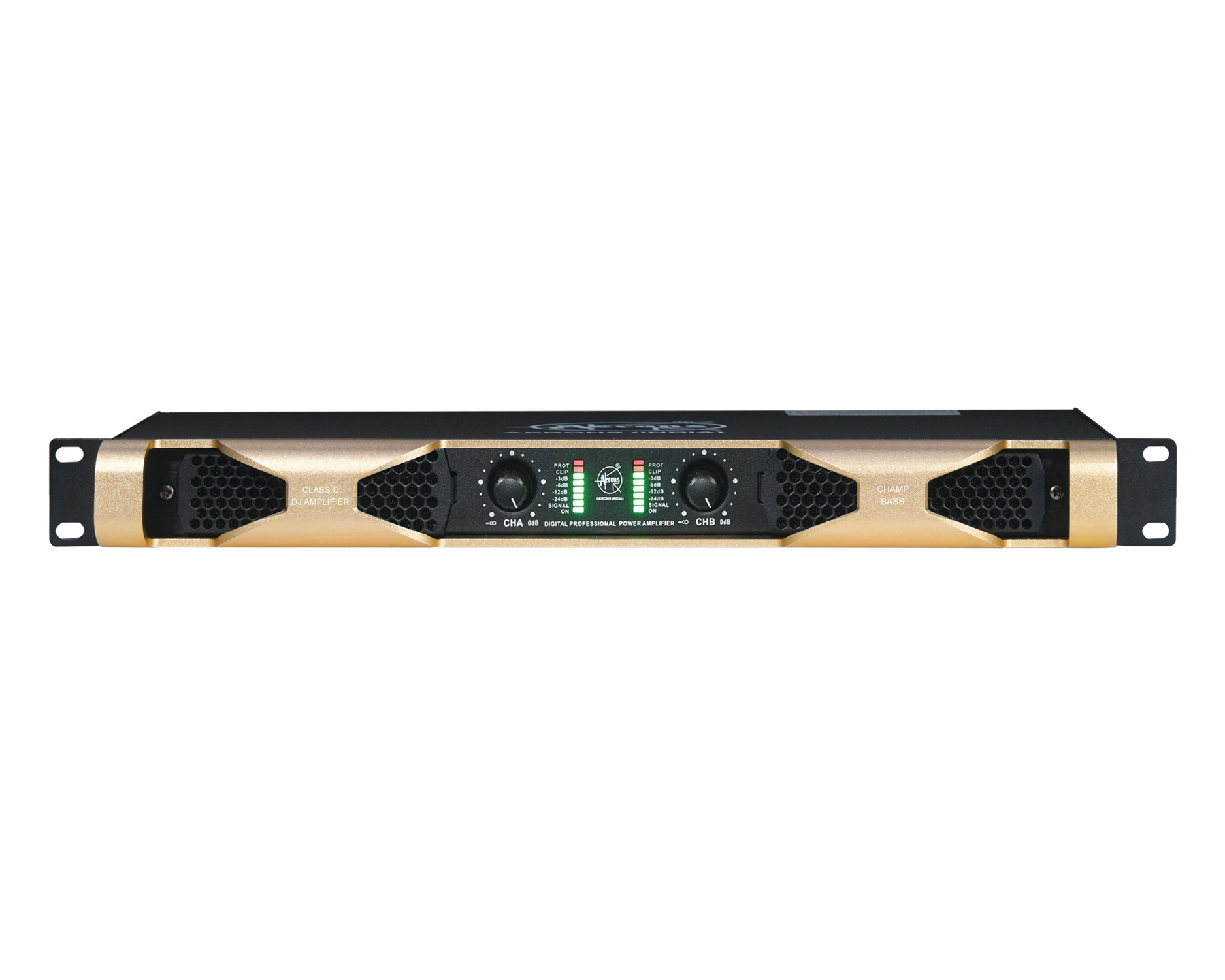

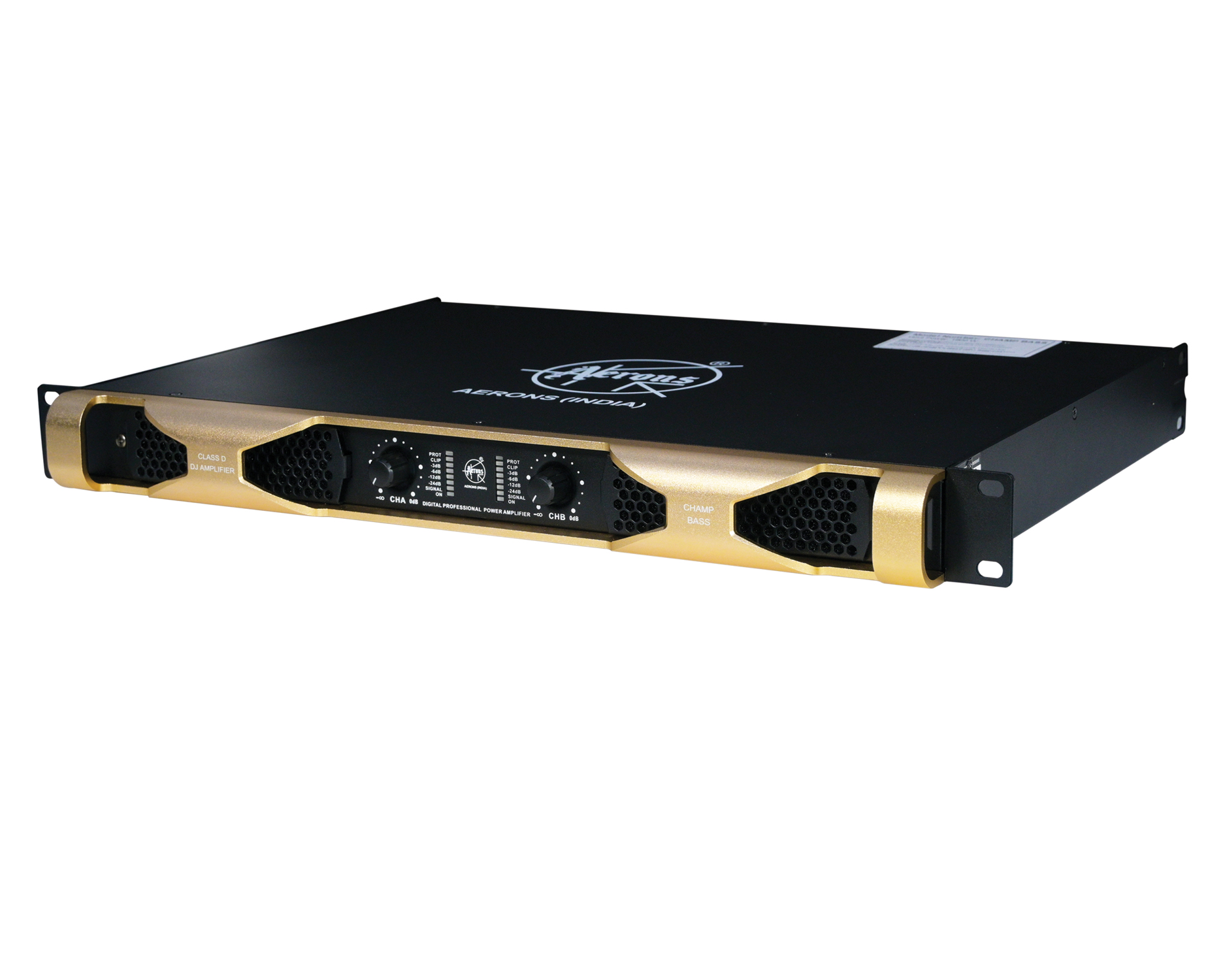

The CHAMP series is a very Fexible and cost-effective amplifer. It is a new milestone in Class D professional power amplifer. Using advanced Class D power module and SMPS power module, making it with the high effciency, reliability, and high power density as well. It is designed to provide an unprecedented strong power, that delivered from 1 RU, cost-effective cabinet.
|
|
|
|
Frequency Response (1/8W 8Ω stereo) |
20Hz – 20kHz |
|
S/N ratio |
> 104dB |
|
THD+N (THD@1kHz and 1/8 rated power) |
<0.05% |
|
Damping Factor (8Ω, 1kHz and below) |
> 1000 |
|
Slew rate |
> 20V/uS |
|
Channel Separation |
≥70dB |
|

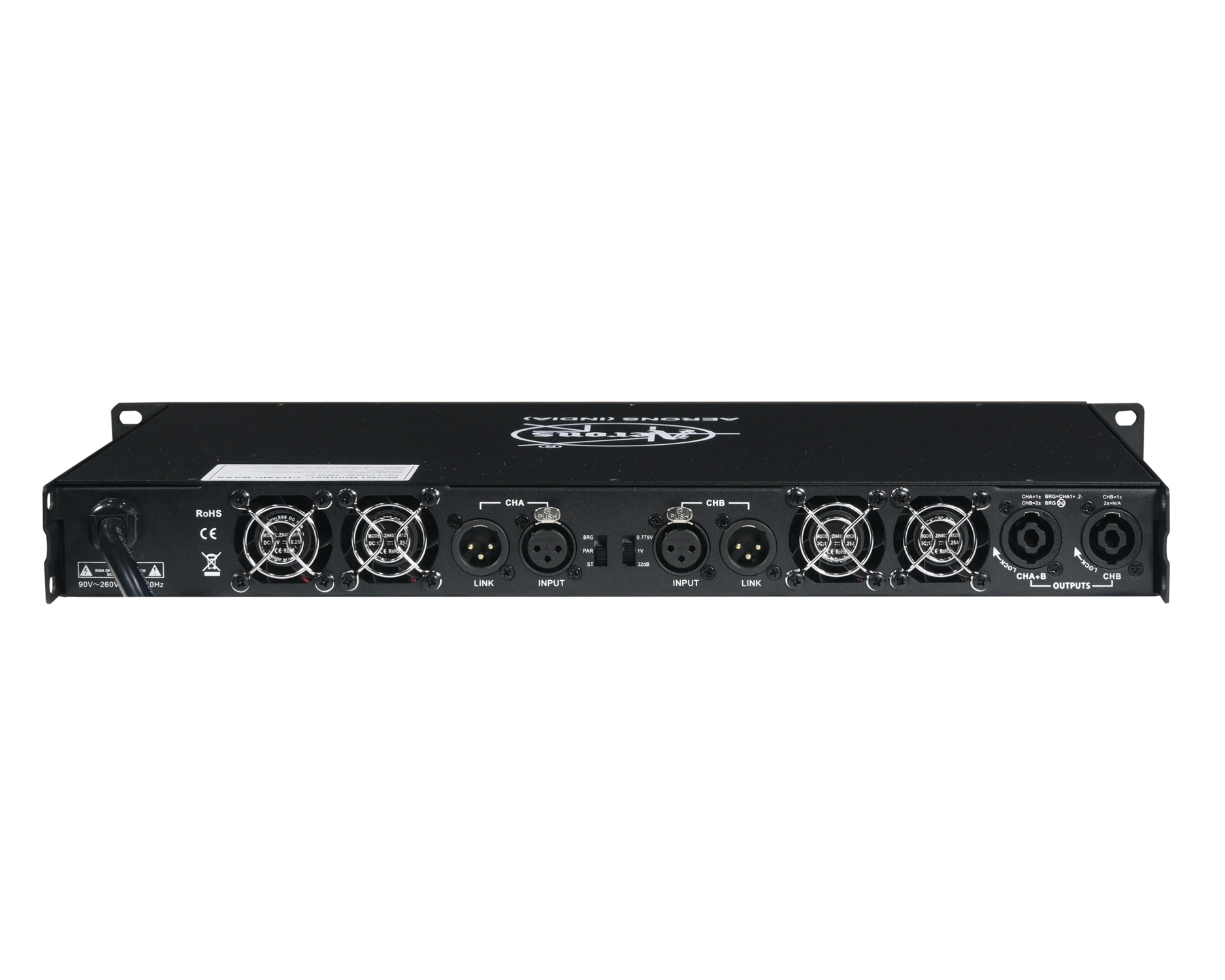

Input Connectors |
2x 3-pin XLR female and link |
|
Output Connectors |
2x SpeakOn |
|
Output modes |
Stereo, Parallel, Bridge |
|
Input Sensitivity |
32dB/1V/0.775V |
|
LED indicators |
ON, Signal, Clip, Prot |
|
Filter Capability |
1000uF/200V x 40pcs |
|
AC Line voltage |
PFC, 90˜265V |
|
Dimensions (D x W x H) |
308 x 483 x 44mm |
|
Net Weight |
8.3 Kgs |
