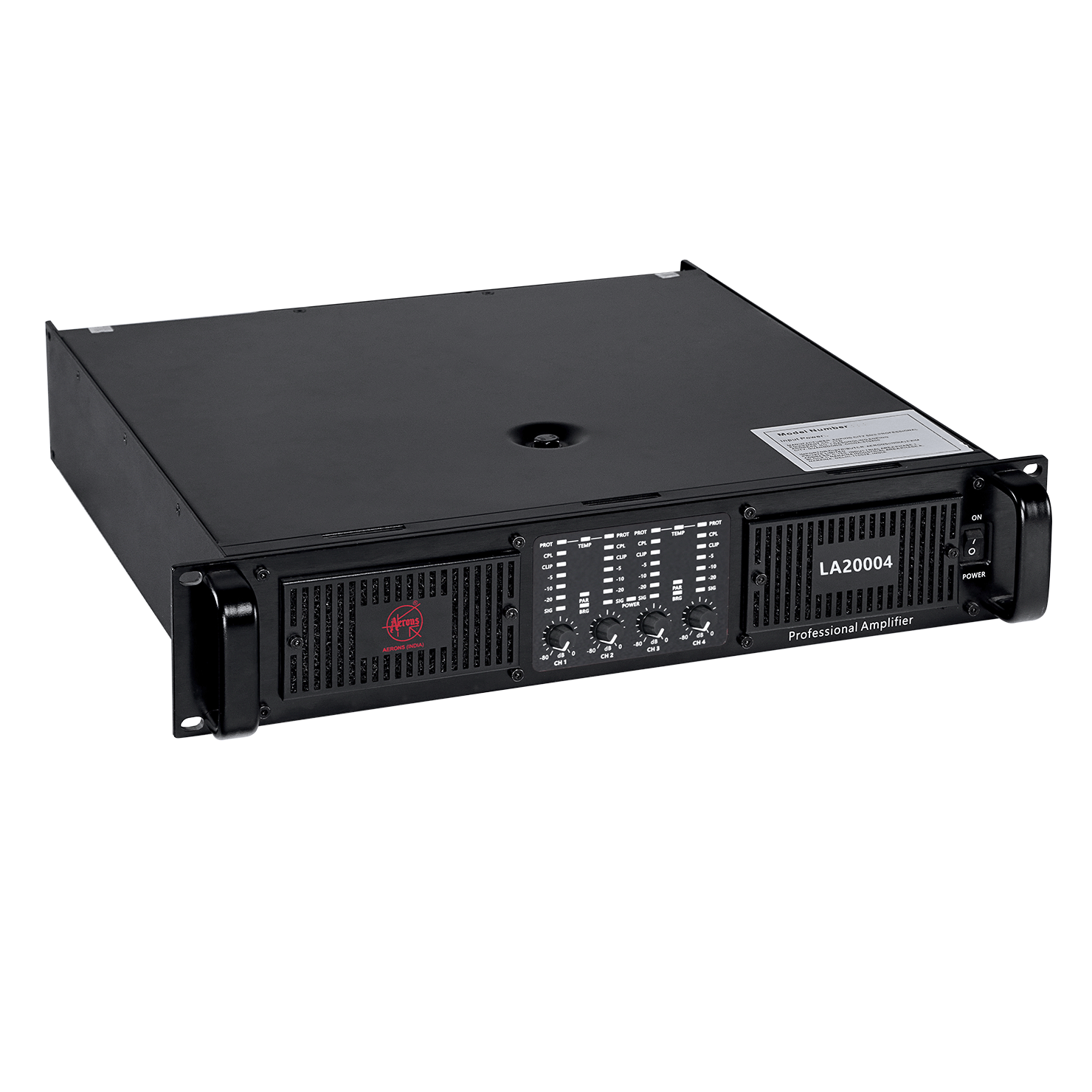

LA20004

LA20004 is powered by SMPS modules, and designed as touring grade amplifiers, delivering solid reliability and good sonic quality. 10 pieces of large‑capacity capacitors ensure 8,000W power output, 4 Channel amplifier
with up to 2000W of each channel. Extraordinary power density and distortion‑free sound performance make LA20004 be first choice for touring applications.

KEY FEATURES

Output power: 4 x 2,000 Watts into 4 Ohms, 4 x 1,300 Watts into 8 Ohms
Proven and reliable Class TD output stage delivers Class A/B audio quality with Class D efficiency

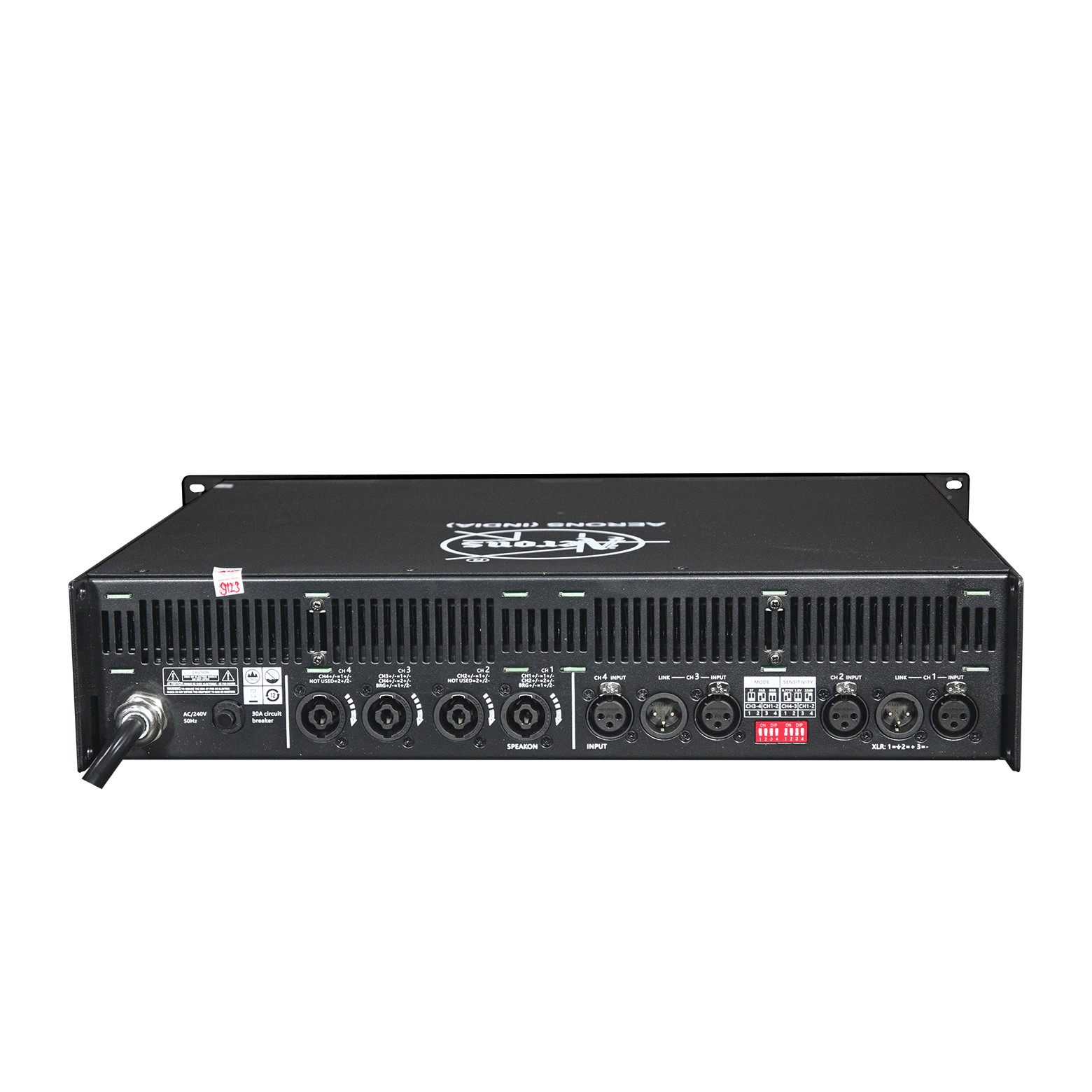

4 NL4 Neutrik speakON output connector & 4 x balanced analog audio inputs on Neutrik XLR connectors
Stereo, Bridged and Parallel output modes
0.775V/1V/32dB input sensitivity selection
Mounted in 2U rack flight case for durability in touring applications
Multiple protection functions: Soft start, VHF, DC, Short Circuit, Clip, Over heat

LA20004

Rated Power (1 KHz, THD+N=0.1%)	8Ω stereo	4x1300W
	4Ω stereo	4x2000W
	2Ω stereo	4x2500W
	8Ω Bridge	2x4000W
	4Ω Bridge	2x5000W
Frequency Response (1W 8Ω stereo)		20Hz ̴ 20KHz(±0.5dB)
Sensitivity (8Ω stereo @1Khz)		0.775V/1V/32dB
Protection		DC Protection, Short circuit protection, High-temperature protection, Output overload protection, Soft start protection, Clip limit protection, VHF protection, and Progressive volume protection.
Fan Speed Regulation		Auto-speed
Connectors (Each channel)	Input connectors	XLR (Neutrik®)
	Output connectors	Speakon (Neutrik®)
Output Modes		Stereo, Bridge, Parallel
Input Impedance	Balanced	20K
	Unbalanced	10K
Channel separation (8Ω load, 1KHz and below)		≥70dB
Slew Rate		35V/µs
S/N ratio (8Ω, Rated Power 8Ω)		≥95dB
Damping Factor (1KHz, 8Ω)		≥800
Output Circuitry		Class TD
Dimension (W x H x D)		483x89x451 mm
Gross Weight		15 Kgs
Net Weight (With flight case)		24 Kgs
