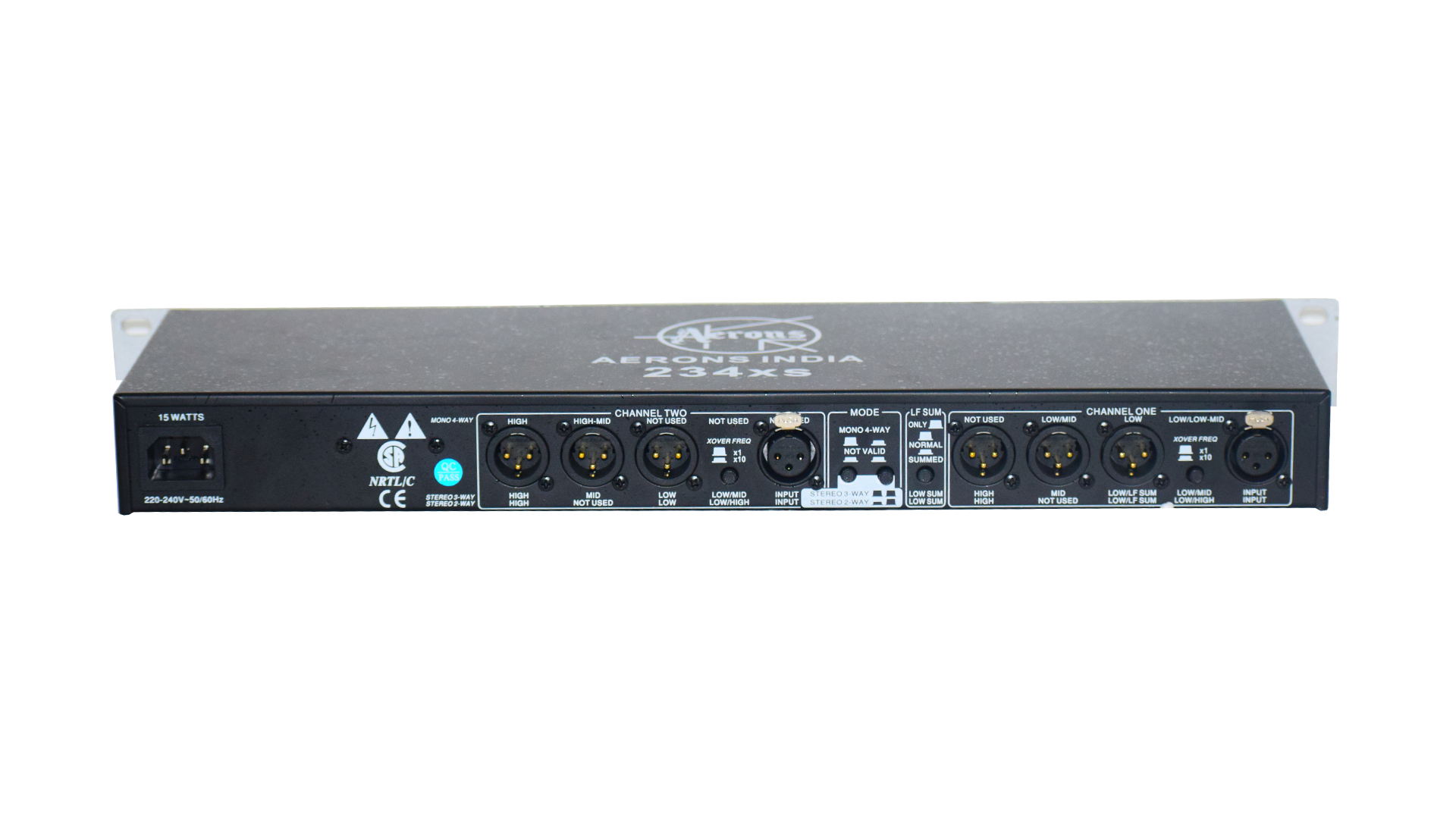

234XS

  • x10 range switch on both channels
  • Low frequency summed (subwoofer) output
  • Individual-level controls on all outputs
  • 40Hz high pass (low cut) filter both channels
  • Mode switches for mono 4-way or stereo 2-way/3-way operation





      WHATSAPP CATALOG AND PRICE

234XS

FEATURES

  • x10 range switch on both channels
  • Low frequency summed (subwoofer) output
  • Individual-level controls on all outputs
  • 40Hz high pass (low cut) filter both channels
  • Mode switches for mono 4-way or stereo 2-way/3-way operation
  • XLR balanced ins and outs
  • Stereo/Mono status LEDs indicate the selected model
  • 24dB per octave Linkwitz-Riley filters (the professional standard)
  • Phase reverse switch on all outputs
  • CE compliant

234XS

Input Connectors:

XLR

Input Type:

Electronically balanced/unbalanced, RF filtered

Max Input:

>+22dBu balanced or unbalanced

CMRR:

>40dB, typically >55dB at 1kHz

Output Connectors:

XLR

Output Type:

Impedance-balanced/unbalanced, RF filtered

Frequency Response:

< 3 Hz to > 90 kHz, +0/-3 dB

Dynamic Range:

> 106 dB, unweighted, any output

Inter channel Crosstalk:

< -80 dB, 20 Hz to 20 kHz

Crossover Filter Type:

Linkwitz-Riley, 24 dB/octave, state-variable

Low cut Switch Activates:

40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel

Indicators:

Stereo Operation (Green); Mono Operation (Yellow); Low Cut (Red-per channel); x10 (Green-per channel); Phase Invert

Power Consumption:

15W

Dimensions:

4.4cm x 48.3cm x 17.5cm

Weight:

1.8 kg
