HDLA212 V2
DUAL LINE ARRAY
NEODYMIUM

  • 2X12” (300mm)/3.5” voice coil LF driver
  • 2x1.4” (36mm)/3” voice coil HF driver
  • RATED POWER: 1500W
  • PEAK POWER: 6000W
  • SENSITIVITY: 102Db 1watt/1Metre
  • MAXIMUM SPL: 137dB
  • FREQUENCY RESPONSE: 55Hz- 18kHz







                         WHATSAPP CATALOG AND PRICE

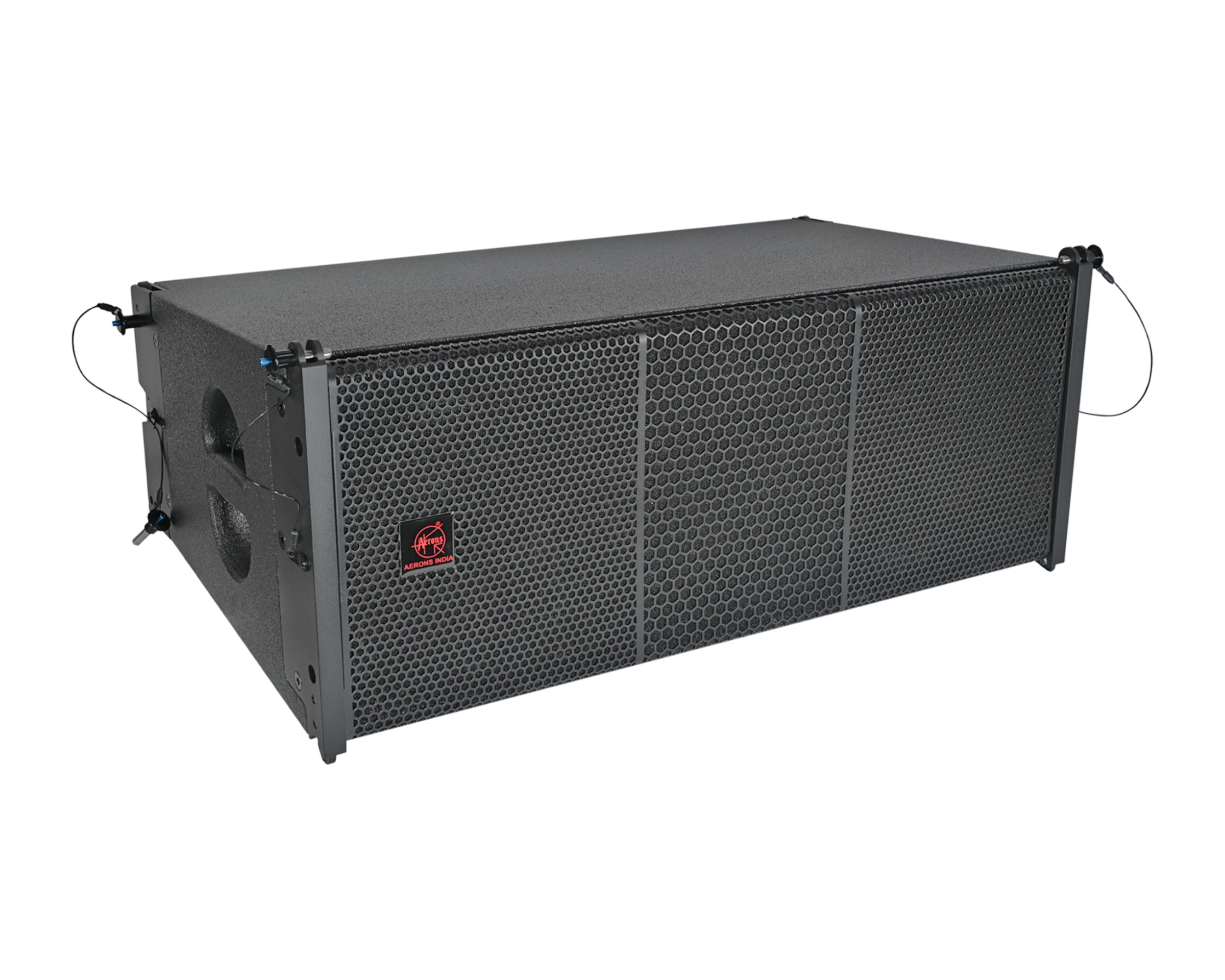

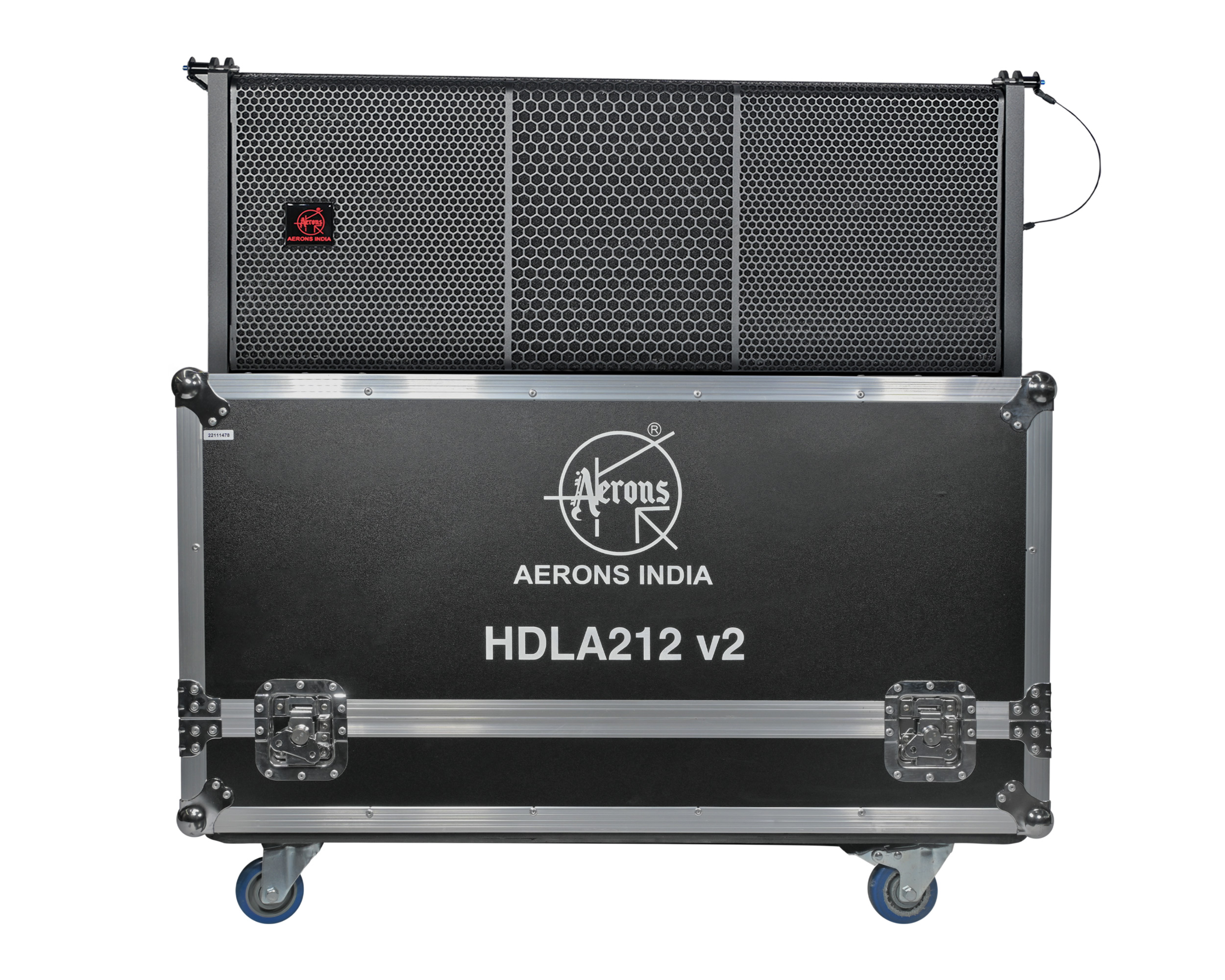

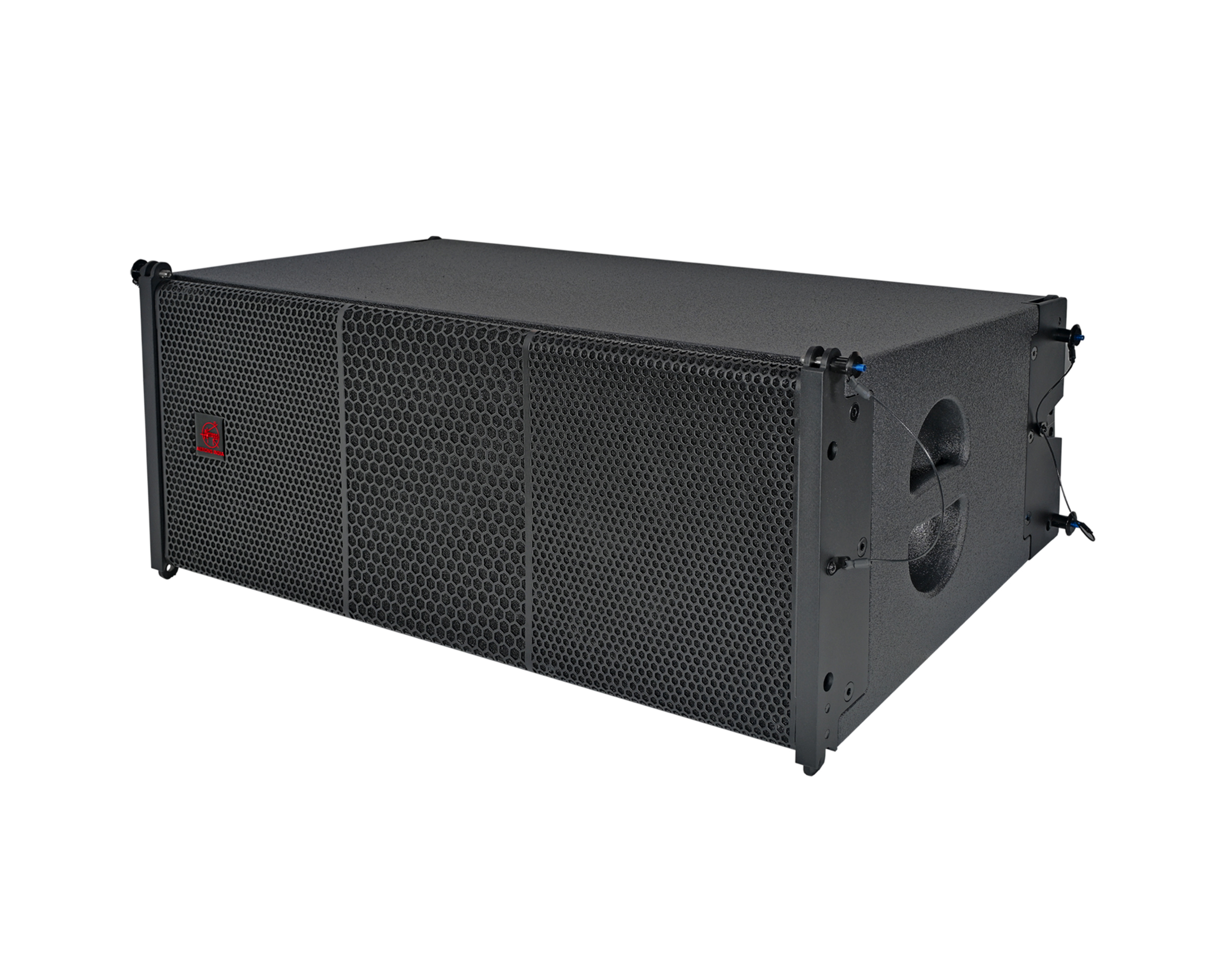

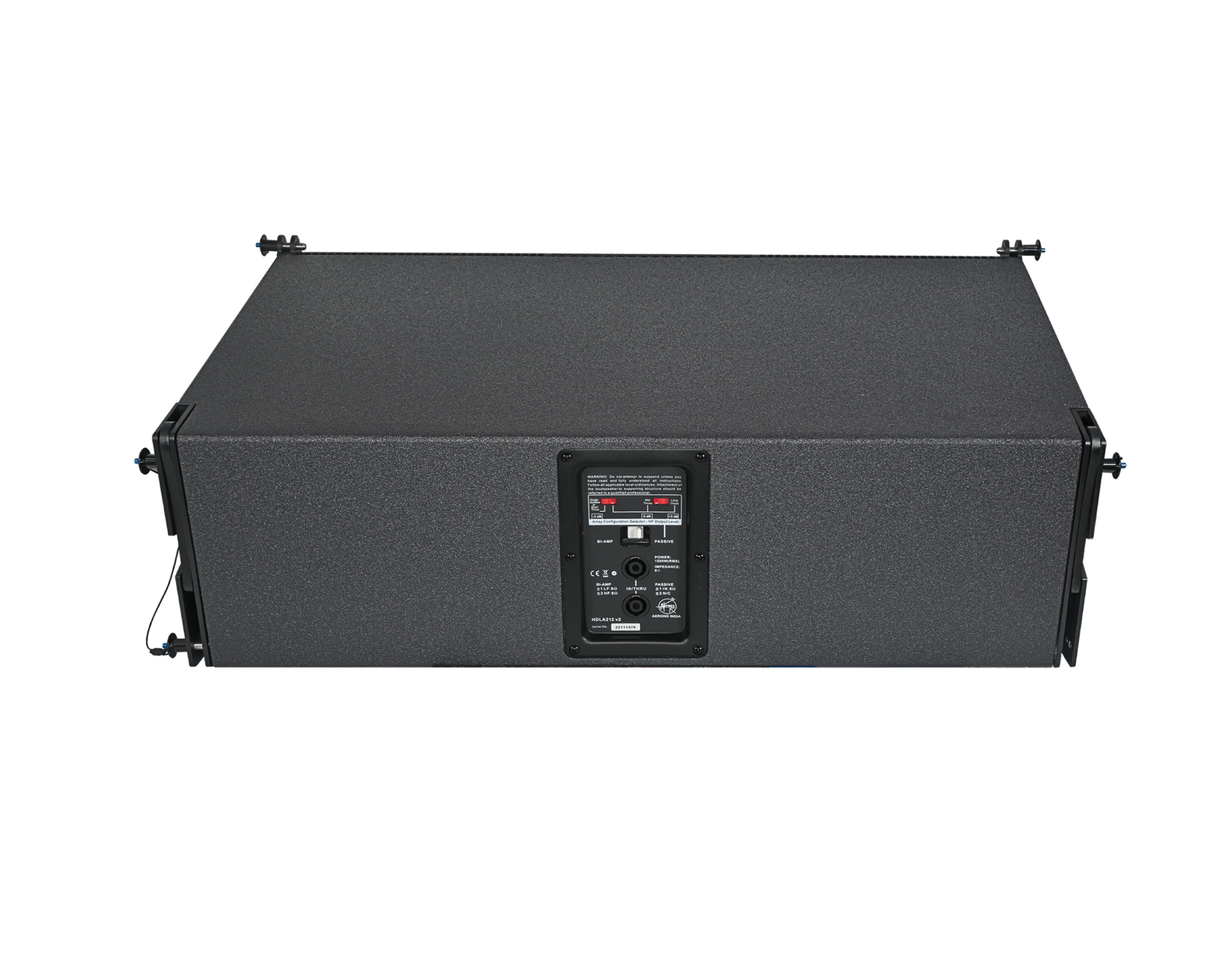

HDLA212 V2

The HDLA212 v2 is a line array loudspeaker for long throw distance scale sound reinforcement, uses the HDLA212 v2 flying frame which can be flown in vertical columns up to 16 cabinets. HDLA212 v2 is a 2.5-way design housing fitted with two 12" neodymium LF driver and two 1.4" exit neodymium HF driver coupled to a patent line array horn, made of high quality plywood, finished with polyurea waterproof paint. All electronic parts of crossover are imported from USA.

FEATURES
- High quality plywood with wear resistant and waterproof polyurea paint
- Exceptional sound quality, powerful response & long throw.
- High grade & durable cabinet design.
- True 100°(-6dB) horizontal mid and HF pattern control.
- High power SPL 131dB continuos, 137dB Peak.
- High-quality passive crossover network for maximum reliability.
- Extra textured anti-scratch paint finish.
- Convenient for hanging and stacking
- Easy carry handles & heavy duty protective grille.

HDLA212 V2

FREQUENCY RESPONSE

55Hz- 18kHz

DRIVERS

2X12” (300mm)/3.5” voice coil Neodymium LF driver

2x1.4” (36mm)/ 3” voice coil Neodymium HF driver

RATED POWER

1500W

PEAK POWER

6000W

SENSITIVITY

102Db 1watt/1Metre

SPL

131dB

MAXIMUM SPL

137dB

IMPEDANCE



DISPERSION (-6dB)

Horizontal Coverage: 100°

Vertical Coverage: varies, Depending on array length and configuration

CROSSOVER

500Hz, 1.5kHz Passive

CONNECTORS

2XSpeakON NL4

DIMENSIONS

(W)910mmX(D)530mmX(H)382mm

 NET WEIGHT

40KG
