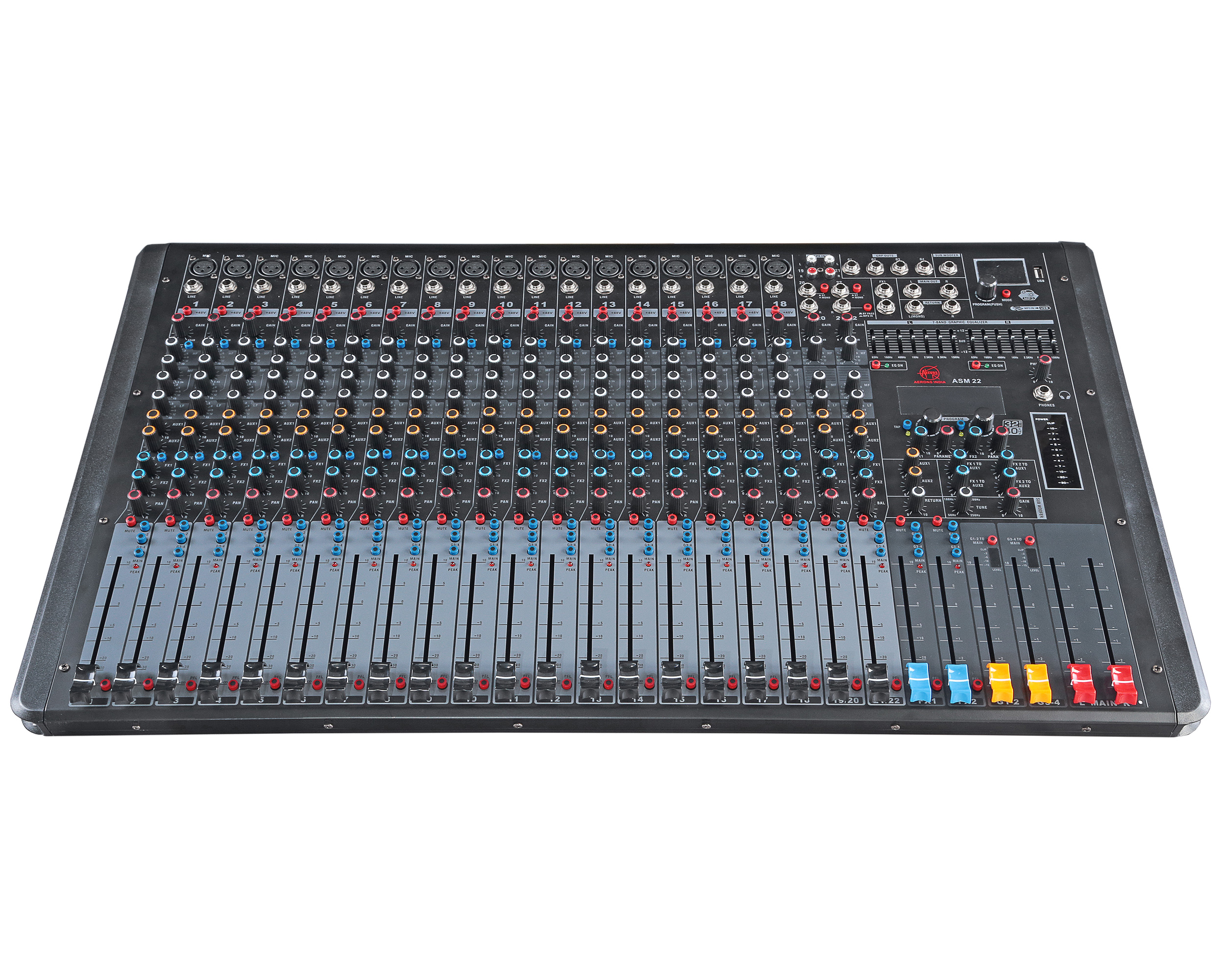

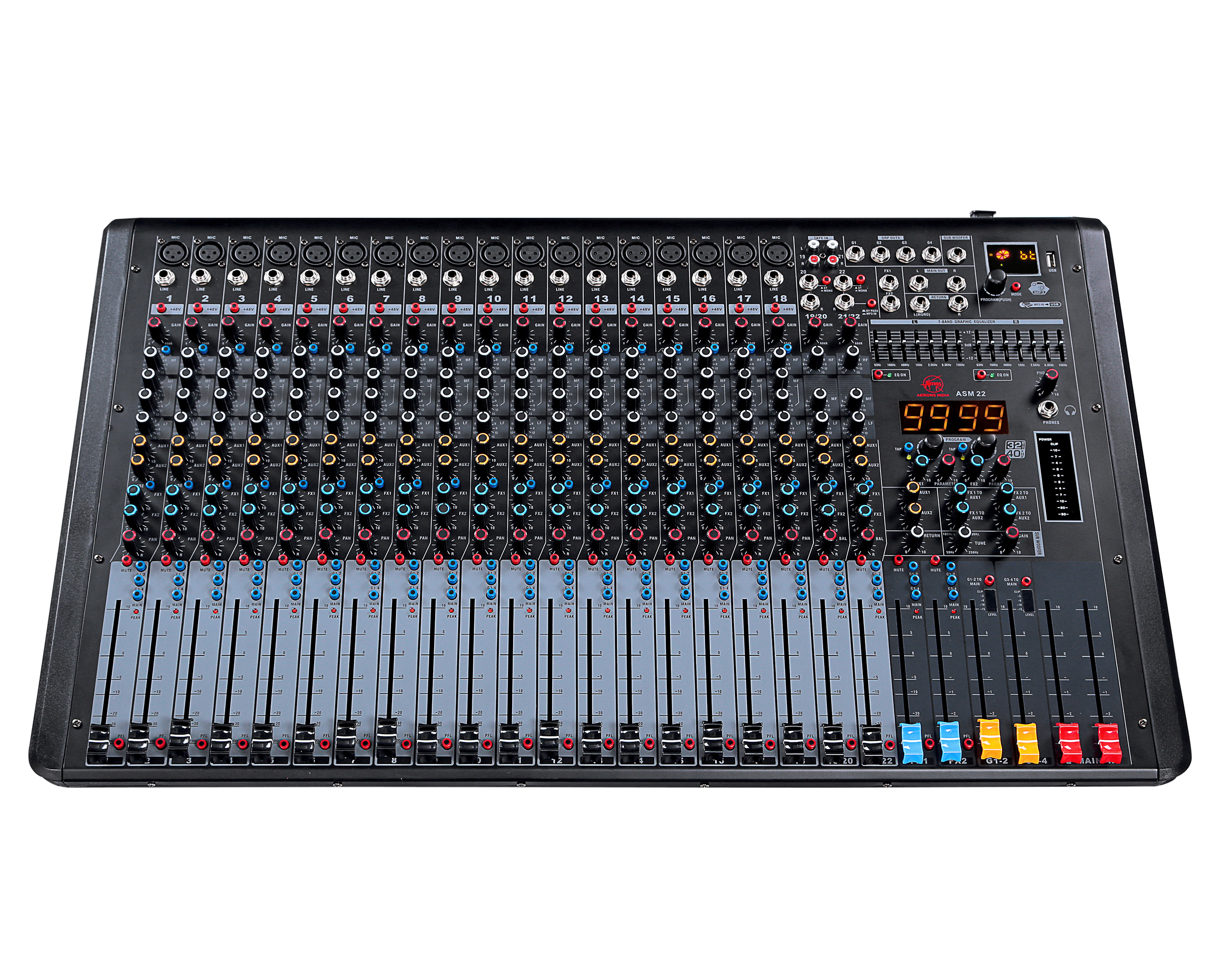

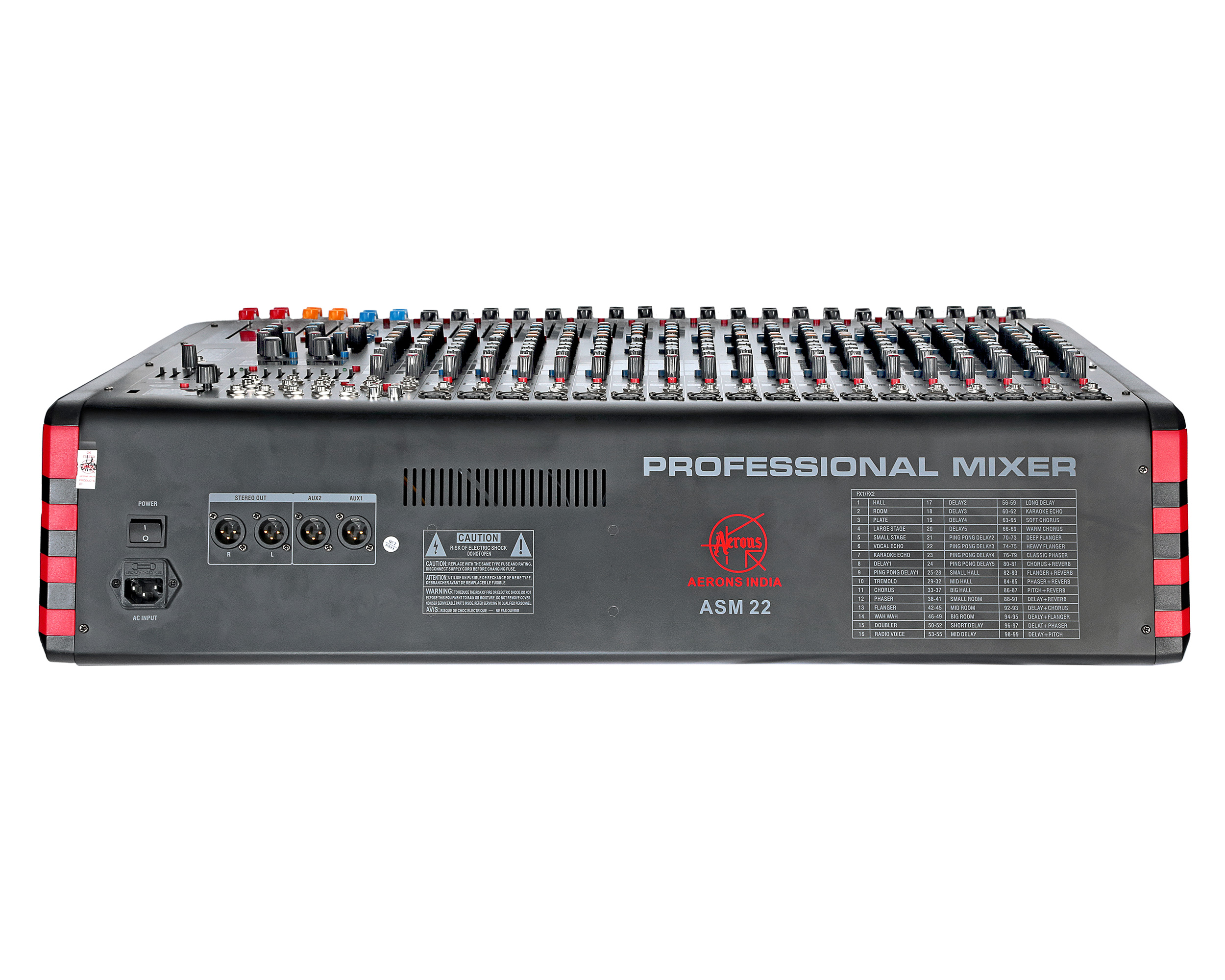

ASM22

• 18 Mic/Line channel +2 Stereo channel mixing console.
• Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
• Build in 32-bit digital DSP effect.
• 3 Band EQ per channel.
• Dual 7 band GEQ with individual on/off switch.
• High quality MP3 player with display and direct Recording function.
• Built-in Bluetooth wireless streaming from smartphones, tablets, and laptops.
• 18 mic/line(mono) input + 2 stereo input.
• Dual effect with separate faders available on all channels and groups
• USB port for MP3, recording and connecting computer with mixer.
• Each channel with mute, G1-2, G3-4 and Main Switch
• Smooth premium-quality faders.
• 3 aux sending and 2 Return
• Robust metal construction for tour-grade build quality and reliability.
• Signal & clip LED indication for master level.
• Peak LED indication per channel.
• Headphone monitor output.
• Each channel with individual +48v Phantom switch.
• Separate switch to change mode from stereo to MP3.
• Direct subwoofer output jack with gain and tune control nobs.
• Each channel has gain control, 3 band EQ control, AUX 1,2,3 control, FX control and L/R PAN control.
• Individual faders for GROUPS
• Control nobs for Returns, FX1 to AUX1, FX2 to AUX1,FX1 to AUX2, FX2 to AUX2 and headphone.
• Dual effect with separate faders available on all channels and groups
