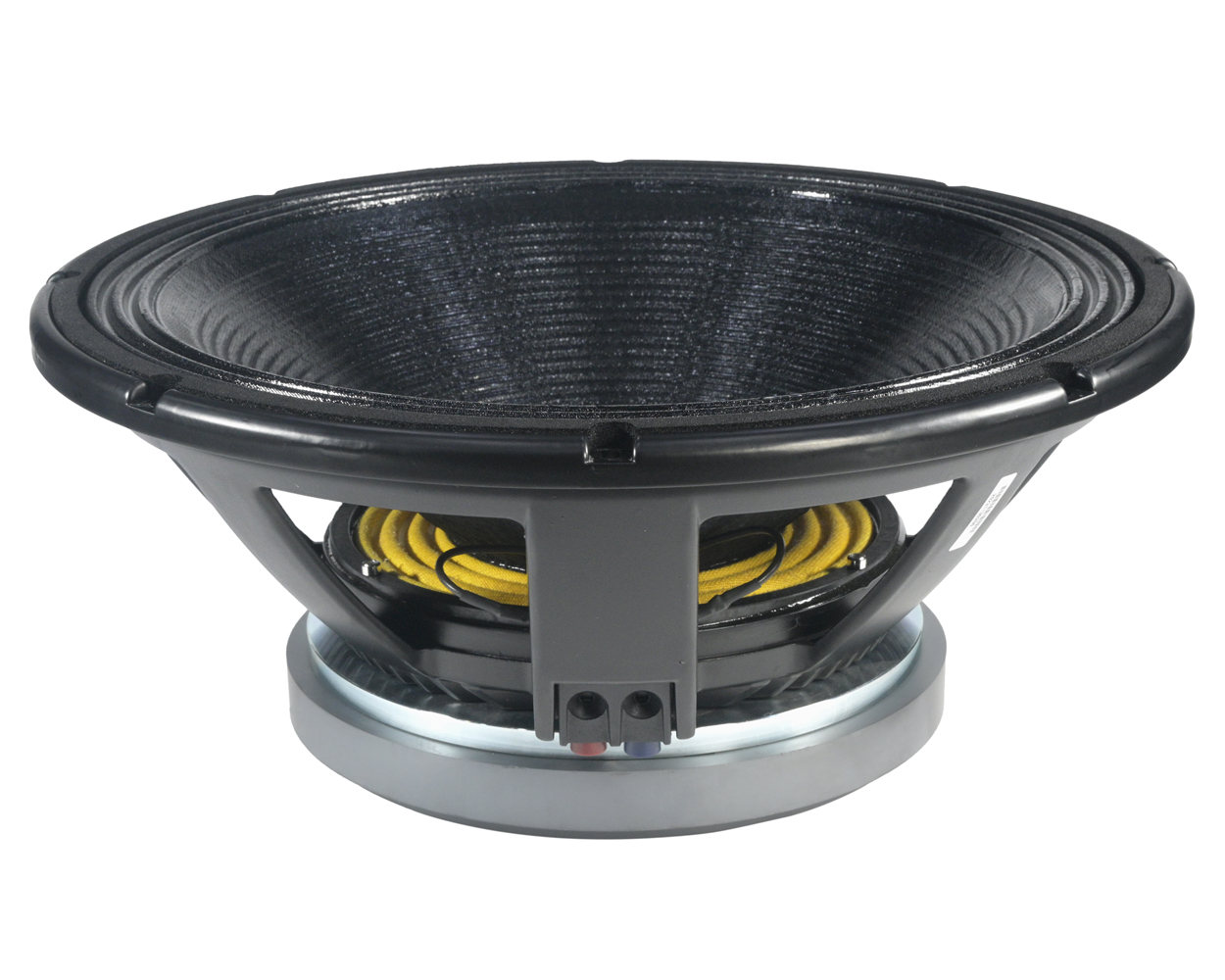

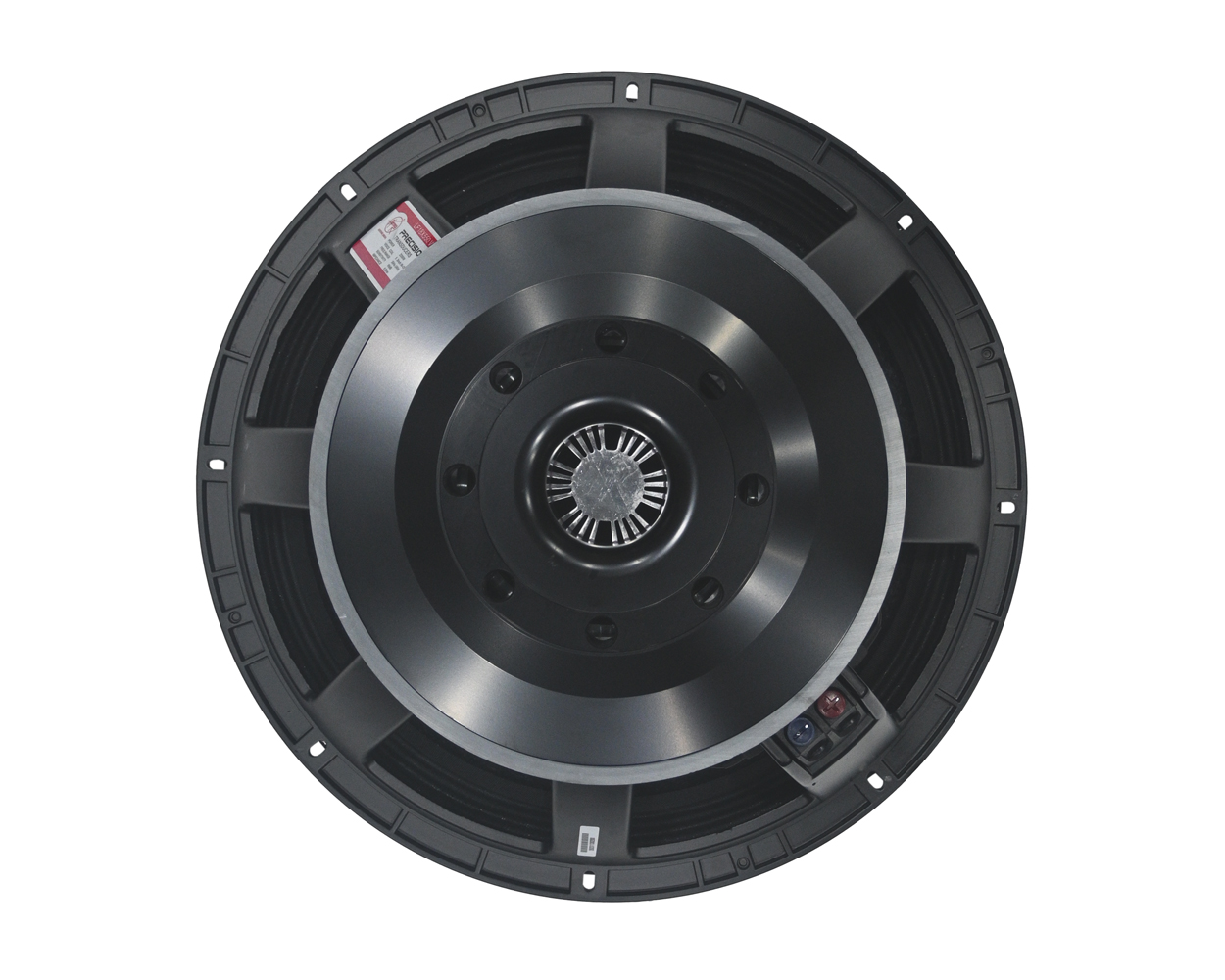

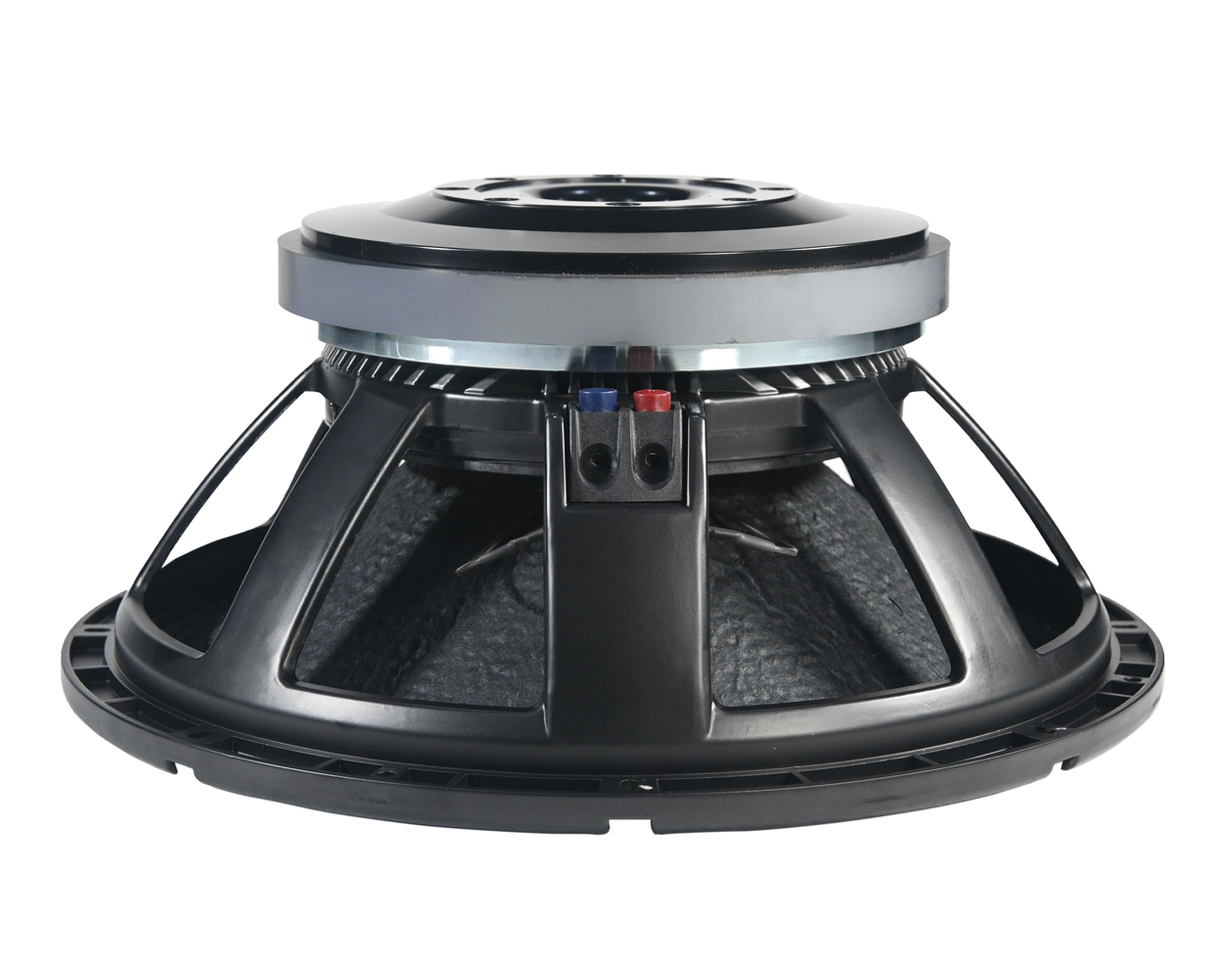

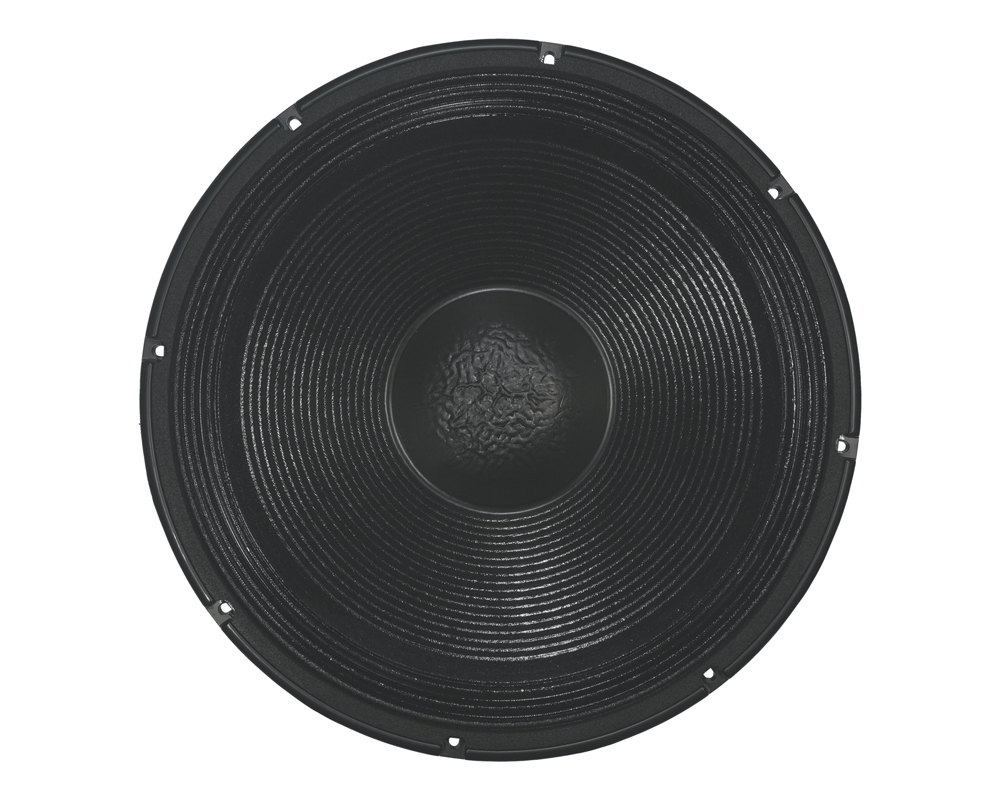

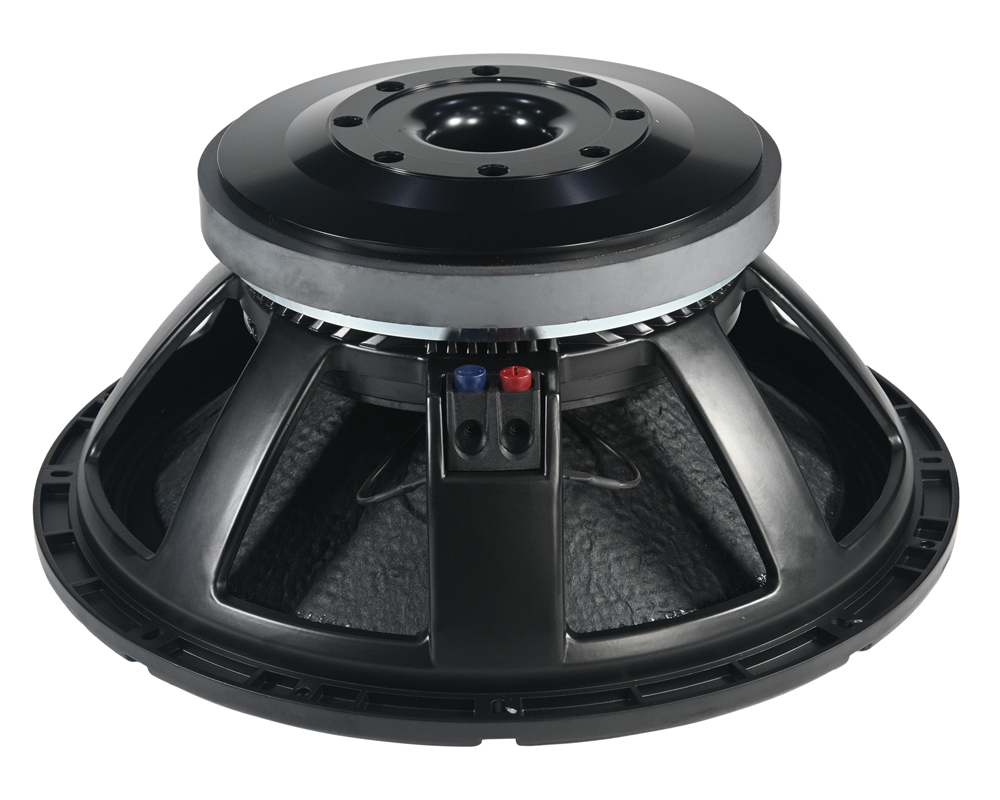

LF18X550 V2

  • 2200W  RMS  power
  • 30 -2KHz Frequency range
  • 5.3 inch Voice coil
  • 99dB Sensitivity
  • Optimized magnet and FEA analyze
  •  WHATSAPP CATALOG AND DATA



LF18X550 V2

  • 2200W  RMS power
  • 30 -2KHz Frequency range
  • 5.3 inch Voice coil
  • 99dB Sensitivity
  • Optimized magnet and FEA analyze

LF18X550 V2

GENERAL SPECIFICATIONS

Nominal Diameter

18inch

Nominal Impedance

8ohm

Minimum Impedance

6ohm

Nominal Power Handling

2200Watts

Continuous Power Handling

4400Watts

Sensitivity

99dB

Frequency Range

30-2KHz

Voice-coil Diameter

132.5mm

Voice-coil Material

PISV

Kind of layer

In/out

Magnet Diameter

280*25mm

Magnet Material

Ferrite



THIELE- SMALL PARAMETERS

Resonance Frequency

Fs

38Hz

DC Resistance

Rte

6ohm

Mechanical Factor

Qms

15.9

Electrical Factor

Qes

0.42

Total Factor

Qts

0.41

BL Factor

BL

31.5T-m

Equivalent Cas Air Load

Vas

132.4liter

Effective Piston Area

Sd

125Kcm

Max. Linear Excursion

Xmax

11mm

Half Space Efficiency

Eff

1.75%



MOUNTING & SHIPPING INFORMATION

Overall Diameter

465mm

Baffle Cut-out Dia.

422mm

Bolt Circle Dia.

445mm

Overall Depth

193mm

Net Weight

22kg
