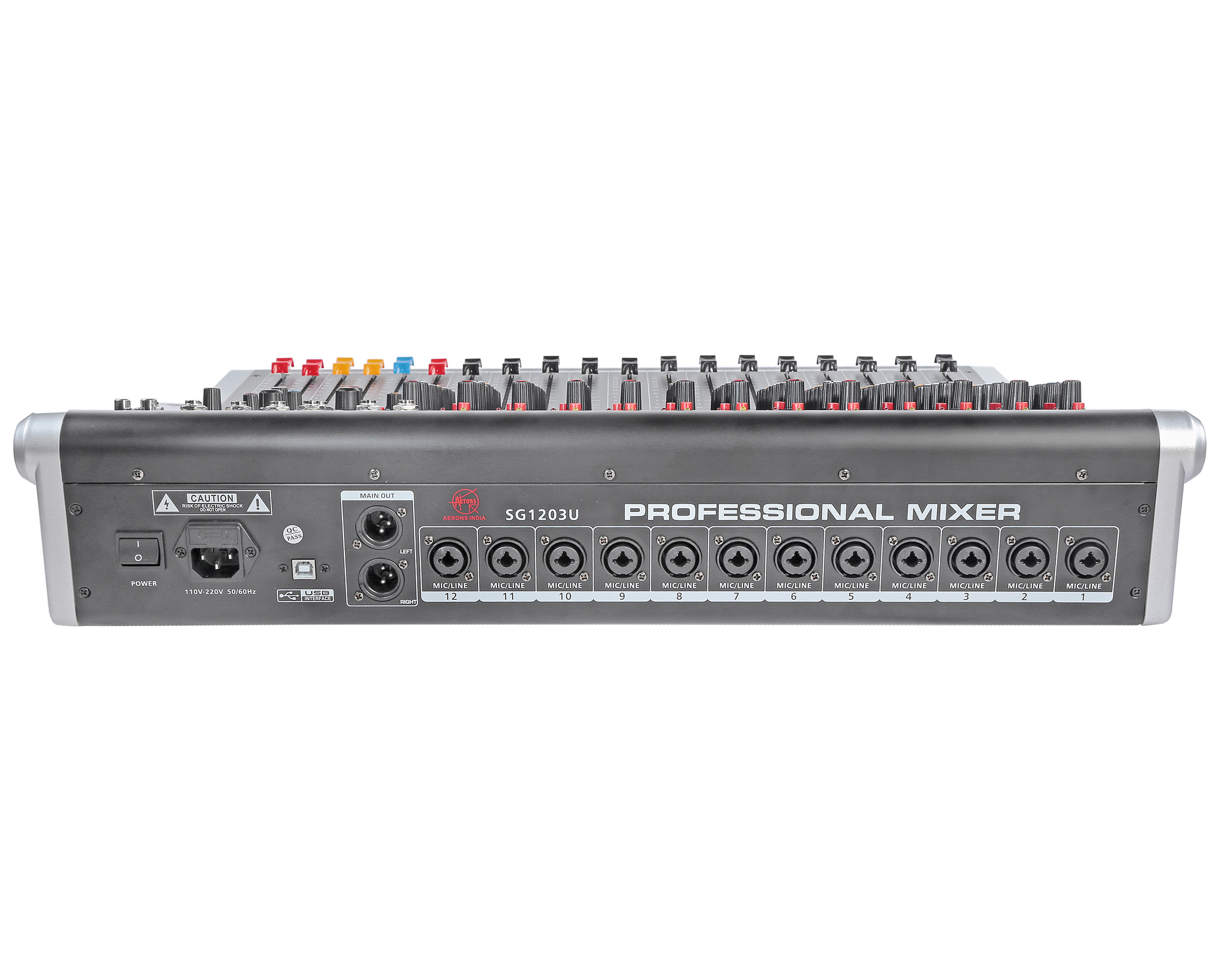

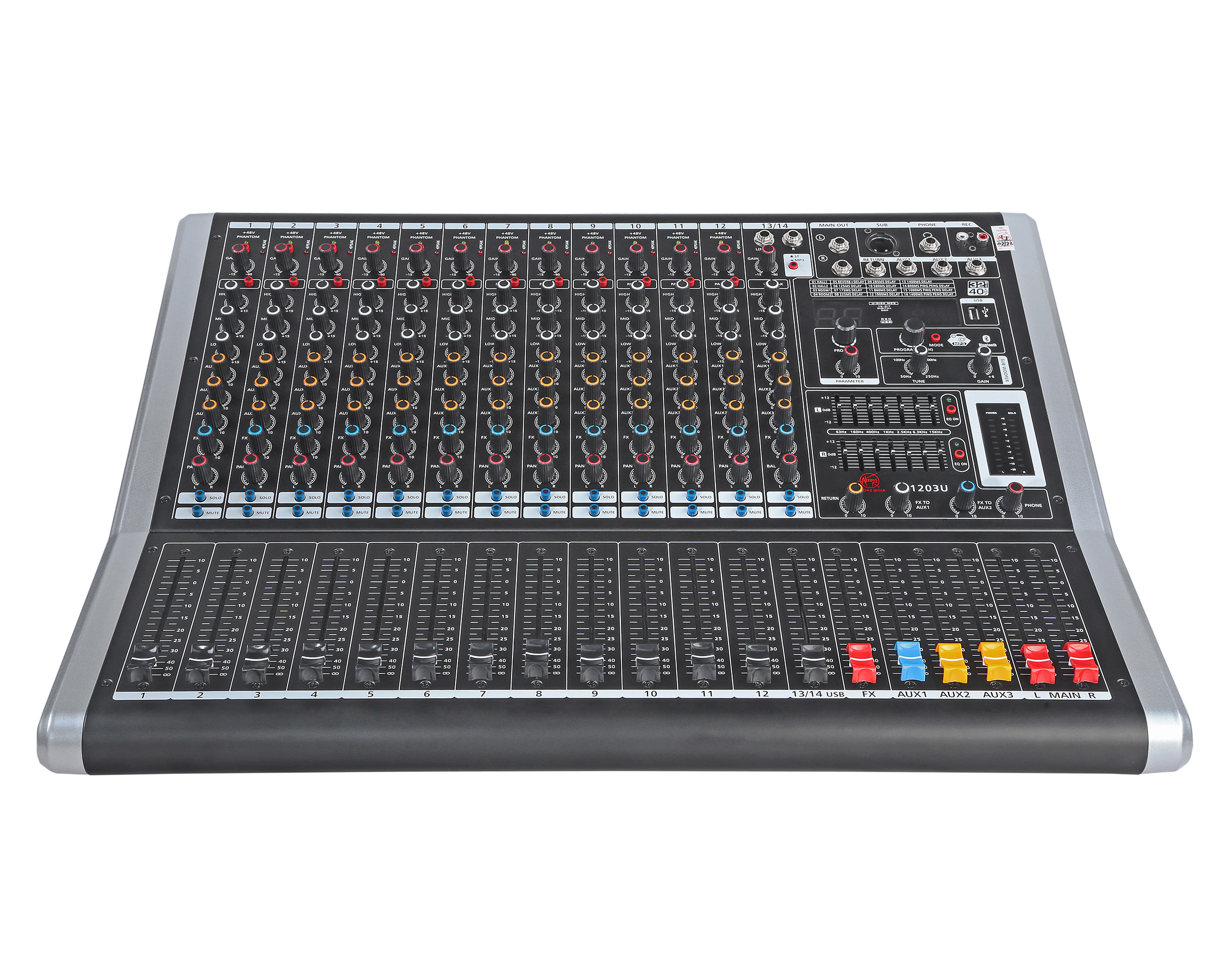

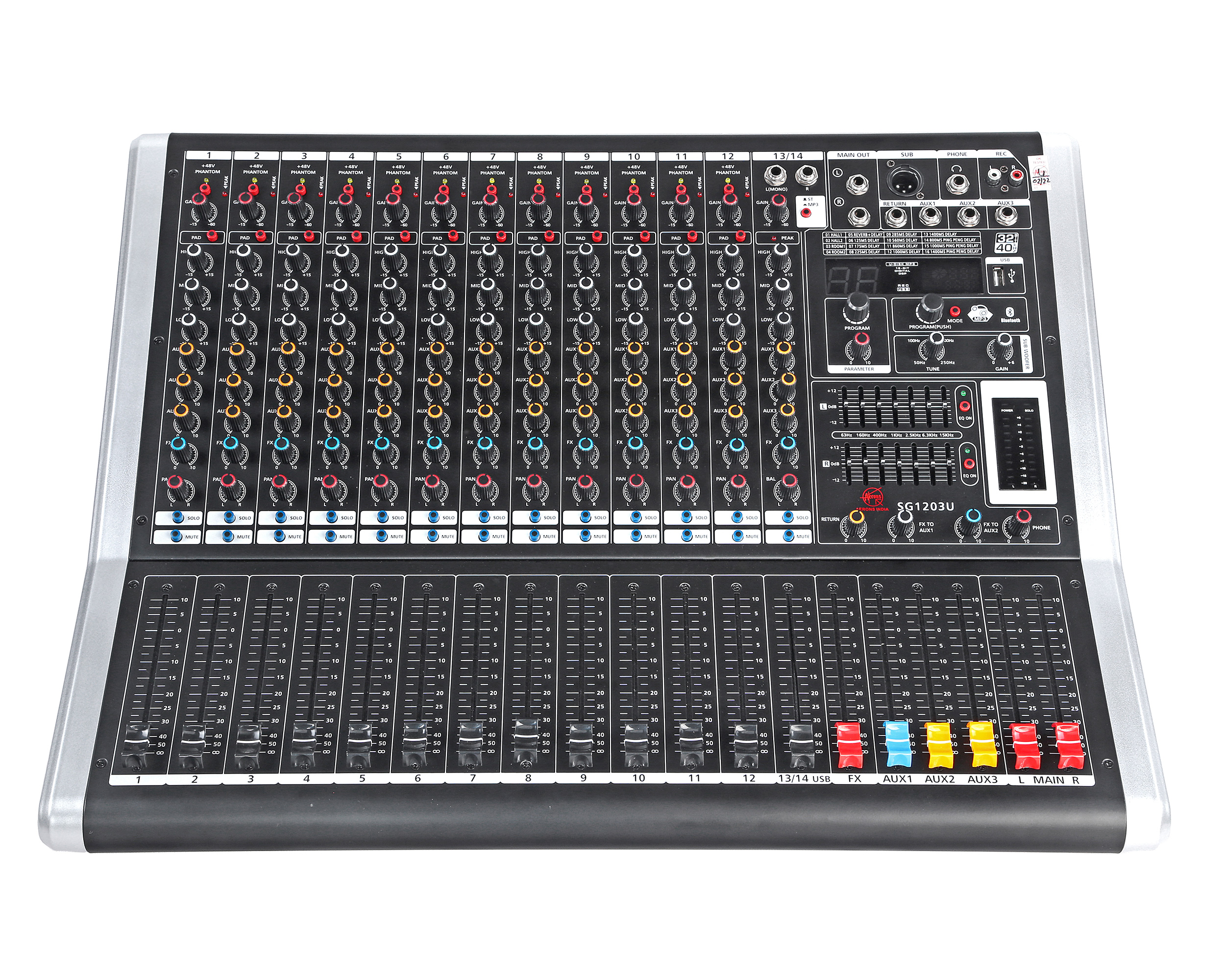

SG1203U

  • 12 Mic/Line channel +1 Stereo channel mixing console.
  • Build in 16-bit digital DSP effect.
  • 3 Band EQ per channel
  • Dual 7 band GEQ
  • Built-in Bluetooth wireless streaming
  • USB port for MP3, recording
  • 3 aux sending and 1 Return
  •  WHATSAPP CATALOG AND PRICE

SG1203U

  • 12 Mic/Line channel +1 Stereo channel mixing console.
  • Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
  • Build in 16-bit digital DSP effect.
  • 3 Band EQ per channel.
  • Dual 7 band GEQ with individual on/off switch.
  • High quality MP3 player with display and direct Recording function.
  • Built-in Bluetooth wireless streaming from smartphones, tablets, and laptops.
  • 12 mic/line(mono) input with combo jack + 1 stereo input.
  • USB port for MP3, recording and connecting computer with mixer.
  • Smooth premium-quality faders.
  • 3 aux sending and 1 Return
  • Robust metal construction for tour-grade build quality and reliability.
  • Signal & clip LED indication for master level.
  • Peak LED indication per channel.
  • Each channel with mute, Solo and PAD switch.
  • Headphone monitor output.
  • Each channel with individual +48v Phantom switch and LED.
  • Separate switch to change mode from stereo to MP3.
  • Direct subwoofer output jack with gain and tune control nobs.
  • Each channel has gain control, 3 band EQ control, AUX 1,2,3 control, FX control and L/R PAN control.
  • Individual faders for AUX 1,2,3.
  • Control nobs for Return, FX to AUX1, FX to AUX2 and headphone.

SG1203U

MODEL NO

SG1203U

MIC (Gain Min/Gain Max)

+14db/+60db

LINE (Gain Min/Gain Max)

6dbDB /+38db

MAIN OUTPUT LEVEL (Nominal/Max)

+28DB balanced

FREQUENCY RESPONSE

10HZ to 80KHzm +-3DB

TOTAL HARMONIC DISTORTION

0.01% at +4DBu,1KHz, Bandwidth 80KHz

SIGNAL TO NOISE RATIO

+115DB, all channels at Unity Gain

CLIP INDICATION

0DBu

EQUALISATION(HIGH/MID/LOW)

12KHZ+- 15DB /2.5HZ+- 15DB /80HZ+-15DB

INPUT LEVEL SENSITIVITY

-55DBu

INPUT IMPEDANCE

MIC 2Kohms/LINE 15 Kohms

POWER SUPPLY

30W

DIMENSIONS

(W)607mm X (D)478mm X (H)117mm
