Rated Power (1 KHz, THD+N=0.1%) |
8Ω stereo 800W |
|
4Ω stereo 1350W |
|
2Ω stereo 1625W |
|
8Ω bridge 2700W |
|
4Ω bridge 3250W |
Frequency Response (1W 8Ω stereo) |
20Hz ̴ 20KHz(±1dB) |
Mode |
Stereo/Bridge/Parallel |

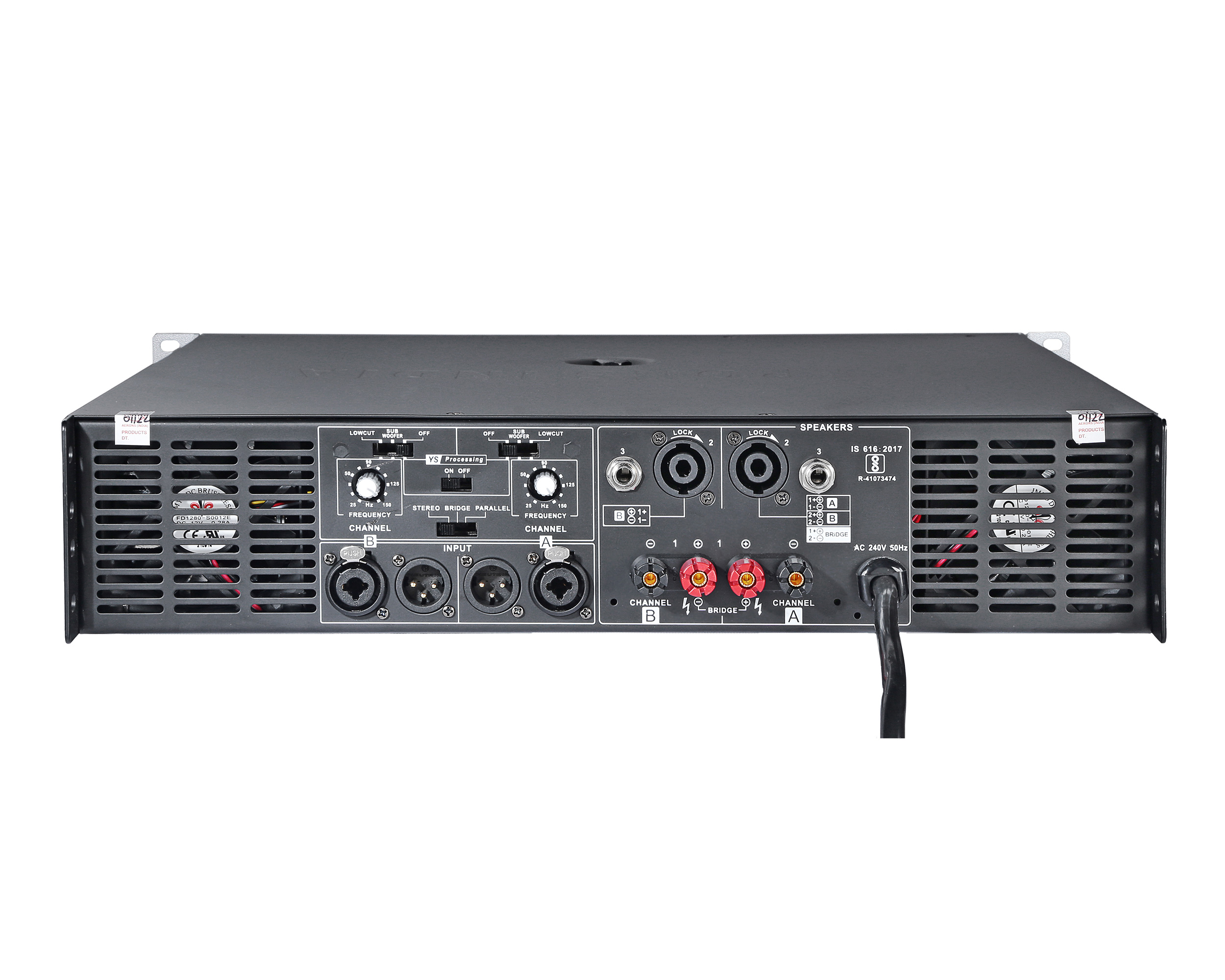

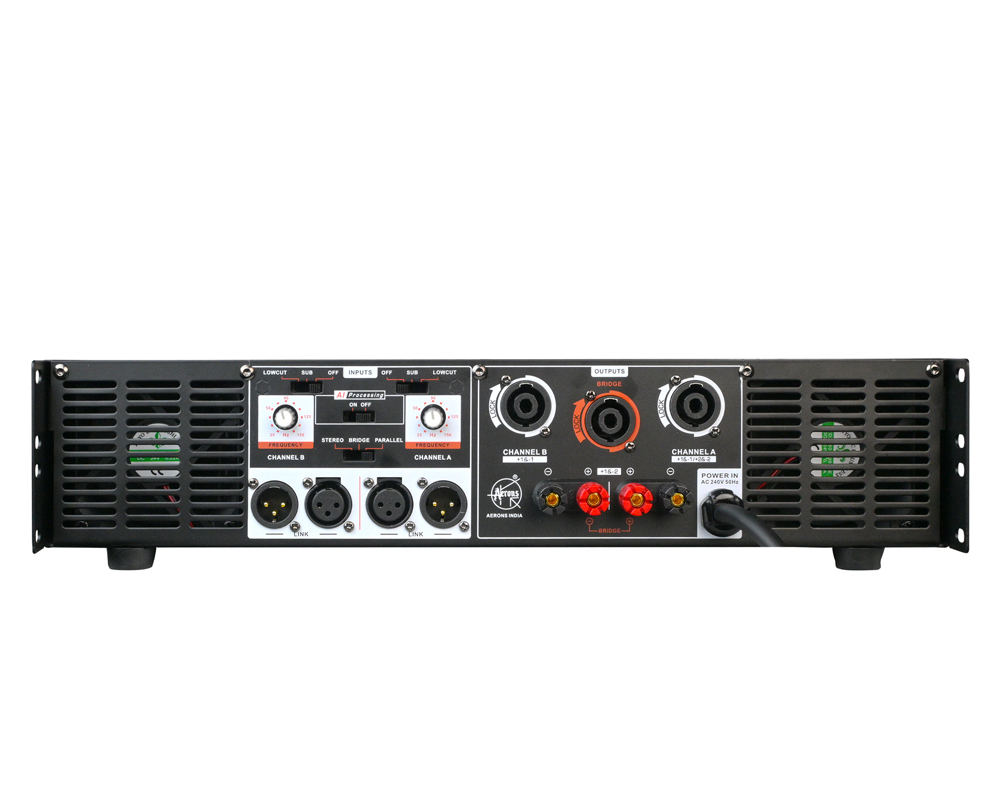

Input connectors |
Jack & female XLR (Neutrik®) |
Output connectors |
Binding post & Speakon (Neutrik®) |
Input Impedance |
Balanced 20K Unbalanced 10K |
Input Sensitivity |
1.4V |
Total Harmonic Distortion (20Hz~20KHz Rated Power, 8Ω) |
≤0.05% |
S/N ratio (8Ω, Rated Power 8Ω) |
≥108dB |
Damping Factor (1KHz, 89) |
≥300 |
Dimension (W x H x D) |
480x515x88 mm |
Net Weight |
24.6kg |
Gross Weight |
28.5Kg |
