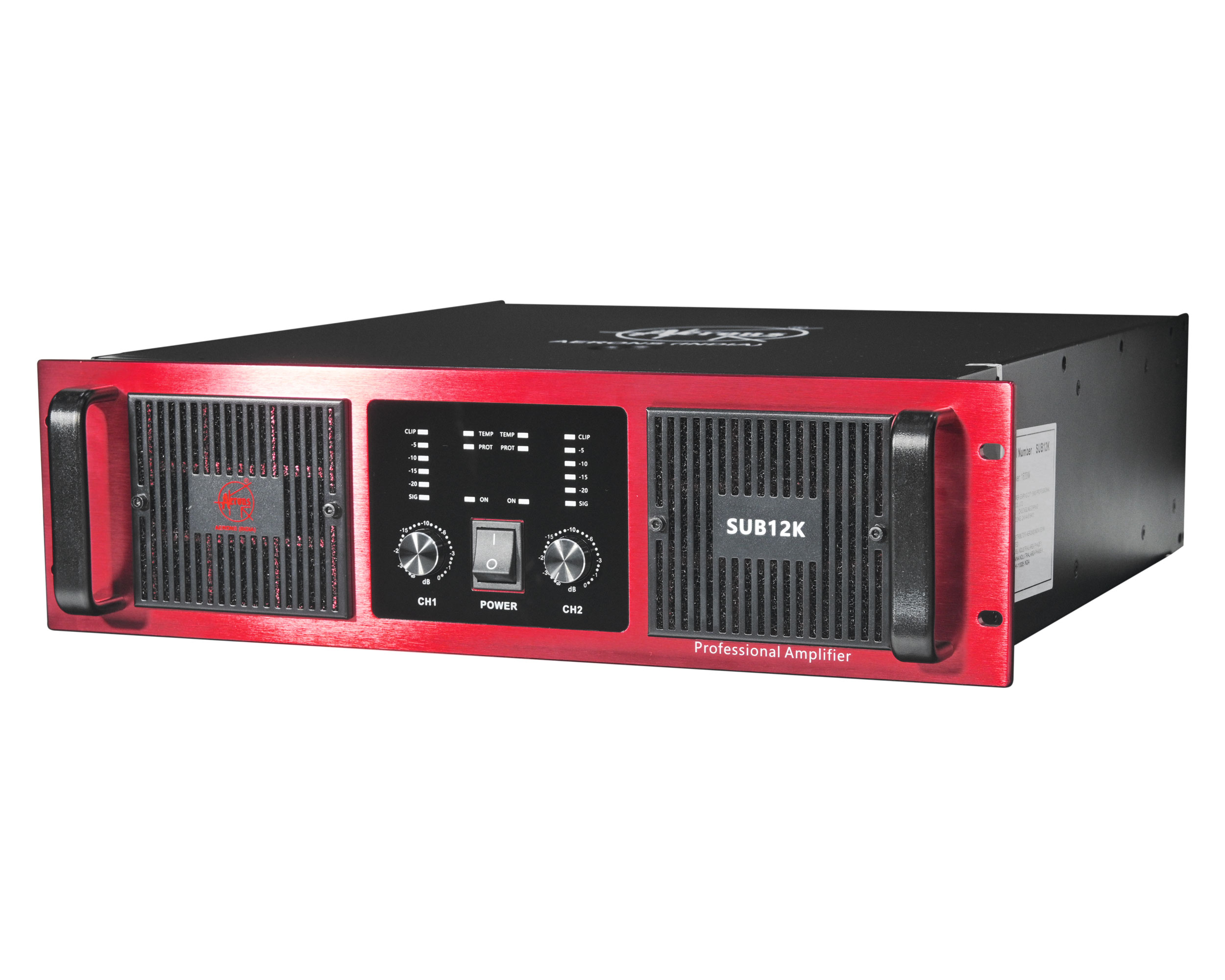

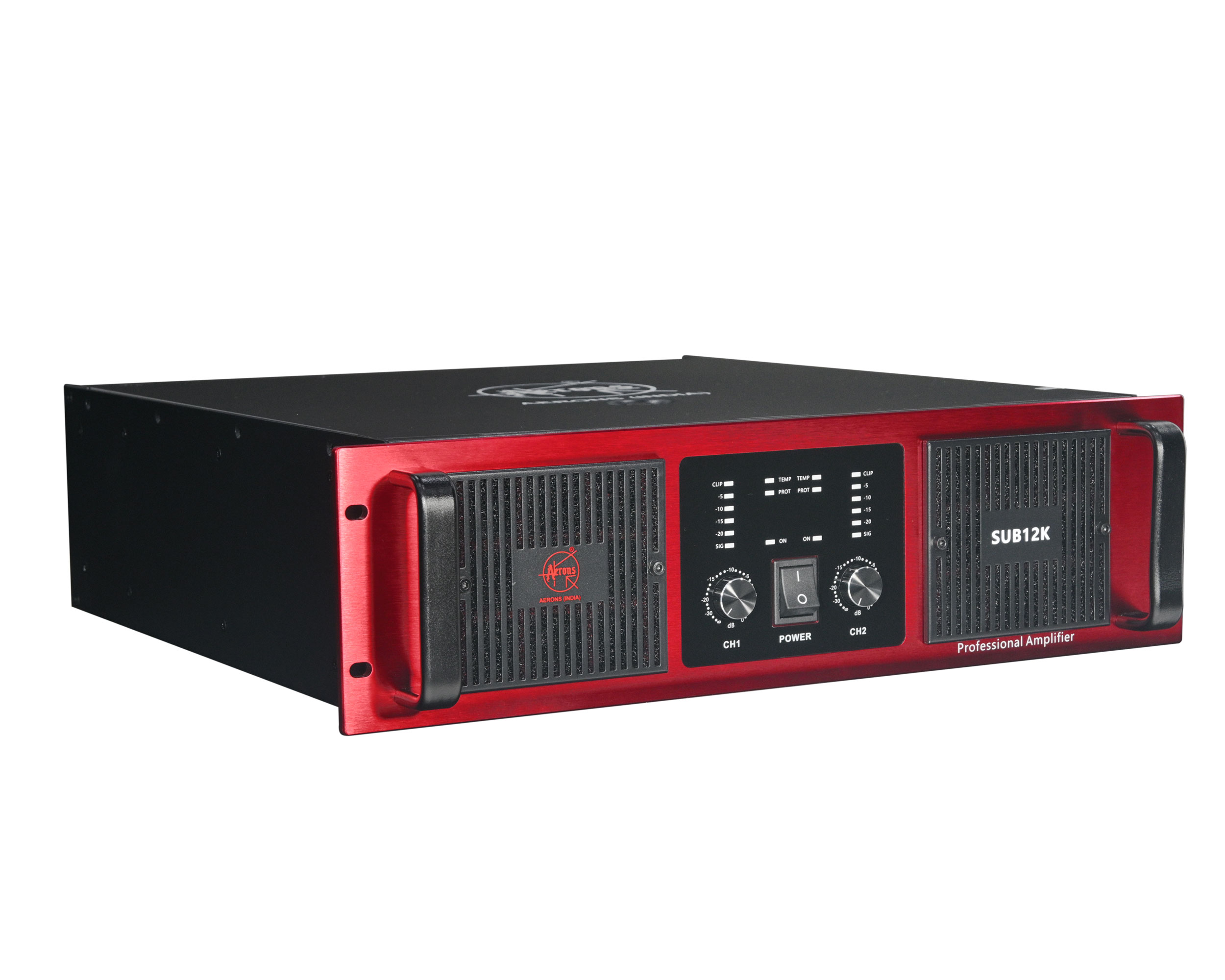

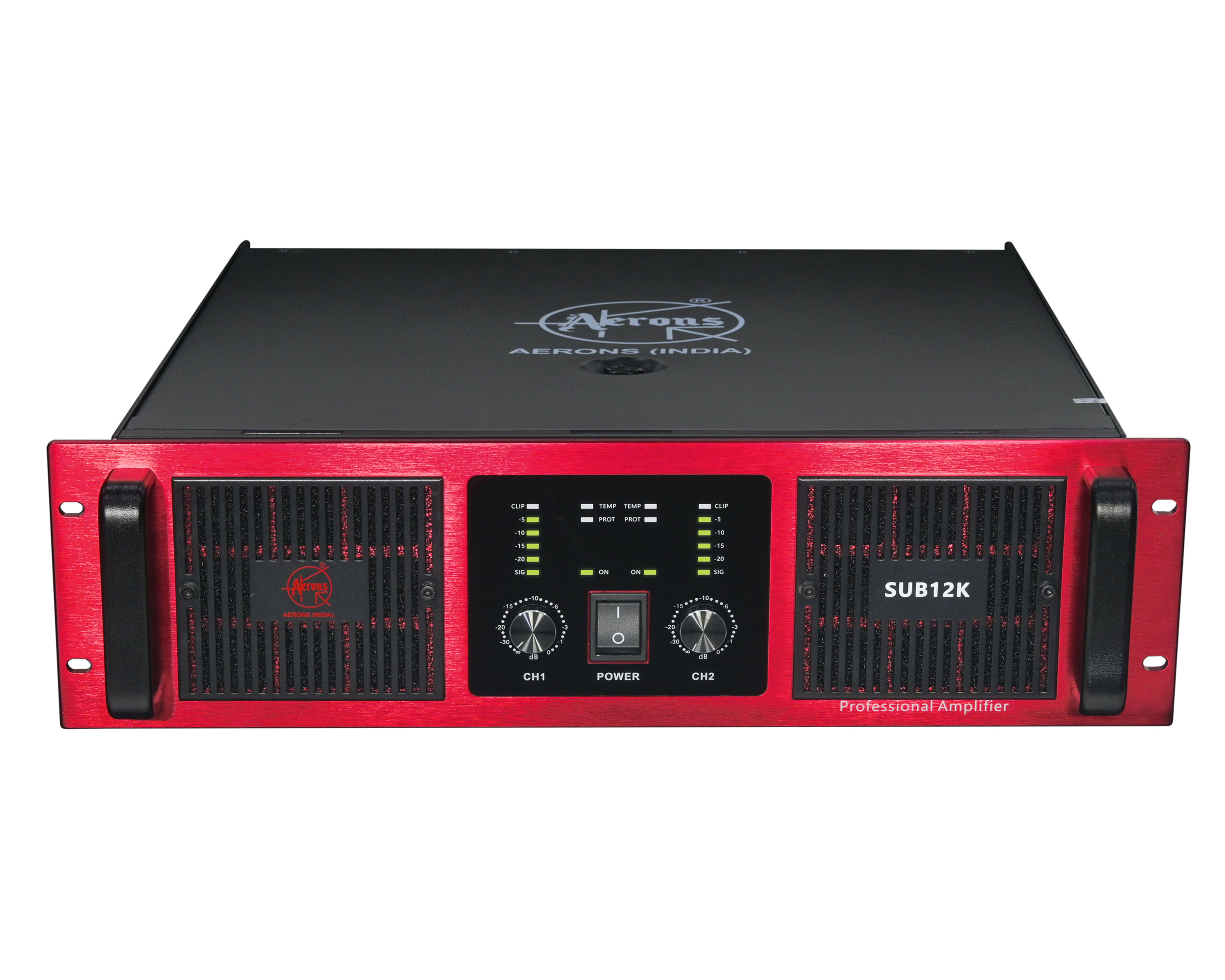

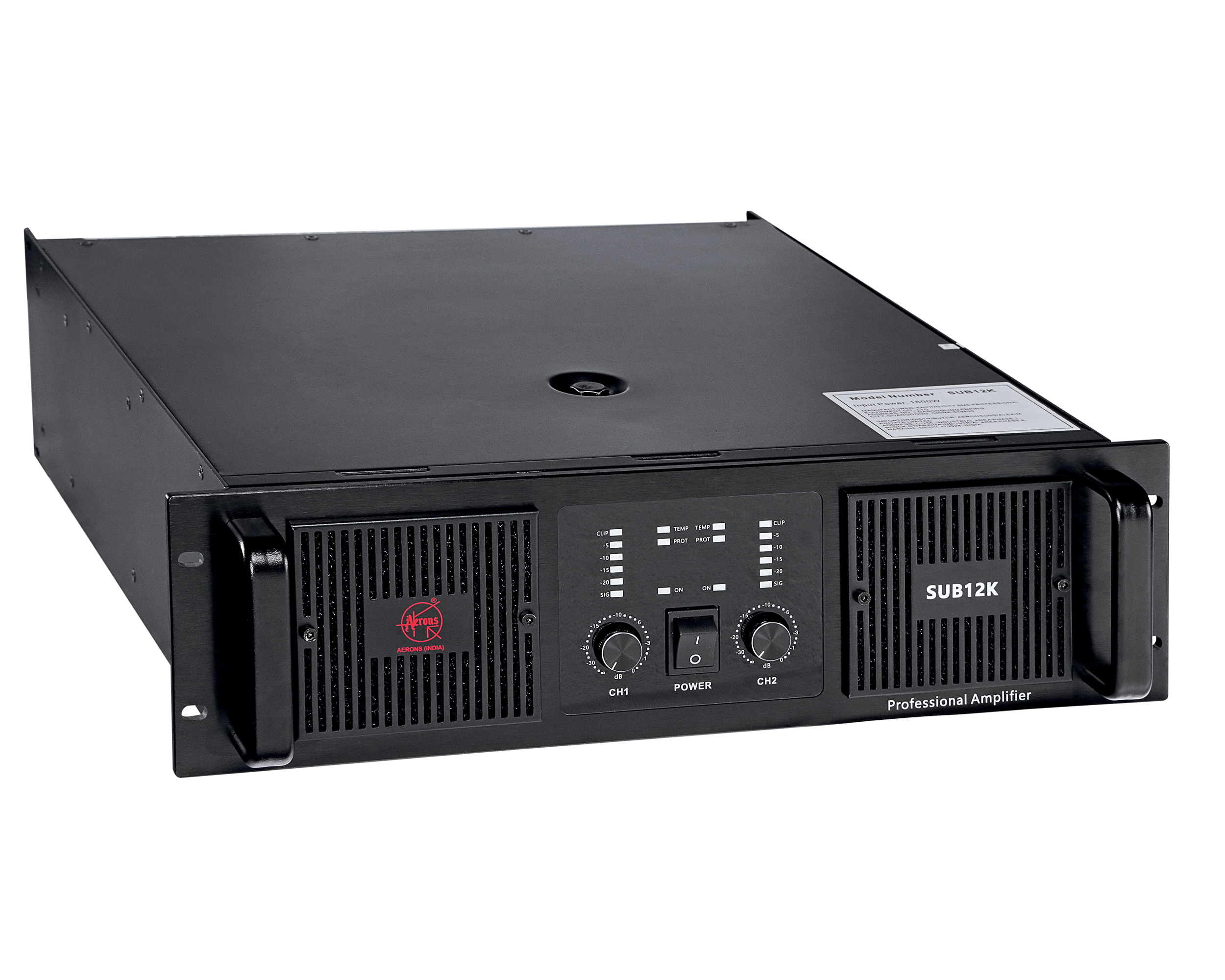

SUB12K
HARD PUNCH

SUB12K

  • Precision Power, Signal, CLIP, PROT to monitor performace
  • Selectable Low-frequency filters(30Hz) remove distracting infra-sound frequencies.
  • Independent limiters per channel offer reliable protection against overload and distortion.
  • High-current copper transformer for ultra high transient response and absolute reliability.
  • Ultra reliable Onsemi and SANKEN power transistors.
  • Independent DC and thermal protection on each channel automatically protects amplifier
  • and speaker without shutting down the show.
  • “Front to rear” ventilation system avoid uncomfortable feelings when operate the amps from front panel.
  • High strength of 2mm thickness amp chassis with 6mm aluminum front panel
  • High quality electronic elements and extraordinarily robust construction ensure long life span.
  • Bass Enhancer for better bass response.
  • Works perfectly even at low voltage, specifically “Make for India”.
  • Designed by AERONS INDIA, India.

SUB12K

Rated Power (1 KHz, THD+N=0.1%)



8Ω stereo

2x2200W

4Ω stereo

2x3600W





Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz(±0.5dB)

Sensitivity (8Ω stereo @1Khz)

1.4V





Protection

DC Protection, Short circuit protection, High-temperature protection, Output overload protection, Soft start protection, Clip limit protection, VHF protection, and Progressive volume protection.

Fan Speed Regulation

Auto-speed

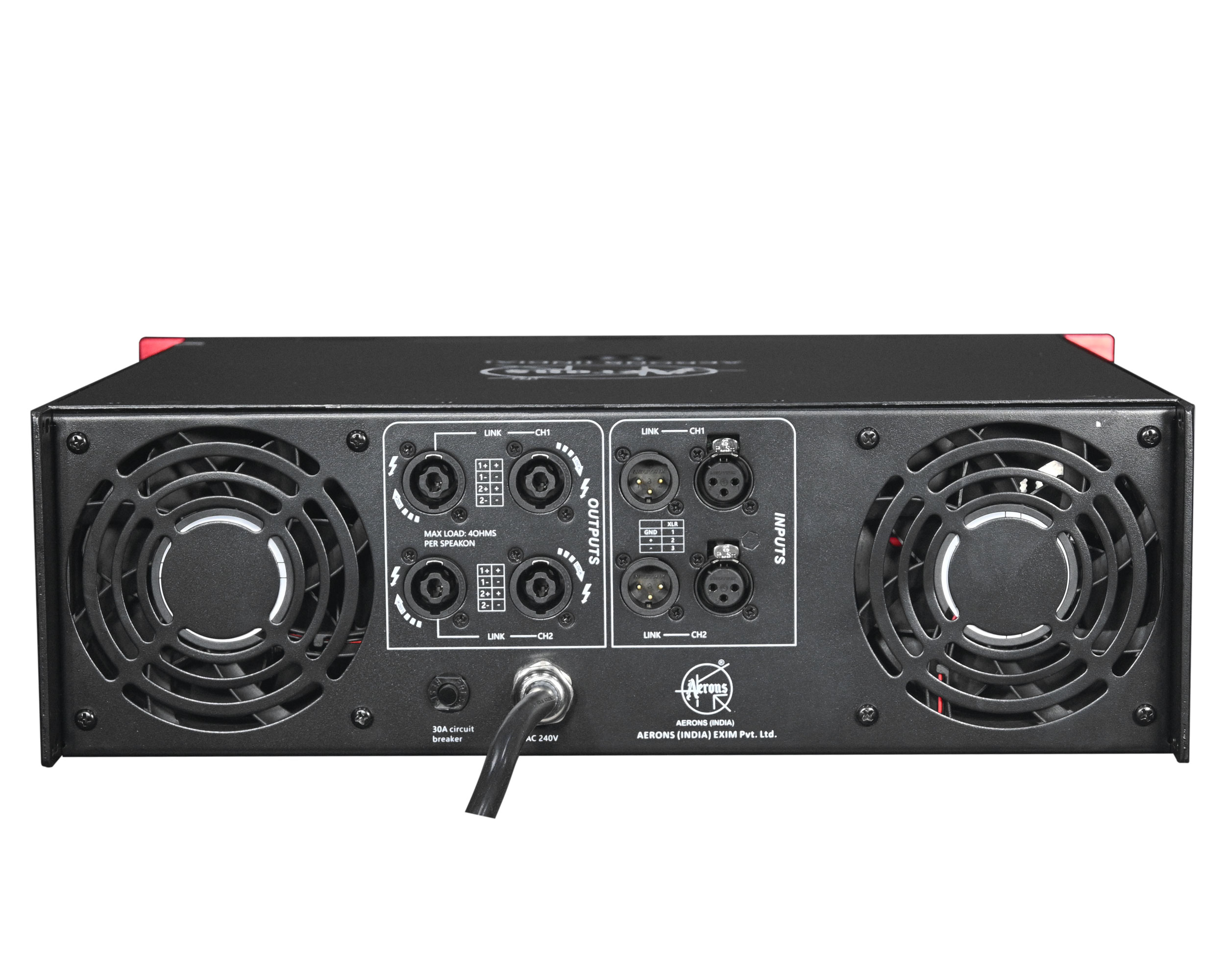

Connectors (Each channel)

Input connectors

XLR (Neutrik®)

Output connectors

Speakon (Neutrik®)

Filter Capability

3900µF/250Vx12

Input Impedance

Balanced

20K

Unbalanced

10K

Channel separation (8Ω load, 1KHz and below)

≥70dB

Slew Rate

35V/µs

S/N ratio (8Ω, Rated Power 8Ω)

≥95dB

Damping Factor (1KHz, 8Ω)

≥800

Output Circuitry

Class AB+D

Dimension (W x H x D)

483x133x515 mm

Gross Weight

40.1Kgs

Net Weight

45.8 Kgs
