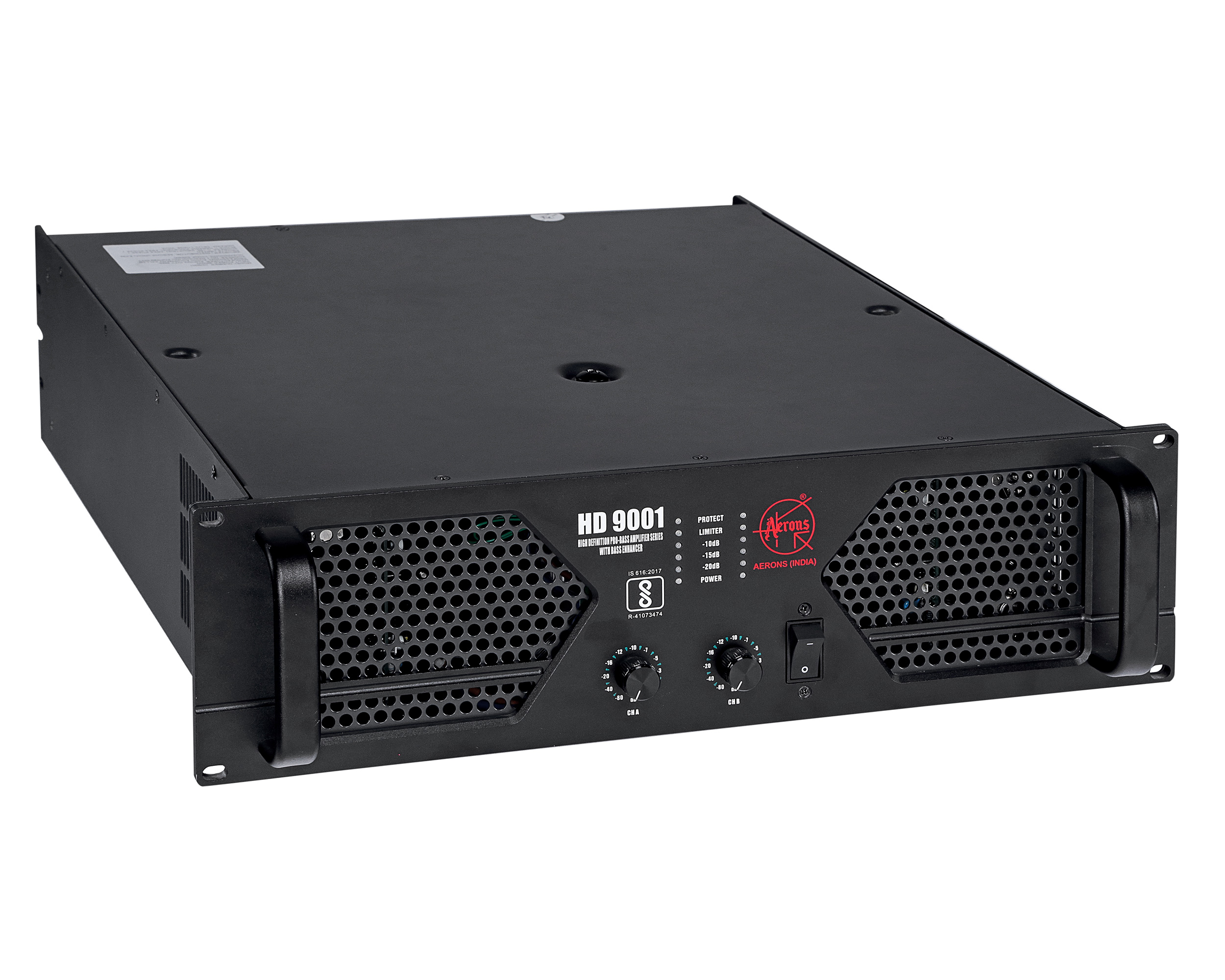

HD 9001
  • RMS  Power(Per Channel,8Ω): 2X1500W
  • RMS  Power(Per Channel,4Ω): 2X2400W
  • RMS  Power(Per Channel,2Ω): 2X3100W
  • Rated Power(Bridge 8Ω): 4800W
  • Rated Power(Bridge 4Ω): 6200W



       WHATSAPP CATALOG AND PRICE

HD 9001

  • - Precise Power, Signal, Clip LEDs to monitor performance
  • - Neutrik XLR and 1/4” TRS input connectors for compatibility with any source.
  • - Neutrik speakon and “touch-proof” binding posts support most speaker wiring system.
  • - Selectable Low-frequency filters (30Hz) remove distracting infra-sound frequencies.
  • - Independent limiters per channel offer reliable protection against overload and distortion.
  • - High-current toroidal transformer for ultra high transient response and absolute reliability.
  • - Ultra reliable Onsemi power transistors.
  • - “Built like a tank” impact resistant, high strength rear ear with aluminum front panel.
  • - “Back to front” ventilation system including air filters for reliable operation.
  • - Independent DC and thermal protection on each channel automatically protects amplifier and oped without shutting down the show.
  • - Carling switch Circuit breaker for safety.
  • - The lowest power consumption is less than 0.1A when working without load.
  • - Bass Enhancer in HD 9001 for better bass response.
  • - High quality components and exceptionally rugged construction ensure long life.
  • - Works perfect even at low voltage “Make for India”
  • - Conceived and Designed by AERONS INDIA, India.

HD 9001

Rated Power (1 KHz, THD+N=0.1%)

8Ω stereo   2x1500W



4Ω stereo   2x2400W



2Ω stereo   2x3100W



8Ω bridge   4800W



4Ω bridge   6200W

Frequency Response (1W 8Ω stereo)

20Hz   ̴ 20KHz(±2dB)

Mode

Stereo/Bridge/Parallel

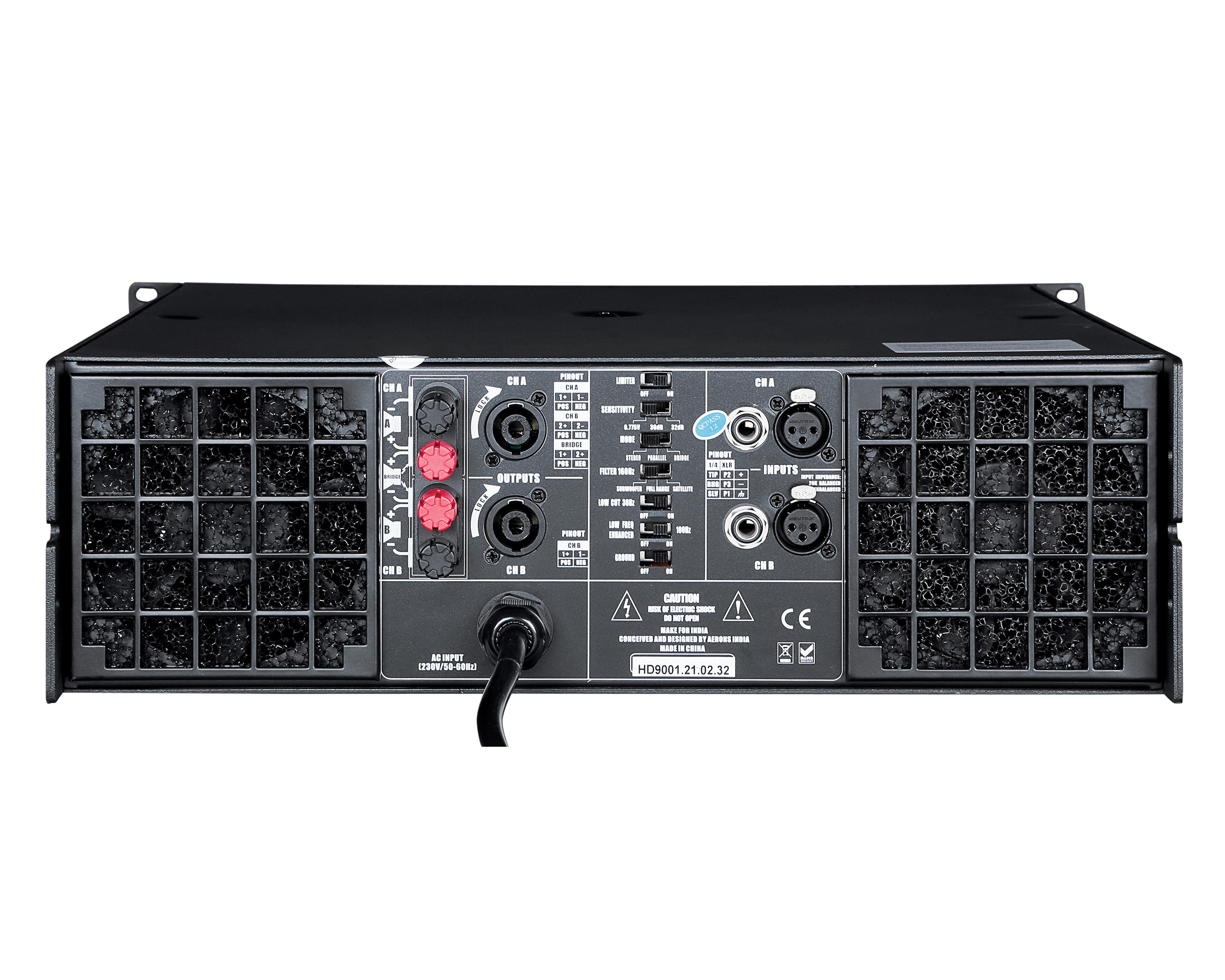

Input connectors

Jack & female XLR (Neutrik®)

Output connectors

Binding post & Speakon (Neutrik®)

Input Impedance

Balanced            20K

Unbalanced       10K

Input Sensitivity

0.775V, 36dB, 32dB

Crosstalk (20Hz~20KHz Rated Power 8Ω)

≥60dB

Intermodulation Distortion

≤0.5%

Total Harmonic Distortion        (20Hz~20KHz Rated Power, 80)

≤0.5%

S/N ratio (8Ω, Rated Power 8Ω)

≥105dB

Phase Response (1W, 8Ω 20Hz~20KHz)

+10° -70°

Damping Factor (1KHz, 89)

≥1000

Dimension (W x H x D)

483x132x491 mm

Gross Weight

42.0Kg
